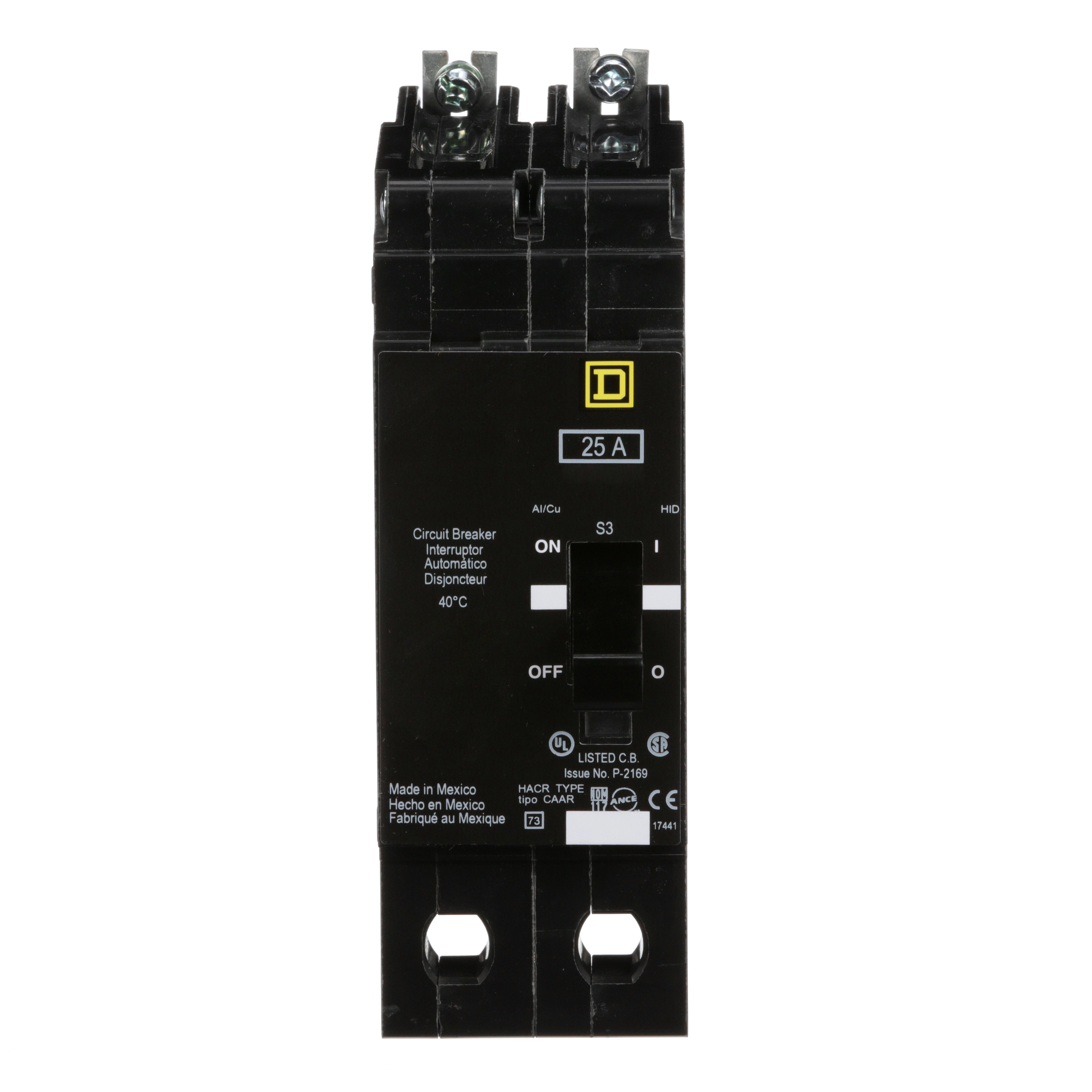

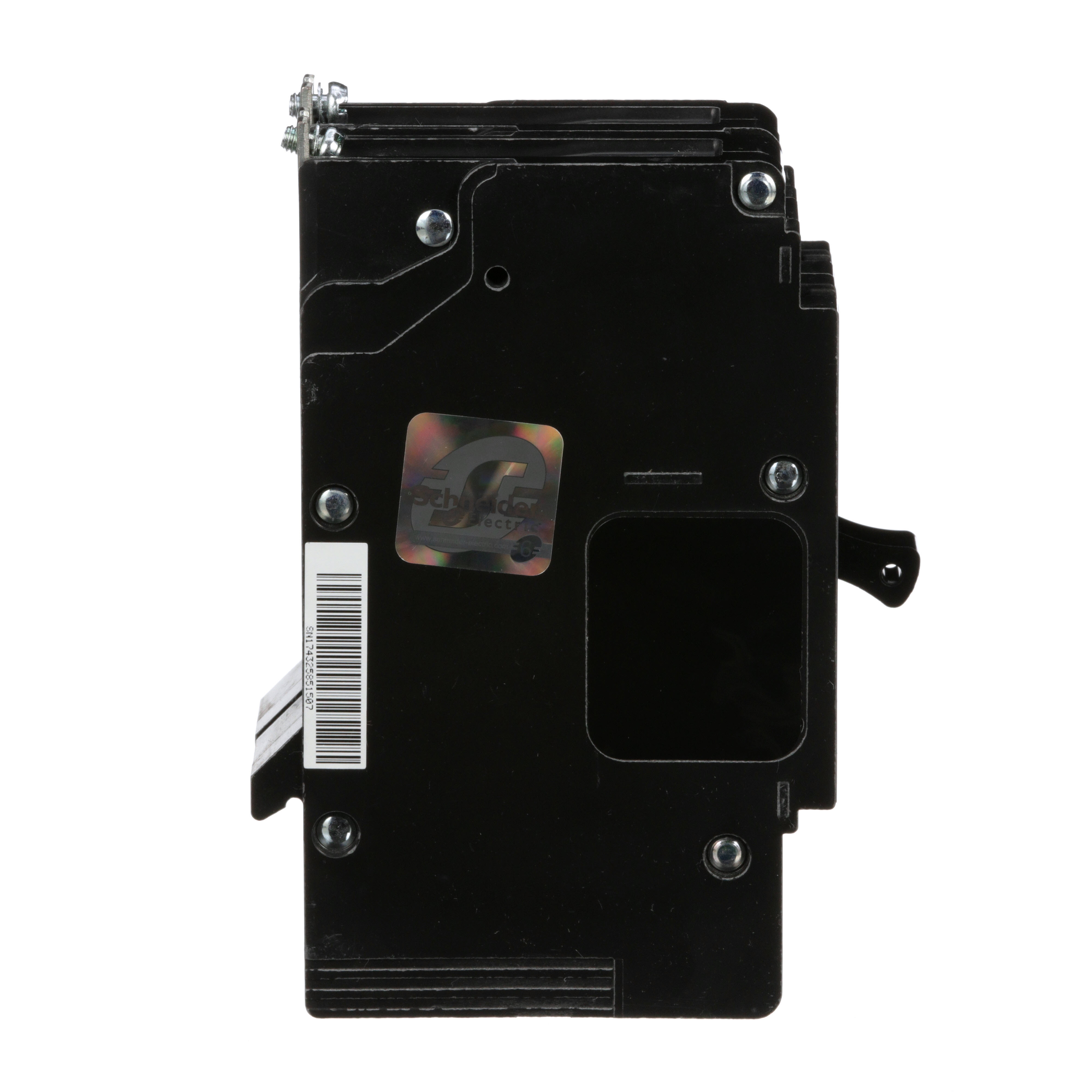

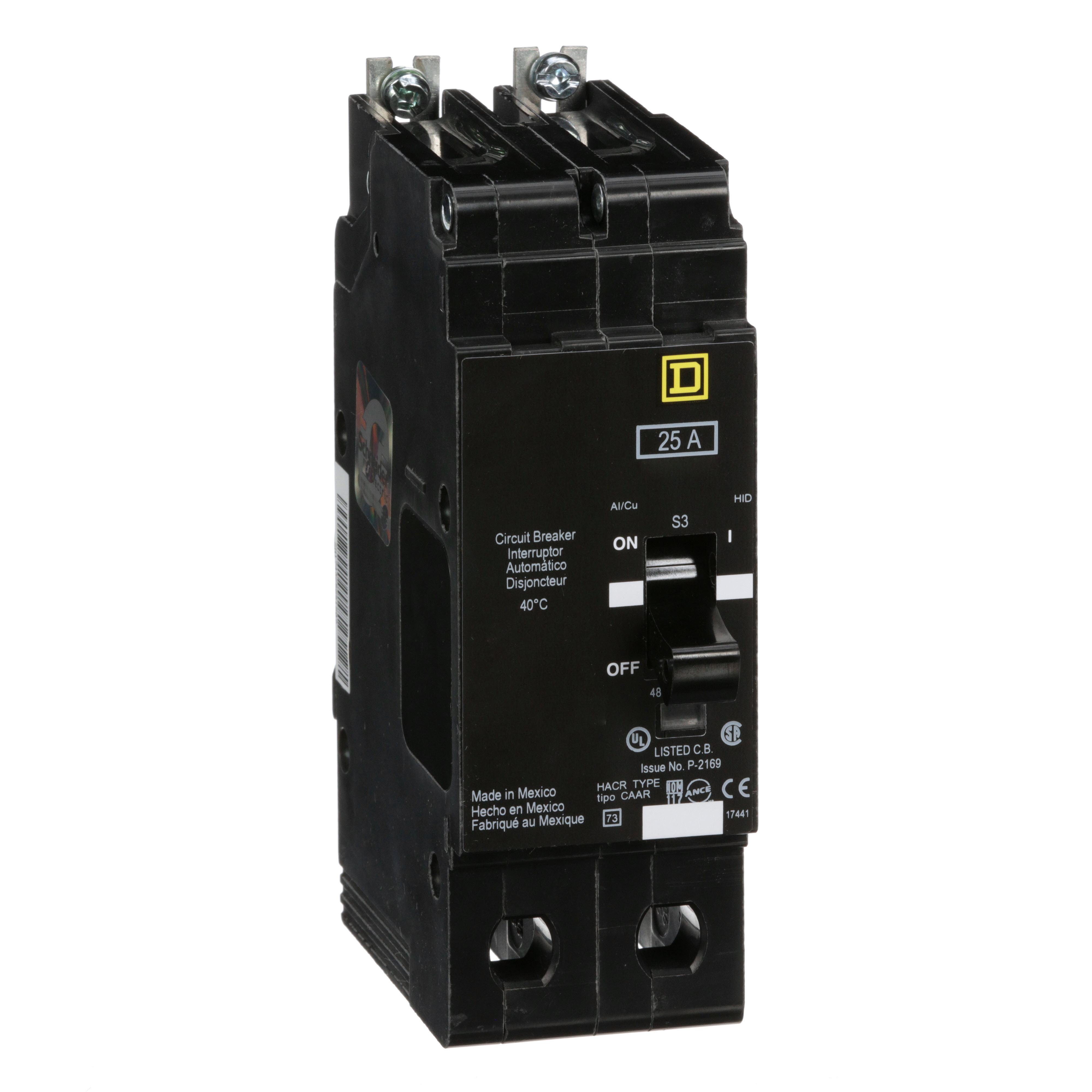

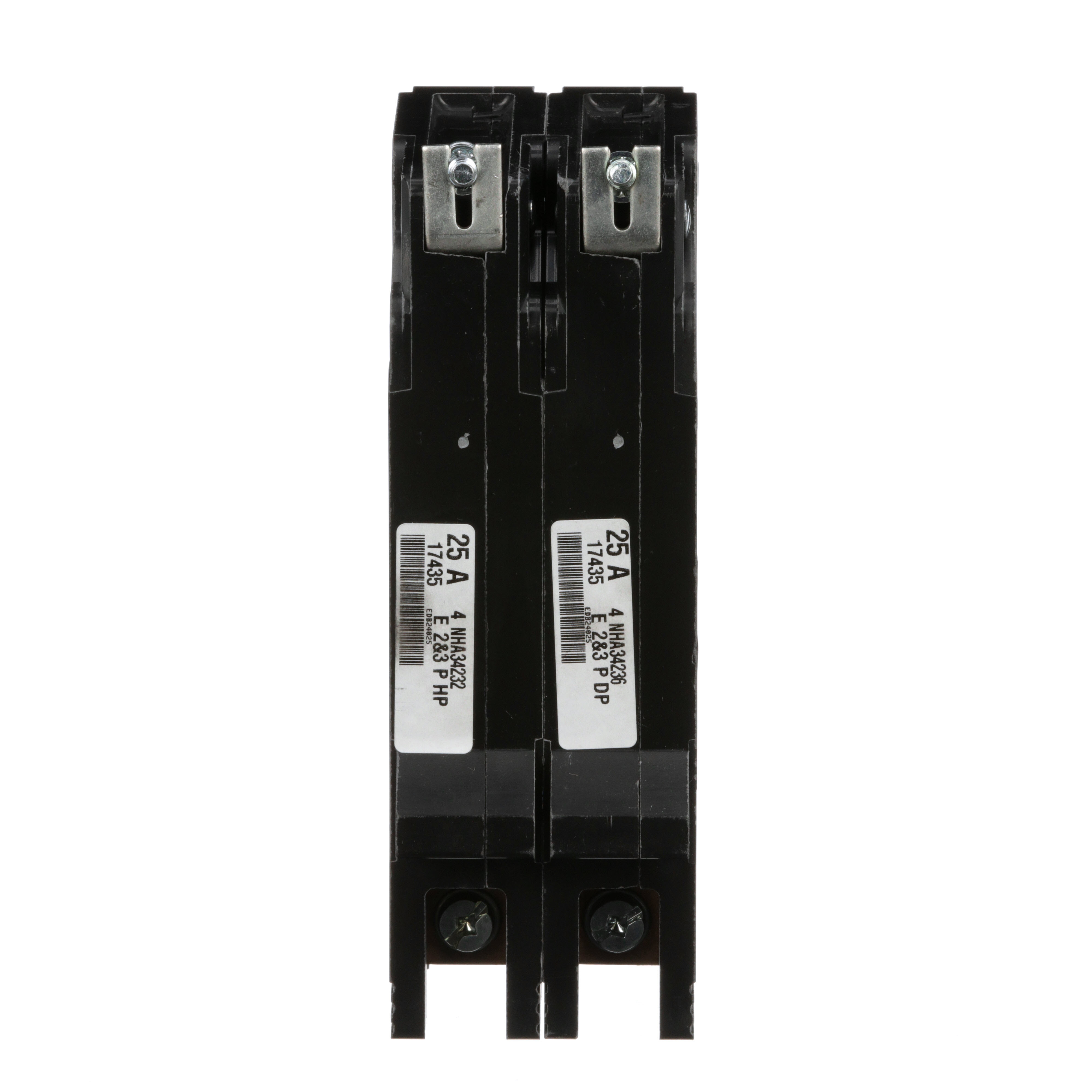

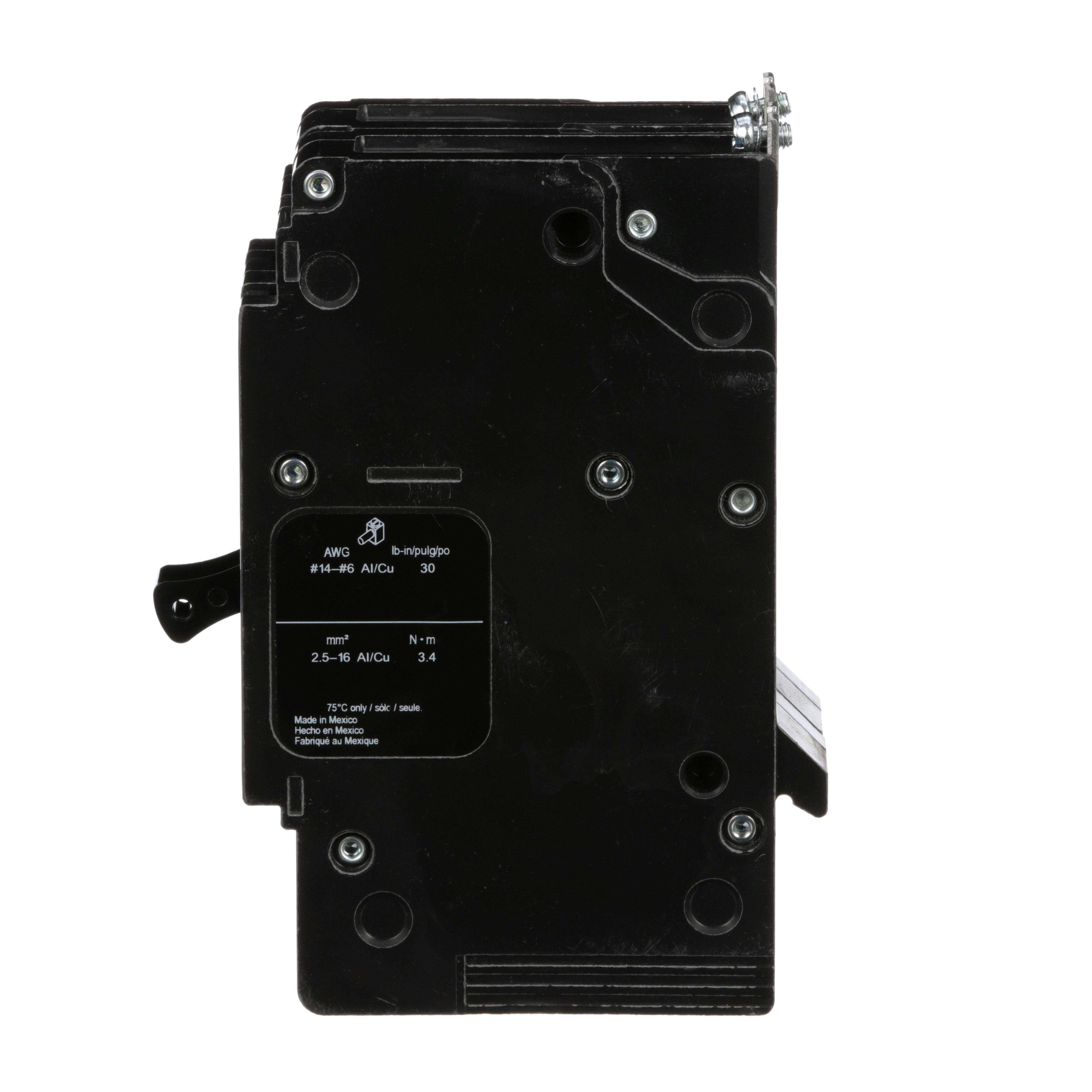

Square D™ EGB24025
Square D™ EGB24025 Type EGB Circuit Breaker, 480Y/277 VAC VAC, 25 A, 65 kA at 240 VAC/35 kA at 480Y/277 VAC Interrupt, 2 Poles, Thermal/Magnetic Trip
Brand: Square D™
Item ID: 453120
MPN: EGB24025
UPC: 785901130291
Login for Price
Features
- High intensity discharge rated
Description
Square D™ Circuit Breaker, Type EGB, 480Y/277 VAC VAC, 25 A, 50/60 Hz Frequency, 65 kA at 240 VAC/35 kA at 480Y/277 VAC Interrupt, E Frame, Thermal/Magnetic Trip, 270 to 875 A Trip, 2 Pole, 1 ph ph, Lug Connection, 12 to 6 AWG Al, 14 to 6 AWG Cu Wire, Bolted-On Mounting, 104 deg F, 5.66 in H x 1.96 in W x 4.05 in D Dimensions, Thermoset Composite Resin
Specifications
Amperage Rating |
25 A |
Connection Type |
Lug |
Dimensions |
5.66 in H x 1.96 in W x 4.05 in D |
Frame |
E |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
65 kA at 240 VAC/35 kA at 480Y/277 VAC |
Material |
Thermoset Composite Resin |
Mounting Type |
Bolted-On |
Number of Poles |
2 |
Phase |
1 ph |
Temperature Rating |
104 deg F |
Trip Range |
270 to 875 A |
Trip Type |
Thermal/Magnetic |
Type |
Type EGB |
Voltage Rating |
480Y/277 VAC VAC |
Wire Size |
12 to 6 AWG Al, 14 to 6 AWG Cu |
Standard Approval |
RoHS Compliant|CSA File No. LR92886|Federal Specification W-C-375B/GEN|HACR Rated|NOM 117|cULus Listed|UL 489 File No. E84967|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
