Square D™ EGB24060

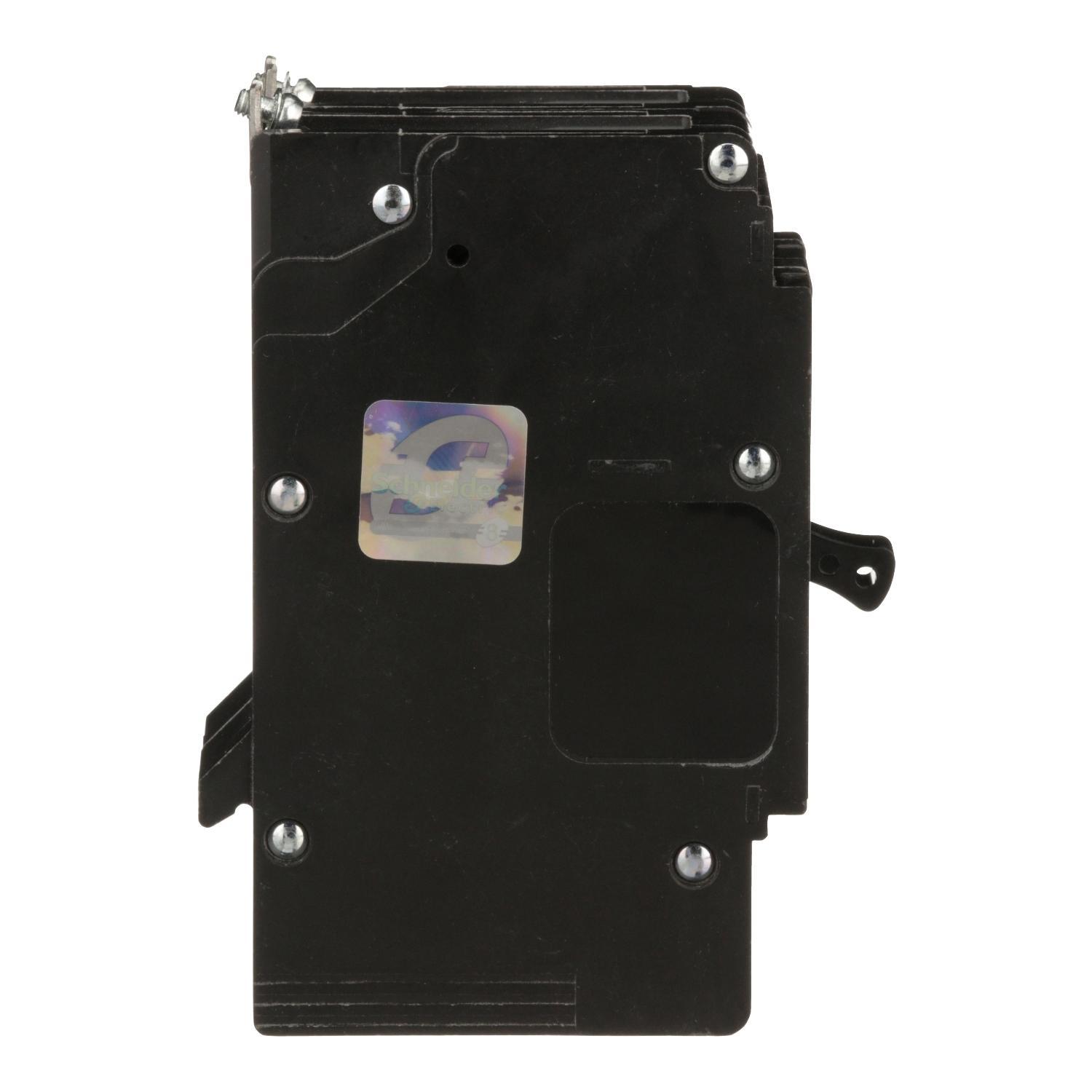

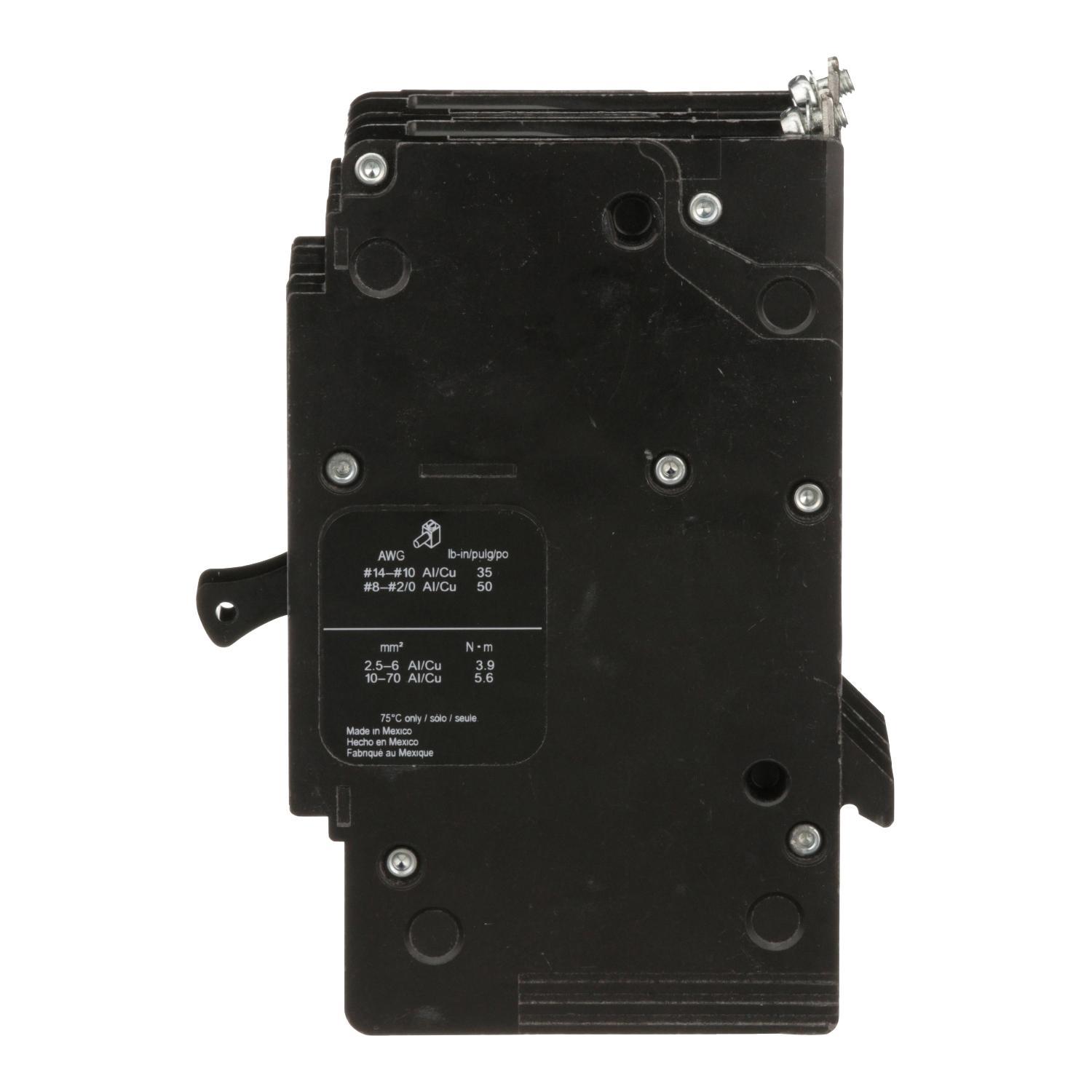

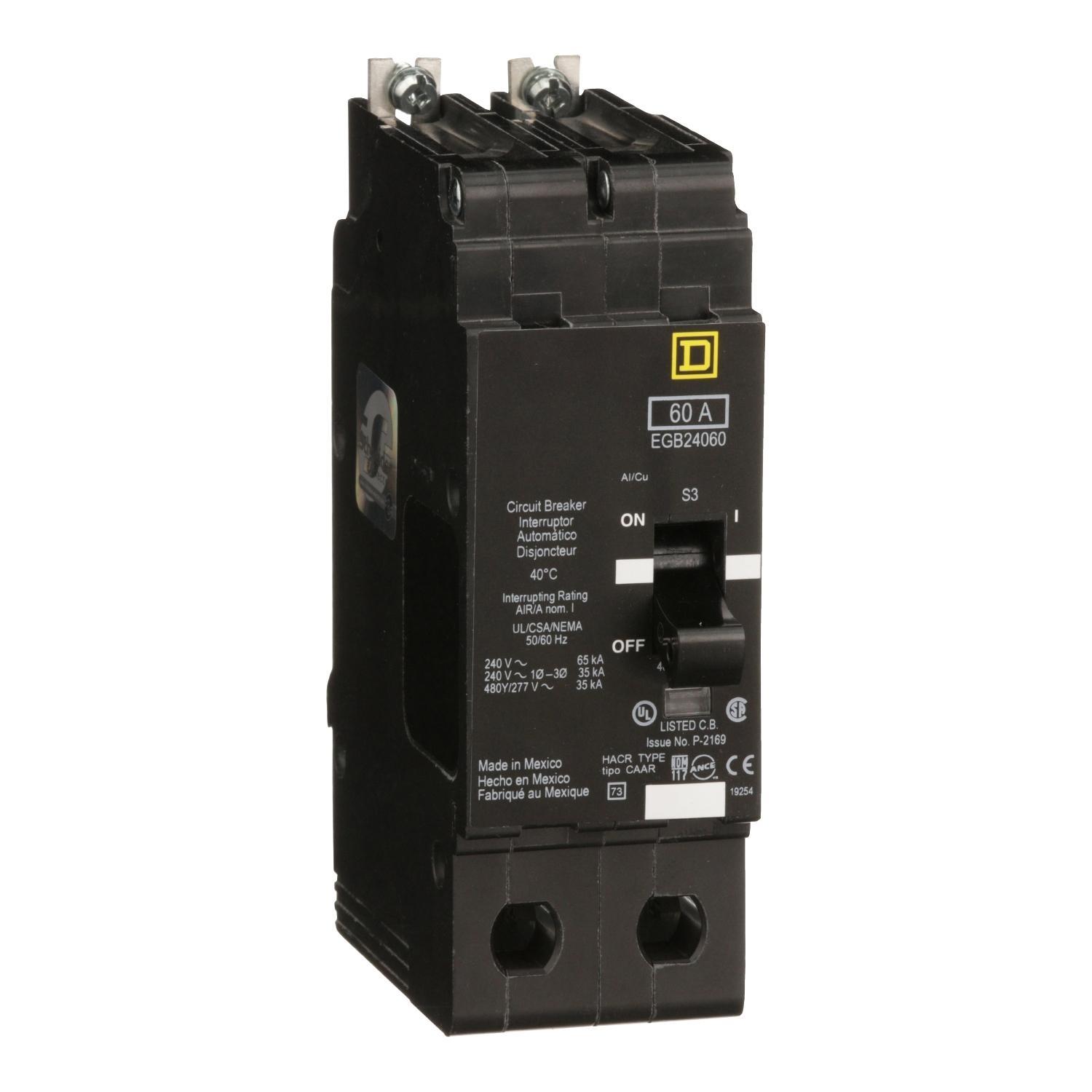

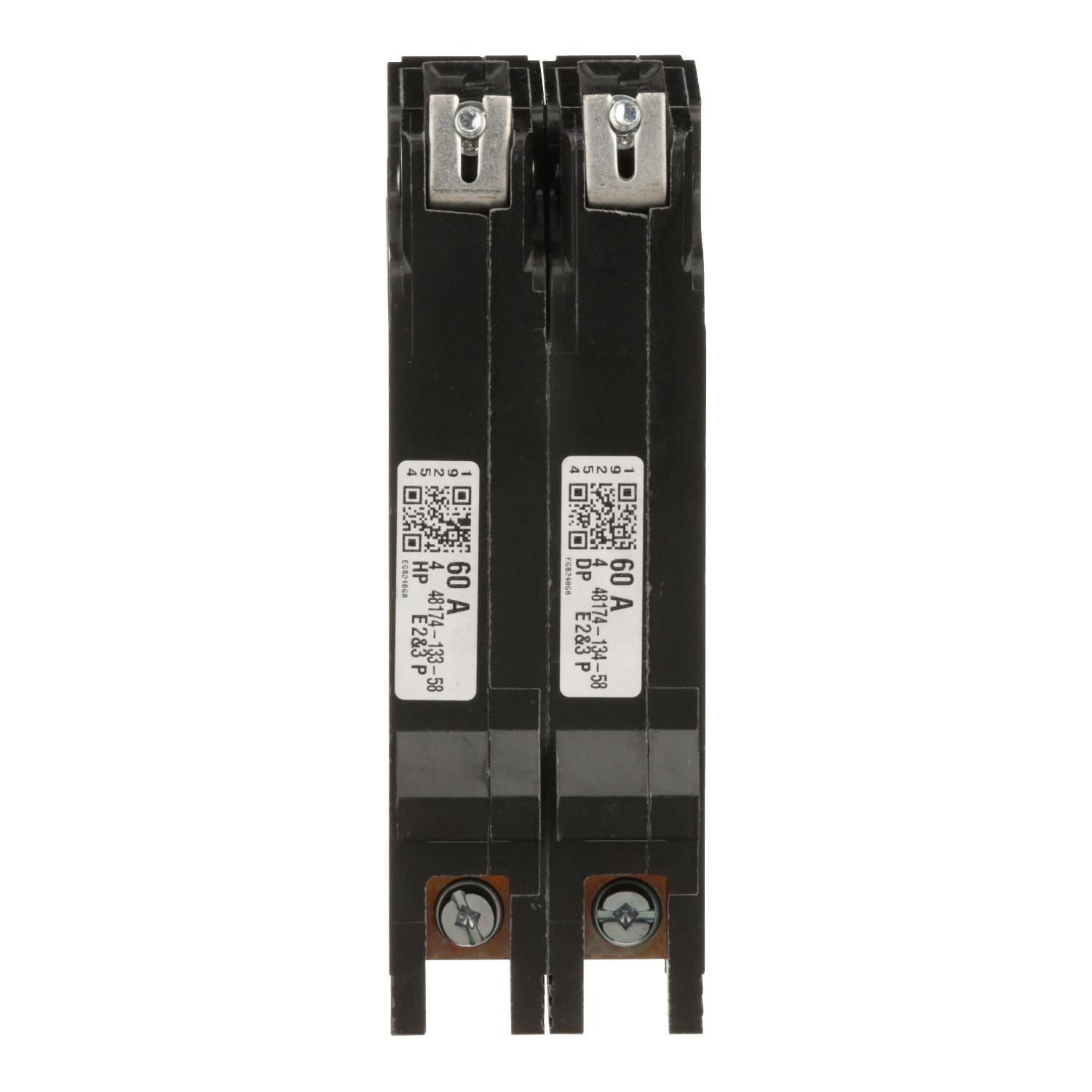

Square D™ EGB24060 Type EGB Miniature Circuit Breaker, 277/480Y VAC, 60 A, 65 kA at 240 VAC, 35 kA at 480Y/277 VAC Interrupt, 2 Poles, Thermal/Magnetic Trip
Brand: Square D™
Item ID: 453123
MPN: EGB24060
UPC: 785901130406
Login for Price
Features
- Trip indicator
Description
Square D™ Miniature Circuit Breaker, Type EGB Miniature, 277/480Y VAC, 60 A, 50/60 Hz Frequency, 65 kA at 240 VAC, 35 kA at 480Y/277 VAC Interrupt, E Frame, Thermal/Magnetic Trip, 630 to 1800 A Trip, 2 Pole, 1 ph, Lug Connection, 14 to 2/0 AWG, 12 to 2/0 AWG Wire, Bolt-On Mounting, 40 deg C, 4.05 in L x 1.96 in W x 5.66 in H Dimensions, Thermoset Composite Resin
Specifications
Amperage Rating |
60 A |
Connection Type |
Lug |
Dimensions |
4.05 in L x 1.96 in W x 5.66 in H |
Frame |
E |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
65 kA at 240 VAC, 35 kA at 480Y/277 VAC |
Material |
Thermoset Composite Resin |
Mounting Type |
Bolt-On |
Number of Poles |
2 |
Phase |
1 ph |
Temperature Rating |
40 deg C |
Trip Range |
630 to 1800 A |
Trip Type |
Thermal/Magnetic |
Type |
Type EGB Miniature |
Voltage Rating |
277/480Y VAC |
Wire Size |
14 to 2/0 AWG, 12 to 2/0 AWG |
Standard Approval |
CSA File No. LR92886|cULus Listed|Federal/SPecification W-C-375B/GEN|HACR Rated|NOM 117|PROP65: Cancer and Reproductive Harm - www.p65warnings.ca.gov|RoHS Compliant|UL File No. 489 File No. E84967 |
Application |
HACR Rated and NF Panelboard Applications |
