Square D™ EGB34020SA

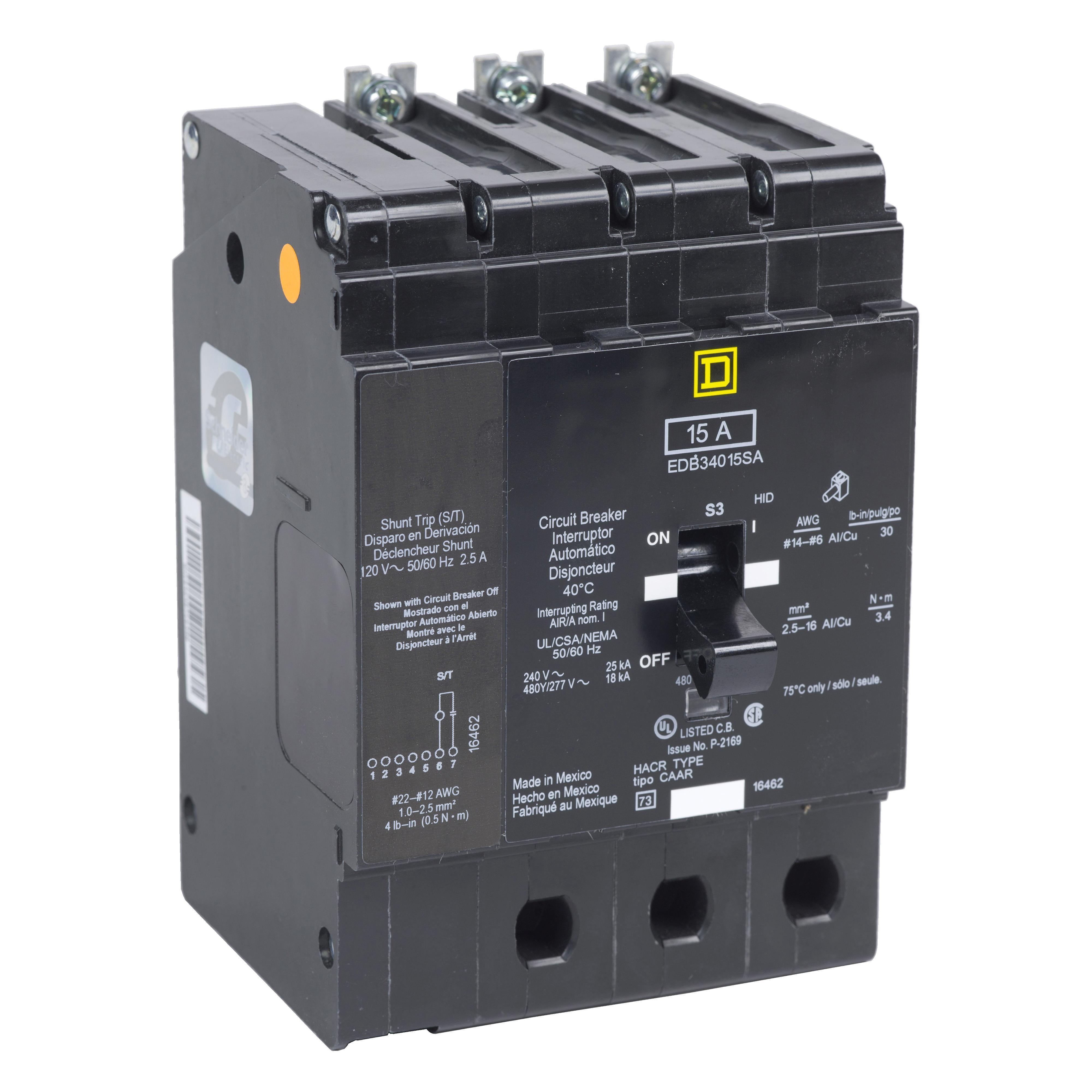

Square D™ EGB34020SA Type EGB Miniature Circuit Breaker, 480Y/277 VAC, 20 A, 35 kA at 480Y/277 VAC, 65 kA at 120/240 VAC Interrupt, 3 Poles, Thermal/Magnetic Trip
Brand: Square D™
Item ID: 458608
MPN: EGB34020SA
UPC: 785901726579
Login for Price
Features
- High intensity discharge rated
- Trip indicator
Description
E-Frame Brkr 20A, 3P, 480Y/277V, 35/65kA, Bolt-on Mnt, Shunt Trip
Square D™ Miniature Circuit Breaker, Type EGB, 480Y/277 VAC, 20 A, 50/60 Hz Frequency, 35 kA at 480Y/277 VAC, 65 kA at 120/240 VAC Interrupt, E Frame, Thermal/Magnetic Trip, 270 to 875 A Trip, 3 Pole, 3 ph, Lug Connection, 12 to 6 AWG Al, 14 to 6 AWG Cu Wire, Bolted-On Mounting, 40 deg C, 4.05 in L x 3.92 in W x 5.66 in H Dimensions, Thermoset Composite Resin
Specifications
Amperage Rating |
20 A |
Connection Type |
Lug |
Dimensions |
4.05 in L x 3.92 in W x 5.66 in H |
Frame |
E |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
35 kA at 480Y/277 VAC, 65 kA at 120/240 VAC |
Material |
Thermoset Composite Resin |
Mounting Type |
Bolted-On |
Number of Poles |
3 |
Phase |
3 |
Temperature Rating |
40 deg C |
Trip Range |
270 to 875 A |
Trip Type |
Thermal/Magnetic |
Type |
Type EGB |
Voltage Rating |
480Y/277 VAC |
Wire Size |
12 to 6 AWG Al, 14 to 6 AWG Cu |
Standard Approval |
RoHS Compliant|CSA File No. LR92886, Federal Specification W-C-375B/GEN, HACR Rated|NOM 117, cULus Listed|UL 489 File No. E84967|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Application |
HID Rated and NF Panelboard Applications |
