Square D™ EIK2
Square D™ EIK2 F Series Auxiliary Electrical Interlock Switch Kit, 115 VAC, 100/200 A, For Use With Series F General Duty Safety Switch
Brand: Square D™
Item ID: 50340
MPN: EIK2
UPC: 785901751311
Login for Price
Features
- EIK2 is a KIT ELECTRICAL INTERLOCK SWITCH for Heavy Duty Safety Switches This interlock is UL listed and has a DPDT switch function
Description

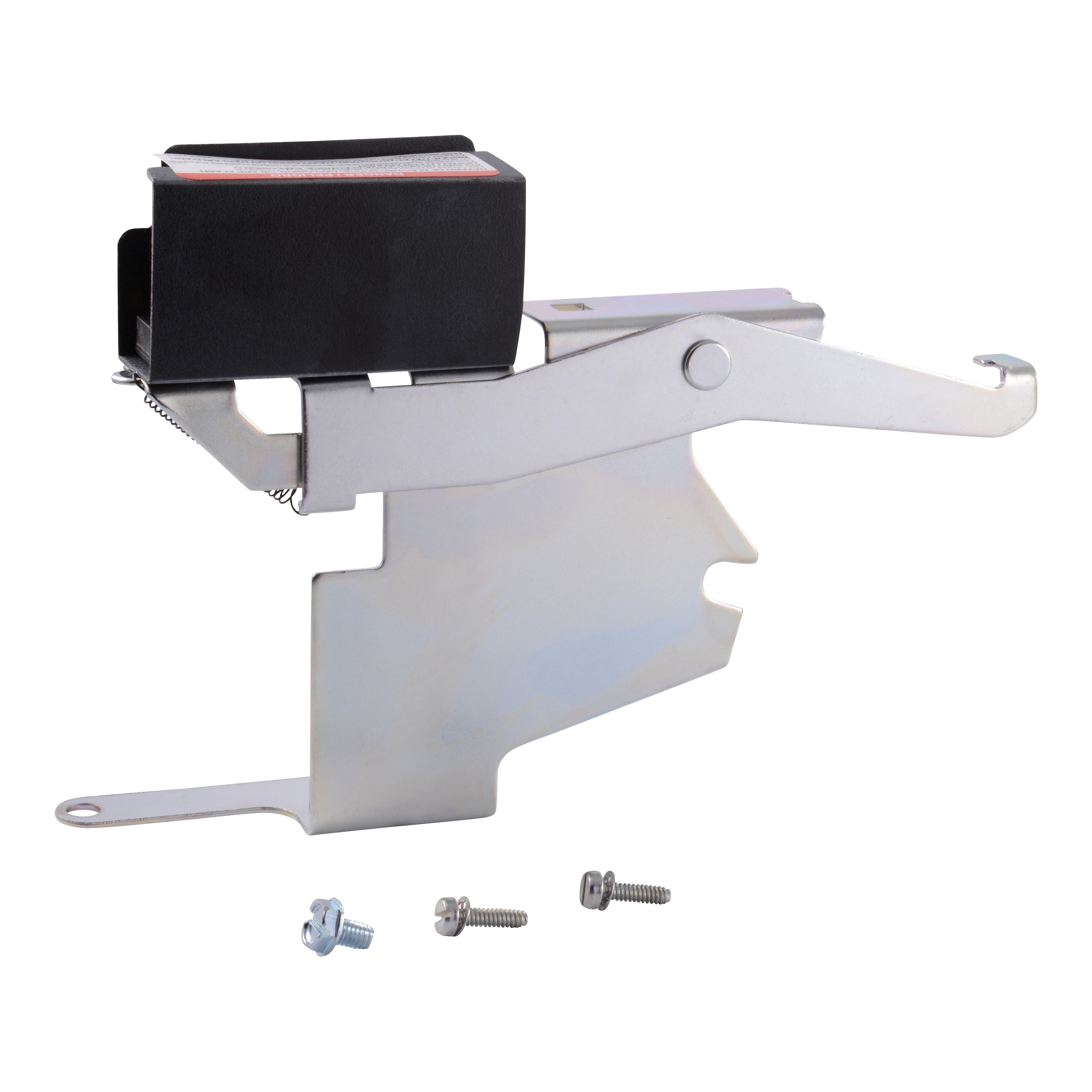

Electrical interlocks for heavy duty 30 A through 1200 A safety switches are available factory installed or in kit form for field installation. Each kit contains instructions for proper field mounting. A pivot arm operates from switch mechanism, breaking the control circuit before the main switch blades break. Switches with electrical interlocks installed are UL Listed. For factory installed electrical interlocks add EI (for one contact) or EI2 (for two contacts) suffix to catalog number.
Square D™ Electrical Interlock Switch Kit, Auxiliary, Series: F Series, 115 VAC, 100/200 A, For Use with: Series F General Duty Safety Switch, Steel, 1.48 in
Specifications
Amperage Rating |
100/200 A |
Dimensions |
1.48 in |
Material |
Steel |
Series |
F Series |
Suitable For Use With |
Series F General Duty Safety Switch |
Type |
Auxiliary |
Voltage Rating |
115 VAC |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|UL Listed|CSA Certified|ECCN EAR99|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_38883d9af2fb32181f8bca874df3f5842627c8bedd5020f055c26b745d7f3963.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HU362AWAVW_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HU361NRB_User_Manual.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_RPM21FD_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EIK2_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8db1fd7432c1d240def4210ce7a36399cabd0ee761459d147f7c2578b3cba991.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EIK2_Specification_Sheet.pdf
VIDEO LINK
https://www.youtube.com/embed/3j1msgeG034
