Square D™ EME3010

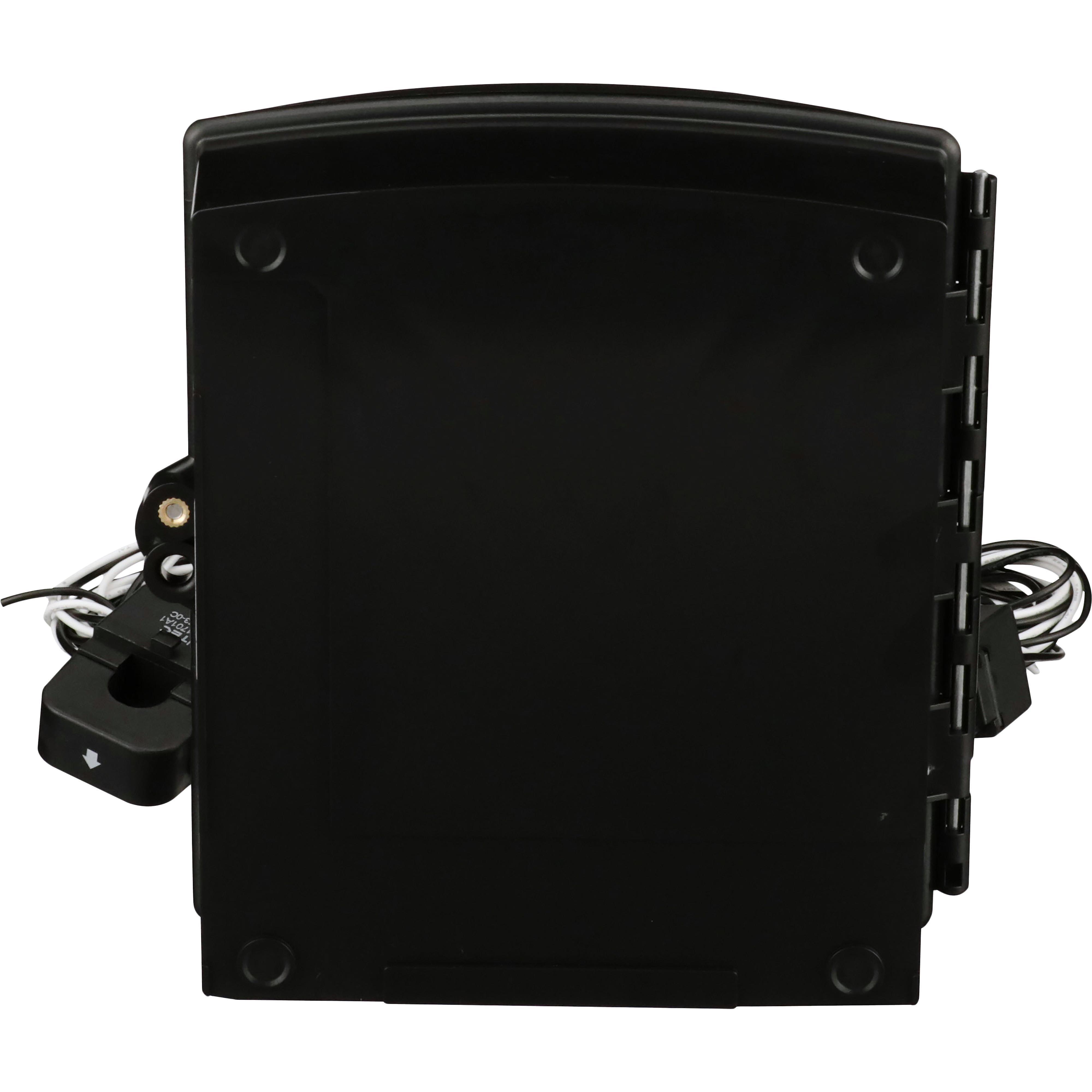

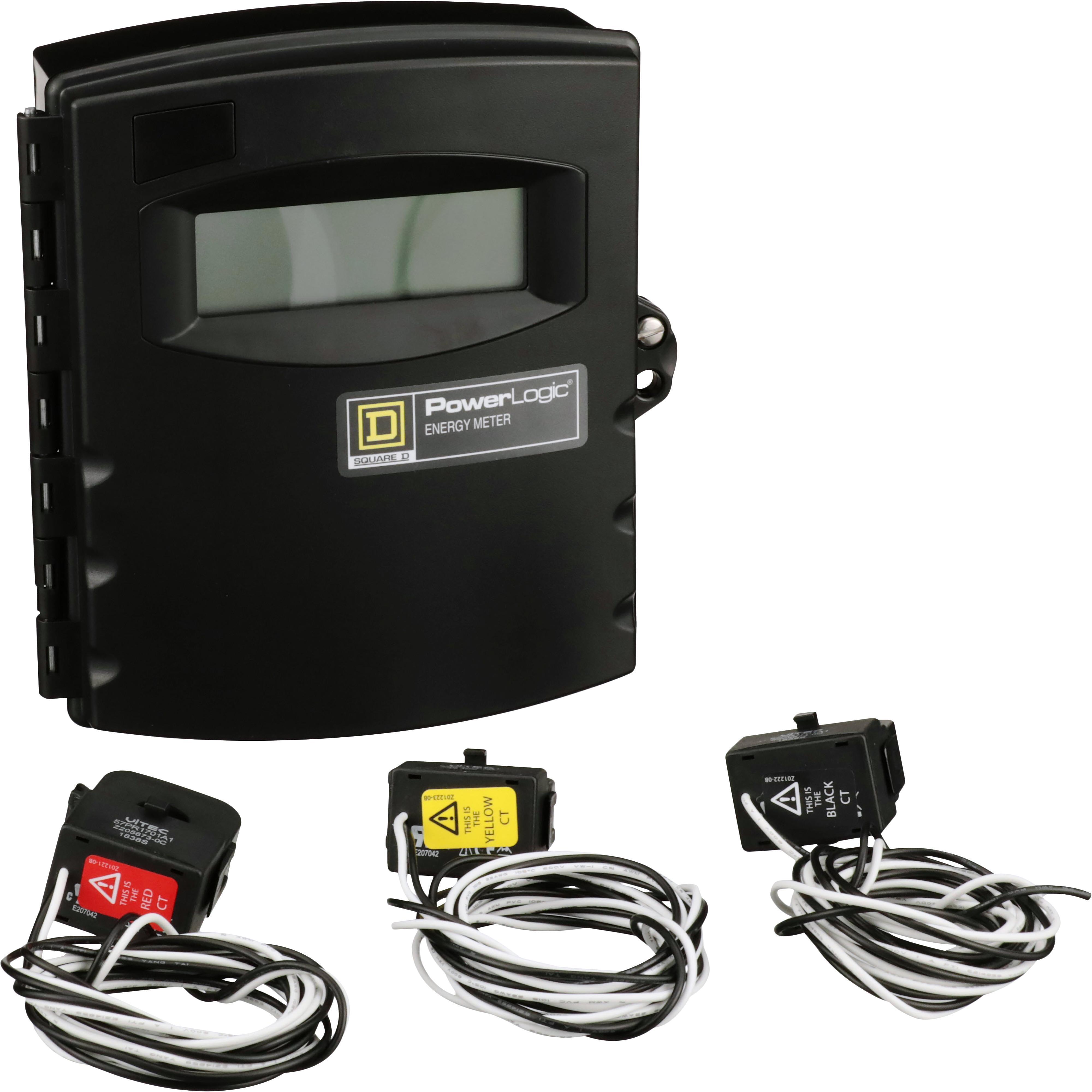

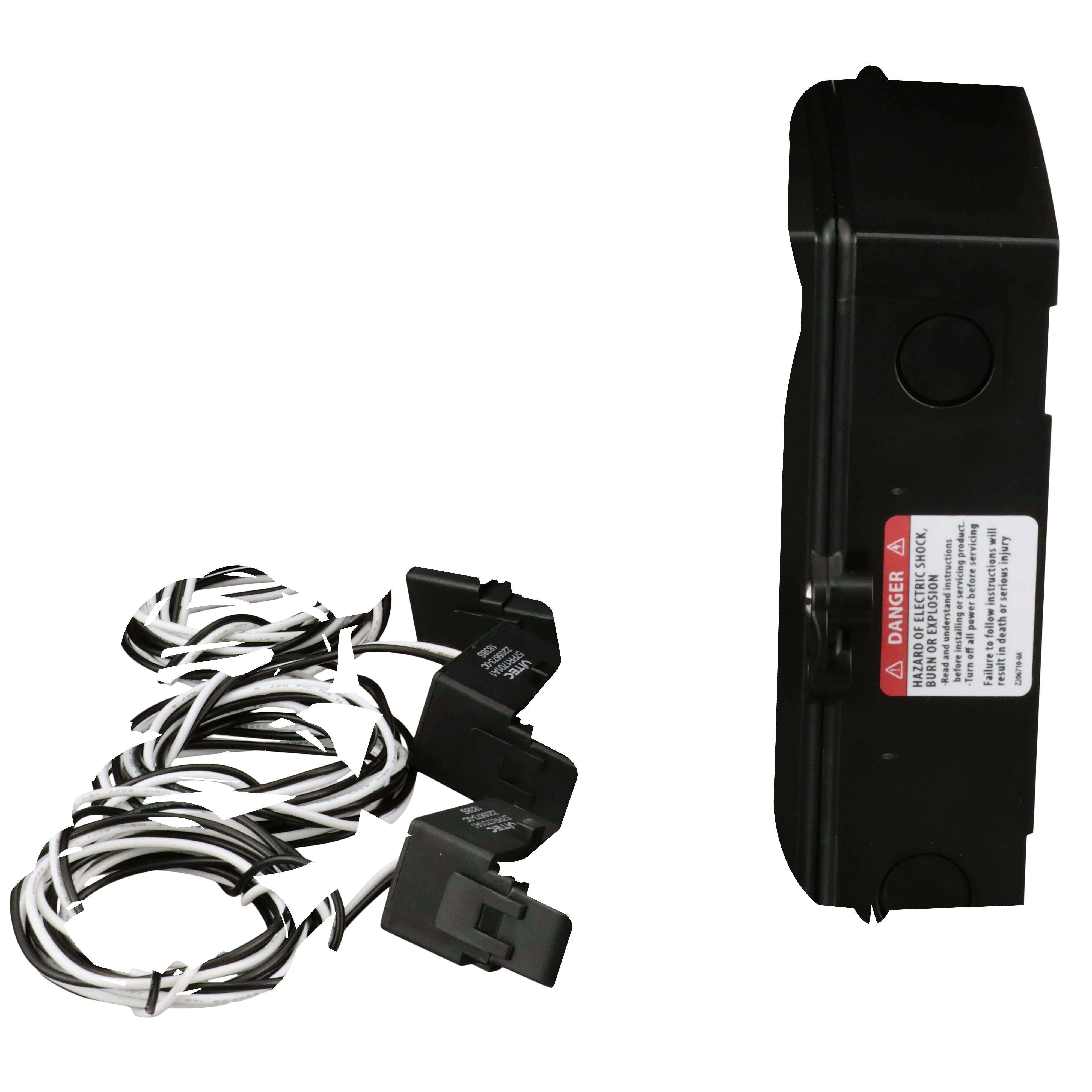

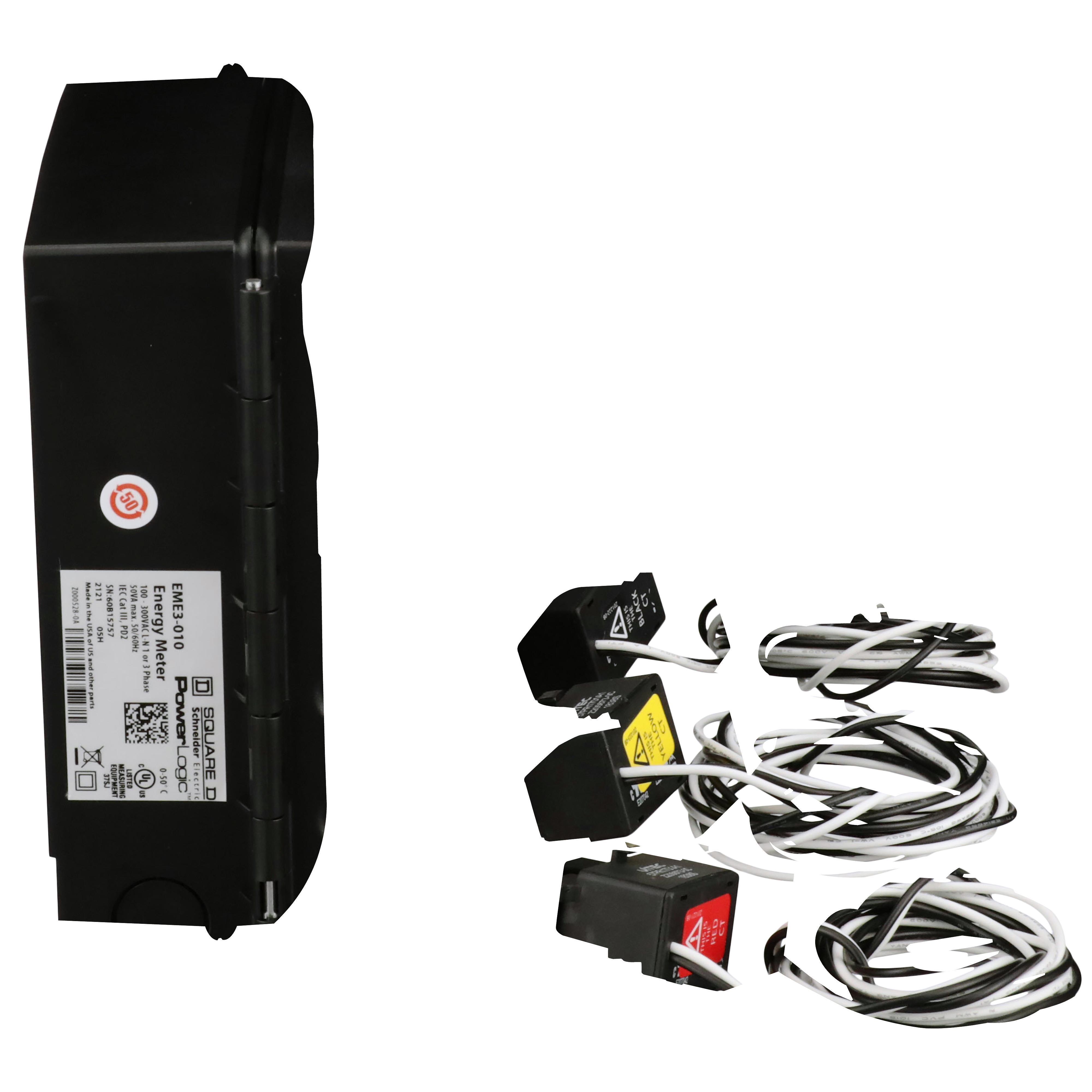

Square D™ PowerLogic™ EME3010 Extended Range Energy Meter With (3) Current Transformers, 120/240 to 480Y/277 VAC, 100 A, 50/60 Hz
Brand: Square D™
Item ID: 485146
MPN: EME3010
UPC: 785901000358
Login for Price
Features
- 1280 Hz sampling rate
Description
The energy meter is ideal for standal1-and systems based sub-metering applications. It is easy to install and provides exceptional metering accuracy. Available in basic and extended range models. The basic model is designed for metering of 120/240 and 208Y/120 VAC services. The extended range model will meter 120/240 to 480 VAC Wye connected services. Extended range meters come with pulse output and phase loss output not available on the basic unit. Optional modbus RS-485 serial communications are provided with the energy meter communications board, EMCB. Optional kW demand is also provided by the EMCB.
Square D™ PowerLogic™ Energy Meter, Extended Range, 120/240 to 480Y/277 VAC, 100 A, 50/60 Hz Frequency, +/- 1 % Accuracy, Backlit LCD Display, 3, NEMA 1 Enclosure, 211 mm H x 193 mm W x 76 mm D
Specifications
Accuracy |
+/- 1 % |
Amperage Rating |
100 A |
Dimensions |
211 mm H x 193 mm W x 76 mm D |
Display Type |
Backlit LCD |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Phase |
3 |
Type |
Extended Range |
Voltage Rating |
120/240 to 480Y/277 VAC |
Standard Approval |
UL Listed|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov |
Application |
For energy monitoring, stand-alone and systems based sub metering |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_76f7096983aa37dcb5e82228503d8b7cb1c9d9eb24231fad3b5edd9829fd222d.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b8762c86d220b0515e8eccb9e19a262561973f5e68d4bef9b620f1ac472efce4.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_040c1d28bcbf0f1dc95fb293f762db0526e1e1c8ff8a624b9f3fd693289a7b1b.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EME3010_Specification_Sheet.pdf
