Schneider Electric EX45T212H

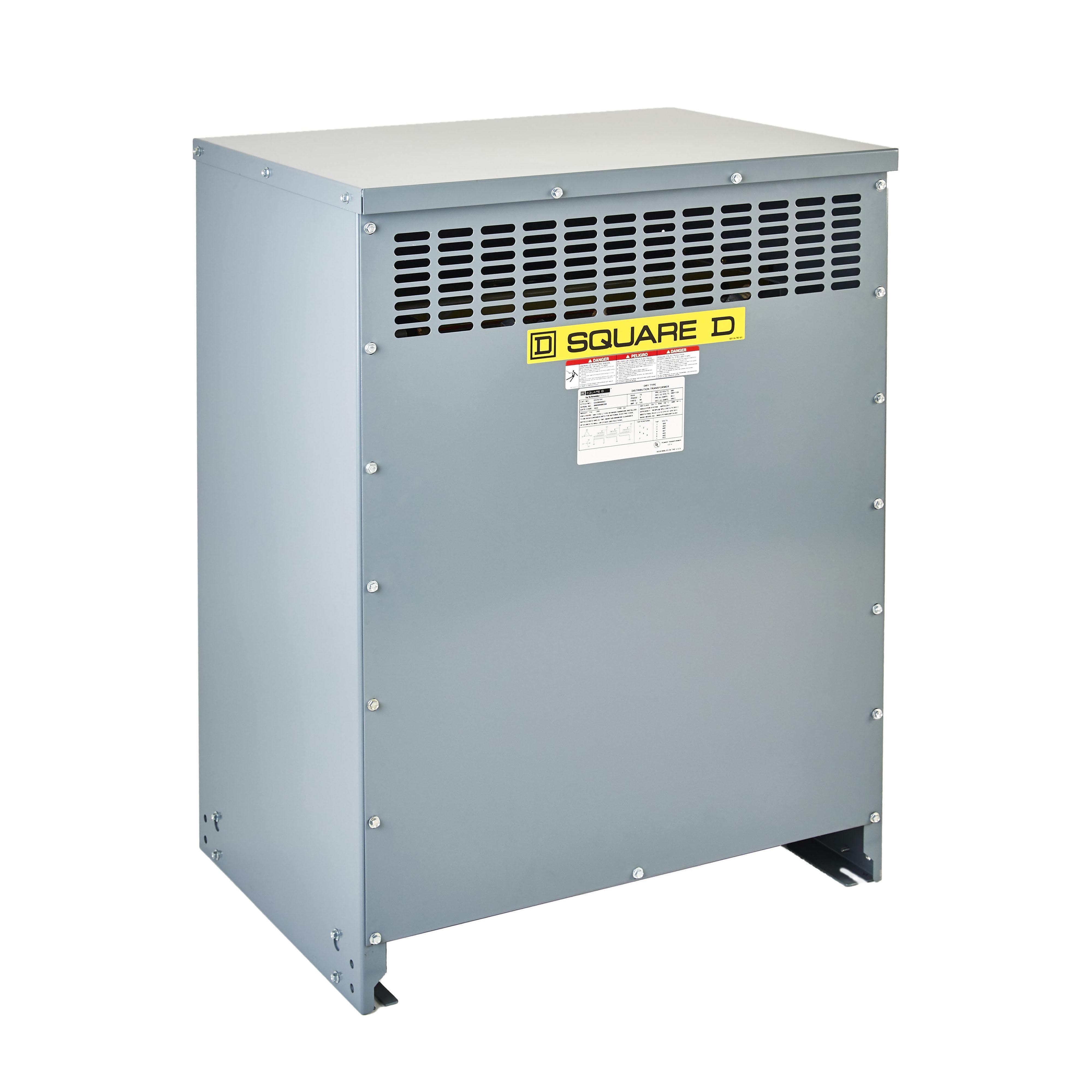

Schneider Electric Square D™ EX45T212H Energy Efficient Dry-Type Transformer, 208 Delta VAC Primary, 480Y/277 VAC Secondary, 45 kVA Power Rating, 60 Hz, 3 Phase
Brand: Schneider Electric
Item ID: 453153
MPN: EX45T212H
UPC: 785901752356
Login for Price
Features
- (1) 5% FCAN, (2) 5% FCBN tap-offs
Description
Schneider Electric Square D™ Transformer, Energy Efficient Dry-Type, 208 Delta VAC Primary, 480Y/277 VAC Secondary, 45 kVA Power, 60 Hz Frequency, 3 ph, 1.1 kA Maximum, 1/2 Taps, 2/4 Hole NEMA Pad Connection, Ceiling/Floor Mounting, 220 deg C Insulation, 150 deg C, 98.41 % Efficiency, 35.31 in H x 25.51 in W x 20.98 in D Dimensions
Specifications
Connection Type |
2/4 Hole NEMA Pad |
Dimensions |
35.31 in H x 25.51 in W x 20.98 in D |
Efficiency |
98.41 % |
Frequency Rating |
60 Hz |
Insulation |
220 deg C |
Maximum Amperage Rating |
1.1 kA |
Mounting Type |
Ceiling/Floor |
Number of Taps |
1/2 |
Phase |
3 |
Power Rating |
45 kVA |
Primary Voltage |
208 Delta VAC |
Secondary Voltage |
480Y/277 VAC |
Temperature Rating |
150 deg C |
Type |
Energy Efficient Dry-Type |
Standard Approval |
CSA C22.2 No. 47|UL 1561|NEMA ST-20|PROP65: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
Application |
For low voltage electrical distribution applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Siemens_1FK70115AK241AA3_Catalog.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Siemens_1FK70842AF711RB1_Full_Engineering_Drawing.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_EX45T212H_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d02f01f2d788336cb38f10565355d0176de14117ea7868b6f26b98bd412dc52e.pdf
