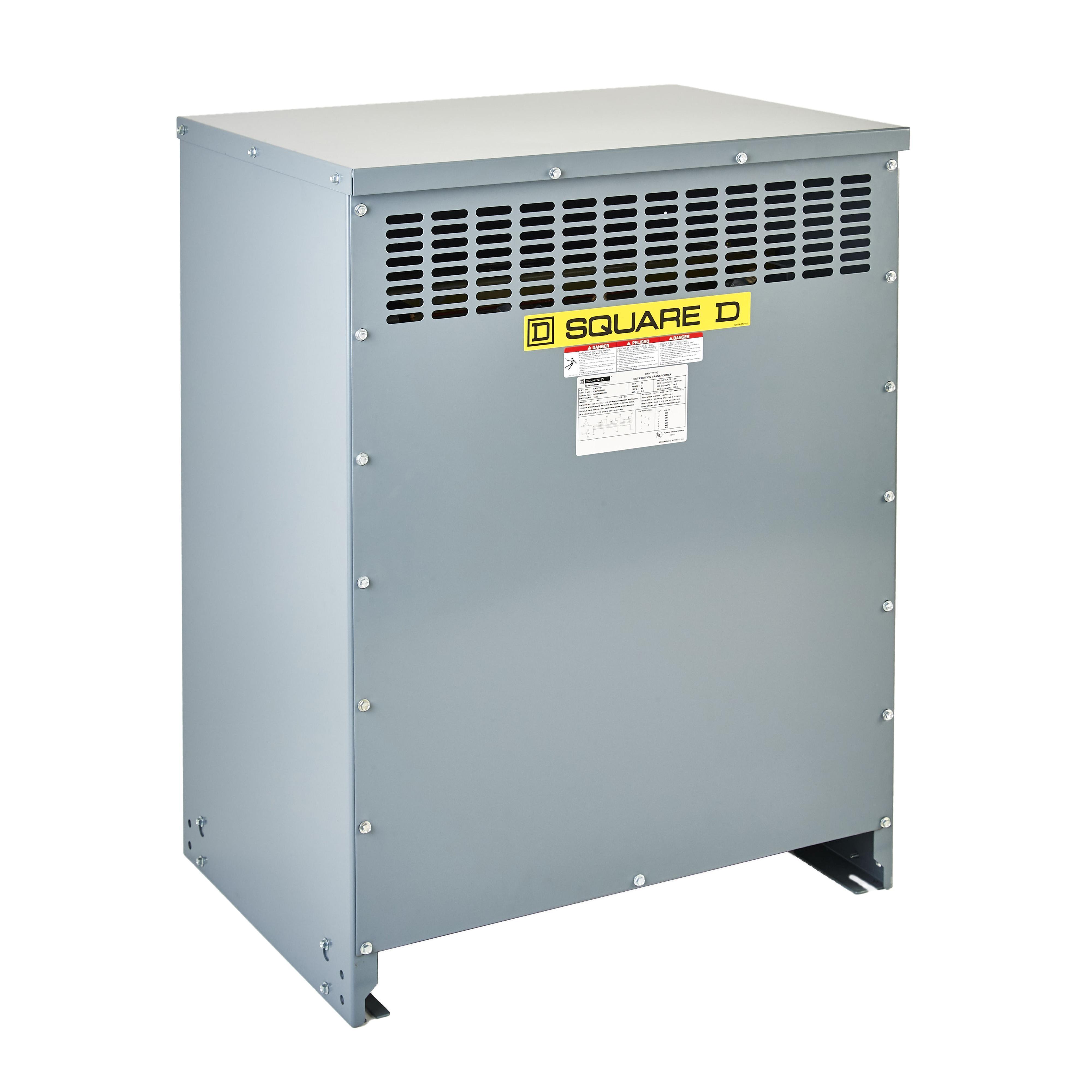

Schneider Electric EX75T3HCU

• Our space saving design allows the transformers to be mounted within 1/2 in of the wall reducing the footprint in the owner's equipment room
• A new fortified shipping carton has been created to protect the top and side to reduce the potential for shipping damage
• Industry exclusive 1/2 in clearance from rear and side, saving not only floor space, but installation time
• Separated primary and secondary terminals, sized to handle wire range of Square D™ equipment
• Distribution system connect on the incoming and outgoing
• Bending radius for side and bottom access
• Self-certified Seismic qualified via ICS ES AC 156 shake table testing
• Copper winding
• (2) 2.5% FCAN, (4) 2.5% FCBN tap-offs

DOE 2016 LV XFMR, 3 Phase, 75kVA, 480 Delta-208Y/120, CU, 150 deg C Rise-220C INS

Schneider Electric Square D™ Distribution Transformer, Dry Energy Efficient Low Voltage, 480 Delta VAC Primary, 208Y/120 VAC Secondary, 75 kVA Power, 60 Hz Frequency, 3 ph, 6 Taps, Floor Mounting, 220 deg C Insulation, NEMA 1/3R Enclosure, 150 deg C, 98.71 % Efficiency, 578 mm L x 764 mm W x 42.01 in H Dimensions
