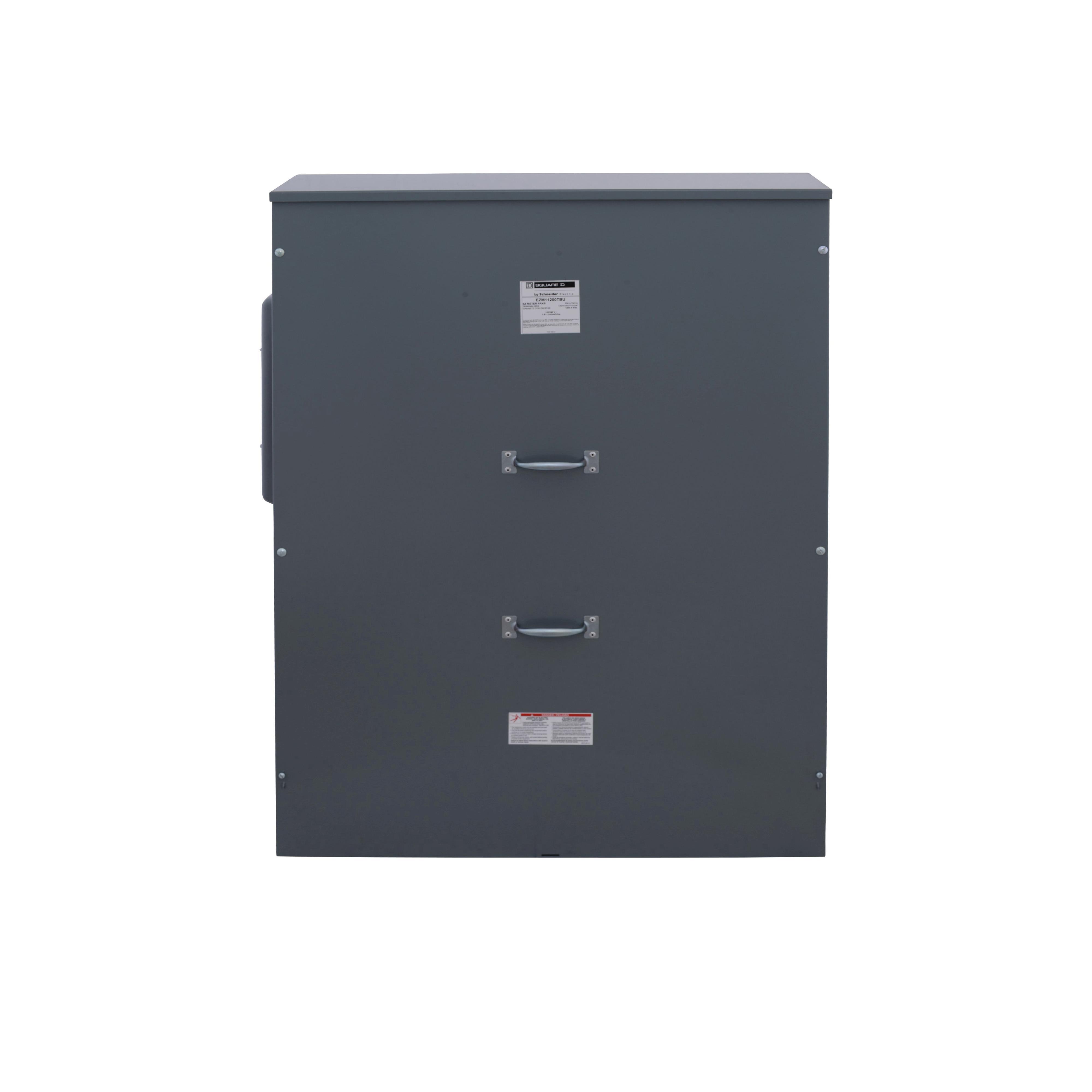

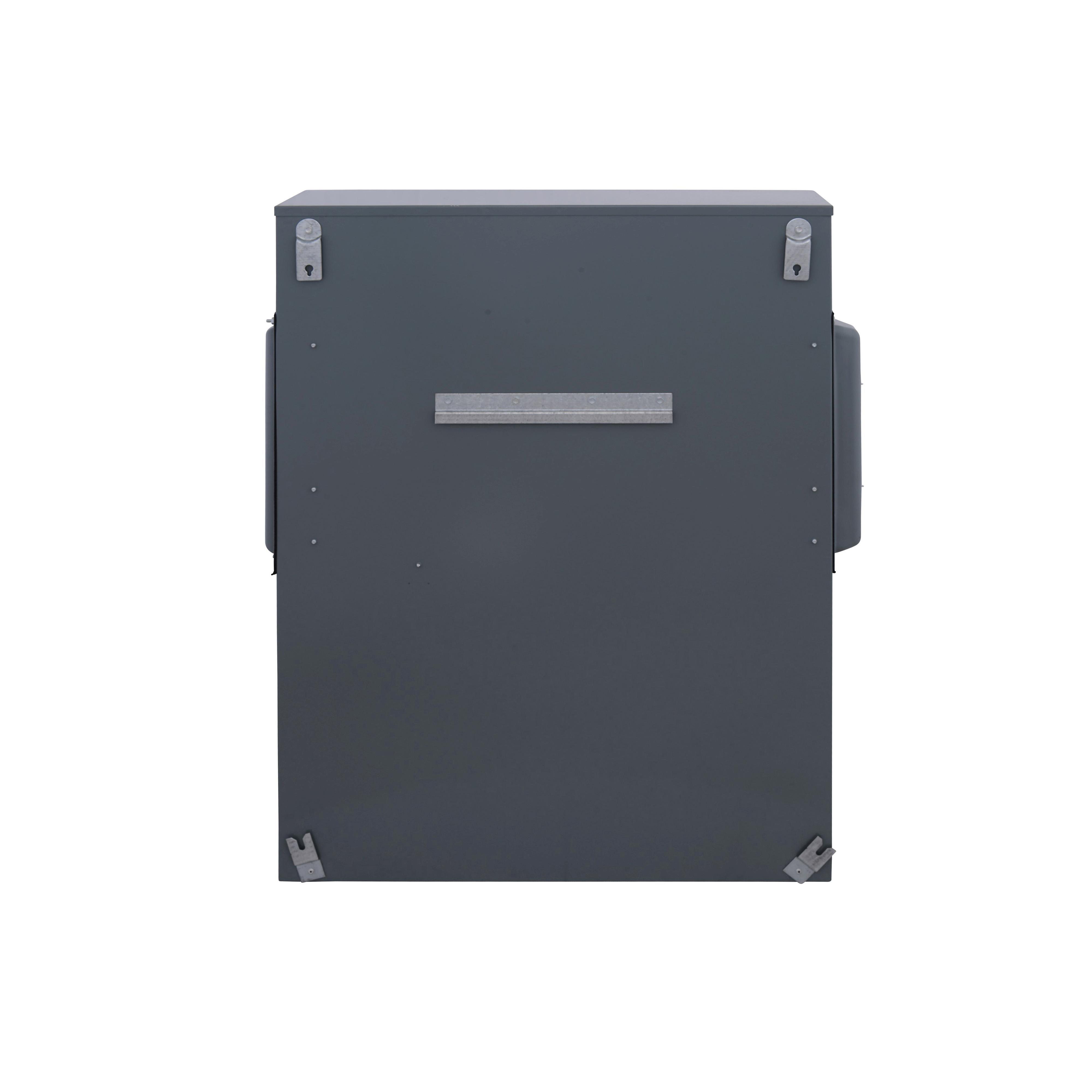

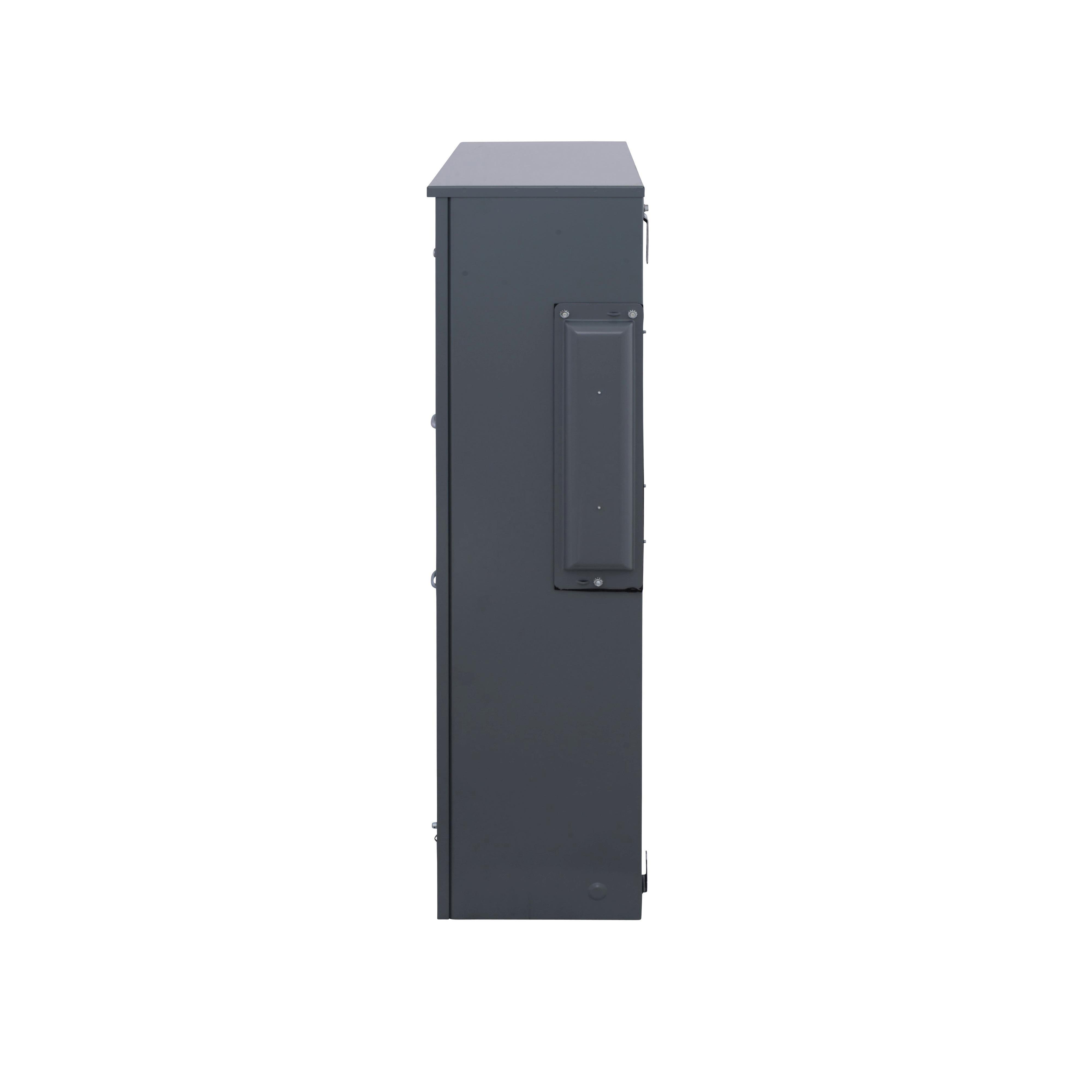

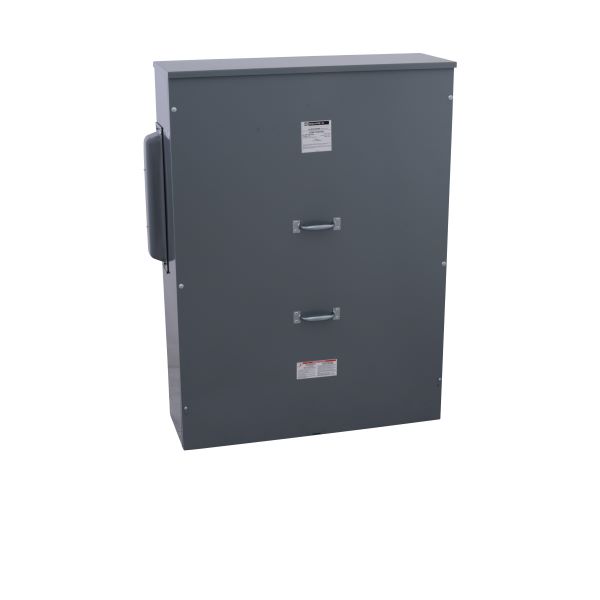

Square D™ EZM11200TBU
Square D™ EZ Meter-Pak™ EZM11200TBU Main Terminal Box, 120/240 VAC, 1200 A, 1 ph Phase, NEMA 3R Enclosure
Brand: Square D™
Item ID: 548495
MPN: EZM11200TBU
Login for Price
Features
- Electrical connection - lugs (1) cables 6 AWG to 300 kcmil (aluminum/copper) ground, studs (3) cables line and studs (3) cables neutral
- Meter center
Description
Square D™ EZ Meter-Pak™ Main Terminal Box, 120/240 VAC, 1200 A, 1 ph, Underground Feed, (1) Cable #6 AWG to 300 kcmil Ground Wire, Lug Terminal, Surface Mount, NEMA 3R Operating, 33.16 in W x 11.12 in D x 44.71 in H
Specifications
Amperage Rating |
1200 A |
Dimensions |
33.16 in W x 11.12 in D x 44.71 in H |
Feed Type |
Underground |
Mounting Type |
Surface |
Operating Temperature |
NEMA 3R |
Phase |
1 ph |
Terminal Type |
Lug |
Voltage Rating |
120/240 VAC |
Wire Size |
(1) Cable #6 AWG to 300 kcmil Ground |
Standard Approval |
ECCN EAR99|UL Listed|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM11200TBU_RoHS.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM11200TBU_RoHS.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM11200TBU_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM11200TBU_Specification_Sheet.pdf
