Schneider Electric EZM11600GCBC

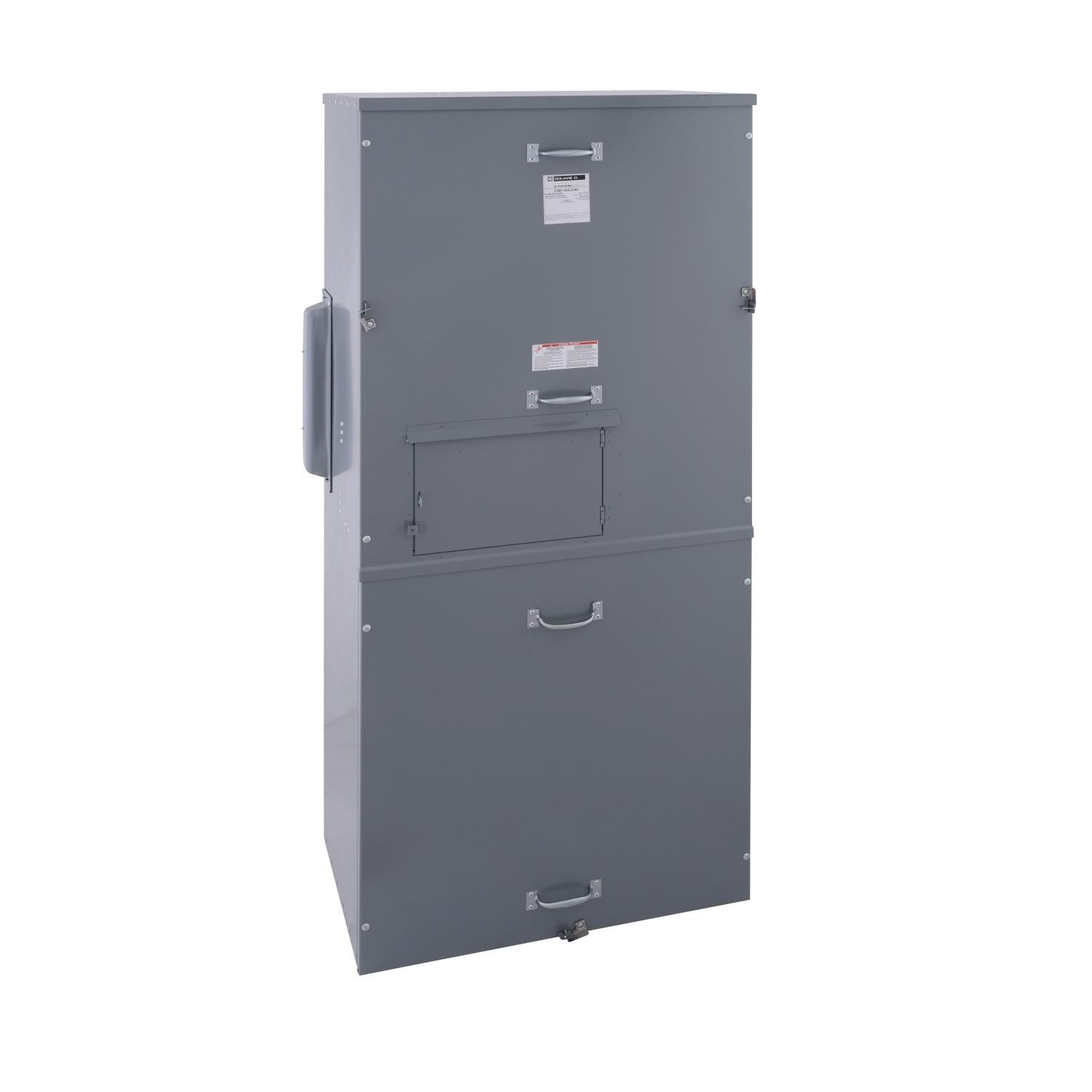

Schneider Electric Meter-Pak™ EZM11600GCBC 3-Wire Meter Center Main Unit With Main Circuit Breaker, 120/240 VAC, 1600 A, 1 Phase, NEMA 3R Enclosure
Brand: Schneider Electric
Item ID: 461228
MPN: EZM11600GCBC
UPC: 785901651444
Login for Price
Features
- Top and bottom wiring gutters with knockouts allow branch circuits to exit from either the top, bottom or back of the unit
- To suit individual applications, residential and commercial devices may be interconnected
- Basic devices for connection to 3 phase 4-wire 120/208 VAC service are factory phase balanced to save installation time
- The phase balancing may be modified in the field to meet most system variations
- Aluminum horizontal cross busbar upto 1000 A maximum
- 6 AWG to 300 kcmil ground cable 1, 1 AWG to 250 kcmil line/neutral cable 2, 1 AWG to 600 kcmil line/neutral cable (1) lug
Description
Schneider Electric Meter-Pak™ Meter Center Main Unit, 3-Wire, Series: EZM, 120/240 VAC, 1600 A, 1 ph, Overhead/Underground Feed, 6 AWG to 300 kcmil, 1 AWG to 250 kcmil, 1 AWG to 600 kcmil Al/Cu Wire, Closing Plate Hub, Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 68.7 in H x 30.19 in W x 18.33 in D Dimensions
Specifications
Amperage Rating |
1600 A |
Dimensions |
68.7 in H x 30.19 in W x 18.33 in D |
Enclosure Type |
NEMA 3R |
Feed Type |
Overhead/Underground |
Hub Type |
Closing Plate |
Mounting Type |
Surface |
Phase |
1 |
Series |
EZM |
Terminal Type |
Lug |
Type |
3-Wire |
Voltage Rating |
120/240 VAC |
Wire Size |
6 AWG to 300 kcmil, 1 AWG to 250 kcmil, 1 AWG to 600 kcmil Al/Cu |
Standard Approval |
UL File No. E10582/E131840|NEC Certified|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
