Square D™ EZM1400FS

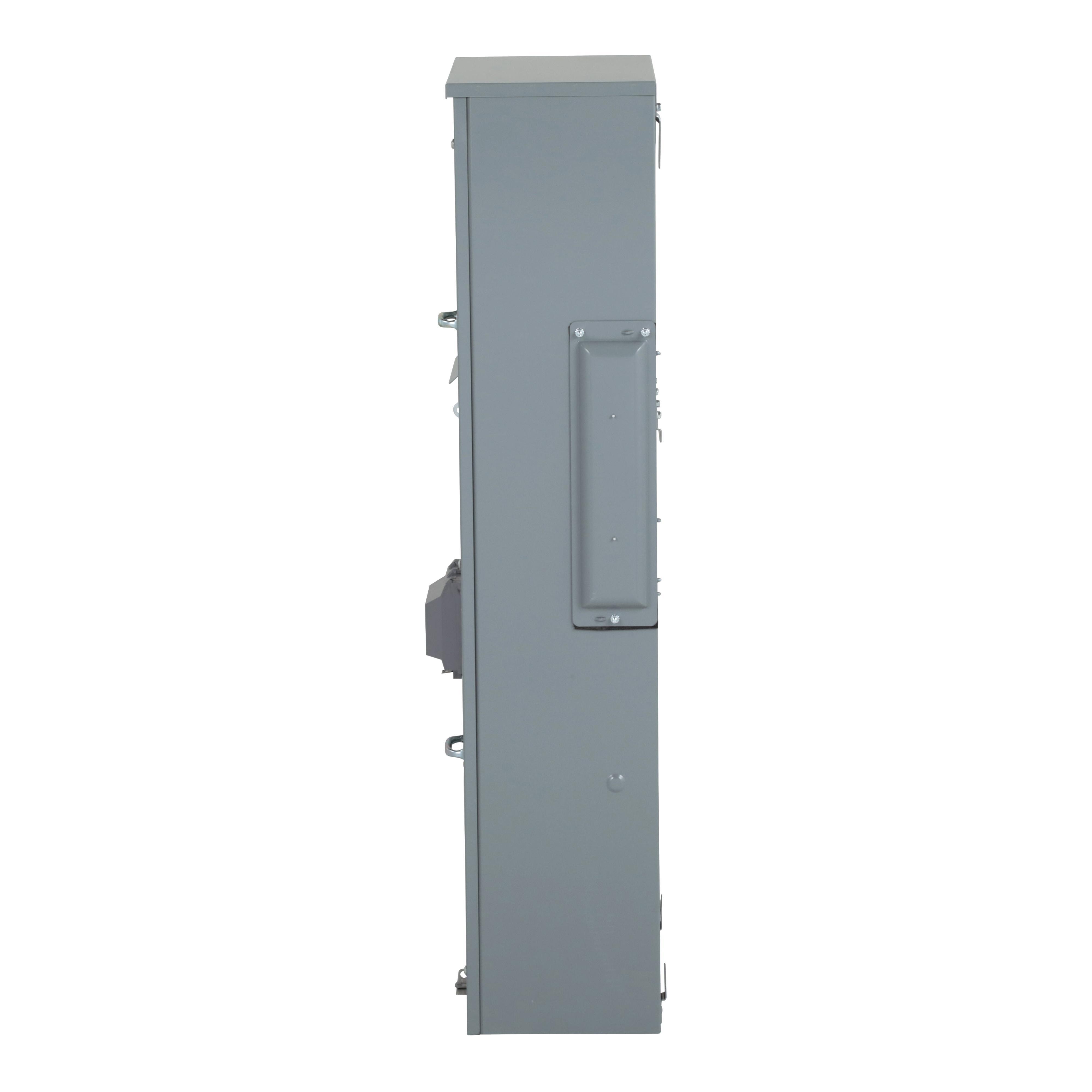

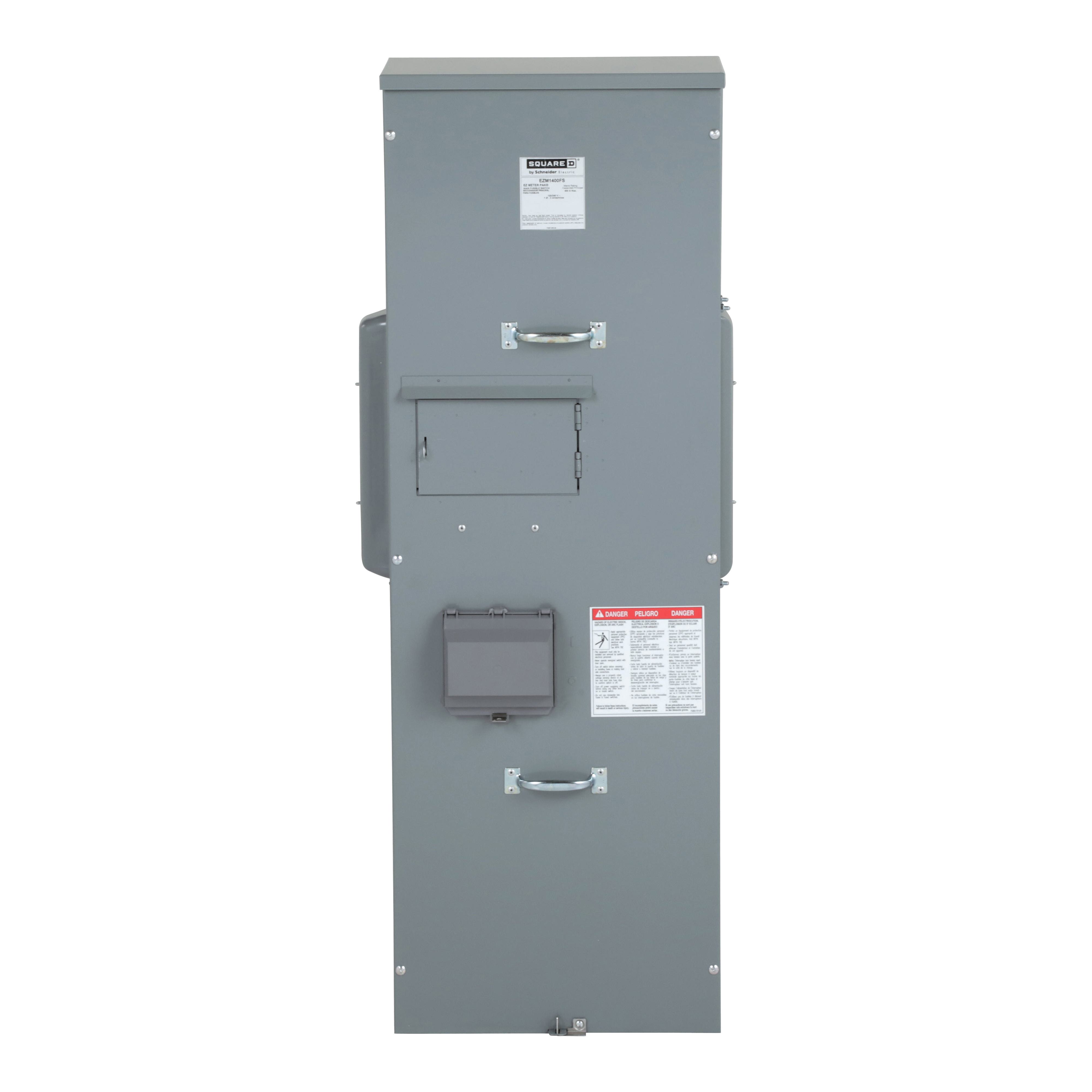

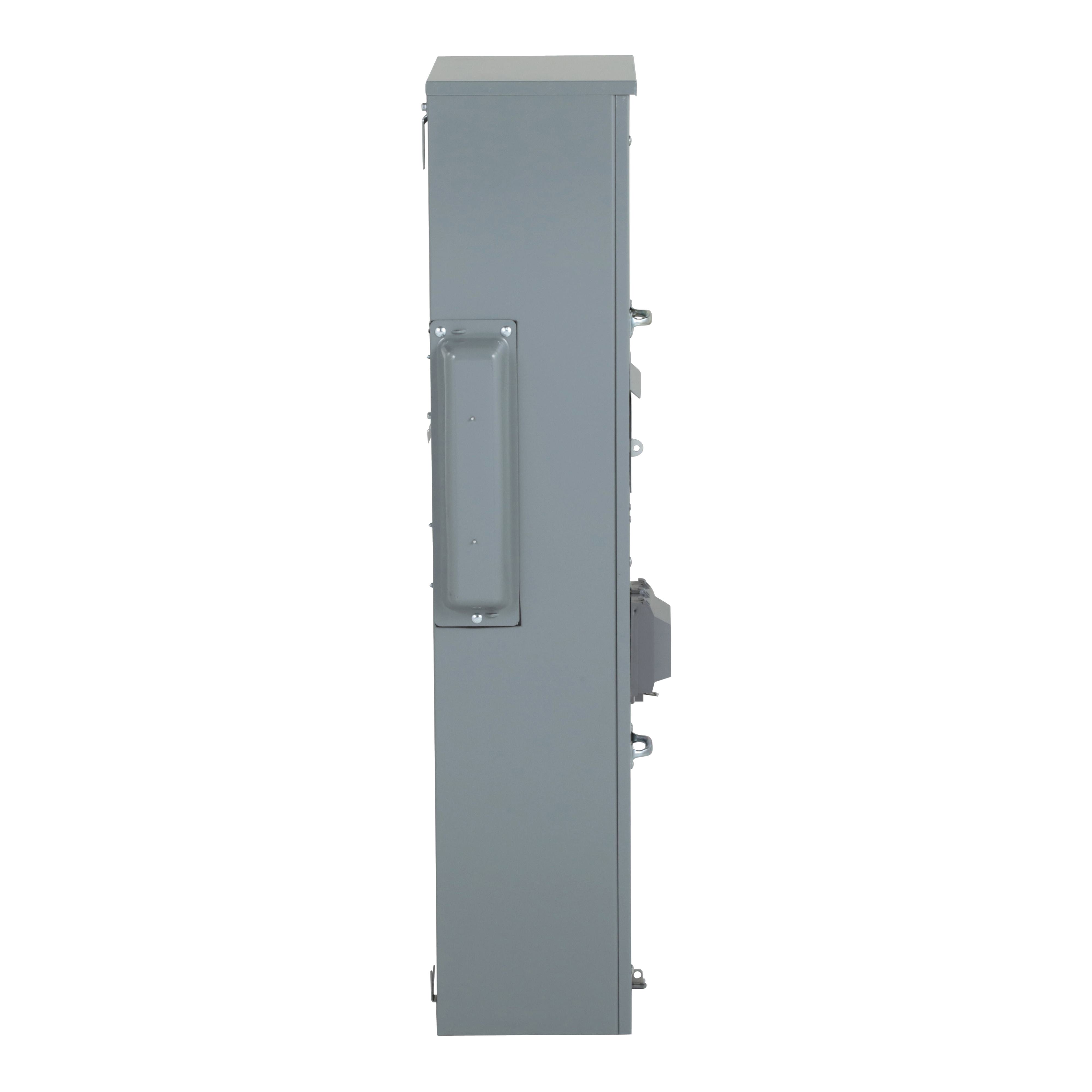

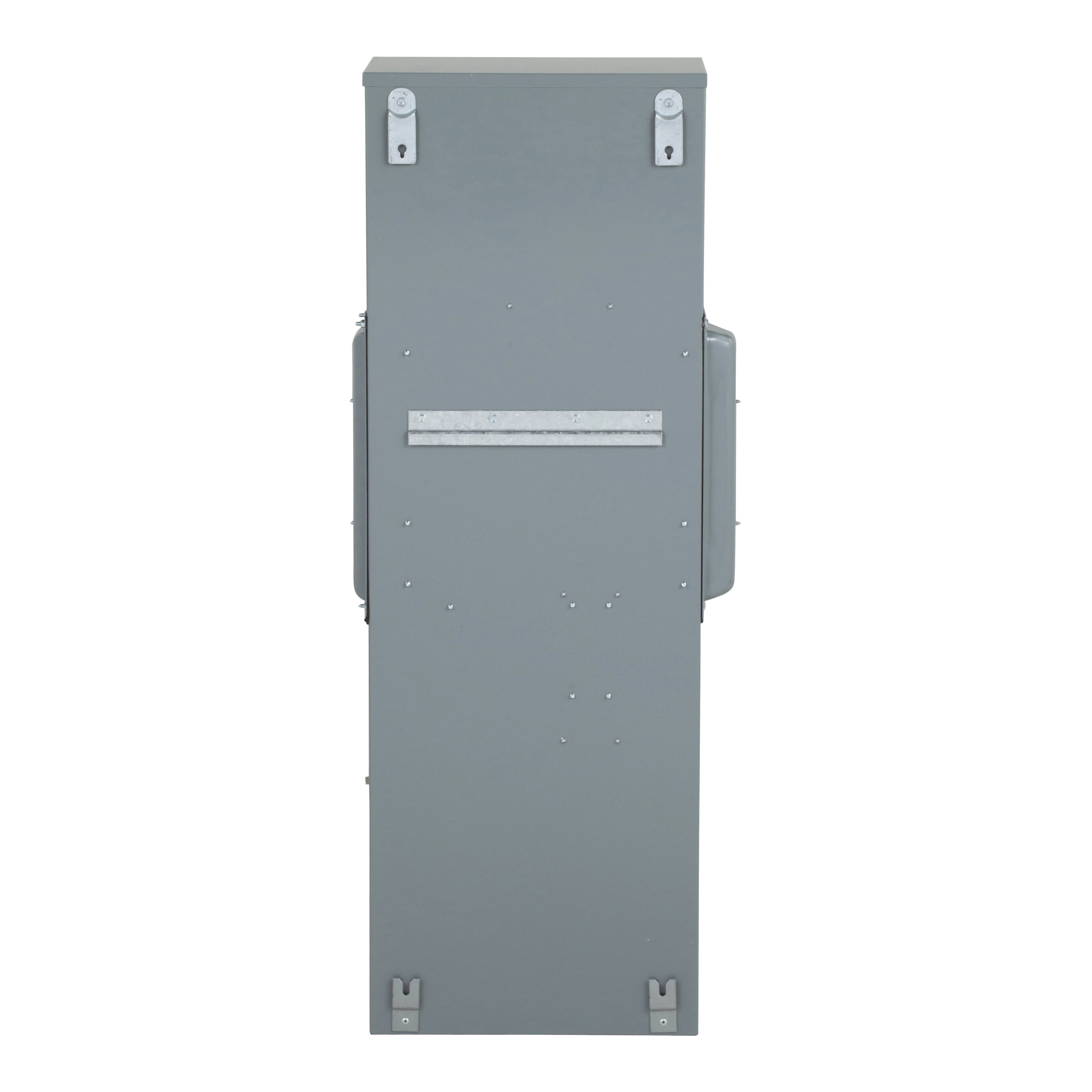

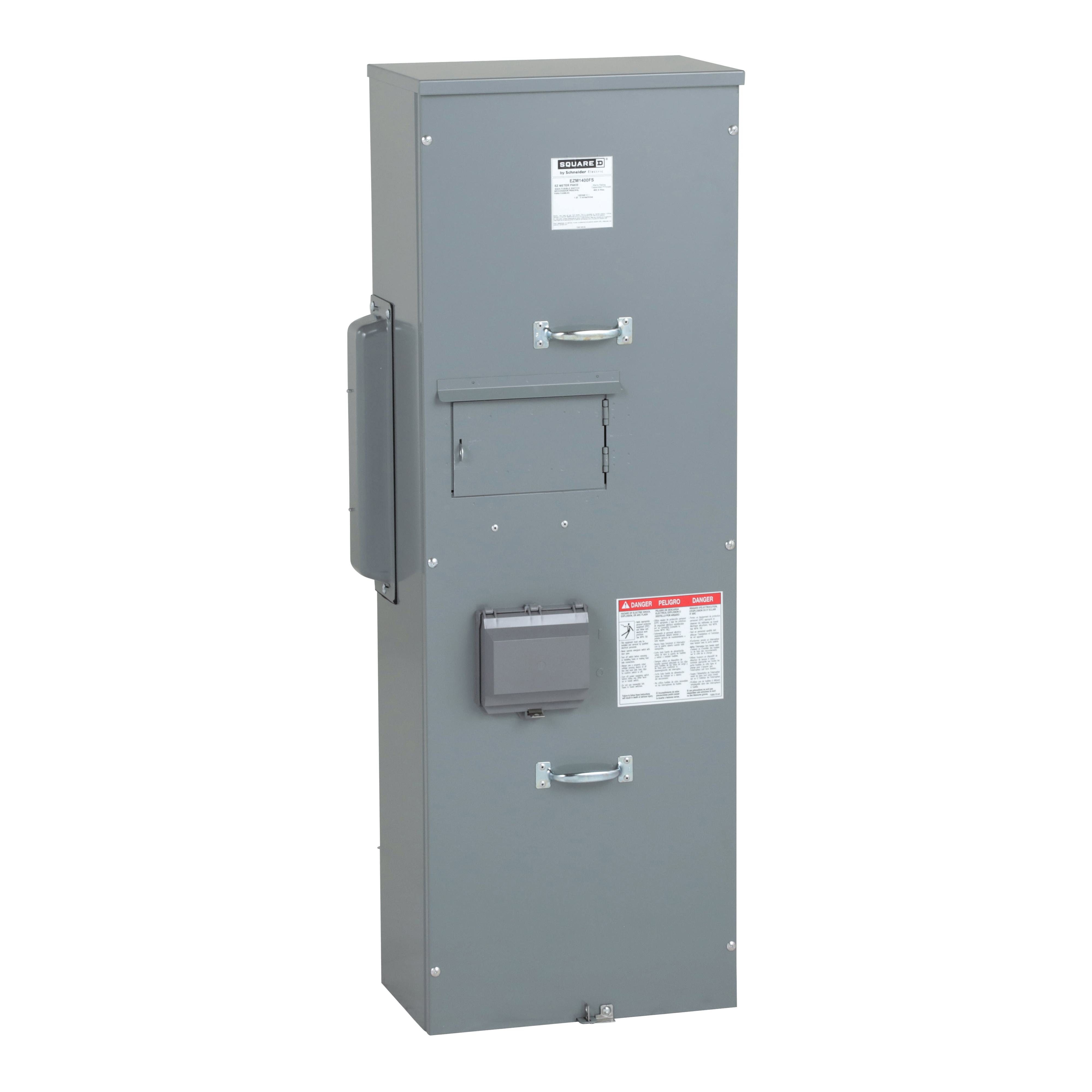

Square D™ EZ Meter-Pak™ EZM1400FS Main Fusible Switch, 120/240 VAC, 400 A, 1 Phase, NEMA 3R Enclosure
Brand: Square D™
Item ID: 528951
MPN: EZM1400FS
UPC: 785901304777
Login for Price
Features
- Electrical connection - lugs (1) cables 6 AWG to 300 kcmil (aluminum/copper) ground, lugs (1) cables 1 AWG to 600 kcmil (aluminum/copper) line, lugs (2) cables 1 AWG to 250 kcmil (aluminum/copper) line, lugs (1) cables 1 AWG to 600 kcmil (aluminum/copper) neutral and lugs (2) cables 1 AWG to 250 kcmil (aluminum/copper) neutral
- Meter center main unit
Description
Square D™ EZ Meter-Pak™ Main Fusible Switch, 120/240 VAC, 400 A, 1 ph, Overhead/Underground Feed, (1) 6 AWG to 300 kcmil Ground, (1) 1 AWG to 600 kcmil Line, (1) 1 AWG to 600 kcmil Neutral Wire, Line/Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 18.66 in W x 11.5 in D x 53.97 in H Dimensions
Specifications
Amperage Rating |
400 A |
Dimensions |
18.66 in W x 11.5 in D x 53.97 in H |
Enclosure Type |
NEMA 3R |
Feed Type |
Overhead/Underground |
Mounting Type |
Surface |
Phase |
1 |
Terminal Type |
Line/Lug |
Voltage Rating |
120/240 VAC |
Wire Size |
(1) 6 AWG to 300 kcmil Ground, (1) 1 AWG to 600 kcmil Line, (1) 1 AWG to 600 kcmil Neutral |
Standard Approval |
ECCN: EAR99|UL Listed|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e123699aa4d65cca8d626288136caa1a8e1167a05934307082afe769f299ba41.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001KYK11_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM1400FS_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_76a926c138ad0e7ce1e7c9747ccd9ffc6878c7d47982949d5f3c3361a27b3d56.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM1400FS_Specification_Sheet.pdf
