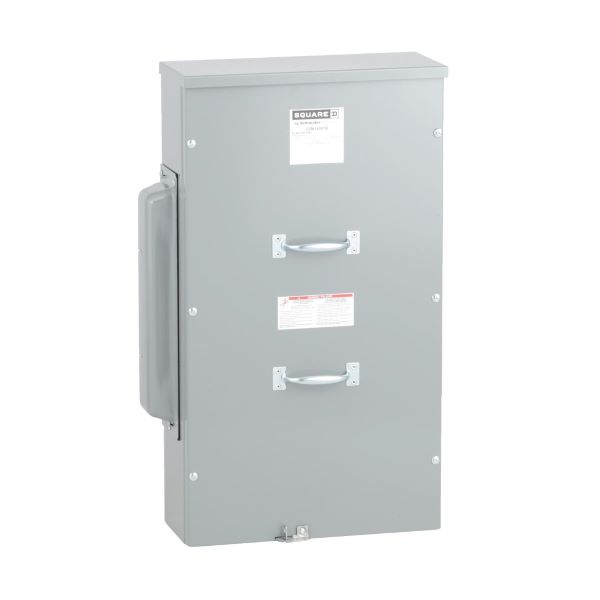

Square D™ EZM1400TB
Square D™ EZ Meter-Pak™ EZM1400TB Rainproof Meter Terminal Box, 120/240 VAC, 400 A, 1 Phase, Overhead/Underground Feed, NEMA 3R Enclosure
Brand: Square D™
Item ID: 79291
MPN: EZM1400TB
Login for Price
Features
- Lug (1) cables from 6 AWG to 300 kcmil aluminum/copper ground, lug (2) cables from 3/0 AWG to 500 kcmil aluminum/copper line, lug (2) cables from 3/0 AWG to 500 kcmil aluminum/copper neutral
Description
Square D™ EZ Meter-Pak™ Meter Terminal Box, Rainproof, Series: EZM, 120/240 VAC, 400 A, 1 ph, Overhead/Underground Feed, NEMA 3R Enclosure, 3/0 AWG to 500 kcmil Wire, Surface Mounting, Terminal Lug Connection, Steel, 17 in W x 6.53 in D x 30.46 in H Dimensions
Specifications
Amperage Rating |
400 A |
Connection Type |
Terminal Lug |
Dimensions |
17 in W x 6.53 in D x 30.46 in H |
Enclosure Type |
NEMA 3R |
Feed Type |
Overhead/Underground |
Material |
Steel |
Mounting Type |
Surface |
Phase |
1 |
Series |
EZM |
Type |
Rainproof |
Voltage Rating |
120/240 VAC |
Wire Size |
3/0 AWG to 500 kcmil |
Standard Approval |
UL Listed|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov |
Application |
AC Systems, Service Equipment and Indoor Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1fa36b77226e447678e1174ee72192ded83262b96bea05f4e62739c7e7fe3d29.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b17bb70043d9bb7d9fb442d7ca1a7b2744ef519ed05a45bdf471ff1a2d221bae.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_CMELK4_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM1400TB_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d71021629fcc435b77aaacf6c48d1a3b2ba5faf1351f3ebedb1e80958f150e56.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM1400TB_Specification_Sheet.pdf
