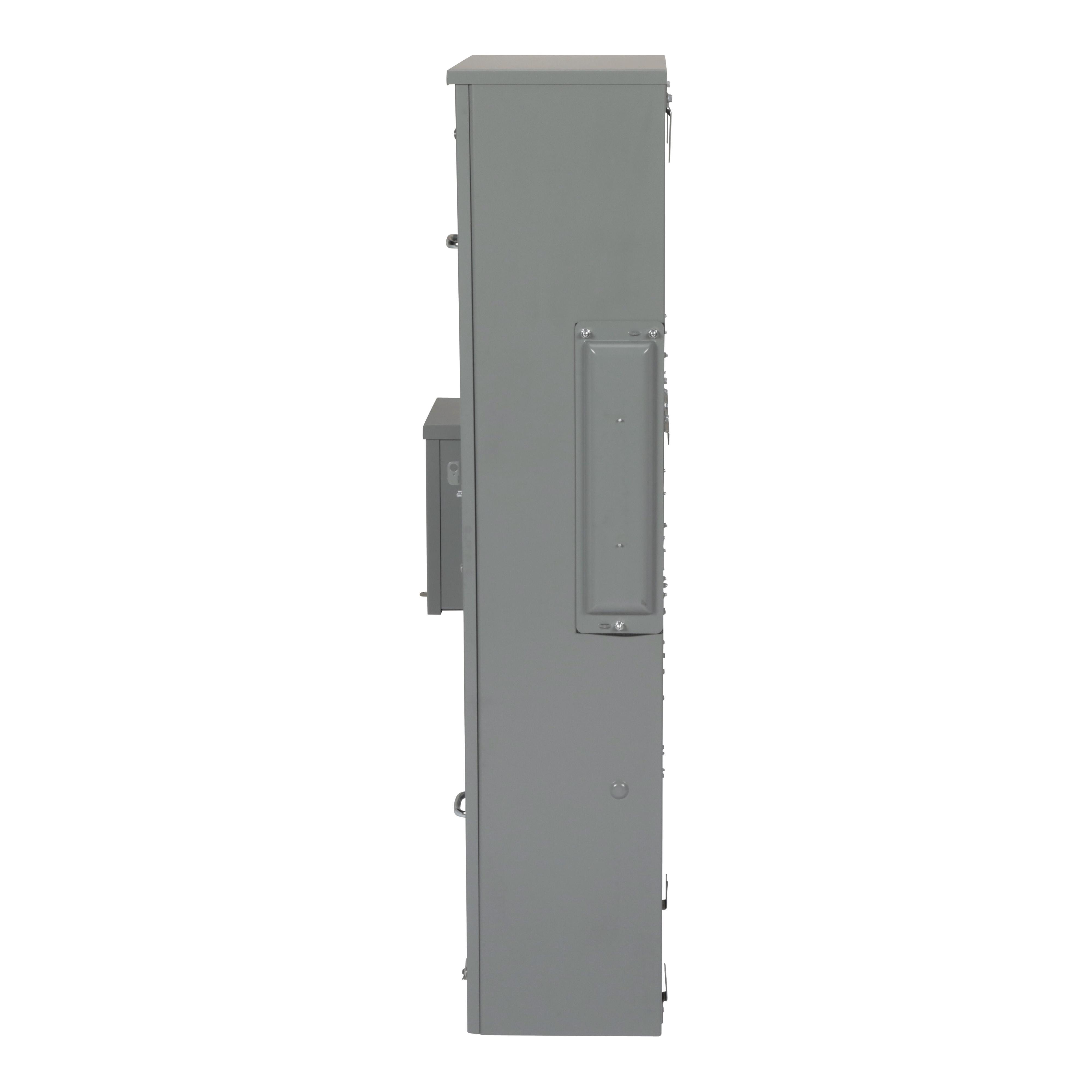

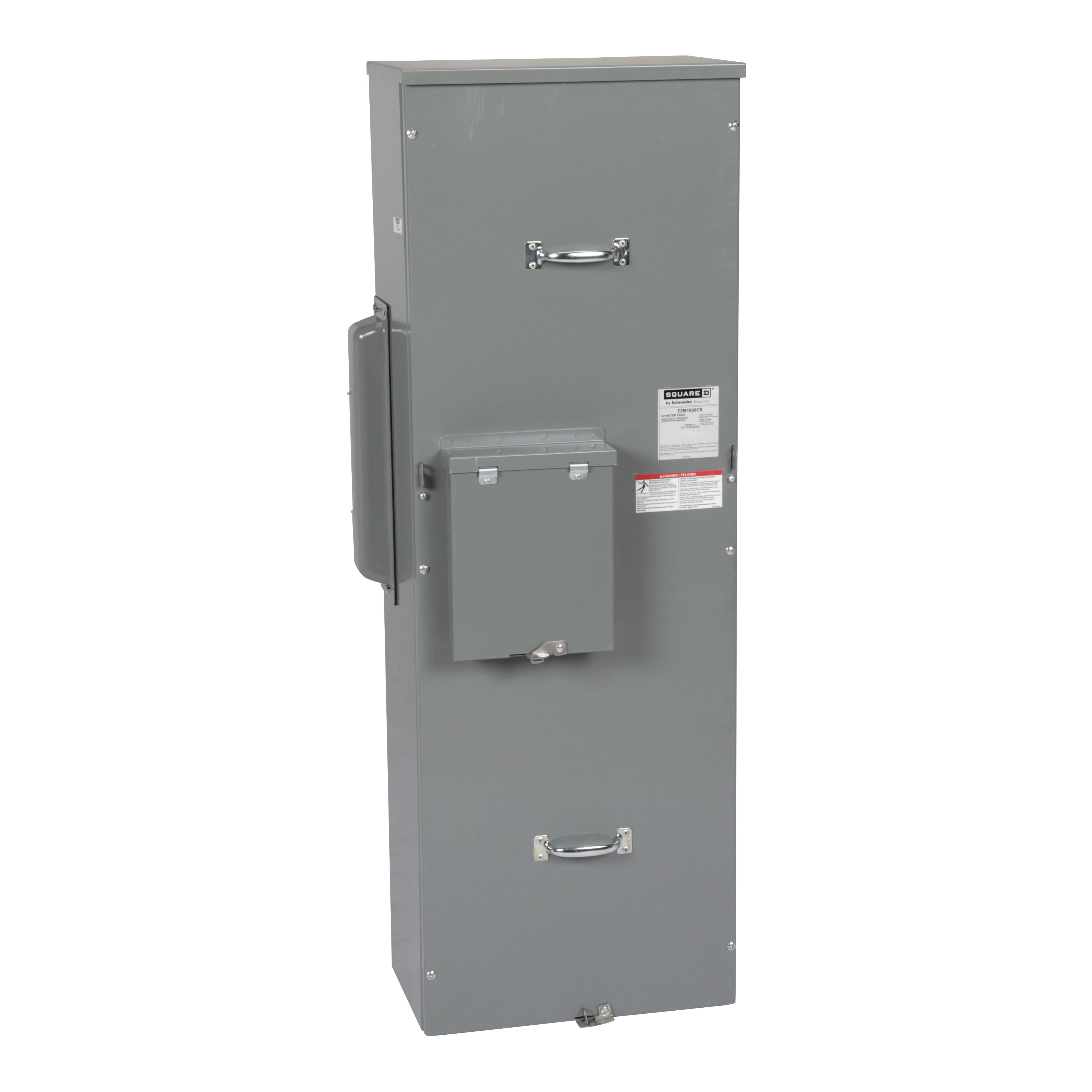

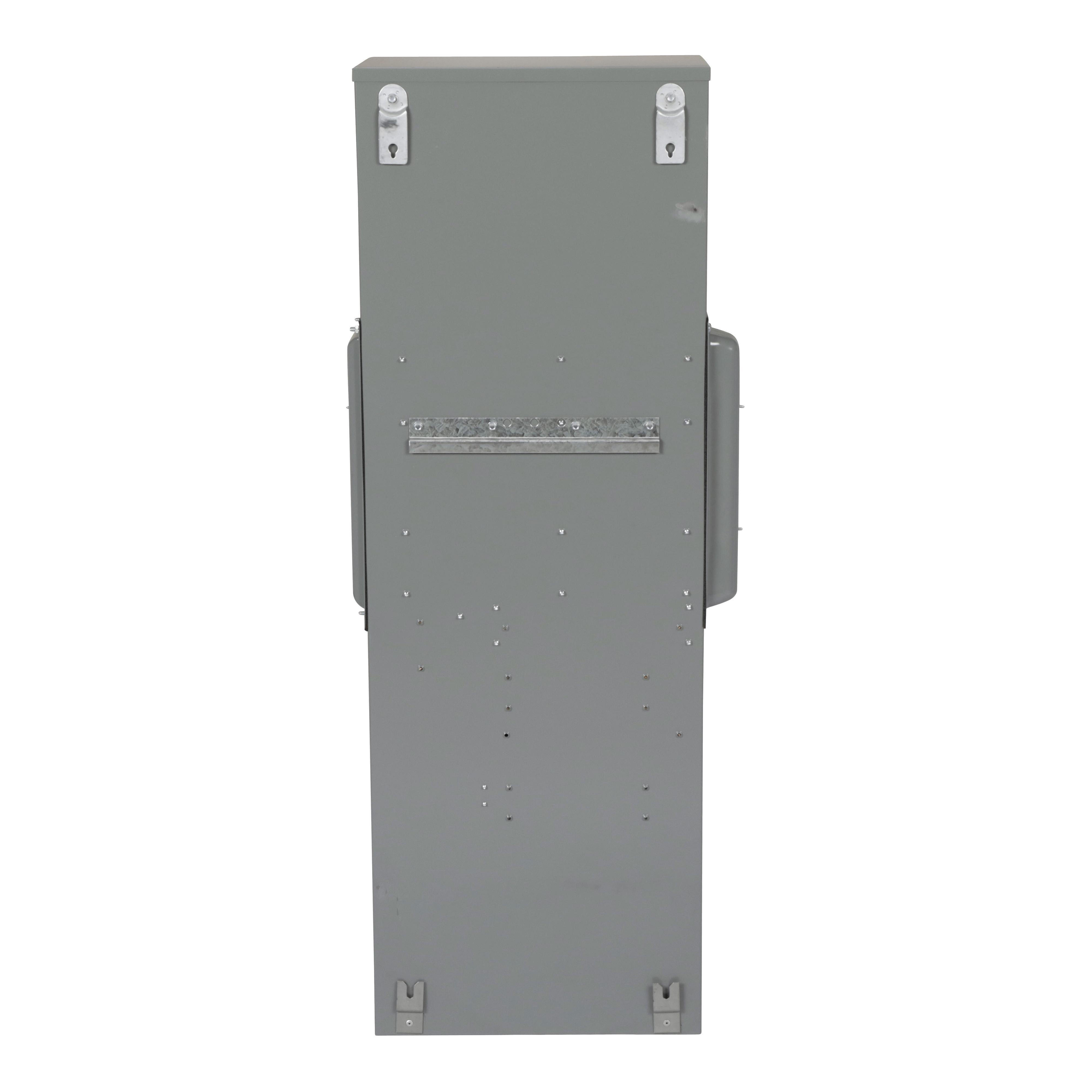

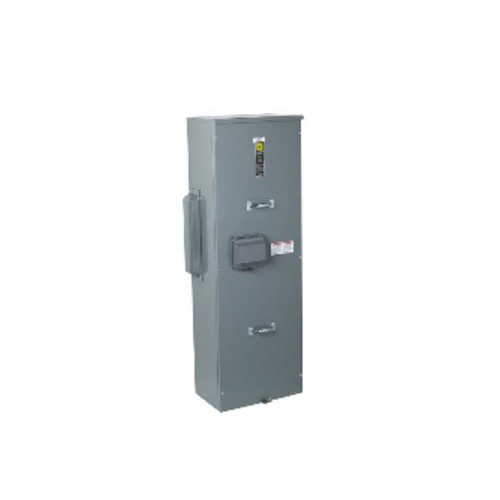

Square D™ EZM1600CB

• Top and bottom wiring gutters with knockouts allow branch circuits to exit from either the top, bottom or back of the unit
• Meter breaker units can be supplied with either 1-phase 3-wire or 3-phases 4-wire service
• The main bus on residential units with 40 to 200 a circuit breaker provisions is 800 or 1200 a in units using commercial 200 and 400 A branch circuit breakers
• To suit individual applications, residential and commercial devices may be interconnected
• Basic devices for connection to 3-phases 4-wire 120/208 VAC service are factory phase balanced to save installation time
• The phase balancing may be modified in the field to meet most system variations
• Lugs 3 cables 3/0 AWG to 500 kcmil Al/Cu line, lugs 3 cables 3/0 AWG to 500 kcmil Al/Cu neutral, lugs 1 cable 6 AWG to 300 kcmil Al/Cu ground electrical connection
• Steel enclosure material
• Aluminum busbar

Square D™ EZ Meter-Pak™ centers are available from 1 to 6 H meter breaker units. Greater selectivity means faster, easier installations. Plug-on QO™ 2-pole circuit breakers are used in 125 A units, while 200 A residential units use factory installed Q2 2-pole circuit breakers.

Square D™ EZ Meter-Pak™ Meter Center Main Unit, Circuit Breaker, Series: EZM, 120/240 VAC, 600 A, 1 ph, 1 Pole, NEMA 3R Enclosure, 53.97 in H x 18.66 in W x 11.5 in D Dimensions
