Square D™ EZM1600TB

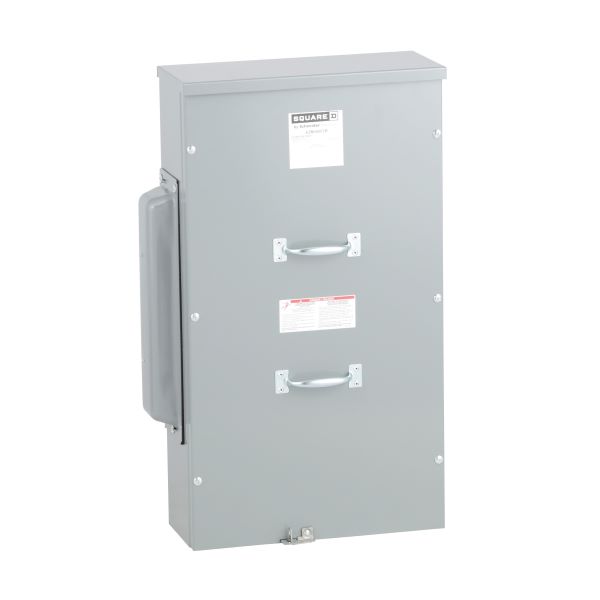

Square D™ EZ Meter-Pak™ EZM1600TB Rainproof Meter Terminal Box, 120/240 VAC, 600 A, 1 Phase, Overhead/Underground Feed, NEMA 3R Enclosure
Brand: Square D™
Item ID: 428286
MPN: EZM1600TB
Login for Price
Features
- Lug (1) cables from 6 AWG to 300 kcmil aluminum/copper ground, lug (2) cables from 1/0 AWG to 750 kcmil aluminum/copper line, lug (4) cables from 1/0 AWG to 300 kcmil aluminum/copper line, lug (2) cables from 1/0 AWG to 750 kcmil aluminum/copper neutral, lug (4) cables from 1/0 AWG to 300 kcmil aluminum/copper neutral
Description
Square D™ EZ Meter-Pak™ Meter Terminal Box, Rainproof, Series: EZM, 120/240 VAC, 600 A, 1 ph, Overhead/Underground Feed, NEMA 3R Enclosure, 1/0 AWG to 750 kcmil Wire, Surface Mounting, Terminal Lug Connection, Steel, 17 in W x 6.53 in D x 28.43 in H Dimensions
Specifications
Amperage Rating |
600 A |
Connection Type |
Terminal Lug |
Dimensions |
17 in W x 6.53 in D x 28.43 in H |
Enclosure Type |
NEMA 3R |
Feed Type |
Overhead/Underground |
Material |
Steel |
Mounting Type |
Surface |
Phase |
1 |
Series |
EZM |
Type |
Rainproof |
Voltage Rating |
120/240 VAC |
Wire Size |
1/0 AWG to 750 kcmil |
Standard Approval |
UL Listed|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov |
Application |
AC Systems, Service Equipment and Indoor Applications |
