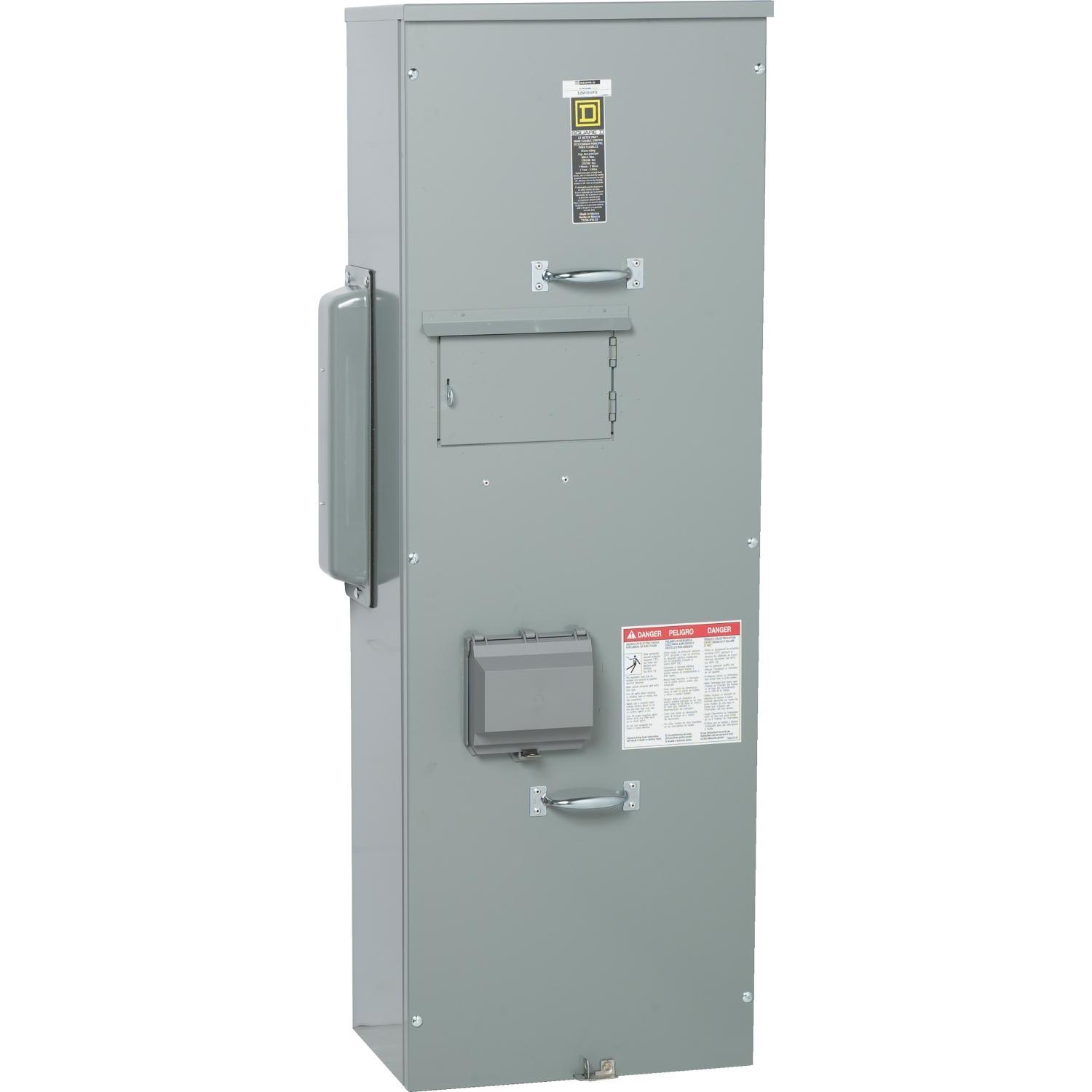

Square D™ EZM1800FS
Square D™ EZ Meter-Pak™ EZM1800FS Main Fusible Switch, 120/240 VAC, 800 A, 1 Phase, NEMA 3R Enclosure
Brand: Square D™
Item ID: 530496
MPN: EZM1800FS
UPC: 785901304791
Login for Price
Features
- Electrical connection - Lugs (3) cables 3/0 AWG to 500 kcmil (aluminum/copper) line, lugs (3) cables 3/0 AWG to 500 kcmil (aluminum/copper) neutral and lugs (1) cables 6 AWG to 300 kcmil (aluminum/copper) ground
- Meter center
- Aluminum busbar
- (1) 6 AWG cable to 300 kcmil ground, (3) 3/0 AWG cable to 500 kcmil line, (3) 3/0 AWG cable to 500 kcmil neutral
Description
Meter-Pak Meter Center Main Unit 800A, Main Fusible Switch, NEMA 3R
Square D™ EZ Meter-Pak™ Main Fusible Switch, 120/240 VAC, 800 A, 1 ph, Overhead/Underground Feed, 6 AWG to 300 kcmil, 3/0 AWG to 500 kcmil Wire, Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 53.97 in H x 18.66 in W x 11.5 in D Dimensions
Specifications
Amperage Rating |
800 A |
Dimensions |
53.97 in H x 18.66 in W x 11.5 in D |
Enclosure Type |
NEMA 3R |
Feed Type |
Overhead/Underground |
Mounting Type |
Surface |
Phase |
1 |
Terminal Type |
Lug |
Voltage Rating |
120/240 VAC |
Wire Size |
6 AWG to 300 kcmil, 3/0 AWG to 500 kcmil |
Standard Approval |
ECCN EAR99|UL Listed|PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2c9b24a490aeec321621087a46745351dff6dbd5a4c8ba9ae40e0f4236bf9012.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM1800FS_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5d4a1f7c876459730ab606efa1b5118aa15396f8dac253be3433de17572b6a92.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_bbb66b7d0a5087aff1fdb2c141970144288743d549b7489709354f072fc5b55e.pdf
Specification Sheet 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM1800FS_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d77cdefd60cb8e61f57646ab0d05a41b3aa915c70a67b3d57a2b5c2a29a85711.pdf
