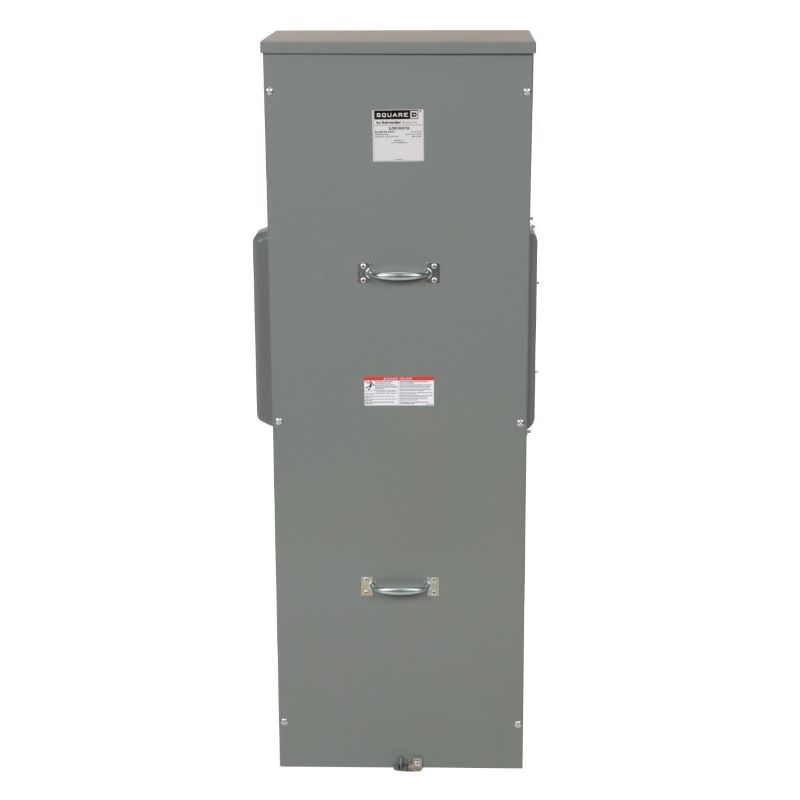

Square D™ EZM1800TB
Square D™ EZ Meter-Pak™ EZM1800TB Rainproof Meter Terminal Box, 120/240 VAC, 800 A, 1 Phase, Overhead/Underground Feed, NEMA 3R Enclosure
Brand: Square D™
Item ID: 79292
MPN: EZM1800TB
Login for Price
Features
- Lug (1) cables from 6 AWG to 300 kcmil aluminum/copper ground, lug (4) cables from 3/0 AWG to 500 kcmil aluminum/copper line, lug (4) cables from 3/0 AWG to 500 kcmil aluminum/copper neutral
Description
METERING EZM TERMINAL BOX 800A 1 PHASE
Square D™ EZ Meter-Pak™ Meter Terminal Box, Rainproof, Series: EZM, 120/240 VAC, 800 A, 1 ph, Overhead/Underground Feed, NEMA 3R Enclosure, 3/0 AWG to 500 kcmil Wire, Surface Mounting, Terminal Lug Connection, Steel, 18.66 in W x 11.5 in D x 53.97 in H Dimensions
Specifications
Amperage Rating |
800 A |
Connection Type |
Terminal Lug |
Dimensions |
18.66 in W x 11.5 in D x 53.97 in H |
Enclosure Type |
NEMA 3R |
Feed Type |
Overhead/Underground |
Material |
Steel |
Mounting Type |
Surface |
Phase |
1 |
Series |
EZM |
Type |
Rainproof |
Voltage Rating |
120/240 VAC |
Wire Size |
3/0 AWG to 500 kcmil |
Standard Approval |
UL Listed|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Application |
AC Systems, Service Equipment and Indoor Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c8cd8e7a0750e06f9abd0df56a8530a66ef1b11d5c3b8d5edd1005a3d6fba0f9.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM1400TB_Installation.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM1800TB_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6600ed0c823c894275d0cbaf3e0ef2f48e42683bdd6f069f717534c0ff1954af.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM1800TB_Specification_Sheet.pdf
