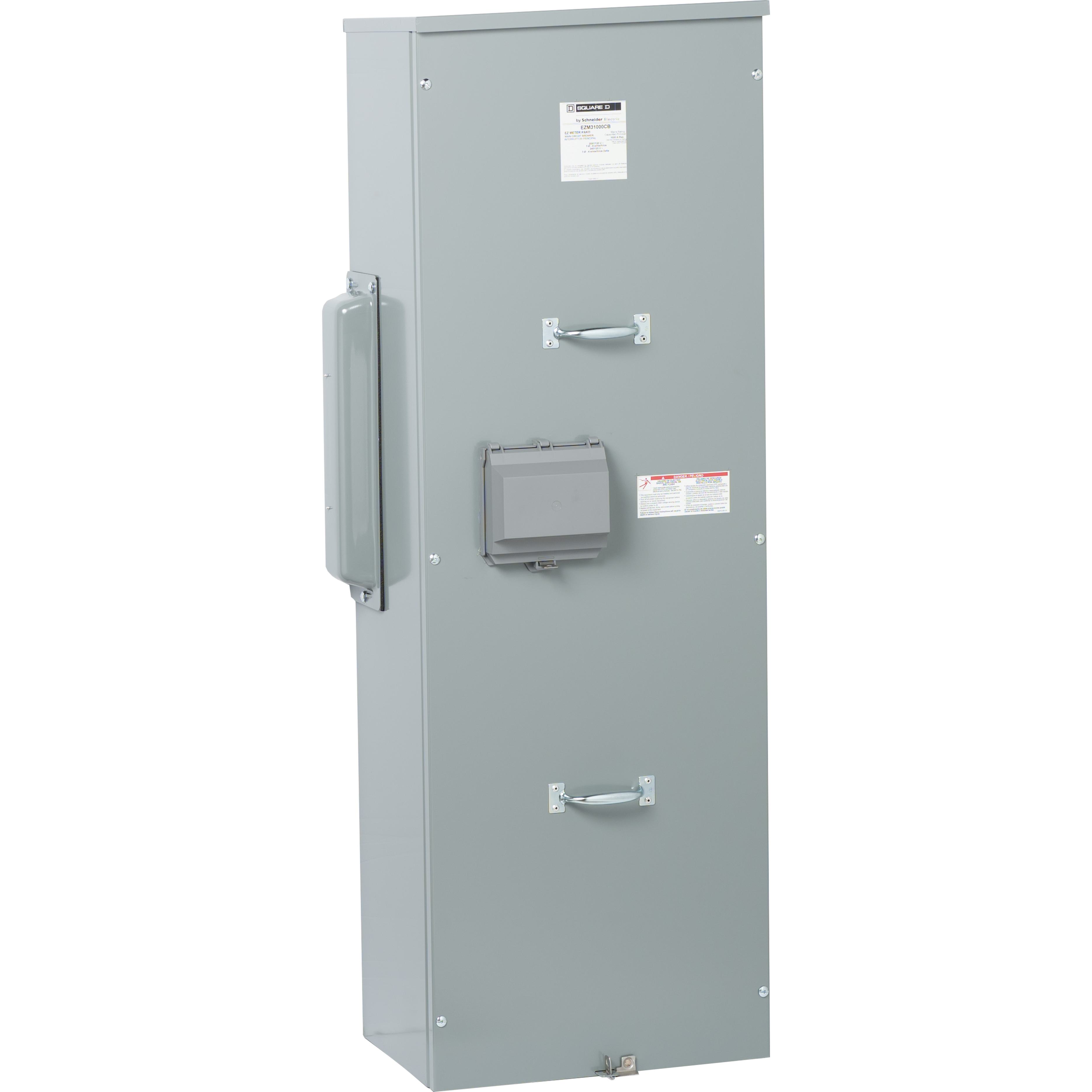

Square D™ EZM31000CB
Square D™ EZ Meter-Pak™ EZM31000CB Main Circuit Breaker, 208Y/120 VAC 240/120 VAC Delta, 1000 A, 3 ph Phase, NEMA 3R Enclosure
Brand: Square D™
Item ID: 515332
MPN: EZM31000CB
UPC: 785901305002
Login for Price
Features
- Electrical connection - lugs (1) cables 6 AWG to 300 kcmil (aluminum/copper) ground, lugs (4) cables 3/0 AWG to 500 kcmil (aluminum/copper) line and lugs (4) cables 3/0 AWG to 500 kcmil (aluminum/copper) neutral
- Meter center
Description
Square D™ EZ Meter-Pak™ Main Circuit Breaker, 208Y/120 VAC 240/120 VAC Delta, 1000 A, 3 ph, Overhead/Underground Feed, (1) Cable #6 AWG to 300 kcmil Ground/(4) Cables #3/0 AWG to 500 kcmil Line/(4) Cables #3/0 AWG to 500 kcmil Neutral Wire, Lug Terminal, Surface Mount, NEMA 3R Operating, 18.66 in W x 11.5 in D x 53.97 in H
Specifications
Amperage Rating |
1000 A |
Dimensions |
18.66 in W x 11.5 in D x 53.97 in H |
Feed Type |
Overhead/Underground |
Mounting Type |
Surface |
Operating Temperature |
NEMA 3R |
Phase |
3 ph |
Terminal Type |
Lug |
Voltage Rating |
208Y/120 VAC 240/120 VAC Delta |
Wire Size |
(1) Cable #6 AWG to 300 kcmil Ground/(4) Cables #3/0 AWG to 500 kcmil Line/(4) Cables #3/0 AWG to 500 kcmil Neutral |
Standard Approval |
ECCN EAR99|UL Listed|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_RWLED2T105_BL_Installation_Sheet.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM31000CB_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_fccd9ec64c5825b9b00e5457acc7a13dc430511aa9023ccaff86cd734997834d.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM31000CB_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9917ac4648c86be7cd659fc5a55b070a4c84ff7521892cfcfcca7d69b9904554.pdf
Square D™ EZM31000CB
