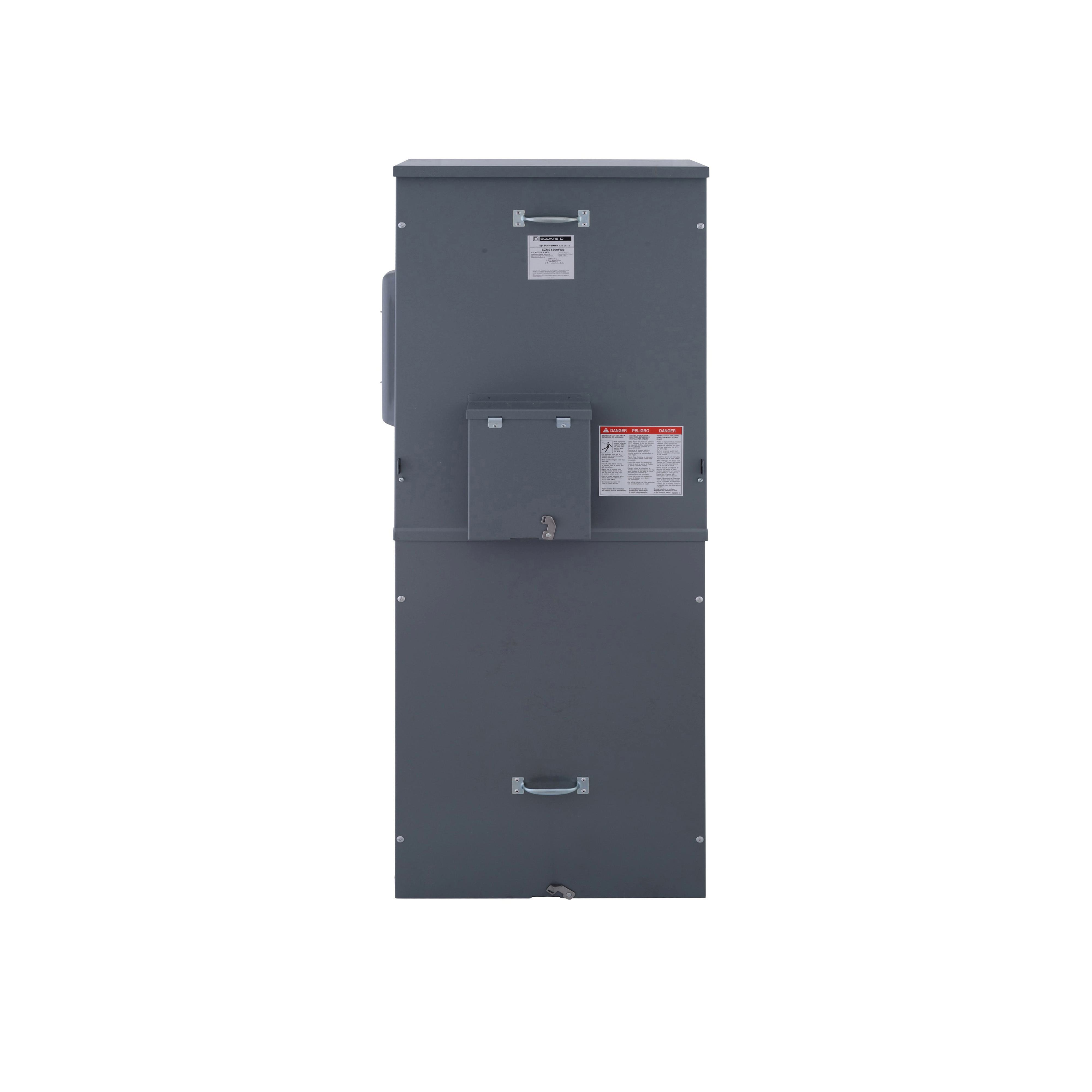

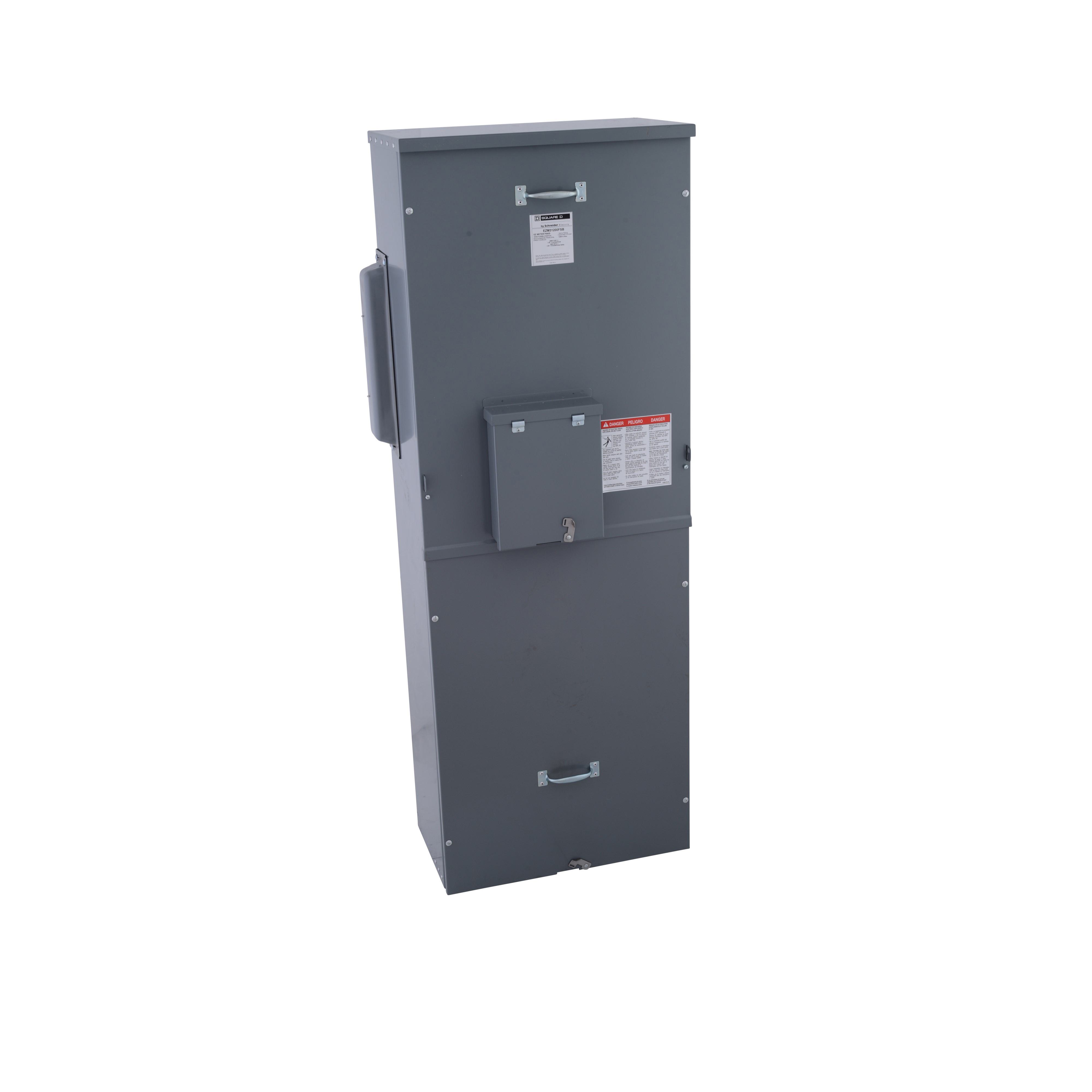

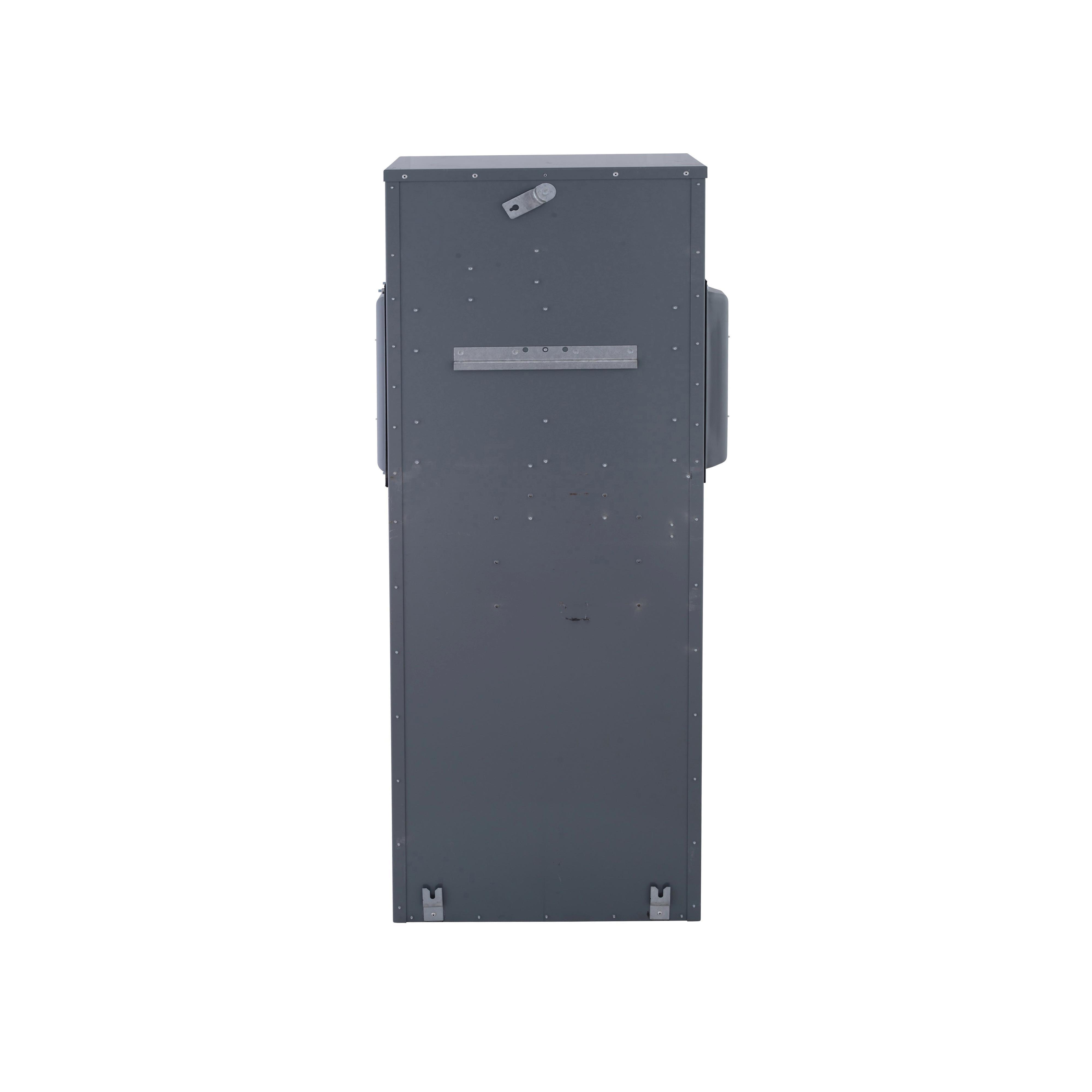

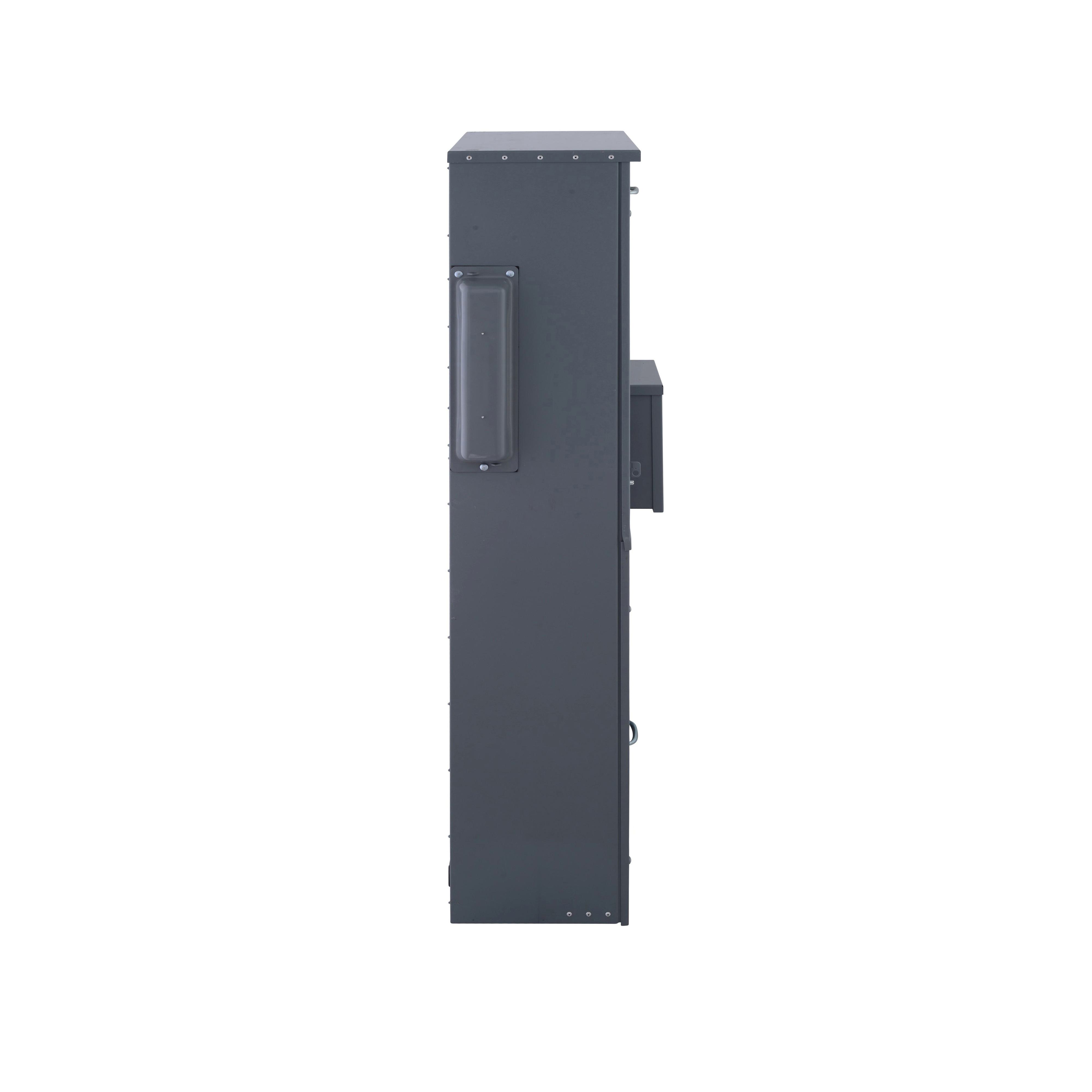

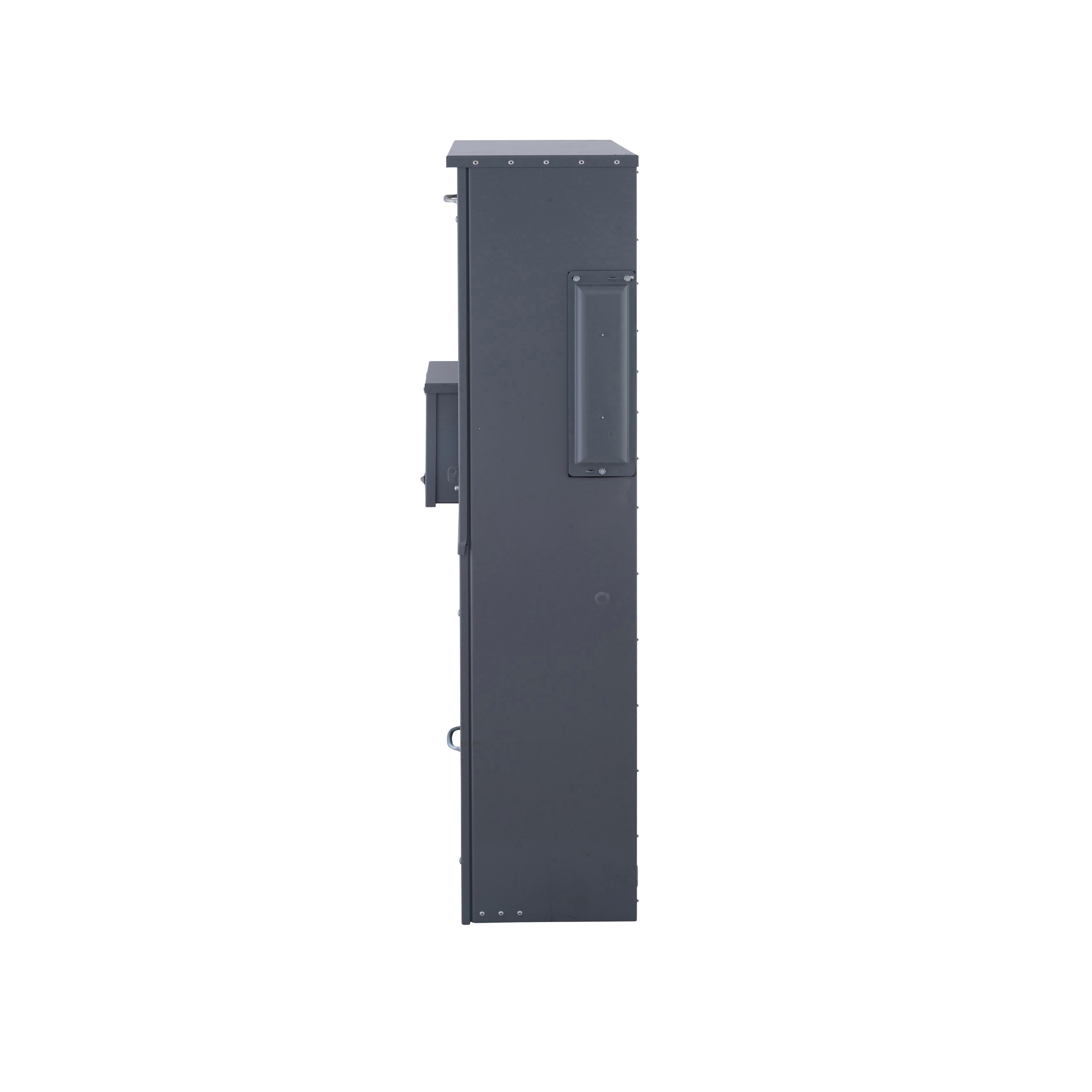

Square D™ EZM31200FSB
Square D™ EZ Meter-Pak™ EZM31200FSB 3-Pole Main Fusible Switch Meter Center, 208Y/120 VAC, 1200 A, 3 Phase, 4 Wires, NEMA 3R Enclosure
Brand: Square D™
Item ID: 475774
MPN: EZM31200FSB
UPC: 785901865780
Login for Price
Features
- 6 AWG to 300 kcmil aluminum/copper ground, 3/0 AWG to 500 kcmil aluminum/copper line/neutral
- Aluminum horizontal cross busbar upto 1000 A maximum
Description
Square D™ EZ Meter-Pak™ Main Fusible Switch Meter Center, 3-Pole, Series: EZM, 208Y/120 VAC, 1200 A, 3, 4 Wires, 6 AWG to 300 kcmil, 3/0 AWG to 500 kcmil Wire, Underground Feed, Lug, Steel, Surface Mount, NEMA 3R, 65.3 in H x 23.69 in W x 13.69 in D
Specifications
Amperage Rating |
1200 A |
Connection Type |
Lug |
Dimensions |
65.3 in H x 23.69 in W x 13.69 in D |
Enclosure Type |
NEMA 3R |
Feed Type |
Underground |
Material |
Steel |
Mounting Type |
Surface |
Number of Wires |
4 |
Phase |
3 |
Series |
EZM |
Type |
3-Pole |
Voltage Rating |
208Y/120 VAC |
Wire Size |
6 AWG to 300 kcmil, 3/0 AWG to 500 kcmil |
Standard Approval |
UL Listed|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Application |
For service equipment and indoor applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_bca7c096ee0efe2abbff004a5d6a2fff05d666dee11966a8f82111e9d33ba6a1.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ab17aef90f56fcbdf93069d074d3556f8930c8b597b5987231e841a6e65220df.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_CMELK4_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XVCZ01_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM31200FSB_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f169d331bcf683b01e0b5adc95c94385262073ceeeb0e3da3d98a51fd86478aa.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM31200FSB_Specification_Sheet.pdf
