Square D™ EZM31200TBU

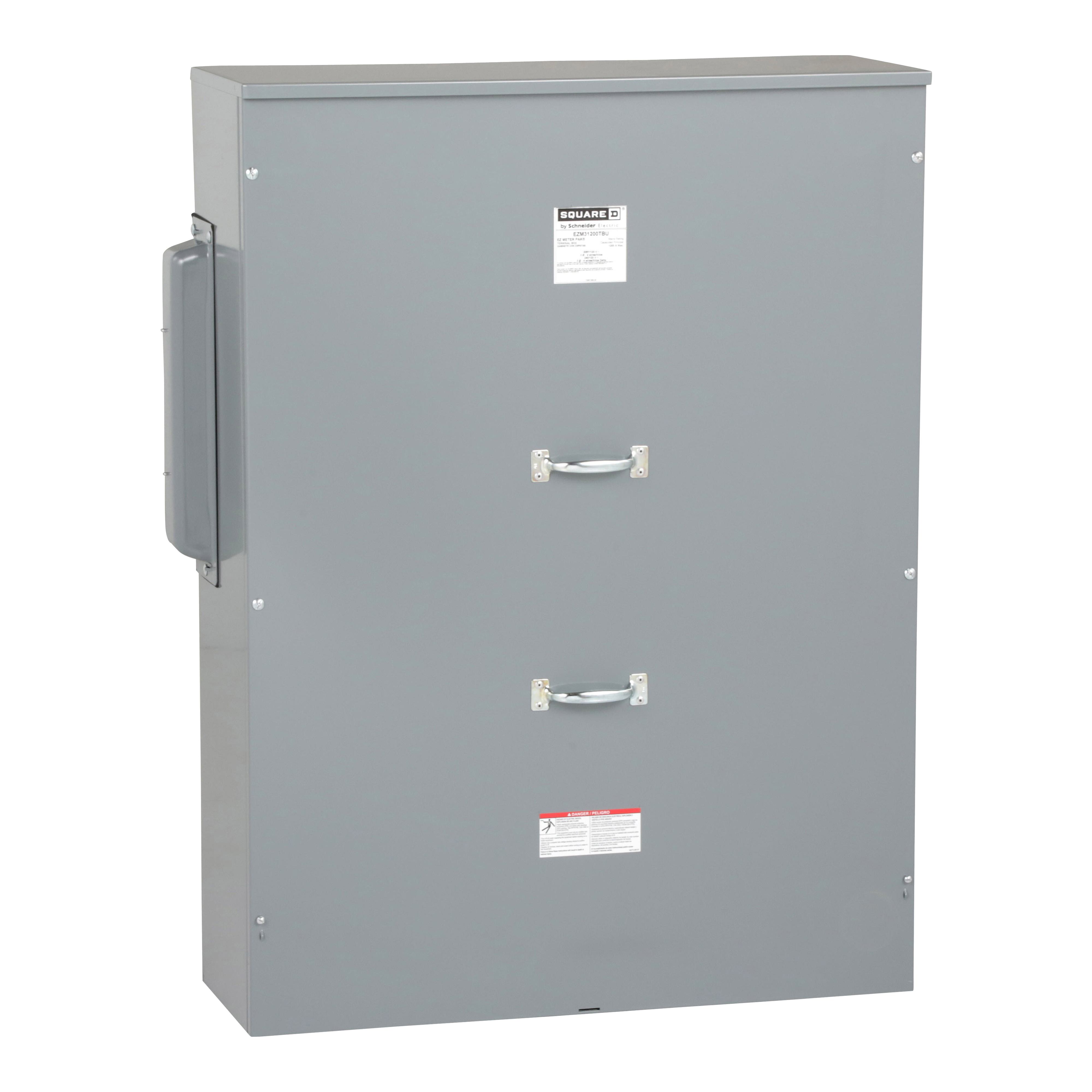

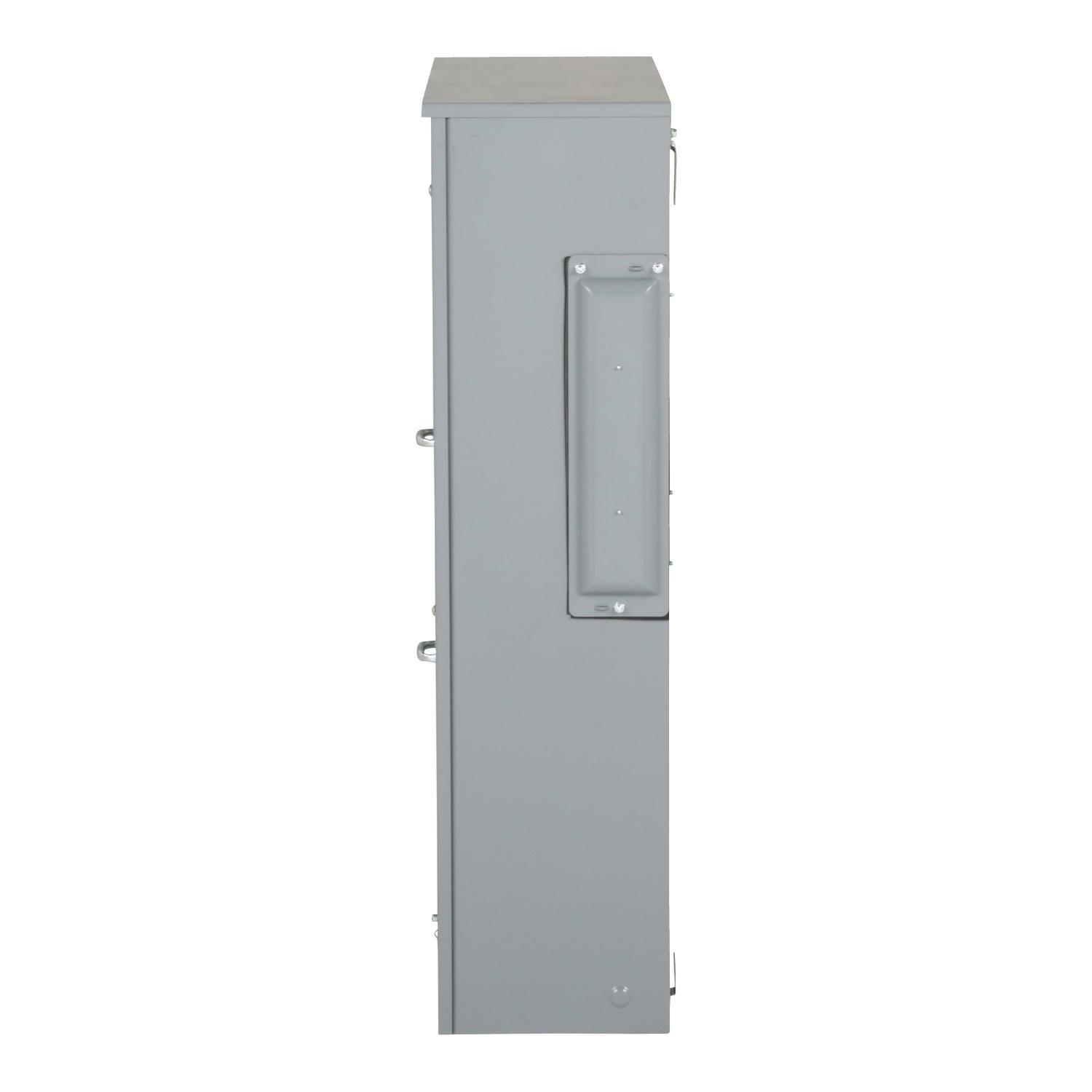

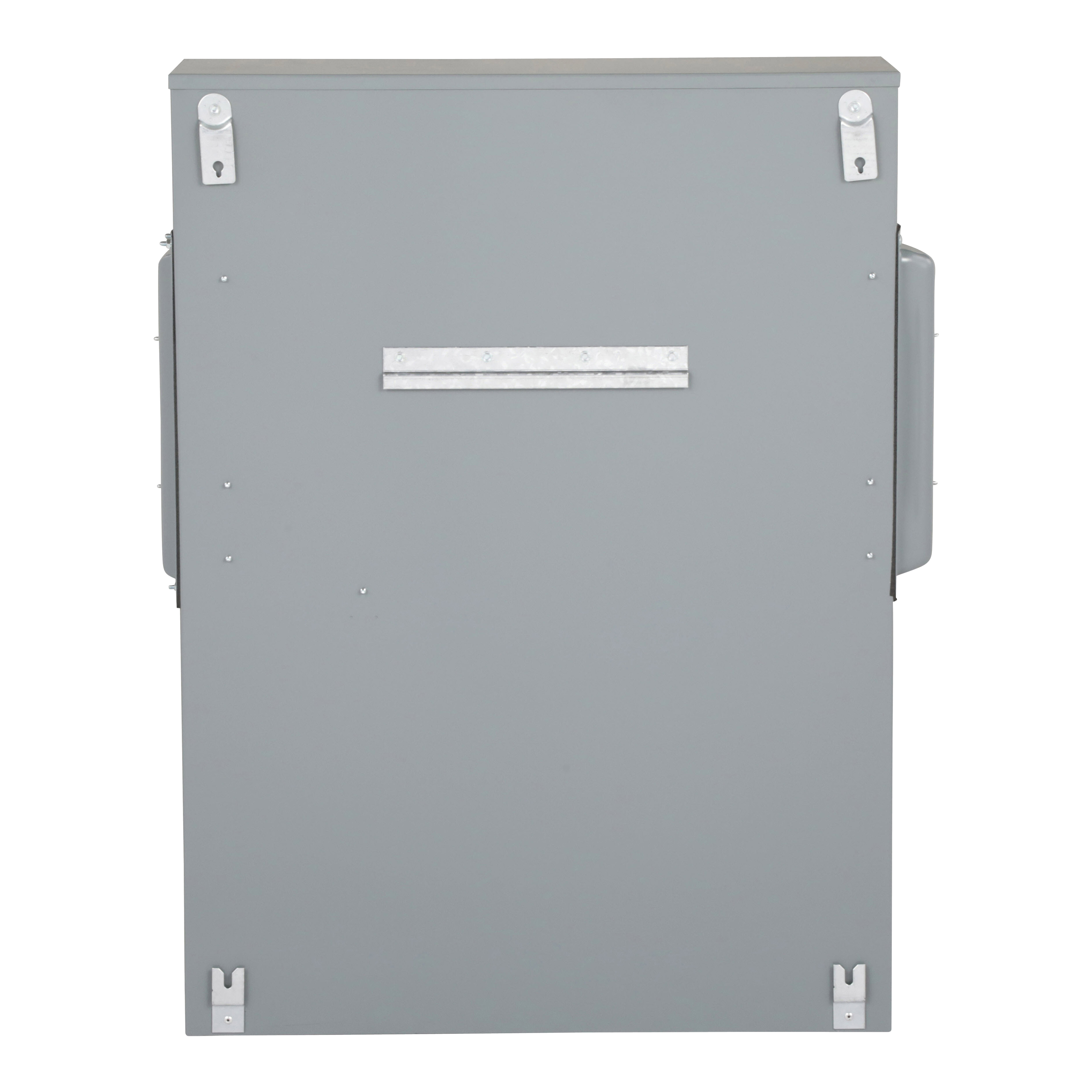

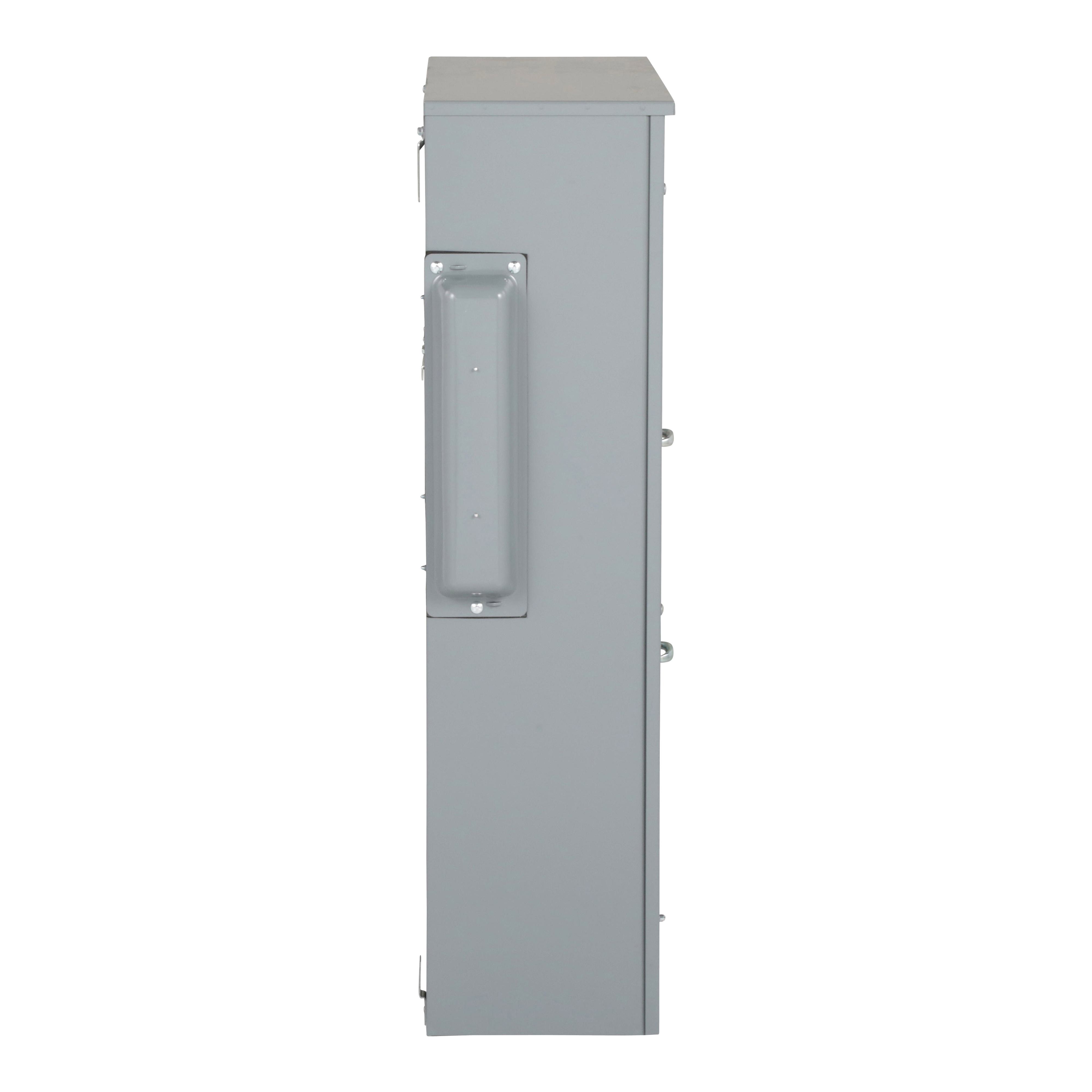

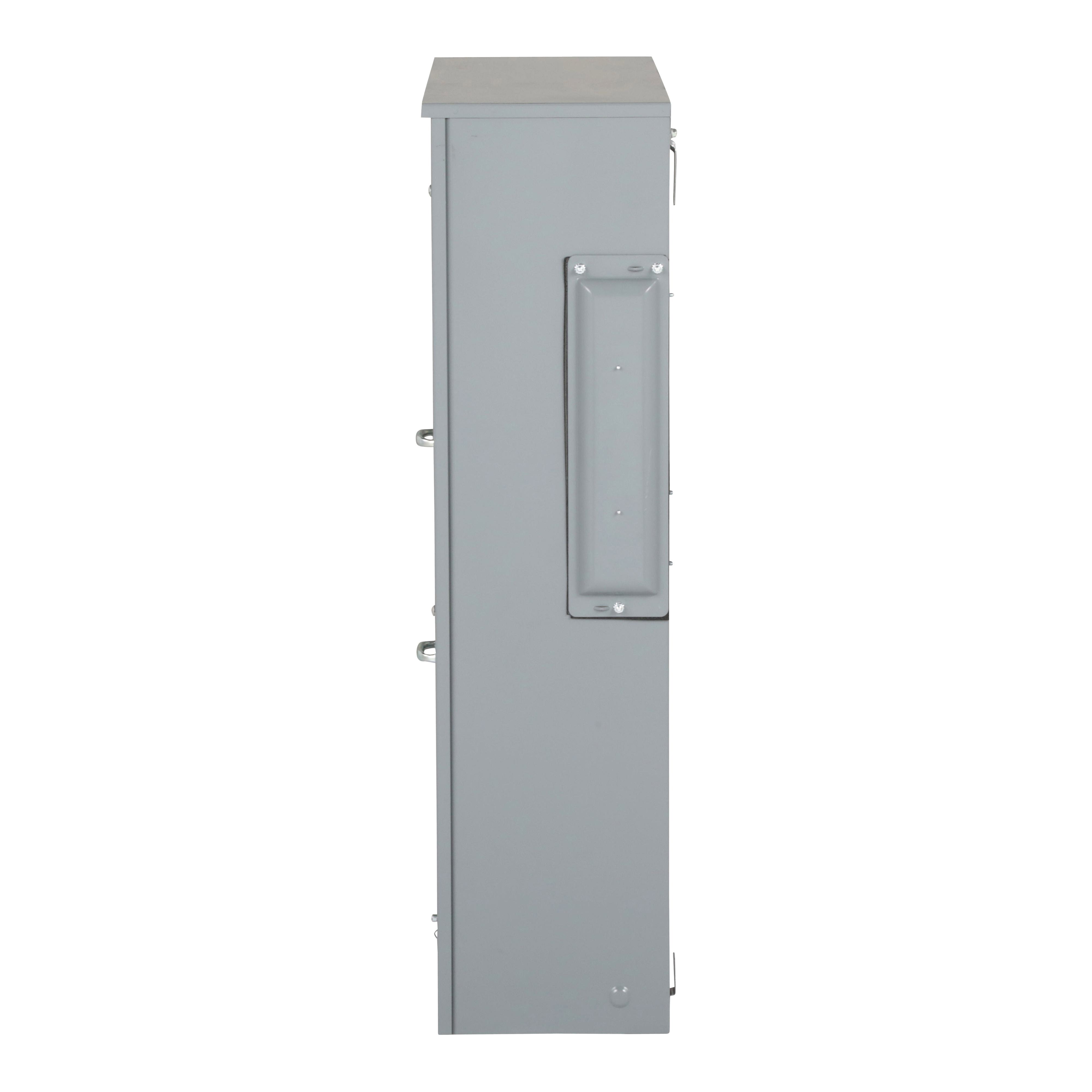

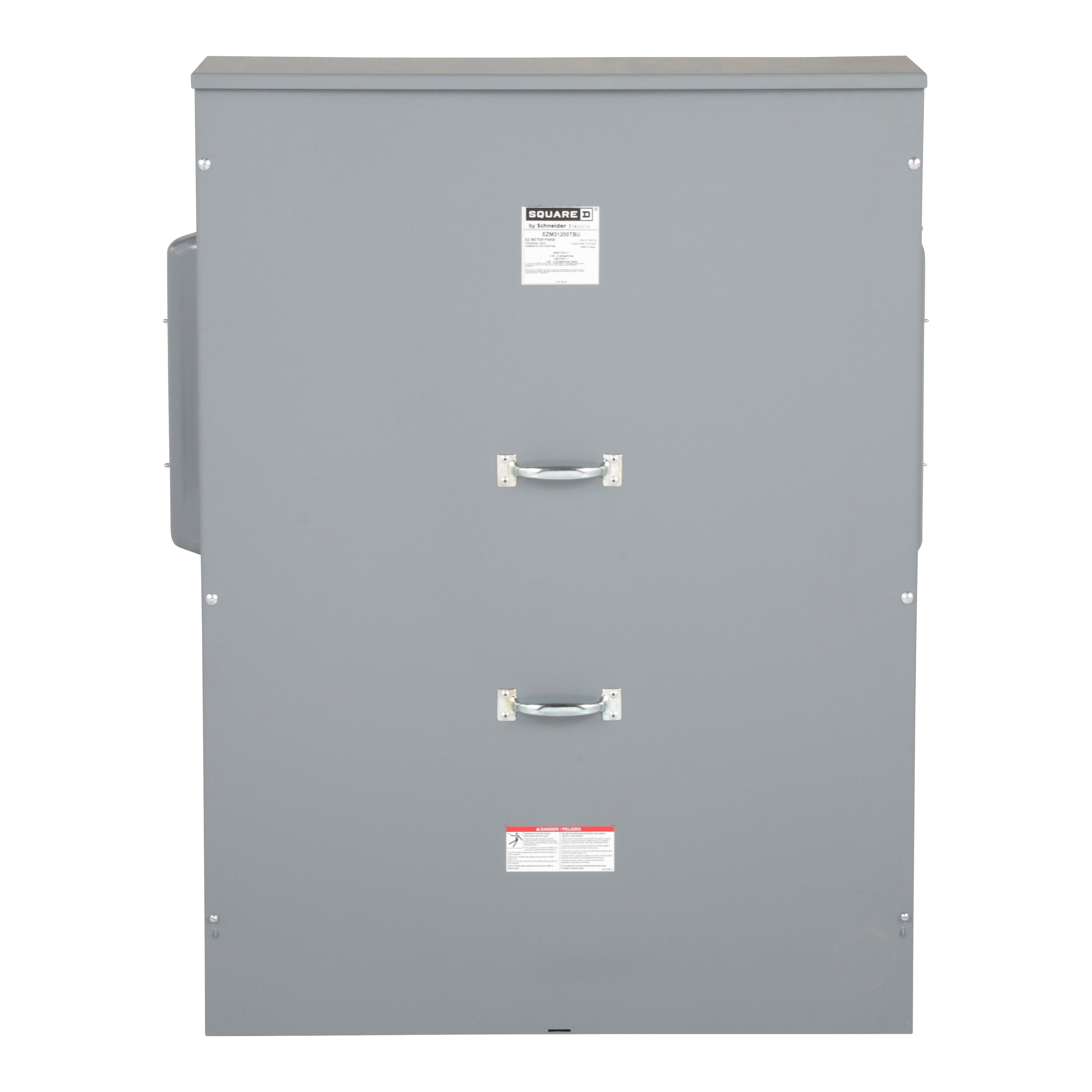

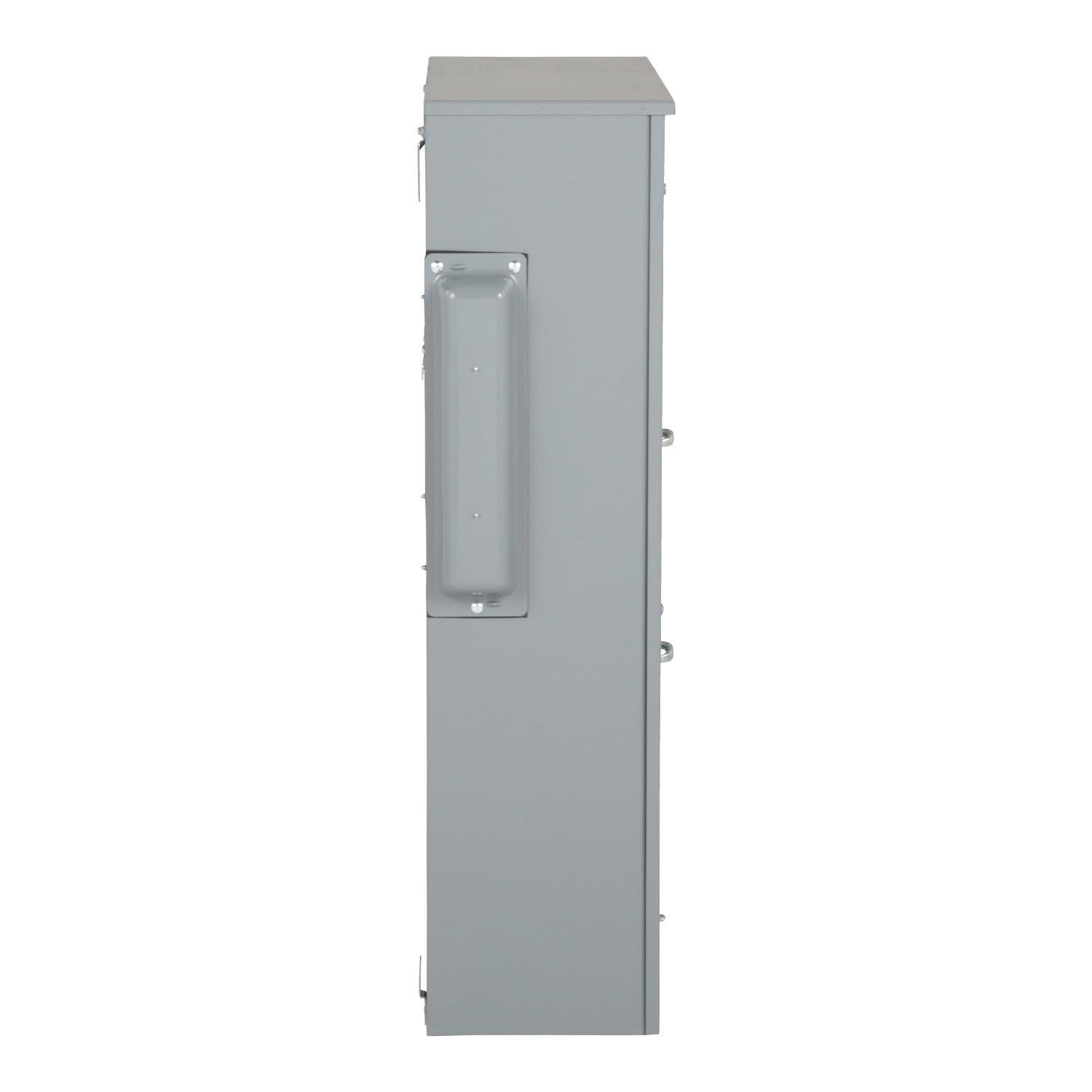

Square D™ EZ Meter-Pak™ EZM31200TBU Main Terminal Box, 208Y/120 VAC 240/120 VAC Delta, 1200 A, 3 ph Phase, NEMA 3R Enclosure
Brand: Square D™
Item ID: 466055
MPN: EZM31200TBU
UPC: 785901189428
Login for Price
Features
- Electrical connection - lugs (1) cables 6 AWG to 300 kcmil (aluminum/copper) ground, studs (3) cables line and studs (3) cables neutral
- Meter center
Description
Square D™ EZ Meter-Pak™ Main Terminal Box, 208Y/120 VAC 240/120 VAC Delta, 1200 A, 3 ph, Underground Feed, (1) Cable #6 AWG to 300 kcmil Ground Wire, Lug Terminal, Surface Mount, NEMA 3R Operating, 33.16 in W x 11.68 in D x 44.71 in H
Specifications
Amperage Rating |
1200 A |
Dimensions |
33.16 in W x 11.68 in D x 44.71 in H |
Feed Type |
Underground |
Mounting Type |
Surface |
Operating Temperature |
NEMA 3R |
Phase |
3 ph |
Terminal Type |
Lug |
Voltage Rating |
208Y/120 VAC 240/120 VAC Delta |
Wire Size |
(1) Cable #6 AWG to 300 kcmil Ground |
Standard Approval |
UL Listed|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d5e86692853407af06e1db2392a27924bce74a09487bdf003ba66dbf7eacf061.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_71121d0460932757820bf2c30d742adb4f927410610c813cfbb2c3ca732625db.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001K2L38LGGH13_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM31200TBU_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_21373df5a03c6899f146430424e8e65bf5b184d471ddcecc5508c6bfca1e3901.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM31200TBU_Specification_Sheet.pdf
