Square D™ EZM314125M10

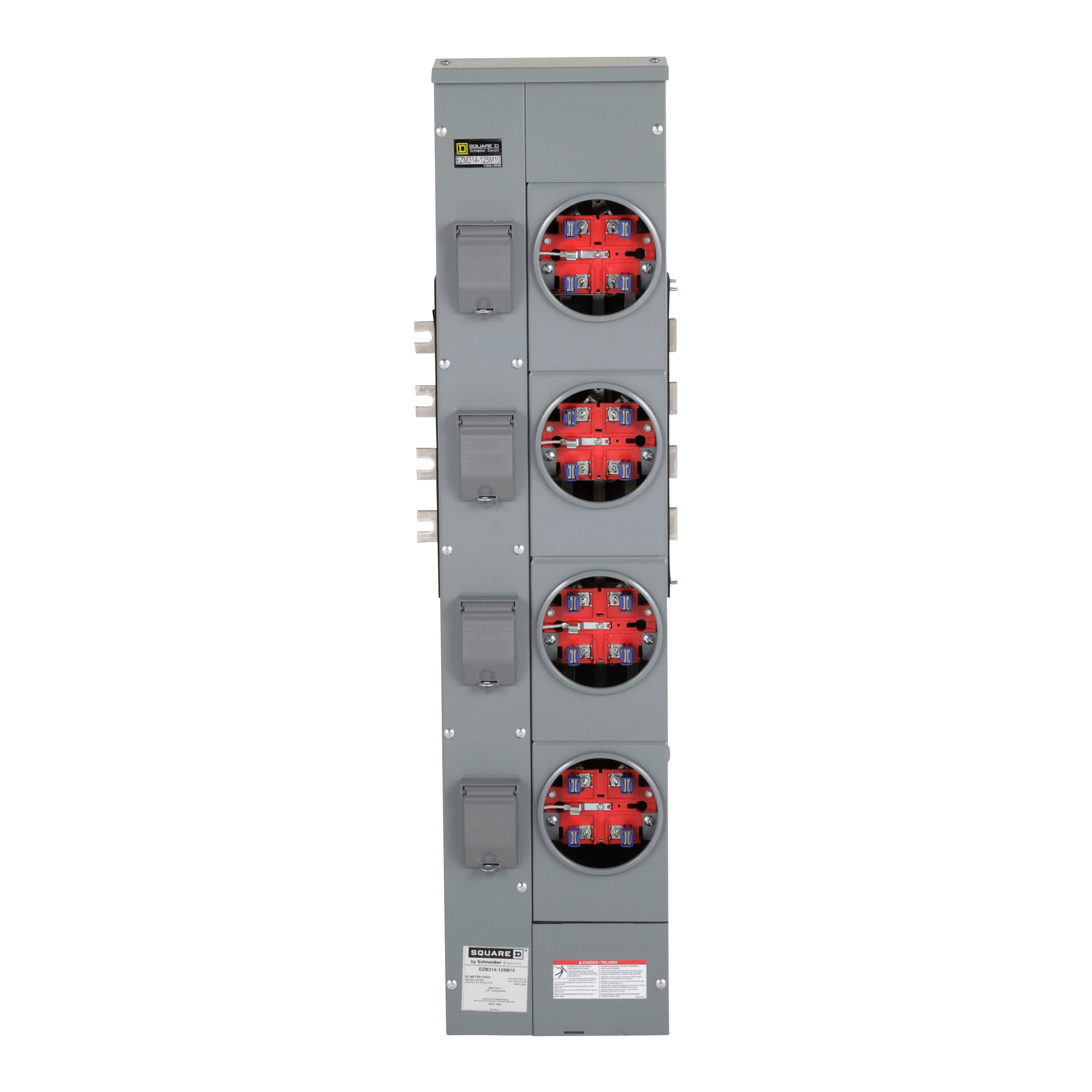

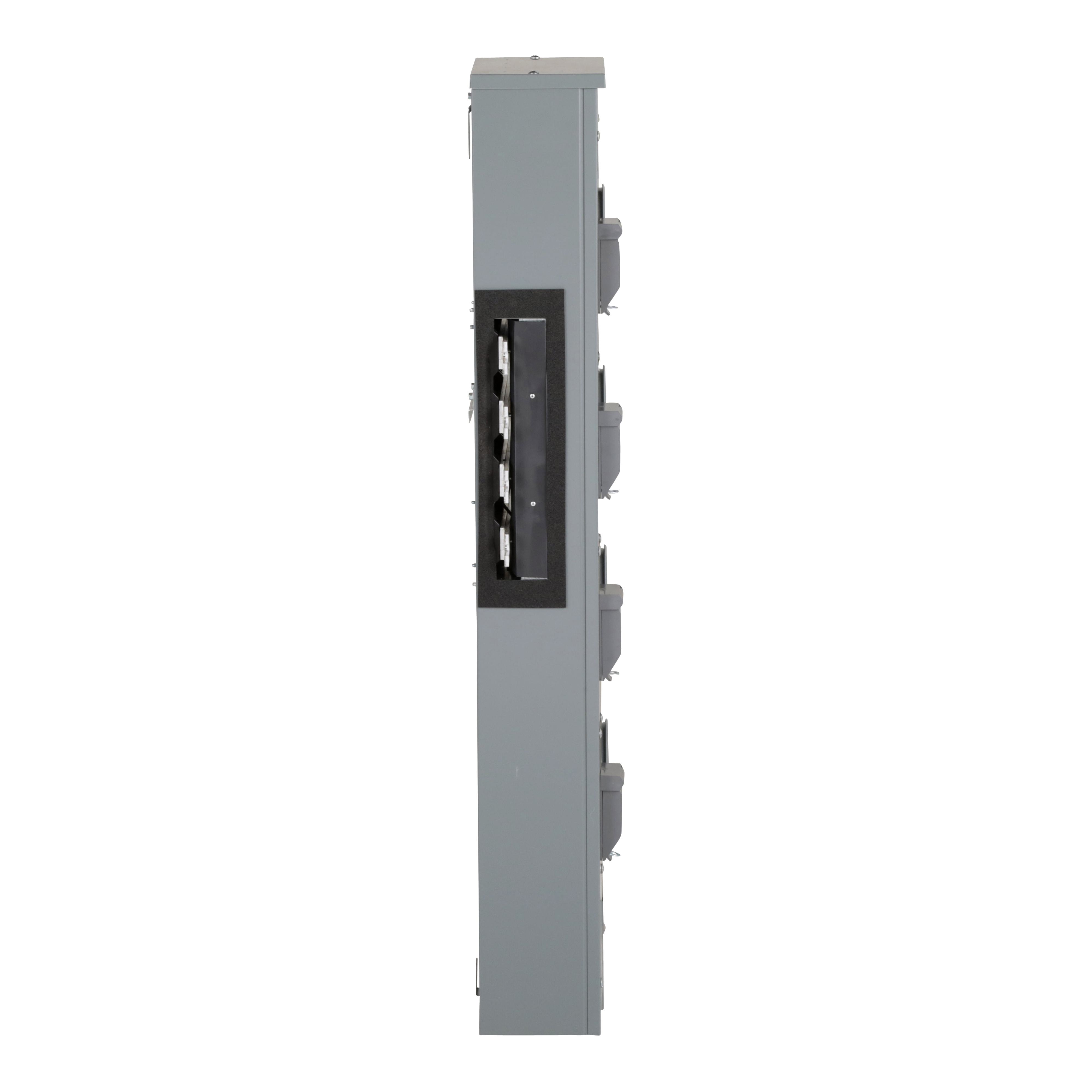

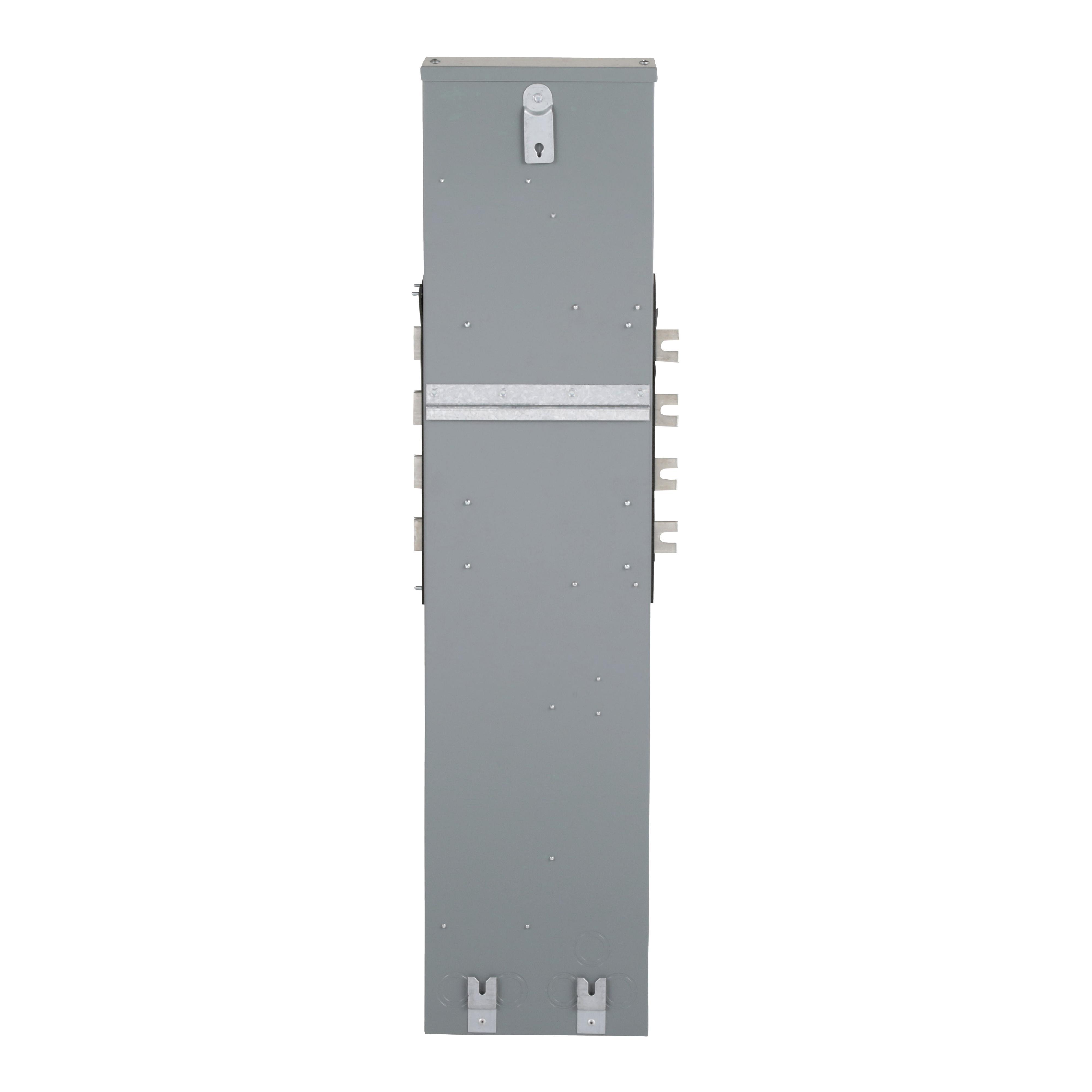

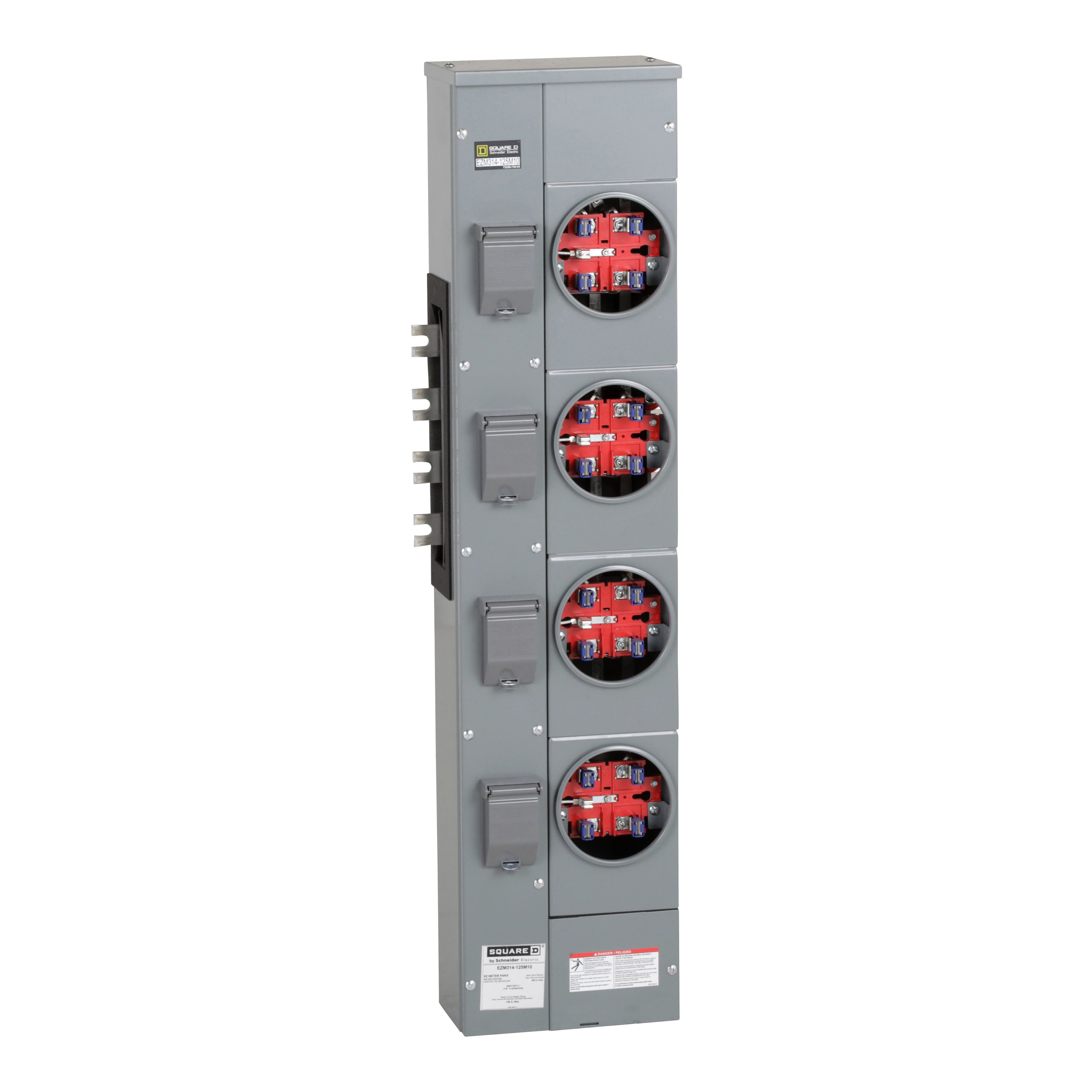

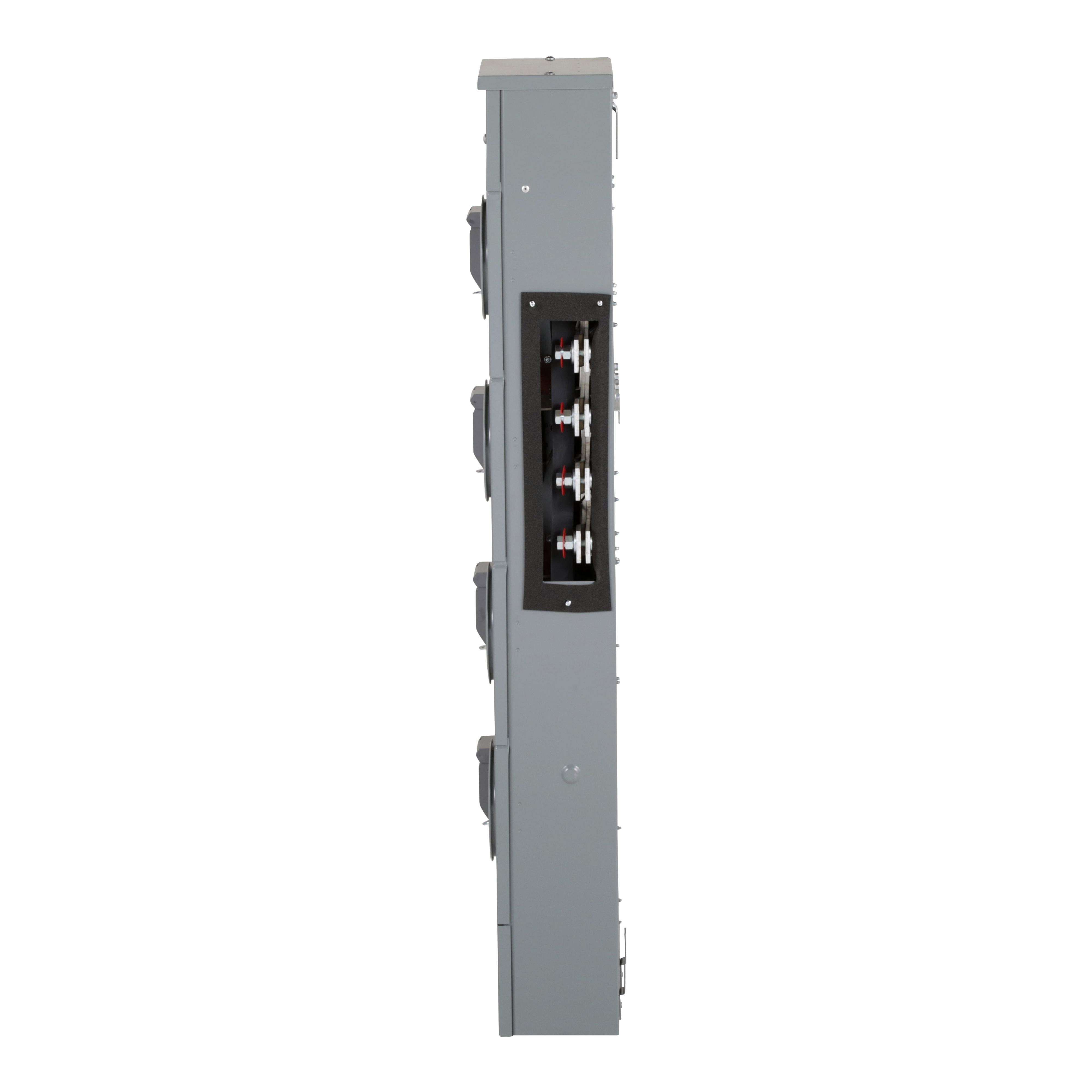

Square D™ Meter-Pak™ EZM314125M10 EZM 4-Position Meter Center Branch Unit, 208Y/120 VAC, 125 A, 1/3 ph Phase, NEMA 3R Enclosure
Brand: Square D™
Item ID: 475712
MPN: EZM314125M10
UPC: 785901376903
Login for Price
Features
- 3 phase 4-wire service feed, 1 phase 3-wire load feed
- 10 in meter center
- Without bypass
Description
Square D™ Meter-Pak™ Meter Center Branch Unit, 4-Position, Series: EZM, 208Y/120 VAC, 125 A, 1/3 ph Phase, 5 Jaws, Ring Cover, Surface Mount, NEMA 3R, 48.12 in H x 12.25 in W x 7.09 in D
Specifications
Amperage Rating |
125 A |
Cover Type |
Ring |
Dimensions |
48.12 in H x 12.25 in W x 7.09 in D |
Enclosure Type |
NEMA 3R |
Mounting Type |
Surface |
Number of Jaws |
5 |
Phase |
1/3 ph |
Series |
EZM |
Type |
4-Position |
Voltage Rating |
208Y/120 VAC |
Standard Approval |
UL File No. E10582/E131840|NEC Certified|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Application |
For used as service equipment and use on the line side of service equipment |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_579cb2d96d9842b97e059209fee194a769a88ac23c74d2bf4107724af17be8f7.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM112225X_Installation_Instruction.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM314125M10_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_de298ea8e5f4fa79fdd1c7b61bf03168e8c79080dceac2395d2729f83ab221e9.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM314125M10_Specification_Sheet.pdf
