Square D™ EZM3400FS

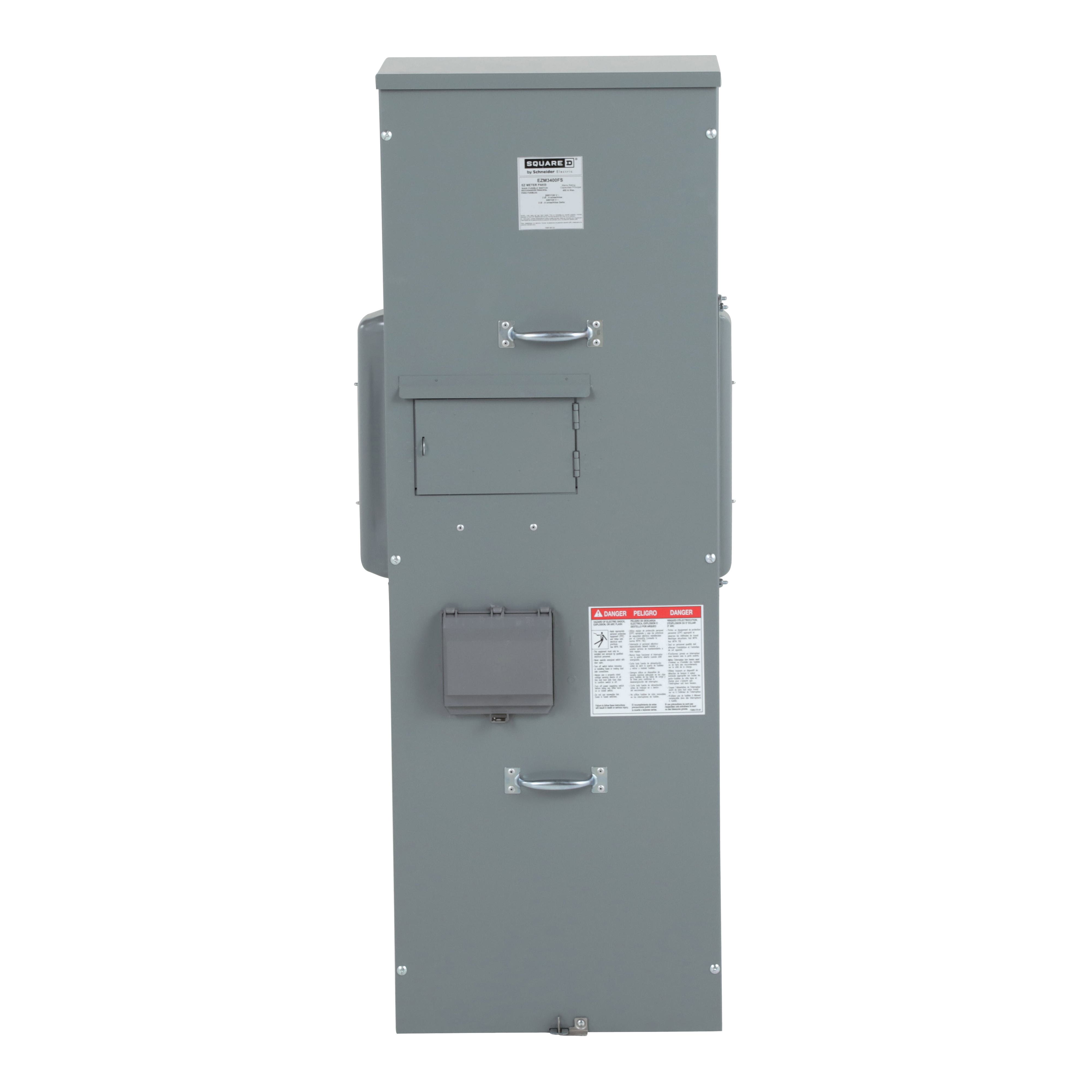

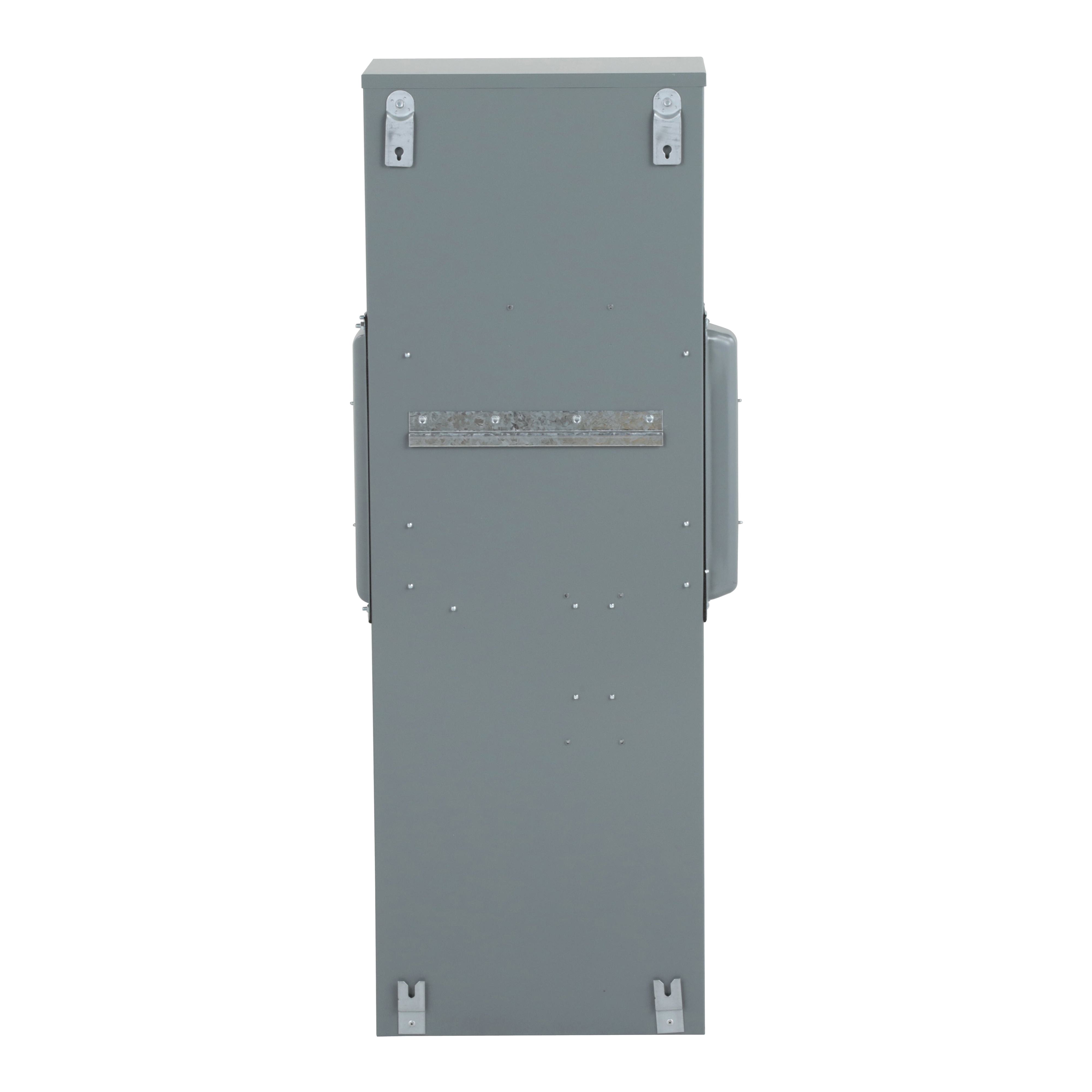

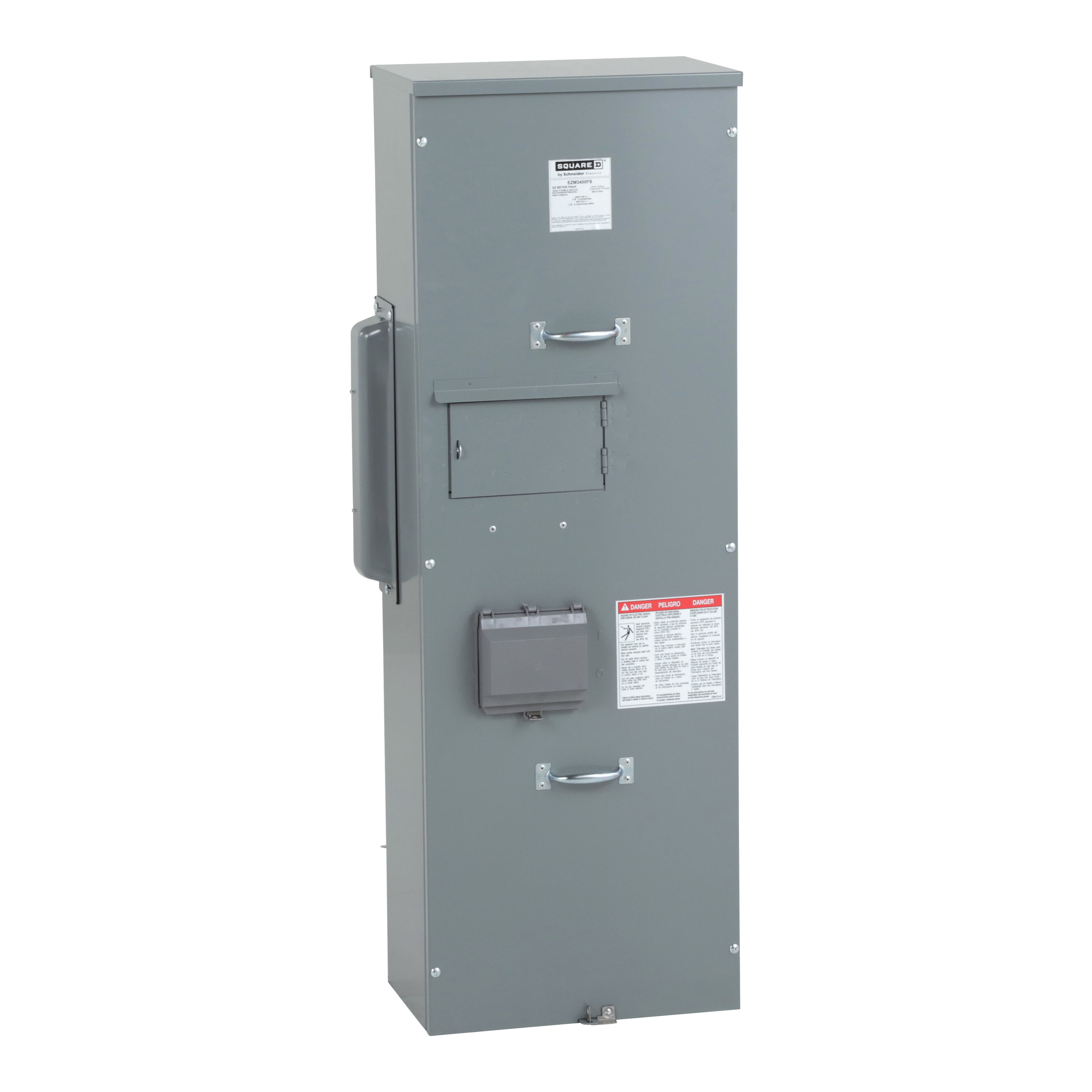

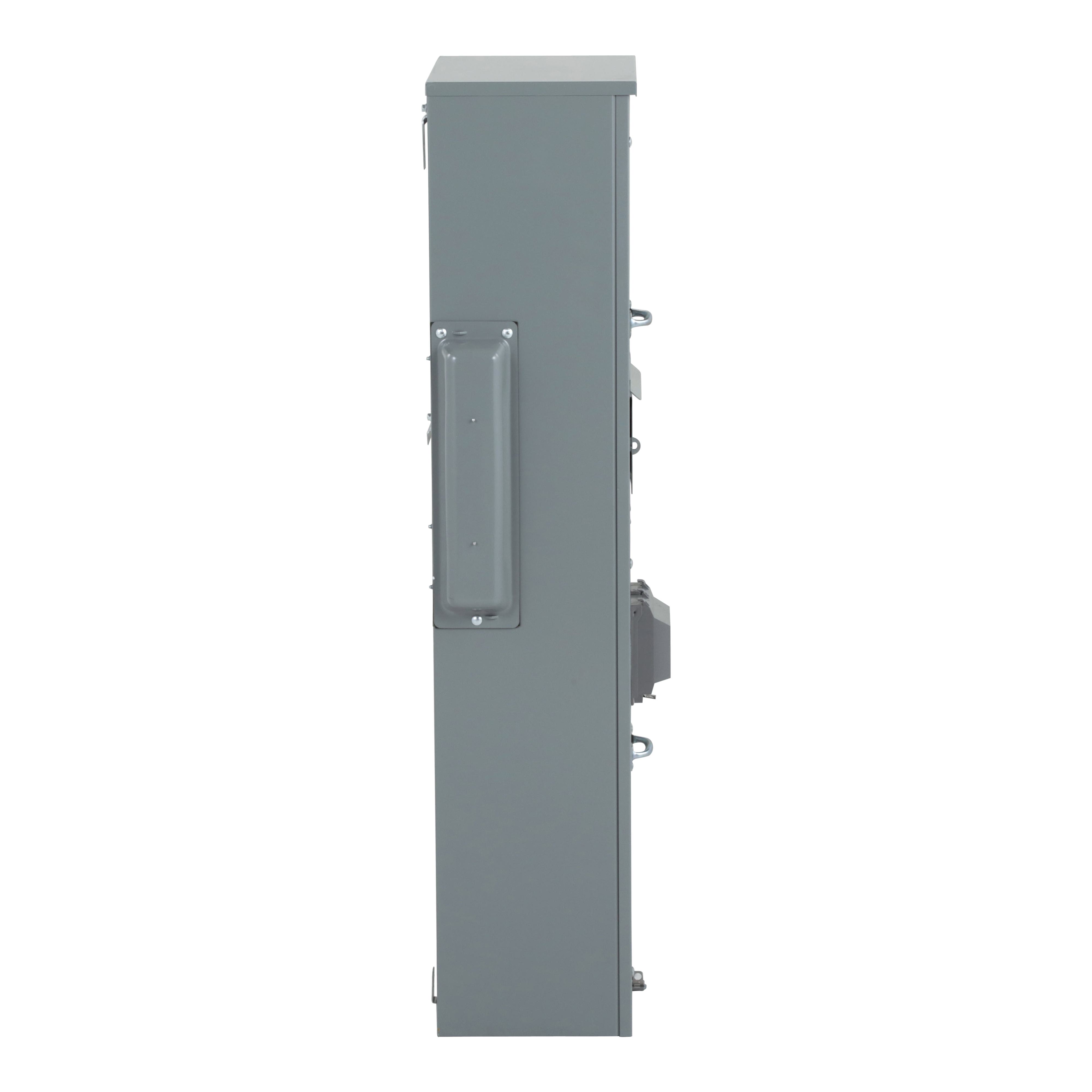

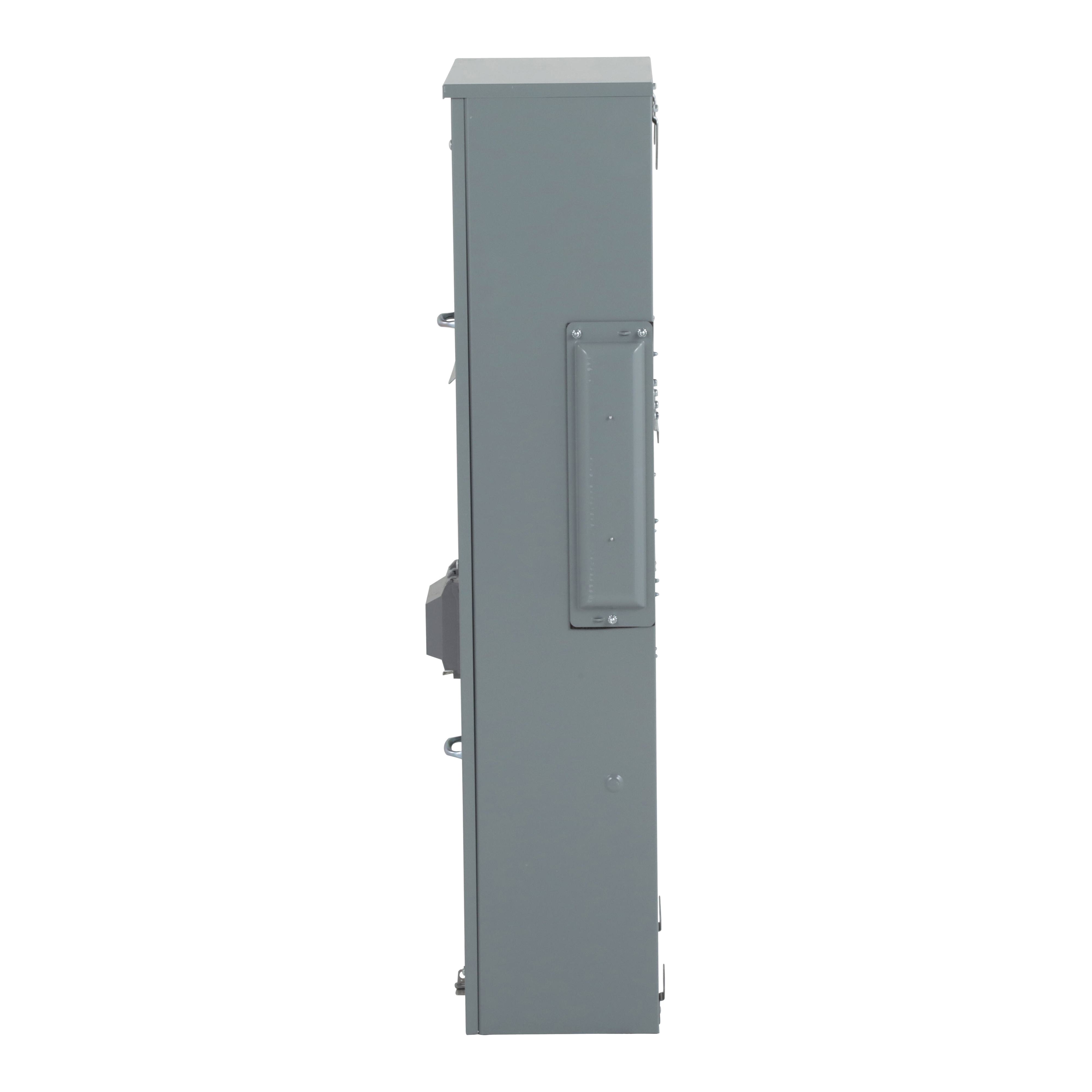

Square D™ EZ Meter-Pak™ EZM3400FS Main Fusible Switch, 208Y/120 VAC 240/120 VAC Delta, 400 A, 3 ph Phase, NEMA 3R Enclosure
Brand: Square D™
Item ID: 526310
MPN: EZM3400FS
UPC: 785901305132
Login for Price
Features
- Electrical connection - Lugs (1) cables 6 AWG to 300 kcmil (aluminum/copper) ground, lugs (1) cables 1 AWG to 600 kcmil (aluminum/copper) line, lugs (2) cables 1 AWG to 250 kcmil (aluminum/copper) line, lugs (1) cables 1 AWG to 600 kcmil (aluminum/copper) neutral and lugs (2) cables 1 AWG to 250 kcmil (aluminum/copper) neutral
- Meter center
Description
Square D™ EZ Meter-Pak™ Main Fusible Switch, 208Y/120 VAC 240/120 VAC Delta, 400 A, 3 ph, Overhead/Underground Feed, (1) Cable #6 AWG to 300 kcmil Ground/(1) Cable #1 AWG to 600 kcmil Line/(1) Cable #1 AWG to 600 kcmil Neutral Wire, Lug Terminal, Surface Mount, NEMA 3R Operating, 18.66 in W x 11.5 in D x 53.97 in H
Specifications
Amperage Rating |
400 A |
Dimensions |
18.66 in W x 11.5 in D x 53.97 in H |
Feed Type |
Overhead/Underground |
Mounting Type |
Surface |
Operating Temperature |
NEMA 3R |
Phase |
3 ph |
Terminal Type |
Lug |
Voltage Rating |
208Y/120 VAC 240/120 VAC Delta |
Wire Size |
(1) Cable #6 AWG to 300 kcmil Ground/(1) Cable #1 AWG to 600 kcmil Line/(1) Cable #1 AWG to 600 kcmil Neutral |
Standard Approval |
ECCN EAR99|UL Listed|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
Application |
Air Conditioning and Lighting |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3c8e564b048f5a95630db2e059f1bc821f03e6e8c1176fa522990662293f8afc.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_dcb000fa45edf292887d68791bee641ac7e208540feb88883f518fcf475f6629.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM3400FS_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2341b0784888c2fb3183aff4581eeb4b1e47857d871f284a211bb6c3ce95506c.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM3400FS_Specification_Sheet.pdf
