Square D™ EZM3400TB

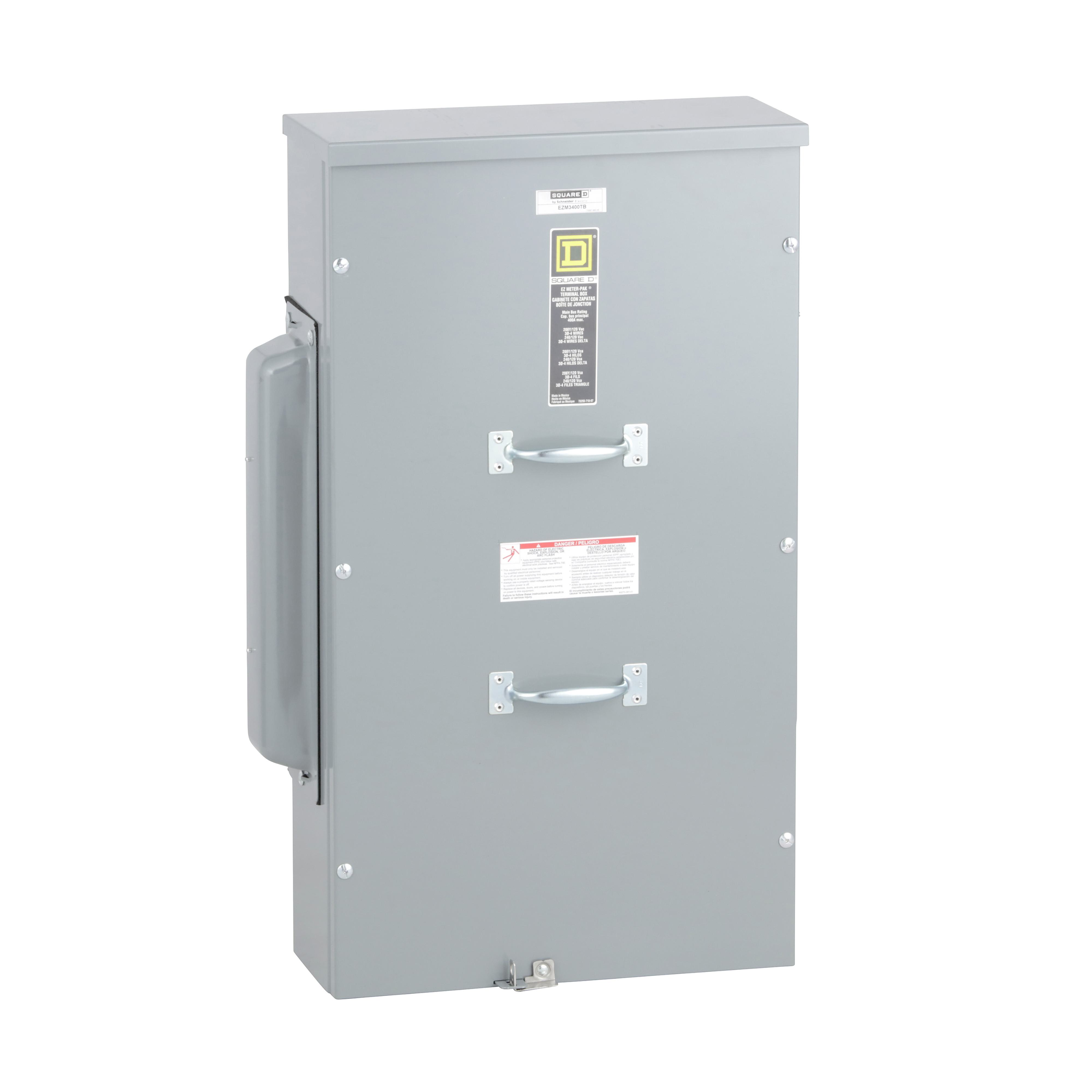

Square D™ EZ Meter-Pak™ EZM3400TB 4-Wire Center Main Terminal Box, 208Y/120 VAC, 240/120 Delta VAC, 400 A, 3 Phase, NEMA 3R Enclosure
Brand: Square D™
Item ID: 80928
MPN: EZM3400TB
Login for Price
Features
- Electrical connection - lugs (1) cables 6 AWG to 300 kcmil (aluminum/copper) ground, lugs (2) cables 3/0 AWG to 500 kcmil (aluminum/copper) line and lugs (2) cables 3/0 AWG to 500 kcmil (aluminum/copper) neutral
- Meter center main unit
Description
Square D™ EZ Meter-Pak™ Main Terminal Box, 4-Wire Center, 208Y/120 VAC, 240/120 Delta VAC, 400 A, 3 ph, Overhead/Underground Feed, (1) 6 AWG to 300 kcmil Ground, (2) 3/0 AWG to 500 kcmil Line, (2) 3/0 AWG to 500 kcmil Neutral Wire, Line/Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 17.15 in W x 7.09 in D x 30.46 in H Dimensions
Specifications
Amperage Rating |
400 A |
Dimensions |
17.15 in W x 7.09 in D x 30.46 in H |
Enclosure Type |
NEMA 3R |
Feed Type |
Overhead/Underground |
Mounting Type |
Surface |
Phase |
3 |
Terminal Type |
Line/Lug |
Type |
4-Wire Center |
Voltage Rating |
208Y/120 VAC, 240/120 Delta VAC |
Wire Size |
(1) 6 AWG to 300 kcmil Ground, (2) 3/0 AWG to 500 kcmil Line, (2) 3/0 AWG to 500 kcmil Neutral |
Standard Approval |
ECCN: EAR99|UL Listed|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_CMELK4_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM3400TB_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM3400TB_Specification_Sheet.pdf
