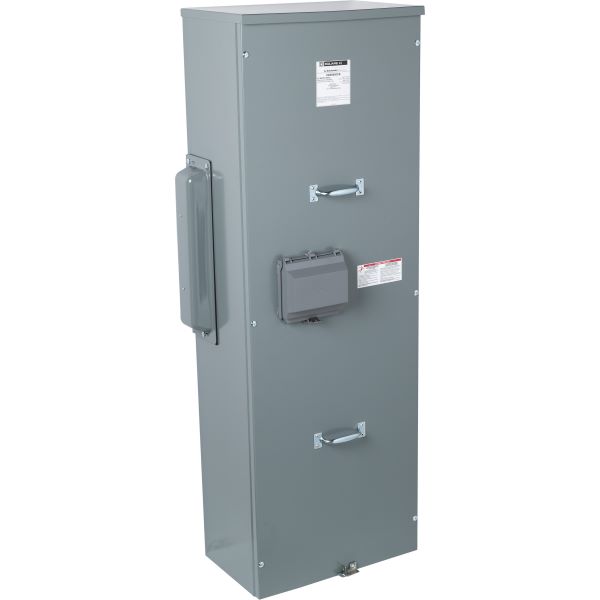

Square D™ EZM3600CB
Square D™ EZ Meter-Pak™ EZM3600CB EZM 4-Wire Overhead/Underground Main Circuit Breaker Meter Center, 208Y/120 VAC, 240/120 VAC Delta, 600 A, 3 Phase
Brand: Square D™
Item ID: 79299
MPN: EZM3600CB
Login for Price
Features
- 6 AWG to 300 kcmil aluminum/copper ground, 3/0 AWG to 500 kcmil aluminum/copper line/neutral
- Aluminum horizontal cross busbar upto 1000 A maximum
Description
Square D™ EZ Meter-Pak™ Main Circuit Breaker Meter Center, 4-Wire Overhead/Underground, Series: EZM, 208Y/120 VAC, 240/120 VAC Delta, 600 A, 3 Phase, 65 kA Interrupt, 3 Poles, NEMA 3R, Lug, Steel, 53.97 in H x 18.66 in W x 11.5 in D
Specifications
Amperage Rating |
600 A |
Connection Type |
Lug |
Dimensions |
53.97 in H x 18.66 in W x 11.5 in D |
Enclosure Type |
NEMA 3R |
Interrupt Rating |
65 kA |
Material |
Steel |
Number of Poles |
3 |
Phase |
3 |
Series |
EZM |
Type |
4-Wire Overhead/Underground |
Voltage Rating |
208Y/120 VAC, 240/120 VAC Delta |
Standard Approval |
UL Listed|PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
Application |
Indoor Applications |
Documentation
Catalog 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/AFC_Cable_Systems_2115_40_00_Catalog.pdf
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2c9b24a490aeec321621087a46745351dff6dbd5a4c8ba9ae40e0f4236bf9012.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM11000CB_Installation_Sheet.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM3600CB_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a8b9da0ab6e51220d9ca7bc3e93523b9e38b117145f5954d86a6f01d75859779.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b3a45fd37f604fb07caac5467ce31cebe6cf1831a35cf872be0483f573a6a008.pdf
Specification Sheet 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM3600CB_Specification_Sheet.pdf
