Square D™ EZM3600FS

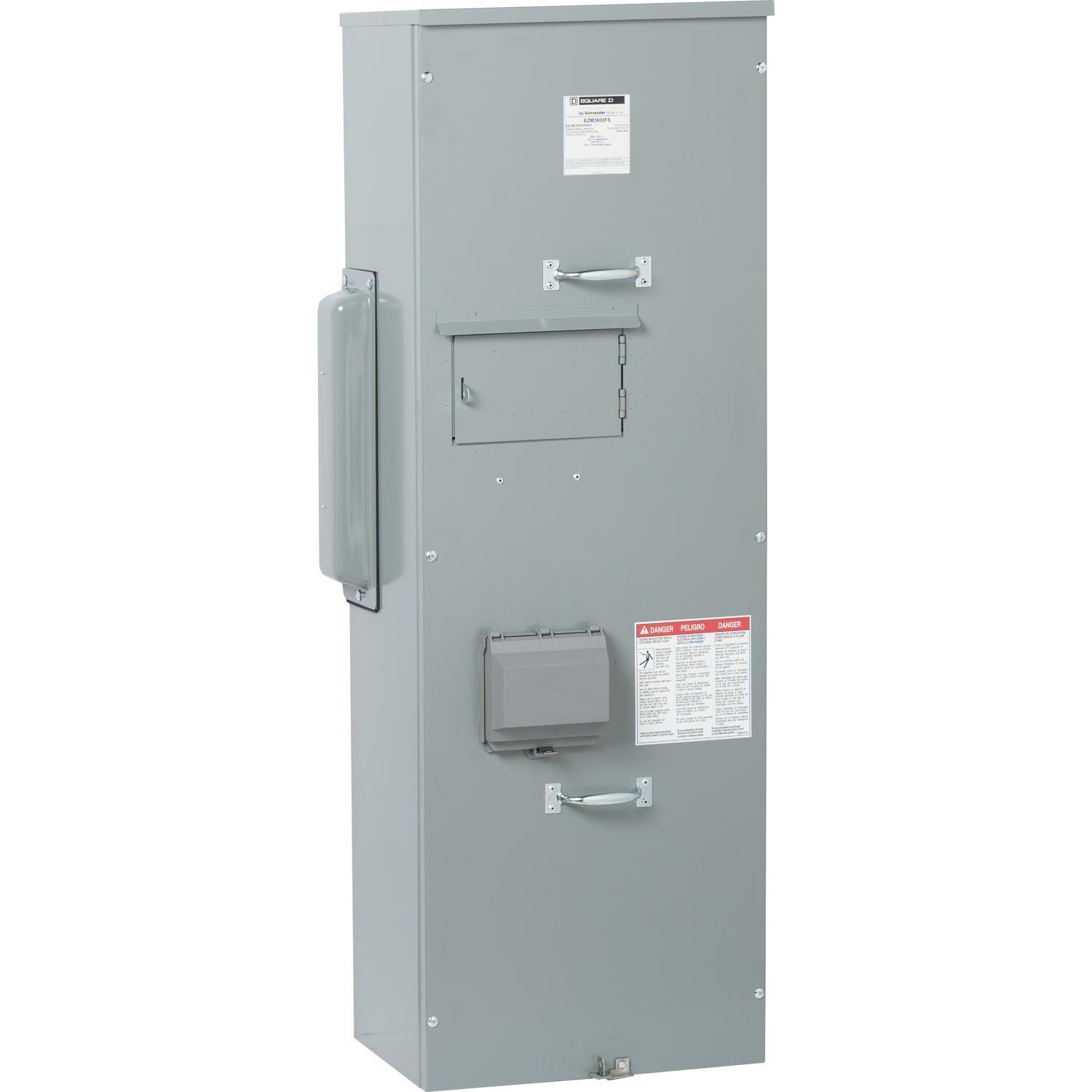

Square D™ EZ Meter-Pak™ EZM3600FS Main Fusible Switch, 208Y/120 VAC 240/120 VAC Delta, 600 A, 3 Phase, NEMA 3R Enclosure
Brand: Square D™
Item ID: 461229
MPN: EZM3600FS
UPC: 785901305149
Login for Price
Features
- Electrical connection - lugs (3) cables 3/0 AWG to 500 kcmil (aluminum/copper) line, lugs (1) cables 6 AWG to 300 kcmil (aluminum/copper) ground and lugs (4) cables 3/0 AWG to 500 kcmil (aluminum/copper) neutral
- Meter center
Description
Square D™ EZ Meter-Pak™ Main Fusible Switch, 208Y/120 VAC 240/120 VAC Delta, 600 A, 3 ph, Overhead/Underground Feed, (1) Cable #6 AWG to 300 kcmil Ground/(3) Cables #3/0 AWG to 500 kcmil Line/(4) Cables #3/0 AWG to 500 kcmil Neutral Wire, Lug Terminal, Surface Mount, NEMA 3R Operating, 18.66 in W x 11.5 in D x 53.97 in H
Specifications
Amperage Rating |
600 A |
Dimensions |
18.66 in W x 11.5 in D x 53.97 in H |
Feed Type |
Overhead/Underground |
Mounting Type |
Surface |
Operating Temperature |
NEMA 3R |
Phase |
3 |
Terminal Type |
Lug |
Voltage Rating |
208Y/120 VAC 240/120 VAC Delta |
Wire Size |
(1) Cable #6 AWG to 300 kcmil Ground/(3) Cables #3/0 AWG to 500 kcmil Line/(4) Cables #3/0 AWG to 500 kcmil Neutral |
Standard Approval |
ECCN: EAR99|UL Listed|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other Reproductive harm. For more information go to www.p65warnings.ca.gov |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2c9b24a490aeec321621087a46745351dff6dbd5a4c8ba9ae40e0f4236bf9012.pdf
Catalog 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5b219eeec8808581582339b4e1c84cba4f029f3b67f15b112a4f2eb706941b2b.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM31600TB_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a200cff97f9ba21eac32e261183f4f50b54f29ebaf4a5542f2291ceb2e36bcfe.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM3600FS_RoHS.pdf
Specification Sheet 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_060933a2c5c26161123f109a137205b2194d24b8a8ed6039f2f544258eaeee89.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e4bf4f185a665c91f9deadfb9835347c7ea7e9eab0ea1e379fb5095987ce35b3.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM3600FS_Specification_Sheet.pdf
