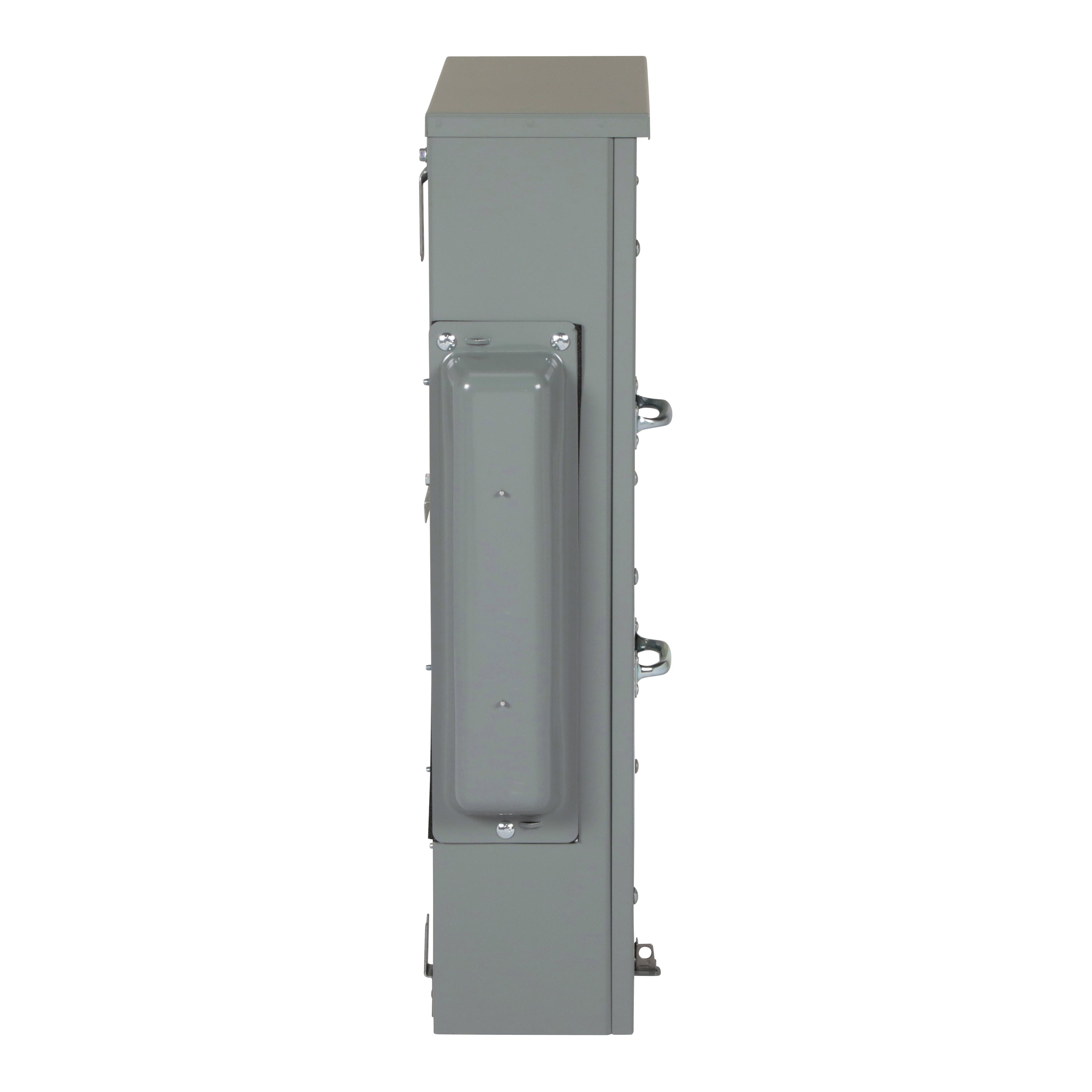

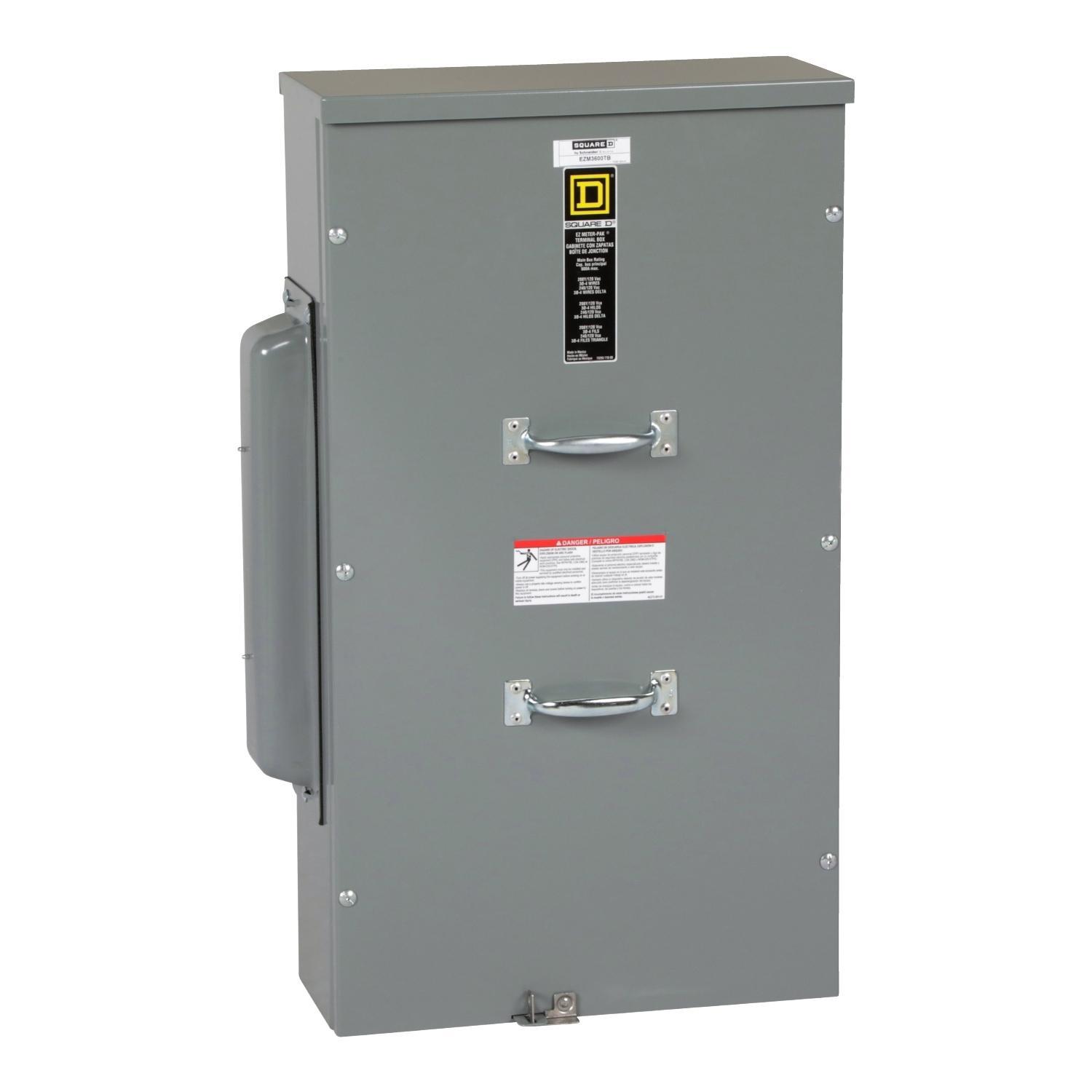

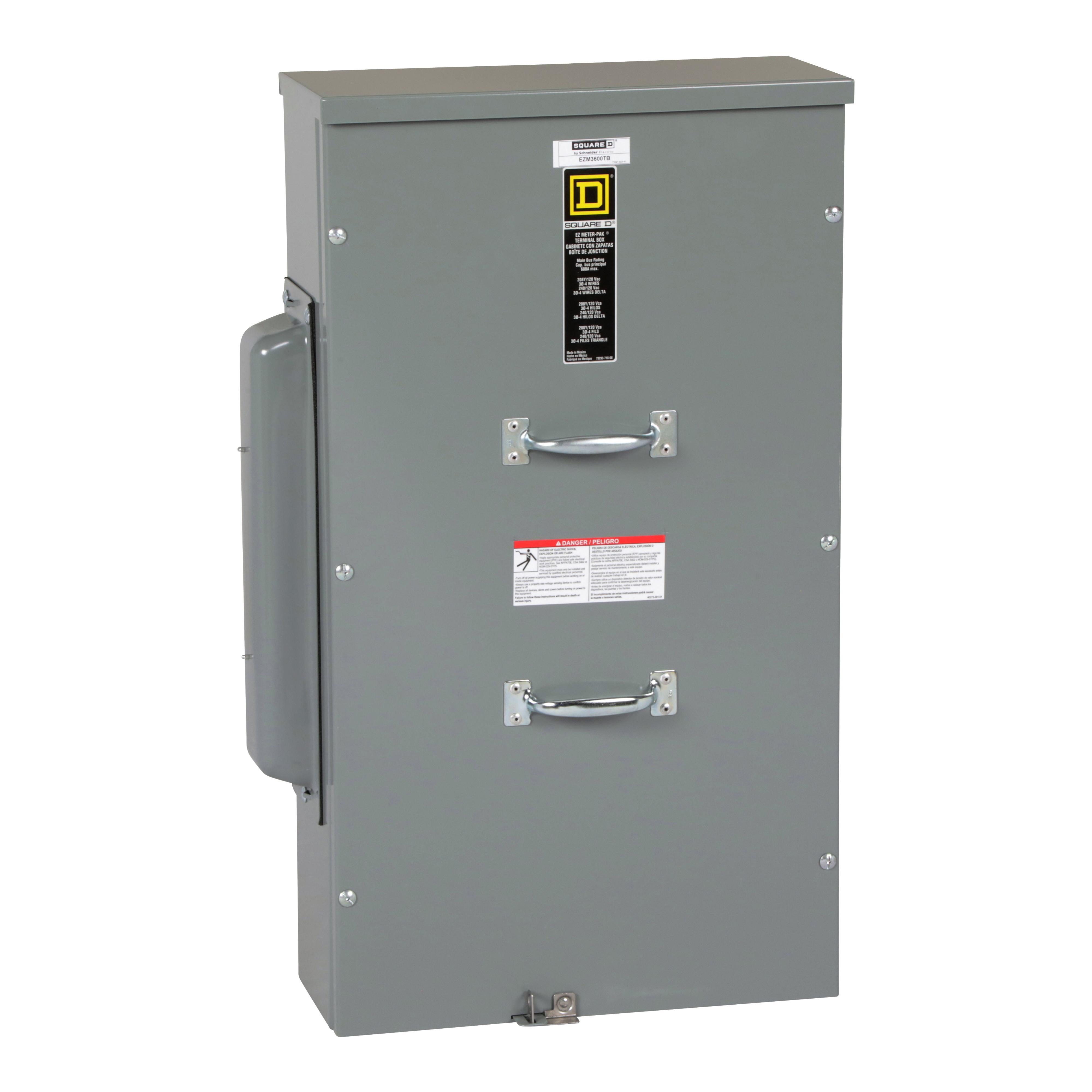

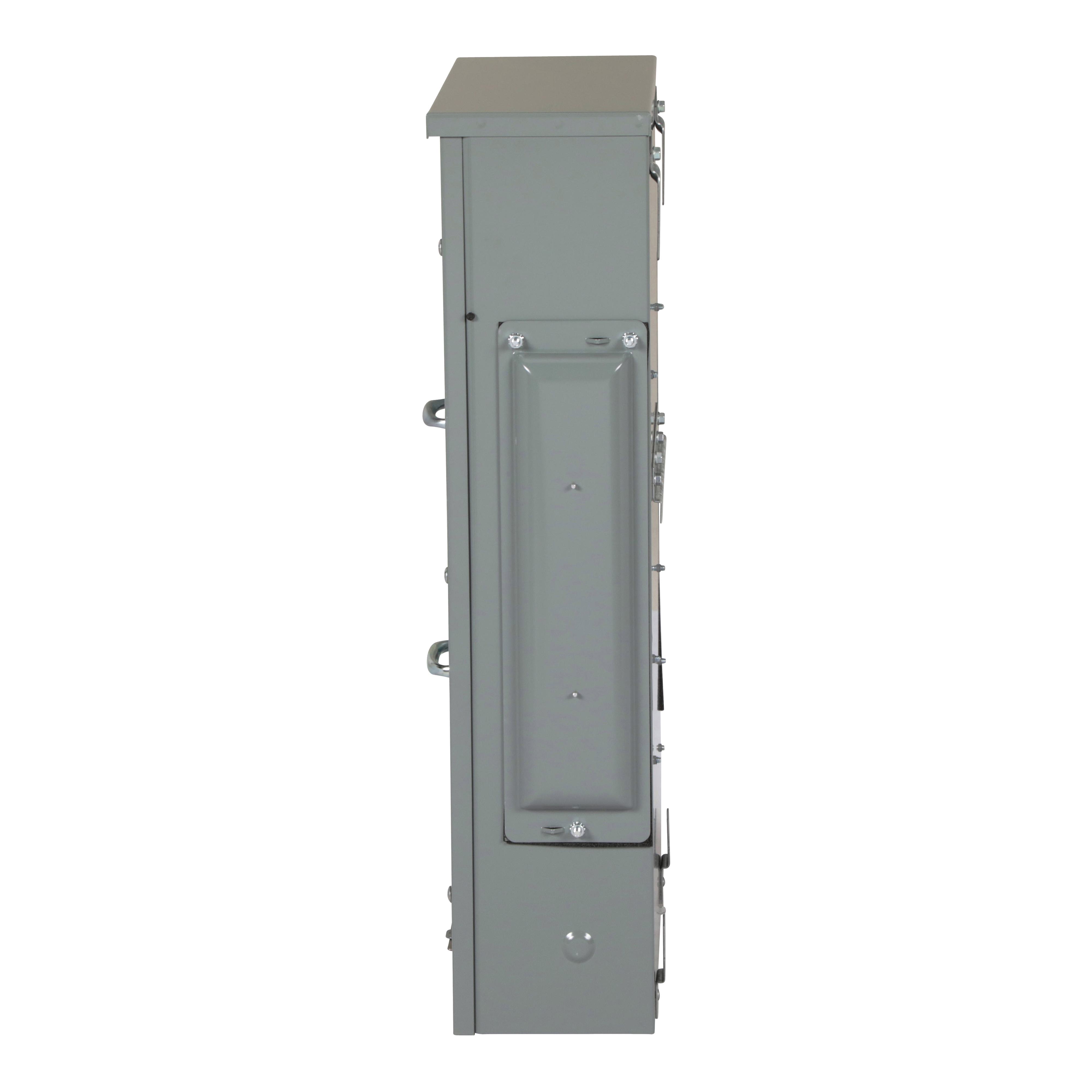

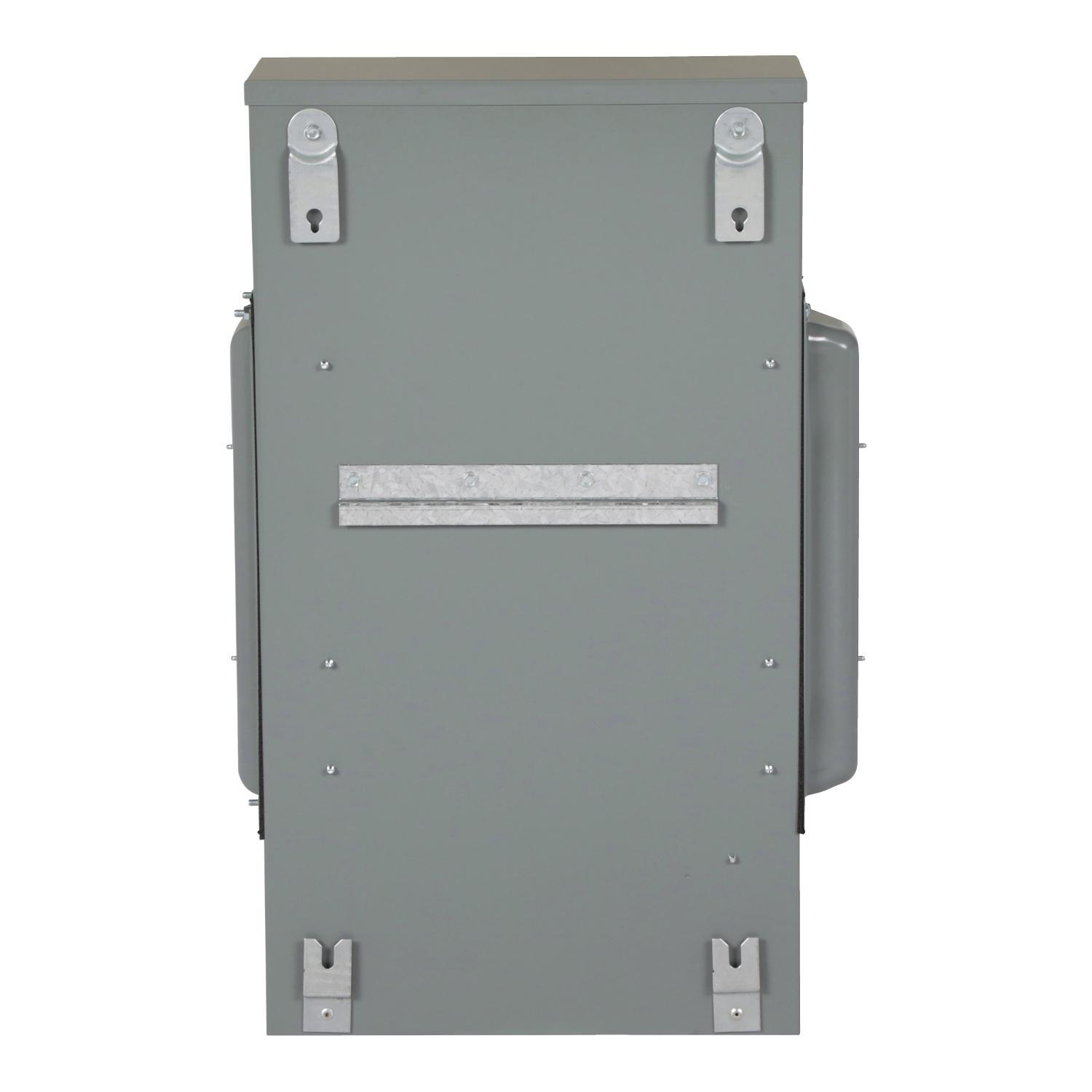

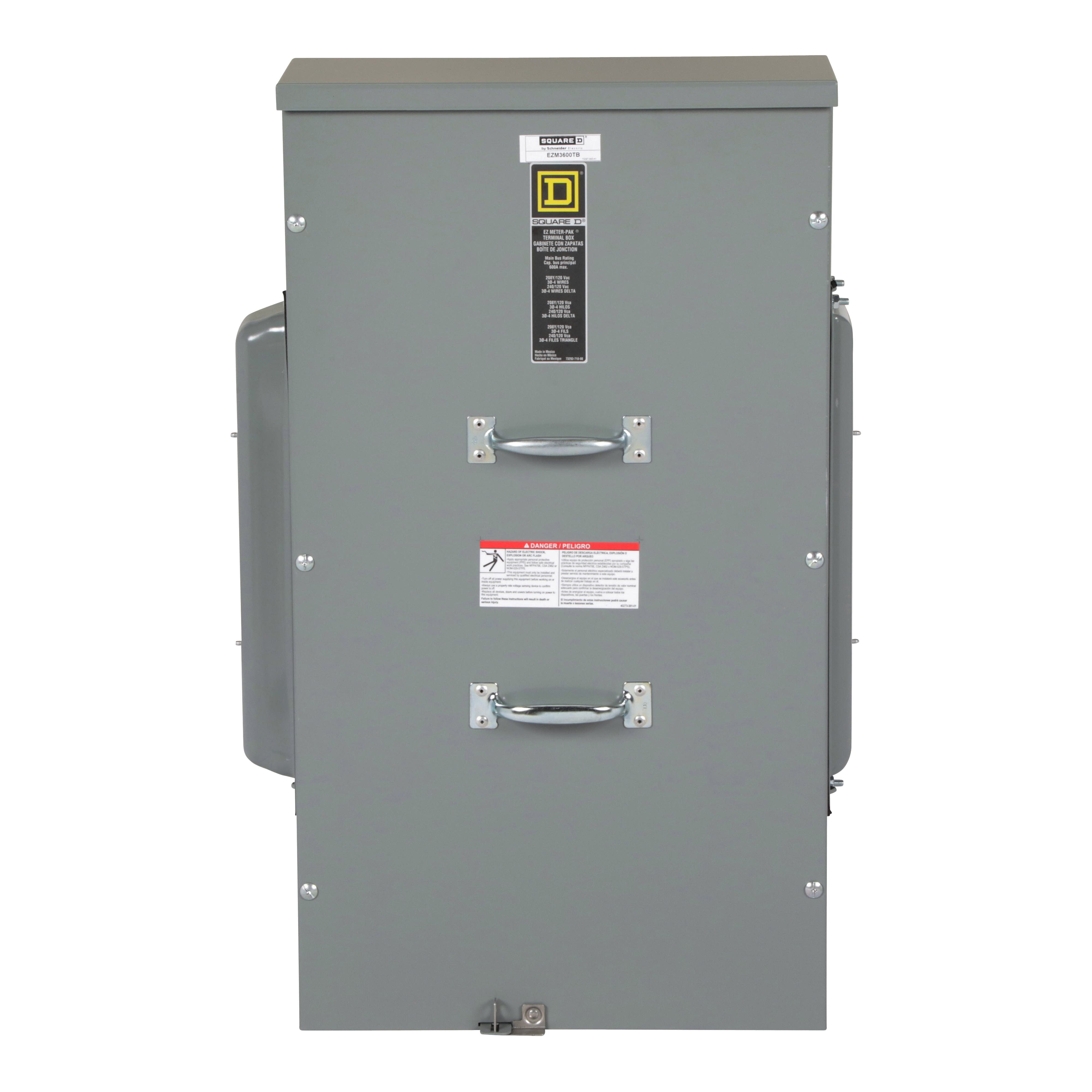

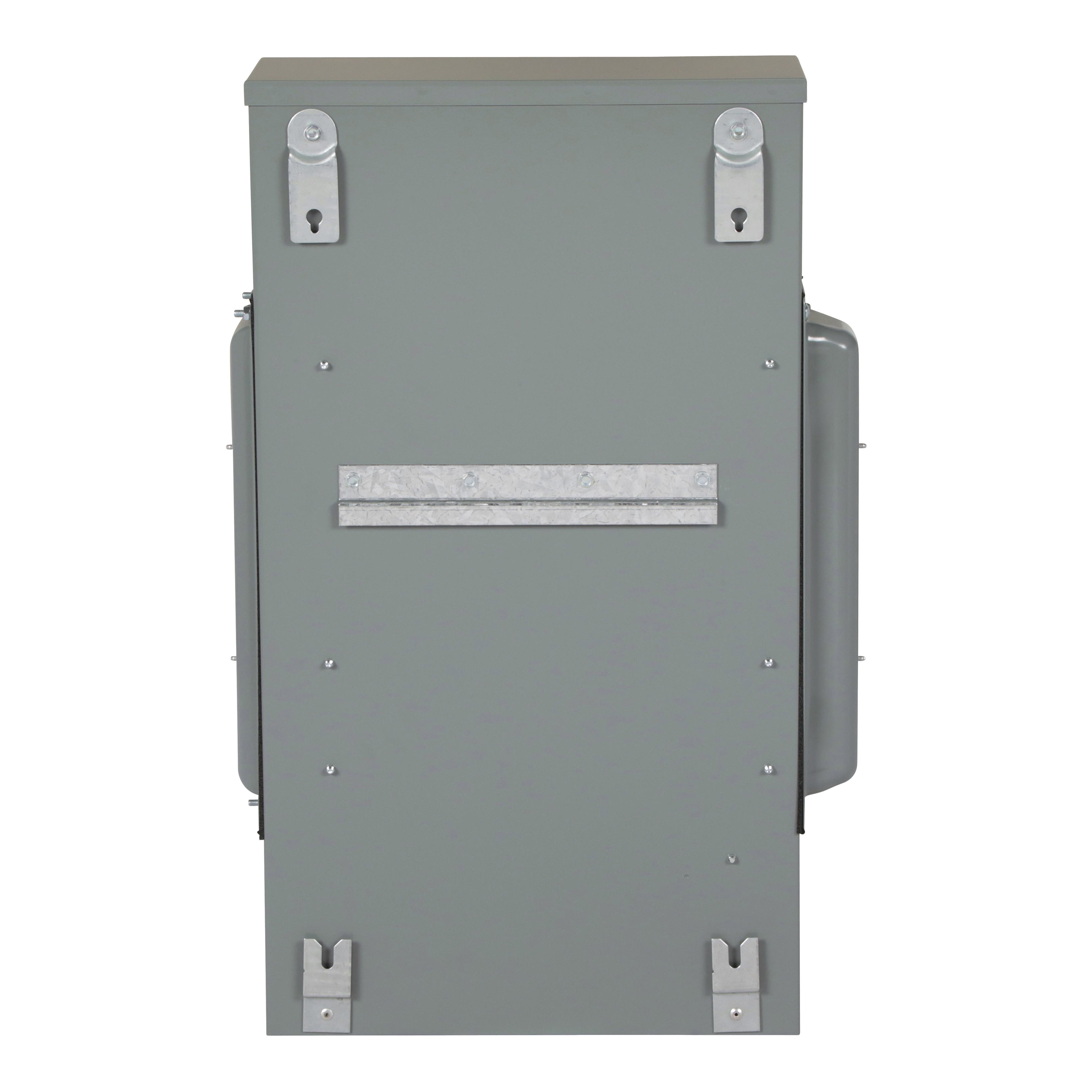

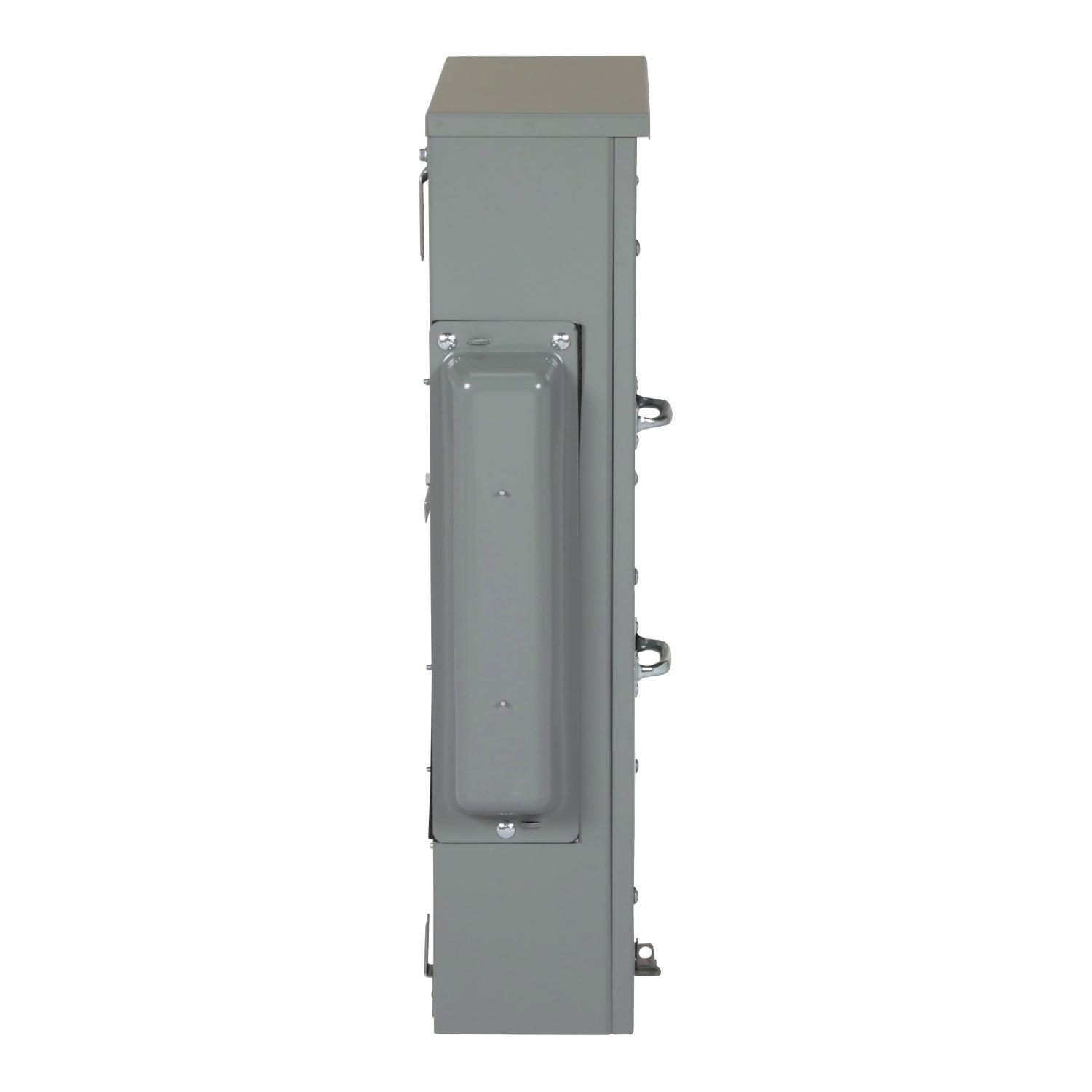

Square D™ EZM3600TB
Square D™ EZ Meter-Pak™ EZM3600TB Main Terminal Box, 208Y/120 VAC, 240/120 Delta VAC, 600 A, 3 Phase, NEMA 3R Enclosure
Brand: Square D™
Item ID: 356057
MPN: EZM3600TB
UPC: 785901296003
Login for Price
Features
- Electrical connection - lugs (1) cables 6 AWG to 300 kcmil (aluminum/copper) ground, lugs (2) cables 1/0 AWG to 750 kcmil (aluminum/copper) line, lugs (4) cables 1/0 AWG to 300 kcmil (aluminum/copper) line, lugs (2) cables 1/0 AWG to 750 kcmil (aluminum/copper) neutral and lugs (4) cables 1/0 AWG to 300 kcmil (aluminum/copper) neutral
- Meter center main unit
Description
Square D™ EZ Meter-Pak™ Main Terminal Box, 208Y/120 VAC, 240/120 Delta VAC, 600 A, 3 ph, Overhead/Underground Feed, (1) 6 AWG to 300 kcmil Ground, (2) 1/0 AWG to 750 kcmil Line, (2) 1/0 AWG to 750 kcmil Neutral Wire, Line/Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 17.15 in W x 7.09 in D x 30.46 in H Dimensions
Specifications
Amperage Rating |
600 A |
Dimensions |
17.15 in W x 7.09 in D x 30.46 in H |
Enclosure Type |
NEMA 3R |
Feed Type |
Overhead/Underground |
Mounting Type |
Surface |
Phase |
3 |
Terminal Type |
Line/Lug |
Voltage Rating |
208Y/120 VAC, 240/120 Delta VAC |
Wire Size |
(1) 6 AWG to 300 kcmil Ground, (2) 1/0 AWG to 750 kcmil Line, (2) 1/0 AWG to 750 kcmil Neutral |
Standard Approval |
ECCN: EAR99|UL Listed|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c8cd8e7a0750e06f9abd0df56a8530a66ef1b11d5c3b8d5edd1005a3d6fba0f9.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM3600TB_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a22d4cf63f603b0960cb0272648ec128fae886780a269591f66d93291831d240.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM3600TB_Specification_Sheet.pdf
