Square D™ EZM3600TBCU

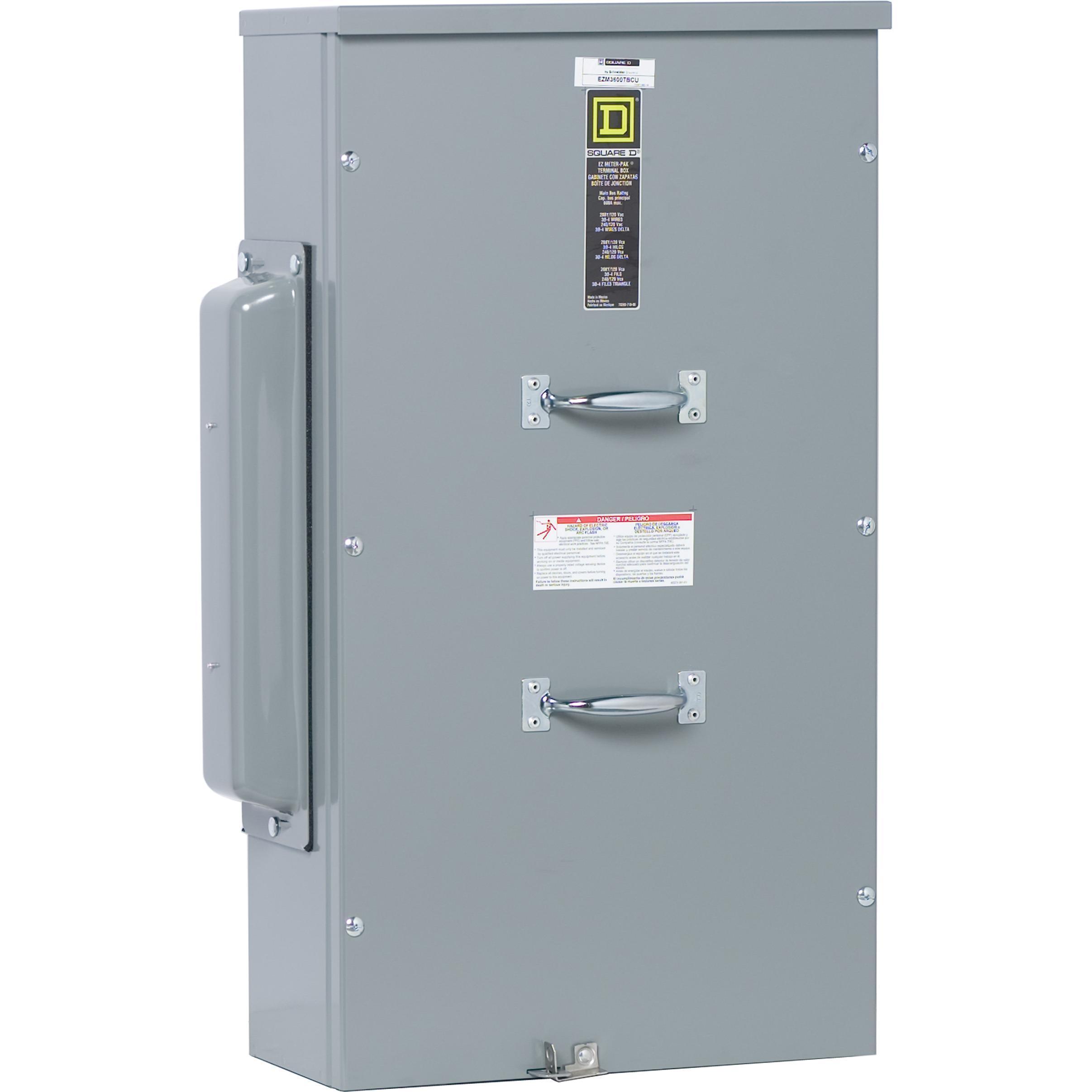

Square D™ EZ Meter-Pak™ EZM3600TBCU Main Terminal Box, 208Y/120 VAC 240/120 VAC Delta, 600 A, 3 Phase, NEMA 3R Enclosure
Brand: Square D™
Item ID: 478553
MPN: EZM3600TBCU
UPC: 785901476092
Login for Price
Features
- Lugs line side
- Wire gauge - 1/0 AWG to 750 kcmil for 2 cable
- CU - Copper horizontal cross bus bar
- Meter center
Description
Square D™ EZ Meter-Pak™ Main Terminal Box, 208Y/120 VAC 240/120 VAC Delta, 600 A, 3 ph, Overhead/Underground Feed, (2) #1/0 AWG to 750 kcmil Wire, Lug Terminal, Surface Mount, NEMA 3R Enclosure, 30.64 in W x 7.09 in D x 17.15 in H
Specifications
Amperage Rating |
600 A |
Dimensions |
30.64 in W x 7.09 in D x 17.15 in H |
Enclosure Type |
NEMA 3R |
Feed Type |
Overhead/Underground |
Mounting Type |
Surface |
Phase |
3 |
Terminal Type |
Lug |
Voltage Rating |
208Y/120 VAC 240/120 VAC Delta |
Wire Size |
(2) #1/0 AWG to 750 kcmil |
Standard Approval |
UL Listed|PROP65:This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
Documentation
Catalog 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c8cd8e7a0750e06f9abd0df56a8530a66ef1b11d5c3b8d5edd1005a3d6fba0f9.pdf
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d5e86692853407af06e1db2392a27924bce74a09487bdf003ba66dbf7eacf061.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_07e4e4b270c4055e8c74a8163cfc996244d7894cba1f97baeba01362822719bd.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e42eaefac6691d730dfed23bd179a95da2364be47551fcbe97468046e3953112.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM3600TBCU_RoHS.pdf
Specification Sheet 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1a10b173009e13aec391db820da905b698dbf72bcf3a02bf027644a9a2f212c1.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4d6cfd0ed26b7d8f03f9c0f403ef9b3adb2e764d8f526b7b6f263eb3e46cd459.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM3600TBCU_Specification_Sheet.pdf
