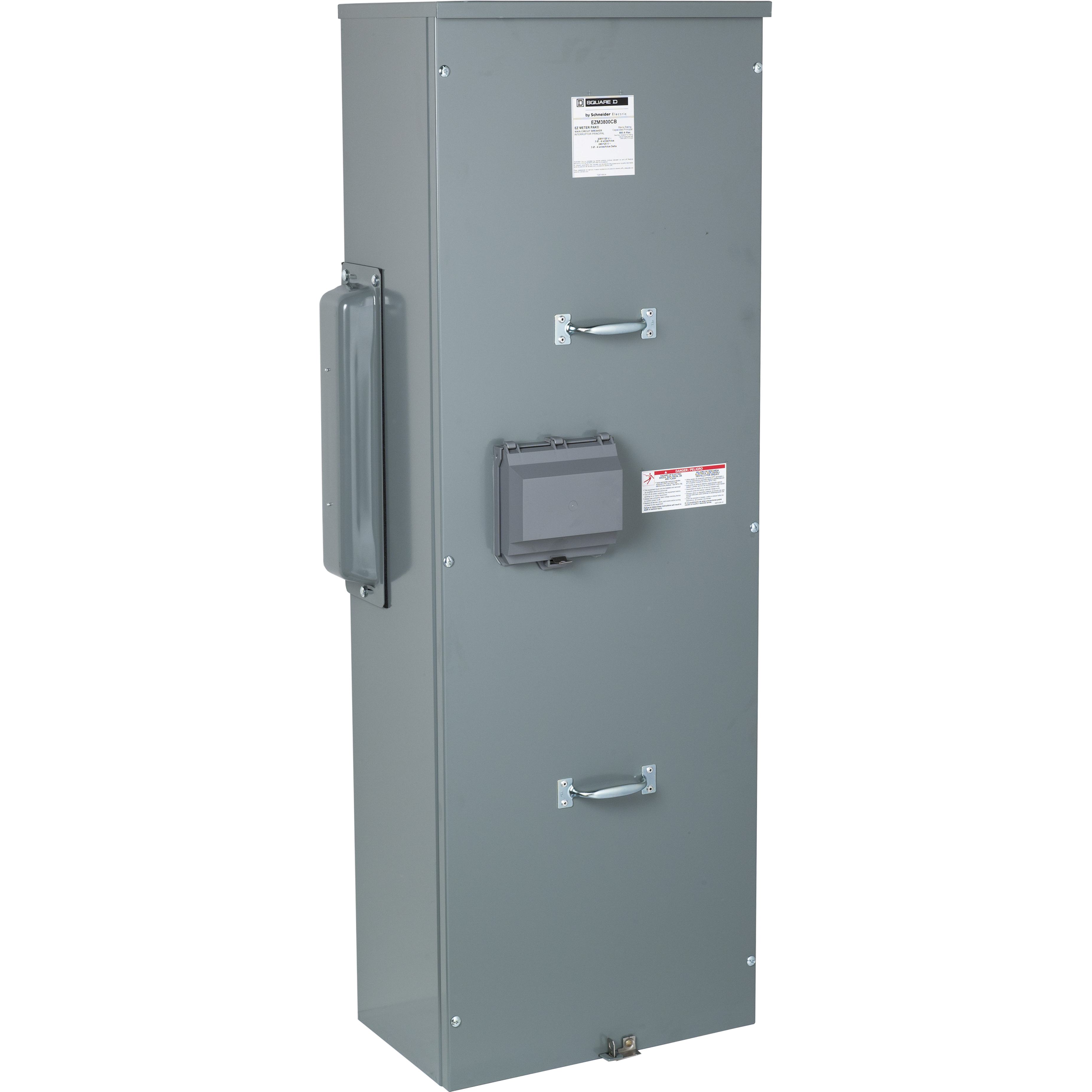

Square D™ EZM3800CB
Square D™ EZ Meter-Pak™ EZM3800CB 4-Wire Overhead/Underground Surface Mount Main Circuit Breaker Meter Center, 120/208Y VAC, 240/120 Delta VAC, 800 A, 3 Phase
Brand: Square D™
Item ID: 79300
MPN: EZM3800CB
UPC: 785901304975
Login for Price
Features
- 6 AWG to 300 kcmil aluminum/copper ground, 3/0 AWG to 500 kcmil aluminum/copper line/neutral
- Aluminum horizontal cross busbar up to 1000 A maximum
Description
METERING EZM MAIN BREAKER 800A 3 PHASE
Square D™ EZ Meter-Pak™ Main Circuit Breaker Meter Center, 4-Wire Overhead/Underground Surface Mount, Series: EZM, 120/208Y VAC, 240/120 Delta VAC, 800 A, 3 ph, 65 kA Interrupt, 3 Pole, NEMA 3R Enclosure, Lug Connection, Steel, 53.97 in H x 18.66 in W x 11.5 in D Dimensions
Specifications
Amperage Rating |
800 A |
Connection Type |
Lug |
Dimensions |
53.97 in H x 18.66 in W x 11.5 in D |
Enclosure Type |
NEMA 3R |
Interrupt Rating |
65 kA |
Material |
Steel |
Number of Poles |
3 |
Phase |
3 |
Series |
EZM |
Type |
4-Wire Overhead/Underground Surface Mount |
Voltage Rating |
120/208Y VAC, 240/120 Delta VAC |
Standard Approval |
UL Listed|PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
Application |
Indoor Applications |
Documentation
Catalog 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2c9b24a490aeec321621087a46745351dff6dbd5a4c8ba9ae40e0f4236bf9012.pdf
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f3b9d7fdbede8d1cc4c13529a256d8ef1d925cde4ac7bffe70eea67b2241ca7d.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM11000CB_Installation_Sheet.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM3800CB_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3dca635364e0d2cea31e480dec7e2946caddae1b170af52deddd9d491bd250dc.pdf
Specification Sheet 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_cc02016db008e60406f03e934e6b0aa11bb3f1eef1b3091a4a9a9cbf86c3b515.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM3800CB_Specification_Sheet.pdf
