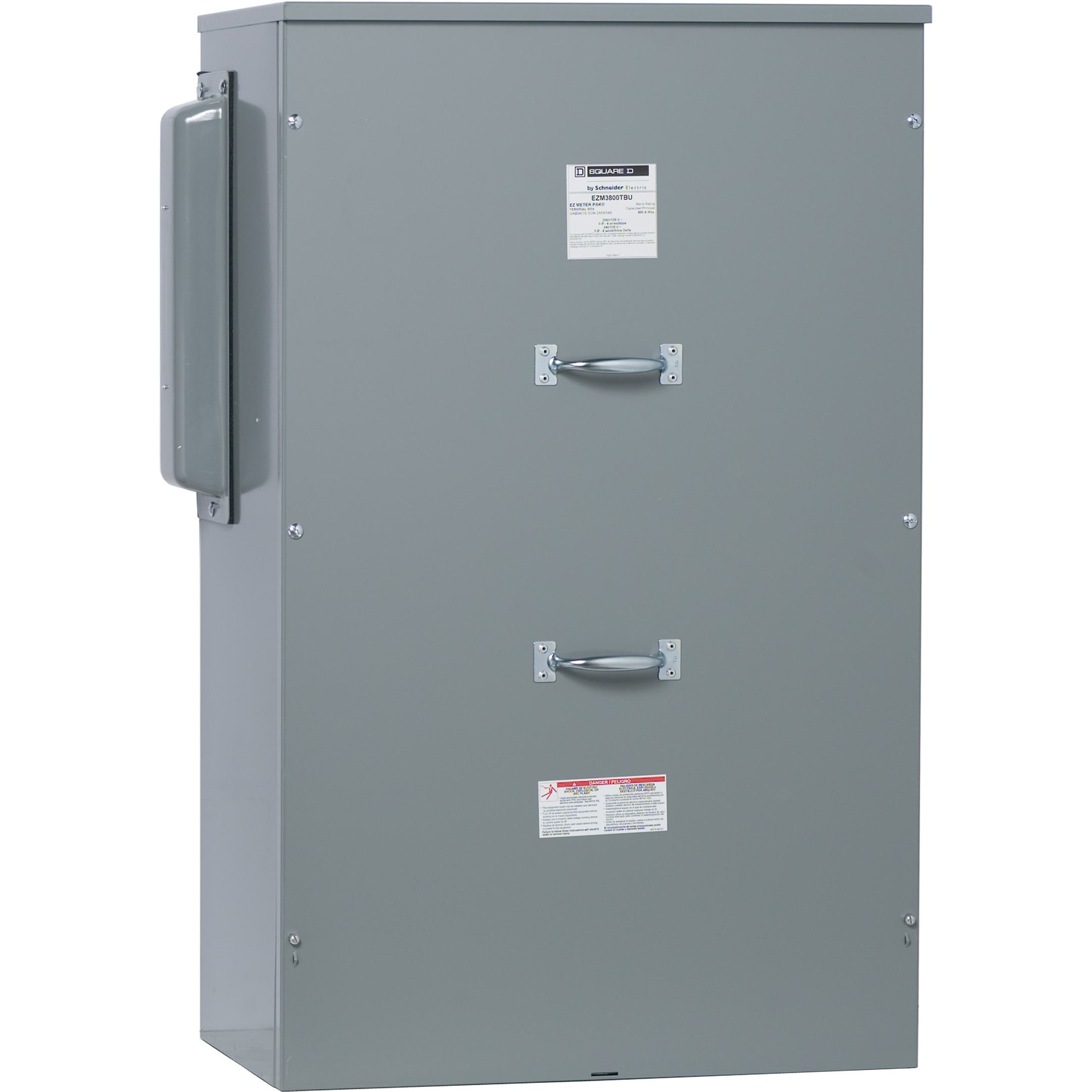

Square D™ EZM3800TBU
Square D™ EZ Meter-Pak™ EZM3800TBU Main Terminal Box, 120/208Y VAC, 240/120 Delta VAC, 800 A, 3 Phase, NEMA 3R Enclosure
Brand: Square D™
Item ID: 458706
MPN: EZM3800TBU
UPC: 785901189411
Login for Price
Features
- Electrical connection - Lugs (1) cables 6 AWG to 300 kcmil (aluminum/copper) ground, studs (2) cables line and studs (2) cables neutral
- Meter center
- Aluminum busbar
- (1) 6 AWG cable to 300 kcmil ground
Description
MTRING EZM UNDERGROUND TERM BOX 800A 3PH
Square D™ EZ Meter-Pak™ Main Terminal Box, 120/208Y VAC, 240/120 Delta VAC, 800 A, 3 ph, Underground Feed, 6 AWG to 300 kcmil Wire, Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 39.96 in H x 25.16 in W x 11.68 in D Dimensions
Specifications
Amperage Rating |
800 A |
Dimensions |
39.96 in H x 25.16 in W x 11.68 in D |
Enclosure Type |
NEMA 3R |
Feed Type |
Underground |
Mounting Type |
Surface |
Phase |
3 |
Terminal Type |
Lug |
Voltage Rating |
120/208Y VAC, 240/120 Delta VAC |
Wire Size |
6 AWG to 300 kcmil |
Standard Approval |
ECCN EAR99|UL Listed|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2c960648f6b7a7fb5a3b7c8bb48ba6fffb3231ff52de55c3bd5b0690b6309a13.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e2e2f630c132766f64b93ee78590ba0f85f5228c263fd4120b5226f5df7b379e.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM3800TBU_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9ad9d5b9d5400a9470dd9582b8674c68d93a82dfd5da603763e581af2c7b9dfc.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM3800TBU_Specification_Sheet.pdf
