Square D™ EZML111225

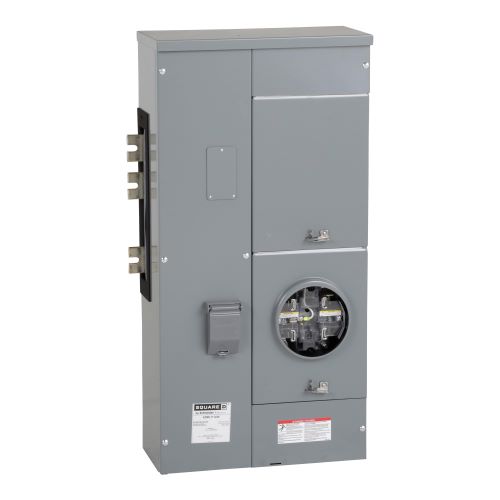

Square D™ Meter-Pak™ EZML111225 3-Wire Meter Center Branch Unit With Lever Bypass, 2-Pole Branch Circuit Breaker, 120/240 VAC, 225 A, 1 Phase, NEMA 3R Enclosure
Brand: Square D™
Item ID: 465752
MPN: EZML111225
Login for Price
Features
- Top and bottom wiring gutters with knockouts allow branch circuits to exit from either the top, bottom or back of the unit
- To suit individual applications, residential and commercial devices may be interconnected
- Basic devices for connection to 3 phase 4-wire 120/208 VAC service are factory phase balanced to save installation time
- The phase balancing may be modified in the field to meet most system variations
- Aluminum horizontal cross busbar
- 8 AWG to 300 kcmil copper/aluminum neutral, 12 to 2/0 AWG aluminum, 14 to 2/0 AWG copper equipment ground lug
Description
Square D™ Meter-Pak™ Meter Center Branch Unit, 3-Wire, Series: EZM, 120/240 VAC, 225 A, 1 ph, Overhead/Underground Feed, 5 Jaws, 8 AWG to 300 kcmil Cu/Al, 12 to 2/0 AWG Al, 14 to 2/0 AWG Cu Wire, Ringless Cover, Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 39.06 in H x 19.44 in W x 9.44 in D Dimensions
Specifications
Amperage Rating |
225 A |
Cover Type |
Ringless |
Dimensions |
39.06 in H x 19.44 in W x 9.44 in D |
Enclosure Type |
NEMA 3R |
Feed Type |
Overhead/Underground |
Mounting Type |
Surface |
Number of Jaws |
5 |
Phase |
1 |
Series |
EZM |
Terminal Type |
Lug |
Type |
3-Wire |
Voltage Rating |
120/240 VAC |
Wire Size |
8 AWG to 300 kcmil Cu/Al, 12 to 2/0 AWG Al, 14 to 2/0 AWG Cu |
Standard Approval |
UL File No. E10582/E131840|NEC Certified|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_88a21c77884ef4af66d474cdbed1759129ae8432143eae8dc3c556bb77dd6d17.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_aa0f59fc0b63759e13a22ecaae394ad4a59e901d246961540215a0fb69751ed0.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c298a670d2c4116d5e560585485a3233db47350f40fd4fc0458dd6d1c3aa4dd8.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ZBSP3_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZML111225_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c33ddaf3fb89d5cc6b0129e67a681933d4fd65380c9839804fe770a85154025f.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZML111225_Specification_Sheet.pdf
