Square D™ EZML112225

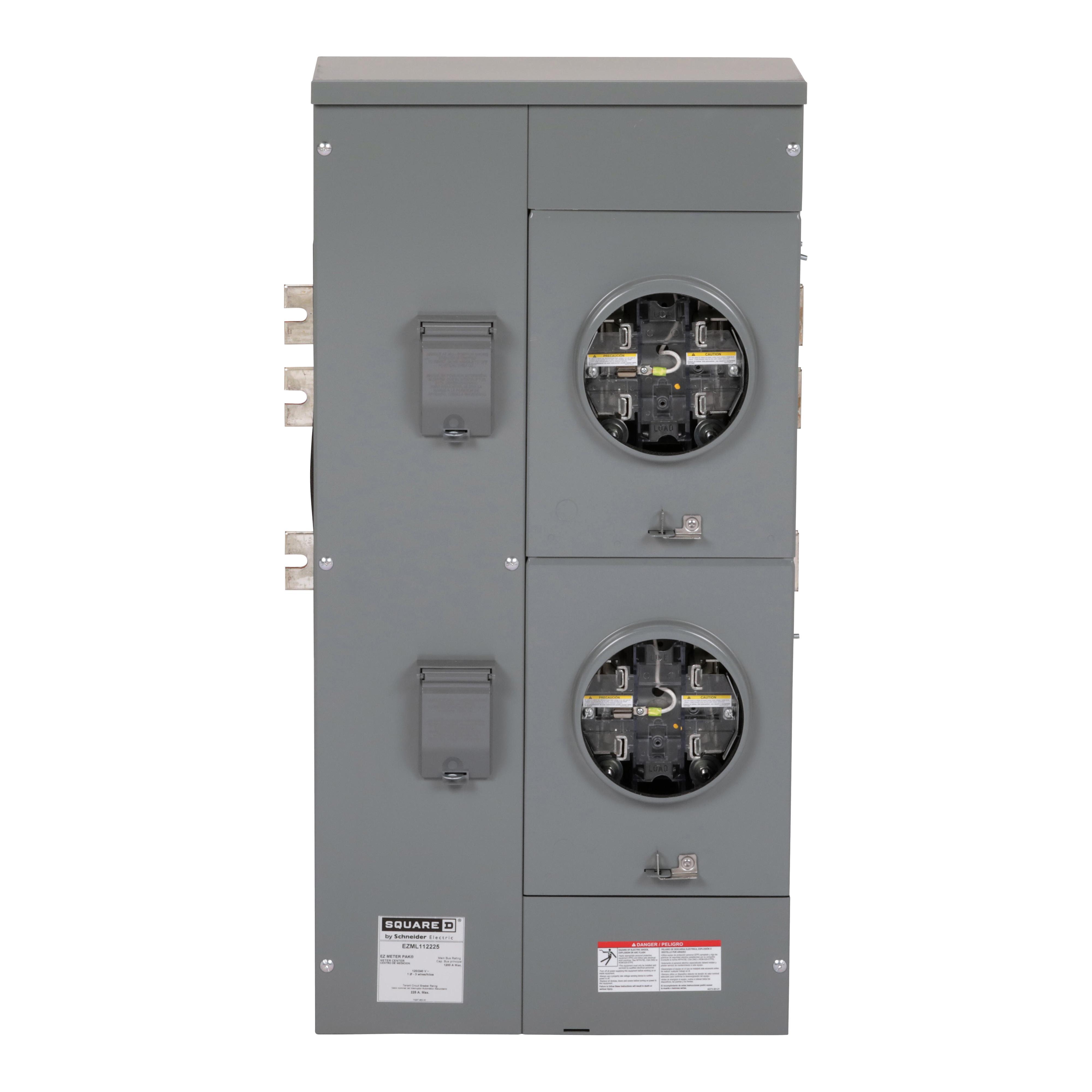

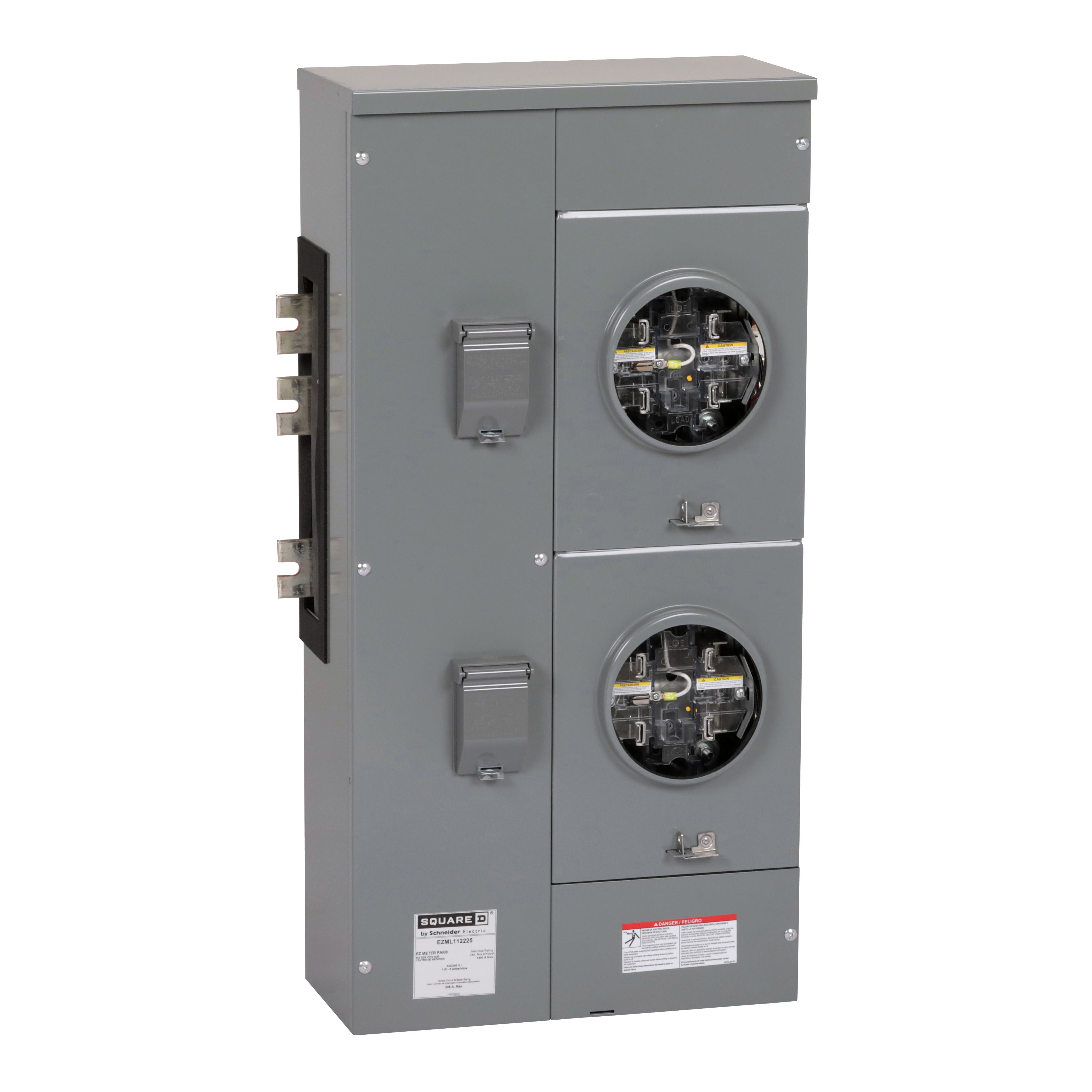

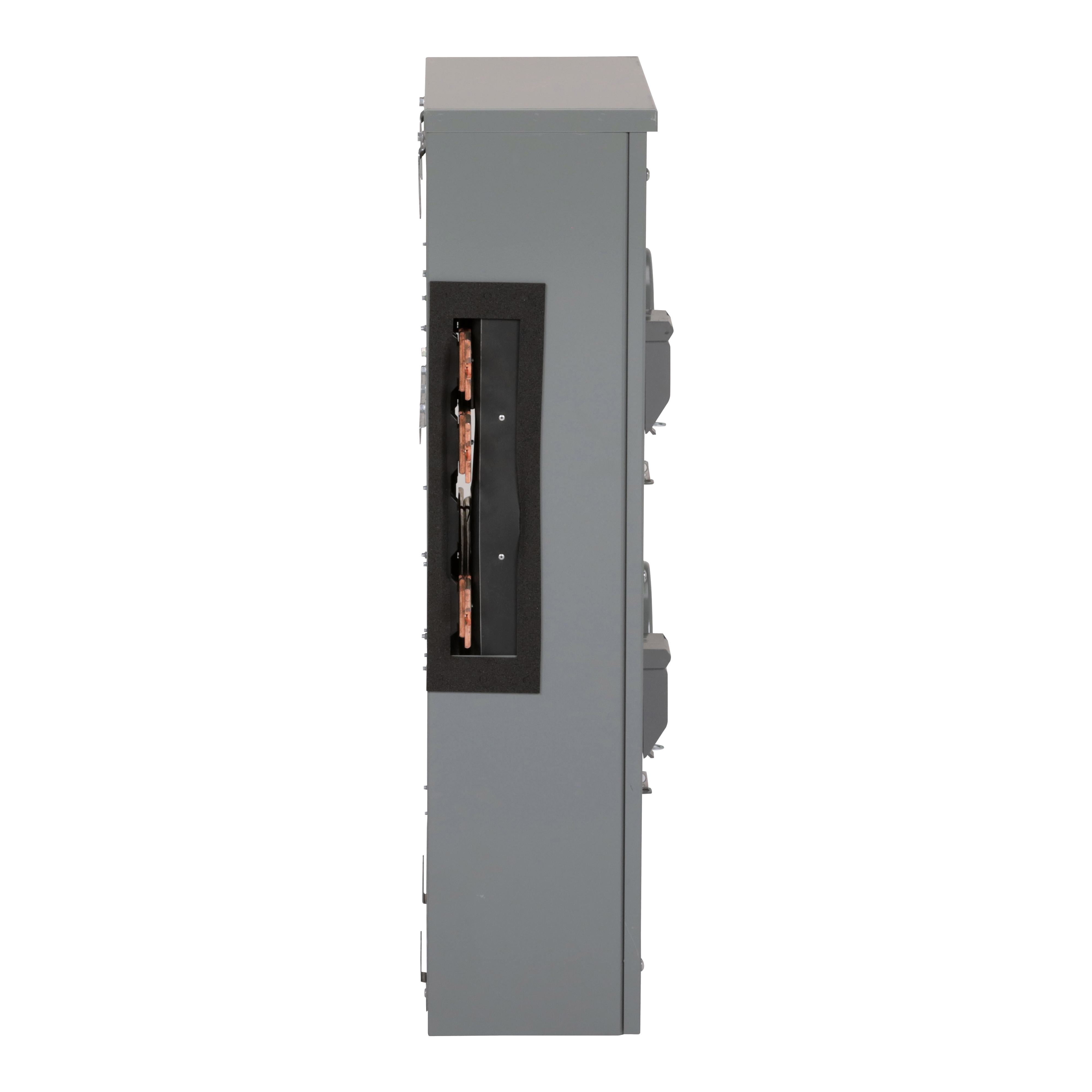

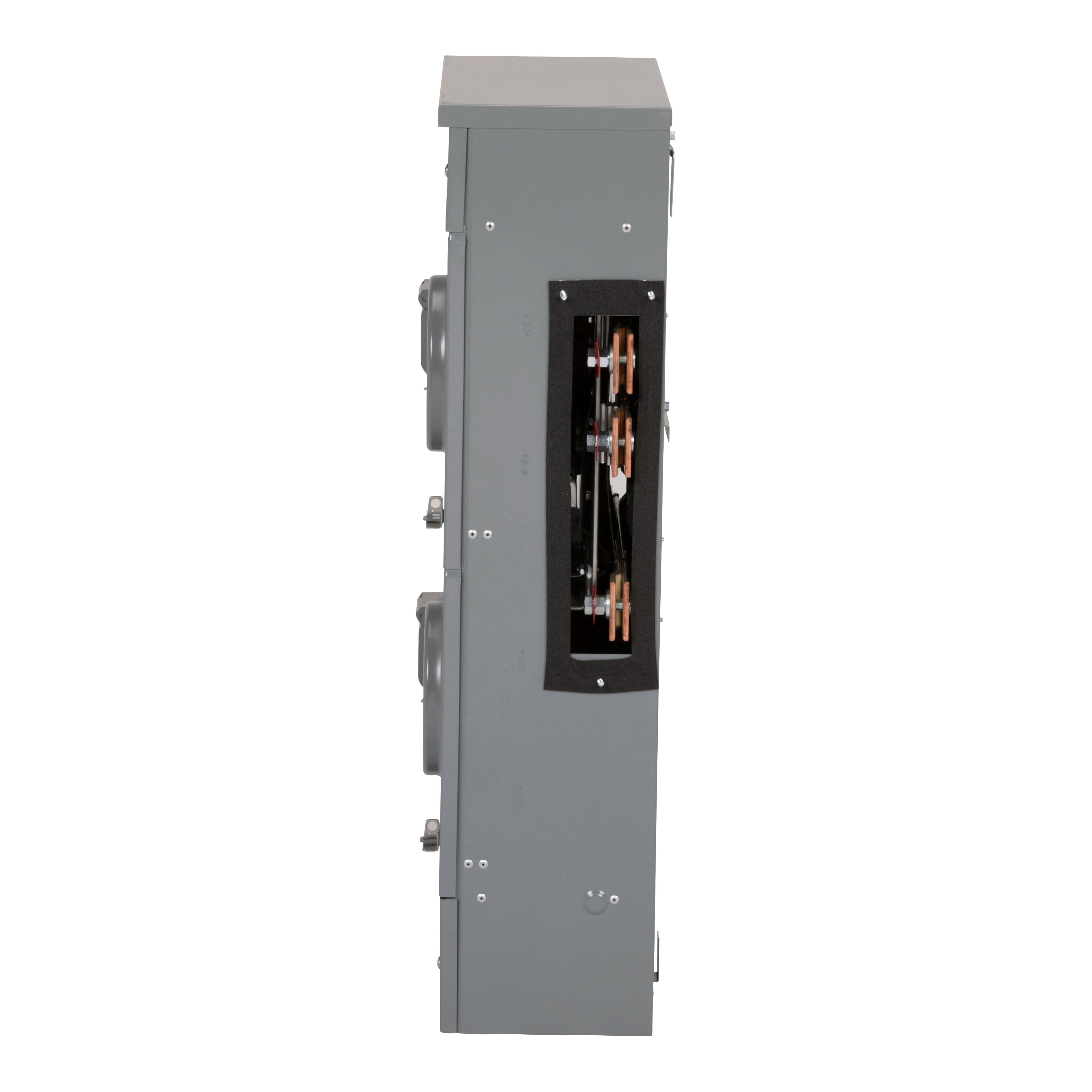

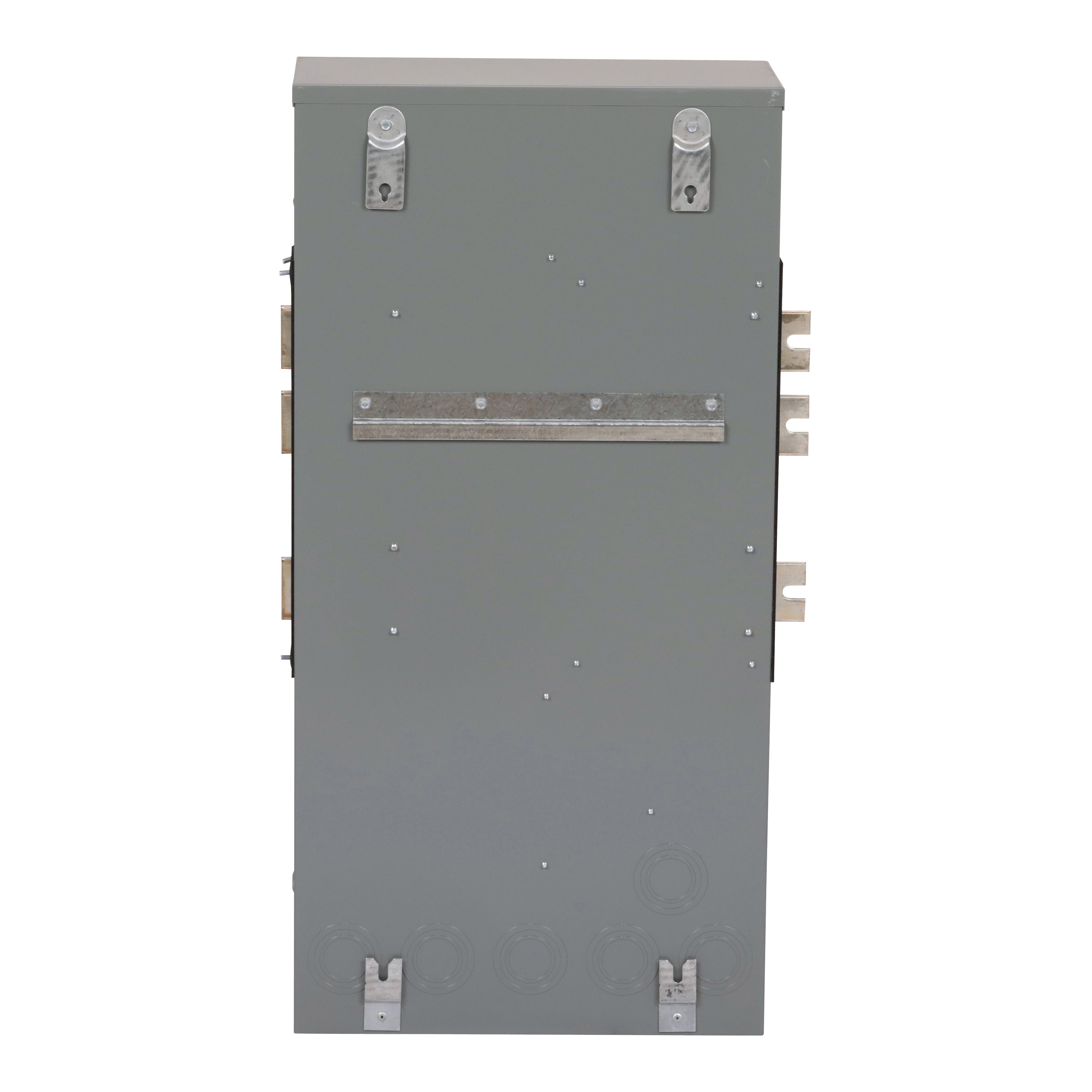

Square D™ Meter-Pak™ EZML112225 EZM 2-Position Meter Center Branch Unit With Lever Bypass, 120/240 VAC, 225 A, 1 ph Phase, NEMA 3R Enclosure
Brand: Square D™
Item ID: 347805
MPN: EZML112225
Login for Price
Features
- 1 ph 3-wire service/load feed
- Aluminum horizontal cross busbar
Description
Square D™ Meter-Pak™ Meter Center Branch Unit, 2-Position, Series: EZM, 120/240 VAC, 225 A, 1 ph Phase, 5 Jaws, Ringless Cover, Surface Mount, NEMA 3R, 39.06 in H x 19.44 in W x 9.44 in D
Specifications
Amperage Rating |
225 A |
Cover Type |
Ringless |
Dimensions |
39.06 in H x 19.44 in W x 9.44 in D |
Enclosure Type |
NEMA 3R |
Mounting Type |
Surface |
Number of Jaws |
5 |
Phase |
1 ph |
Series |
EZM |
Type |
2-Position |
Voltage Rating |
120/240 VAC |
Standard Approval |
UL File No. E10582/E131840|NEC Certified|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
For used as service equipment and use on the line side of service equipment |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4ba5bcb6a5e5fd52838854288edfe235d0a81ed57340e9dba8e91316207f324b.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b664ac092ec99b4d969feca463157cae2c673f4470eac0d300758d8b47bba735.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_CMELK4_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LA9D80978_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZML112225_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a37a744ca9820ece0ce1d23c27ce5f2c5646f31a0d8a00b00b3ec377ac0b2416.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZML112225_Specification_Sheet.pdf
