Square D™ EZML113125

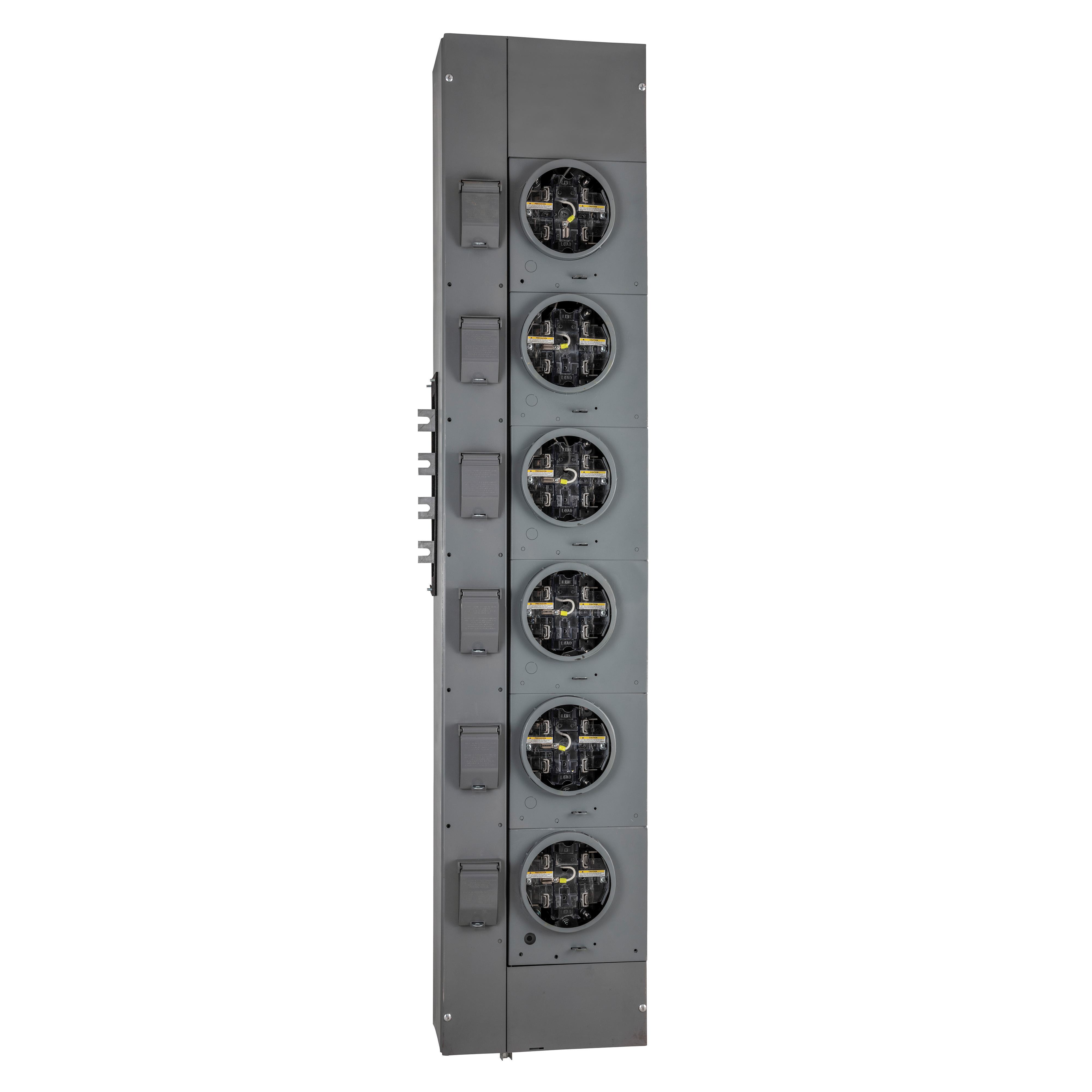

Square D™ EZ Meter-Pak™ EZML113125 Lever Bypass Meter Center Branch Unit, 125 A, 120/240 VAC, 800 A Bus
Brand: Square D™
Item ID: 513425
MPN: EZML113125
UPC: 785901068136
Login for Price
Features
- Aluminum horizontal cross bus bar
Description
Square D™ EZ Meter-Pak™ Meter Center Branch Unit, Lever Bypass, 120/240 VAC, 800 A Bus, 125 A Socket, 3 Meter Sockets, 1 ph, Ringless Socket Cover Style, 5 With Jaw Release Socket Jaws, NEMA 3R Enclosure, Surface Mounting, 15.38 in W x 8.95 in D x 45 in H Dimensions
Specifications
Bus Amps |
800 A |
Dimensions |
15.38 in W x 8.95 in D x 45 in H |
Enclosure Type |
NEMA 3R |
Mounting Type |
Surface |
Number of Meter Sockets |
3 |
Phase |
1 ph |
Socket Amps |
125 A |
Socket Cover Style |
Ringless |
Socket Jaws |
5 With Jaw Release |
Type |
Lever Bypass |
Voltage Rating |
120/240 VAC |
Standard Approval |
PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ebfa346d0d6ebdf63991a403d34429b296846c6fb0eabf706ebd37668b65d0d3.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_211ad3204597fa417e1fe938c9db8f83684522ad657f8c0d603370c4c99a3789.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_BJP36040_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZML113125_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9c48d3add998f92d690274c250799d928bda58387d877b333a16def3204ba36b.pdf
Specification Sheet 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d3959ed3295a4a1a25d6b093944a578ad26feef7dbca17c73e265d74c62799cf.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZML113125_Specification_Sheet.pdf
