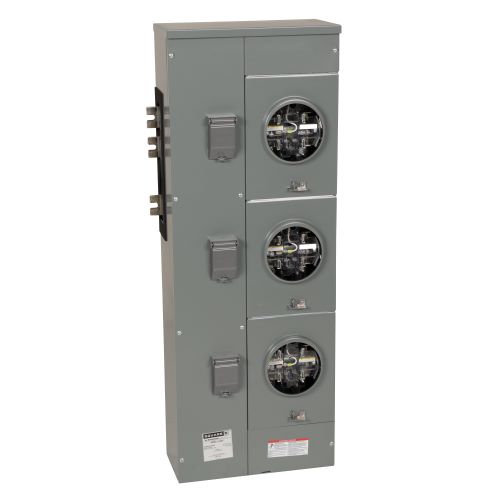

Square D™ EZML113225

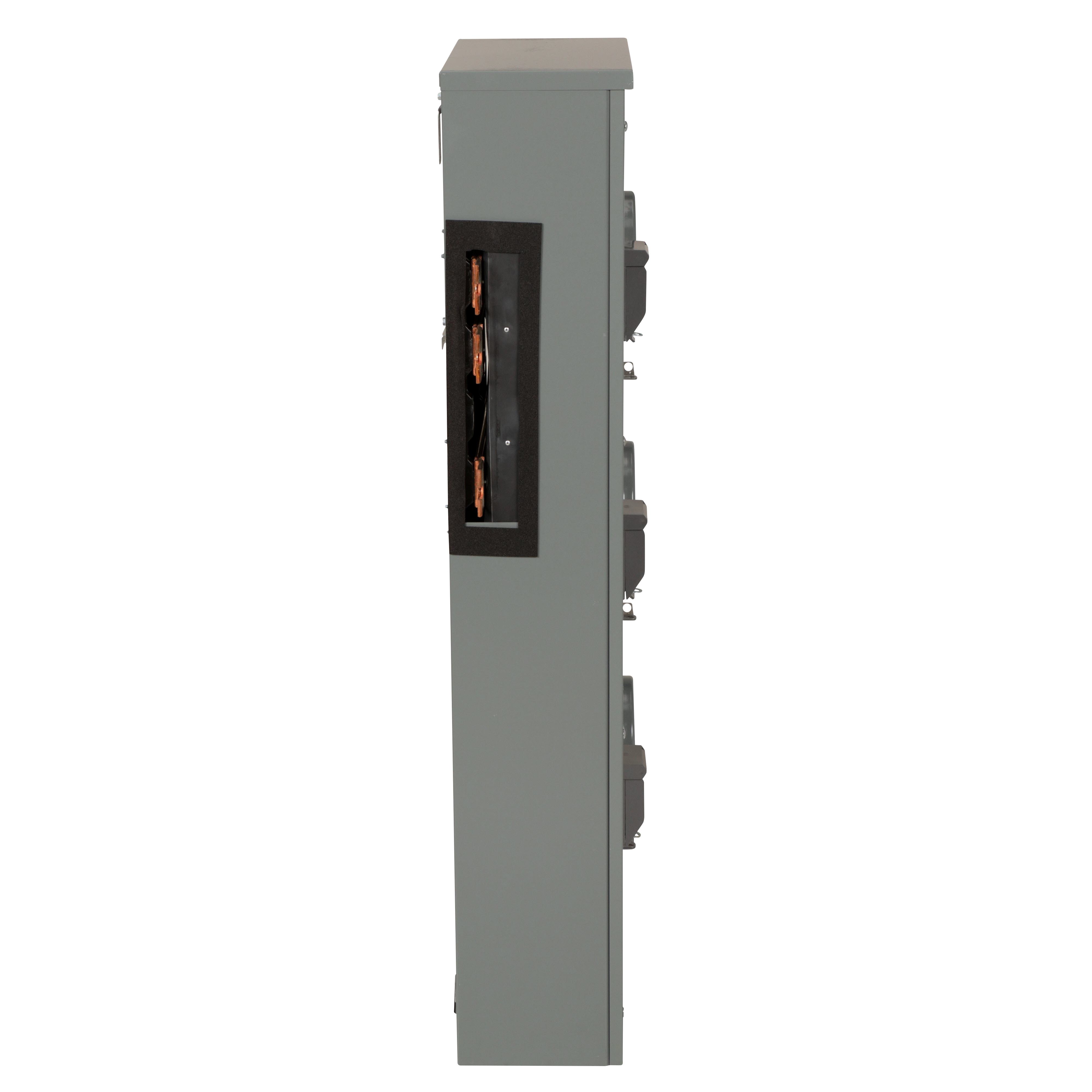

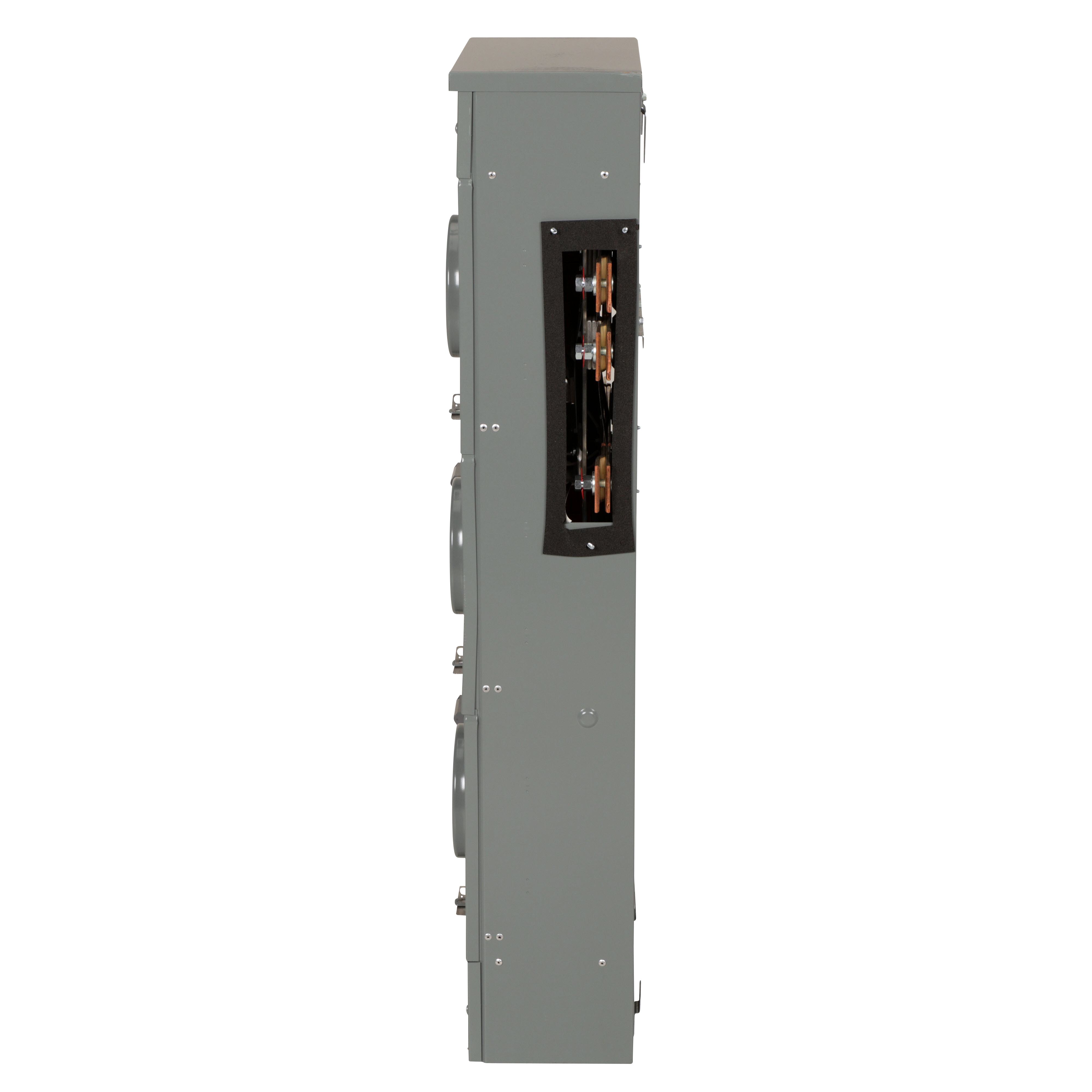

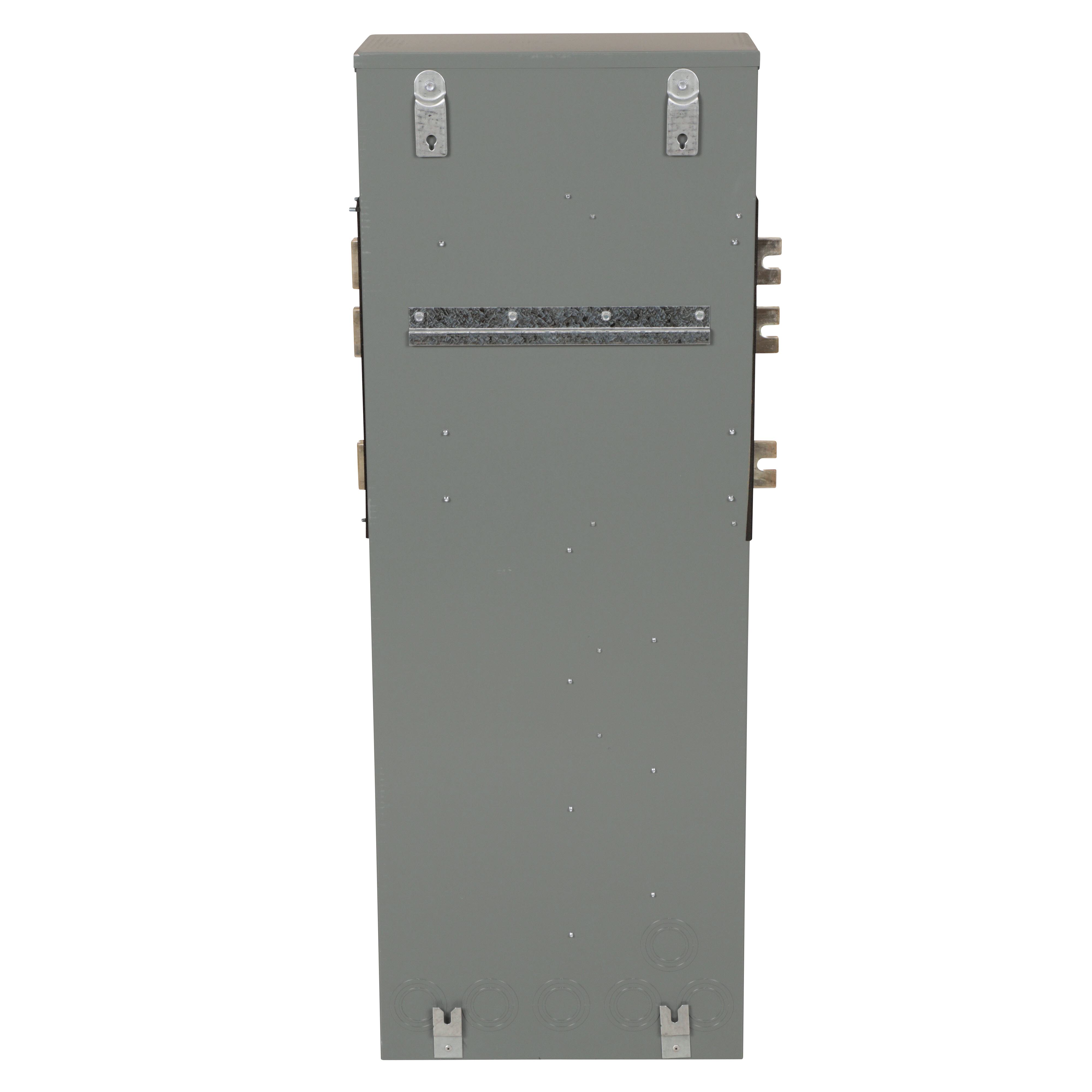

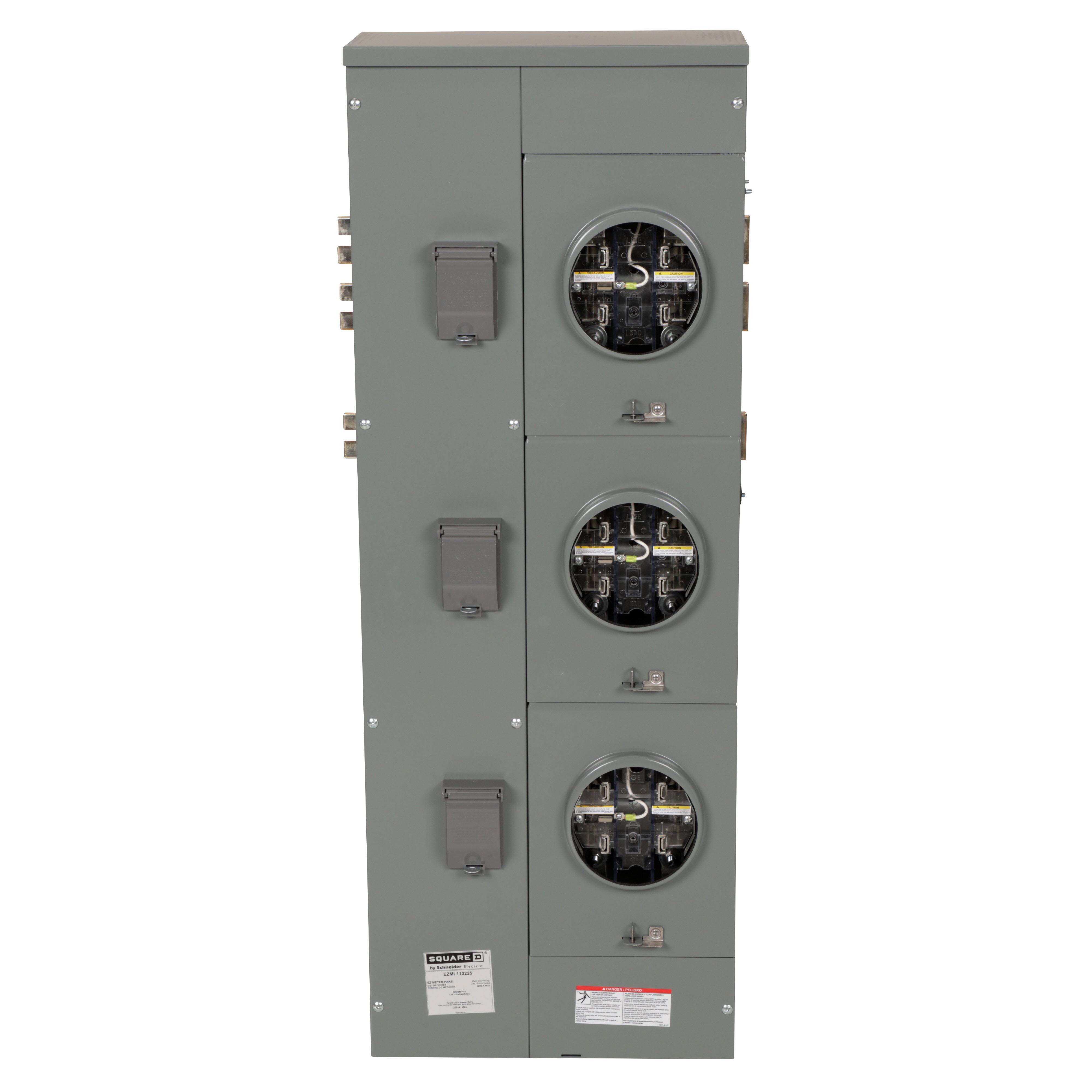

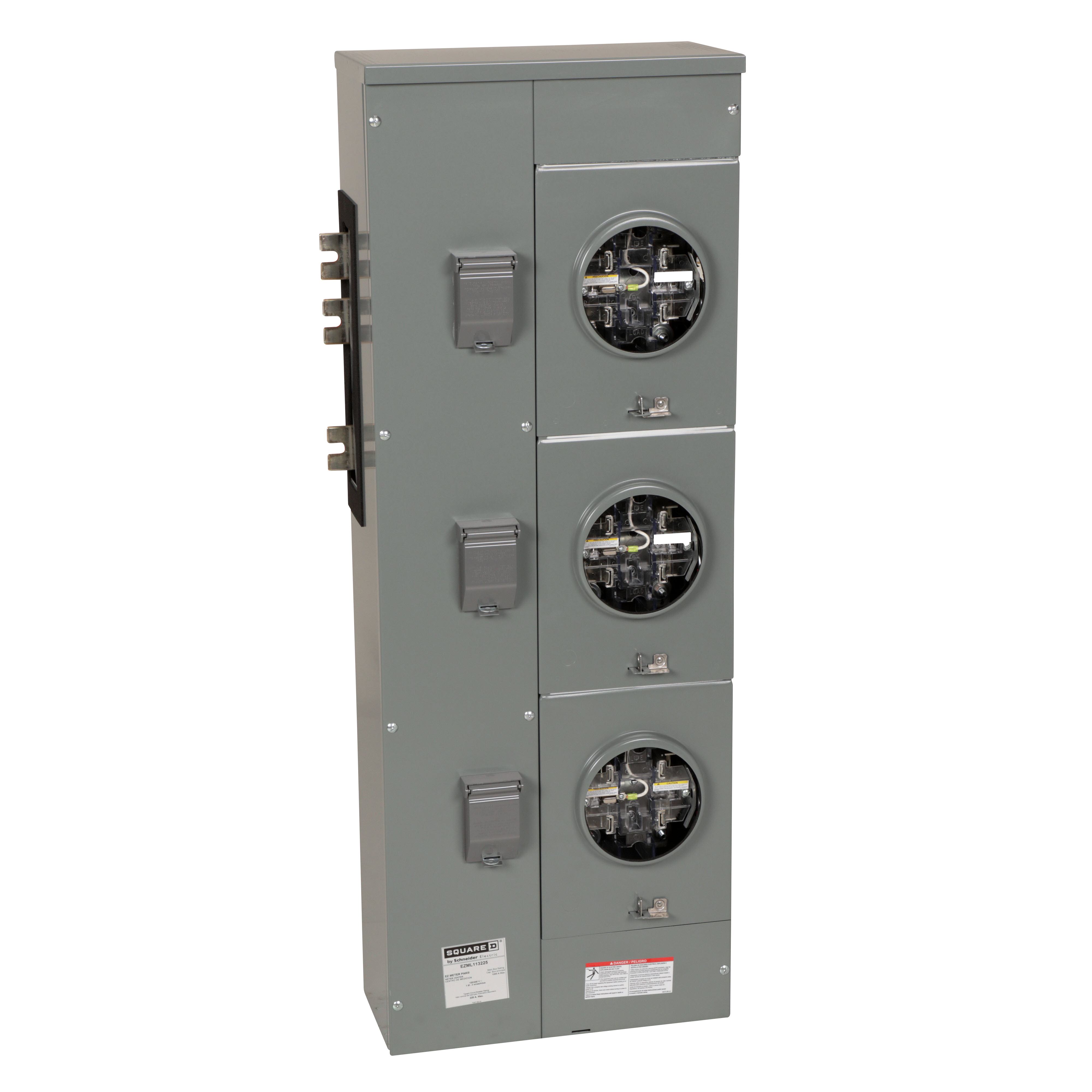

Square D™ Meter-Pak™ EZML113225 EZML 2-Position 3-Wire Ringless Meter Center Branch Unit, 120/240 VAC, 225 A, 1 ph Phase, NEMA 3R Enclosure
Brand: Square D™
Item ID: 340452
MPN: EZML113225
Login for Price
Features
- 225 A line rated current and 1200 A bus rated current
- 5 jaws without release
- Lever bypass type
- Aluminum or copper busbar and steel enclosure
- 1 ph in and out network
Description
Square D™ Meter-Pak™ Meter Center Branch Unit, 2-Position 3-Wire Ringless, Series: EZML, 120/240 VAC, 225 A, 1 ph Phase, 5 Jaws, Surface Mount, NEMA 3R, 53.06 in H x 19.44 in W x 9.44 in D
Specifications
Amperage Rating |
225 A |
Dimensions |
53.06 in H x 19.44 in W x 9.44 in D |
Enclosure Type |
NEMA 3R |
Mounting Type |
Surface |
Number of Jaws |
5 |
Phase |
1 ph |
Series |
EZML |
Type |
2-Position 3-Wire Ringless |
Voltage Rating |
120/240 VAC |
Standard Approval |
UL Listed|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
Commercial Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a80b8862db894d0421424fd9ff4785cb65545b340f88b537d9aa4e58be8d9b49.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_31ec15186764dd65ff62fa2b0d5168577da41b2b7080f3b210f1e020861bcff7.pdf
Full Engineering Drawing 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZML113225_Full_Engineering_Drawing.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZML113225_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4baeea29e628af19d84753ec5159ceca99ec8f29d09b0a636da4821ab2d28576.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZML113225_Specification_Sheet.pdf
