Square D™ EZML114225

• Top and bottom wiring gutters with knockouts allow branch circuits to exit from either the top, bottom or back of the unit
• Meter breaker units can be supplied with either 1-phase 3-wire or 3-phase 4-wire service
• The main bus on residential units with 40 to 200 A circuit breaker provisions is 800 or 1200 A in units using commercial 200 and 400 A branch circuit breakers
• To suit individual applications, residential and commercial devices may be interconnected
• Basic devices for connection to 3-phase 4-wire 120/208 VAC service are factory phase balanced to save installation time
• The phase balancing may be modified in the field to meet most system variations
• Aluminum horizontal cross busbar
• 1-phase in and out network
• 225 A line rated current and 1200 A bus rated current
• 5 jaws without release

Square D™ EZ Meter-Pak™ centers are available from 1 to 6 H meter breaker units. Greater selectivity means faster, easier installations. Plug-on QO™ 2-pole circuit breakers are used in 125 A units, while 200 A residential units use factory installed Q2 2-pole circuit breakers.

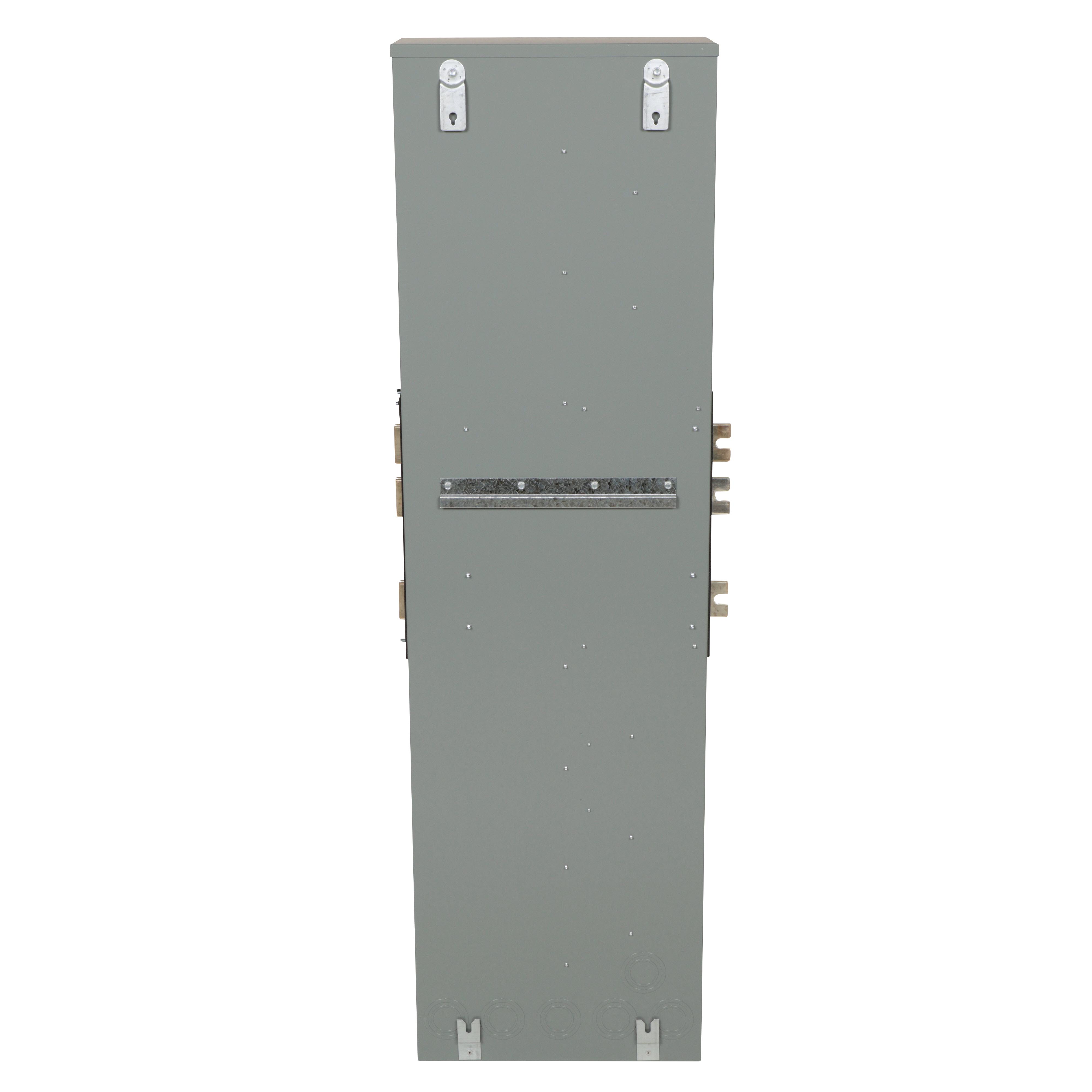

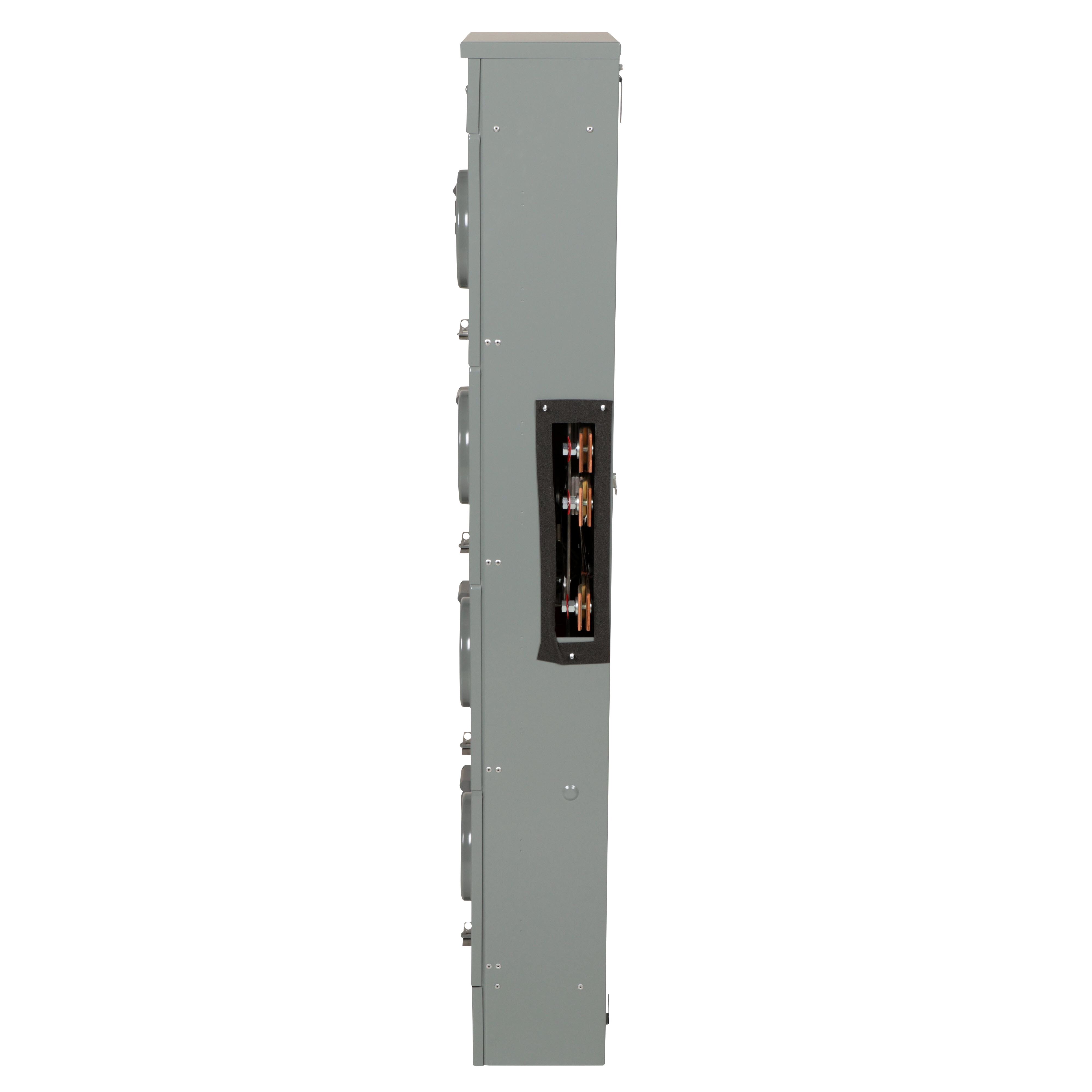

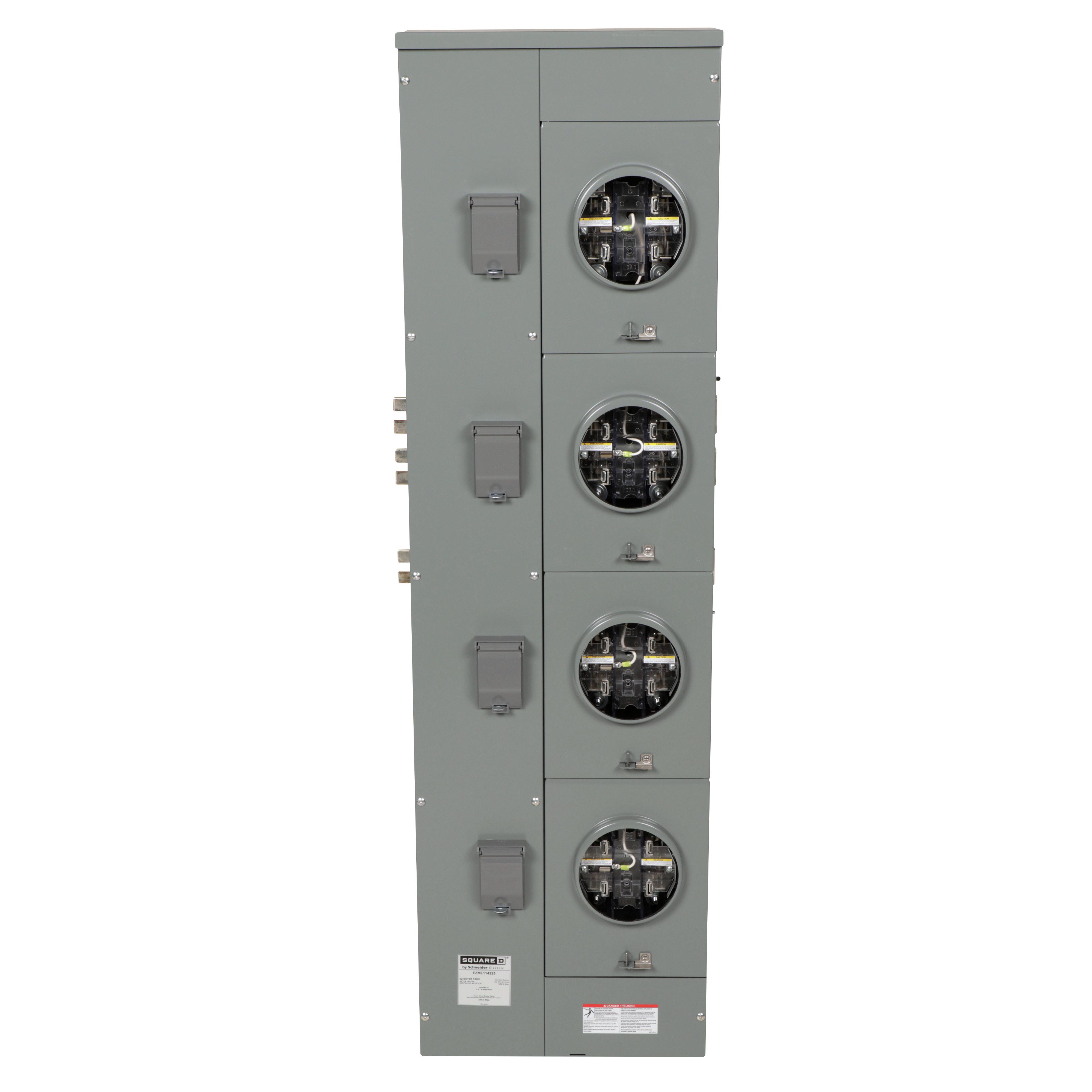

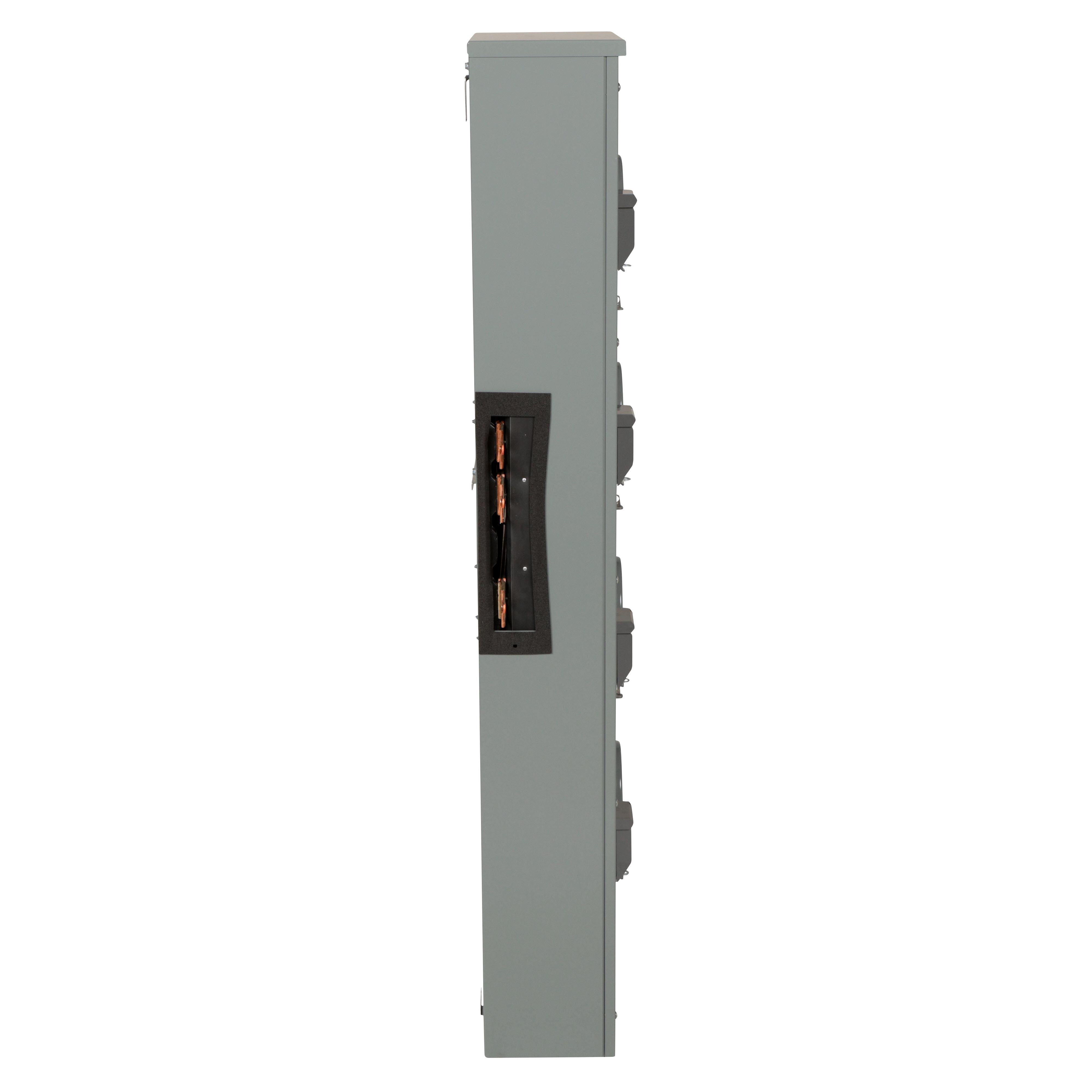

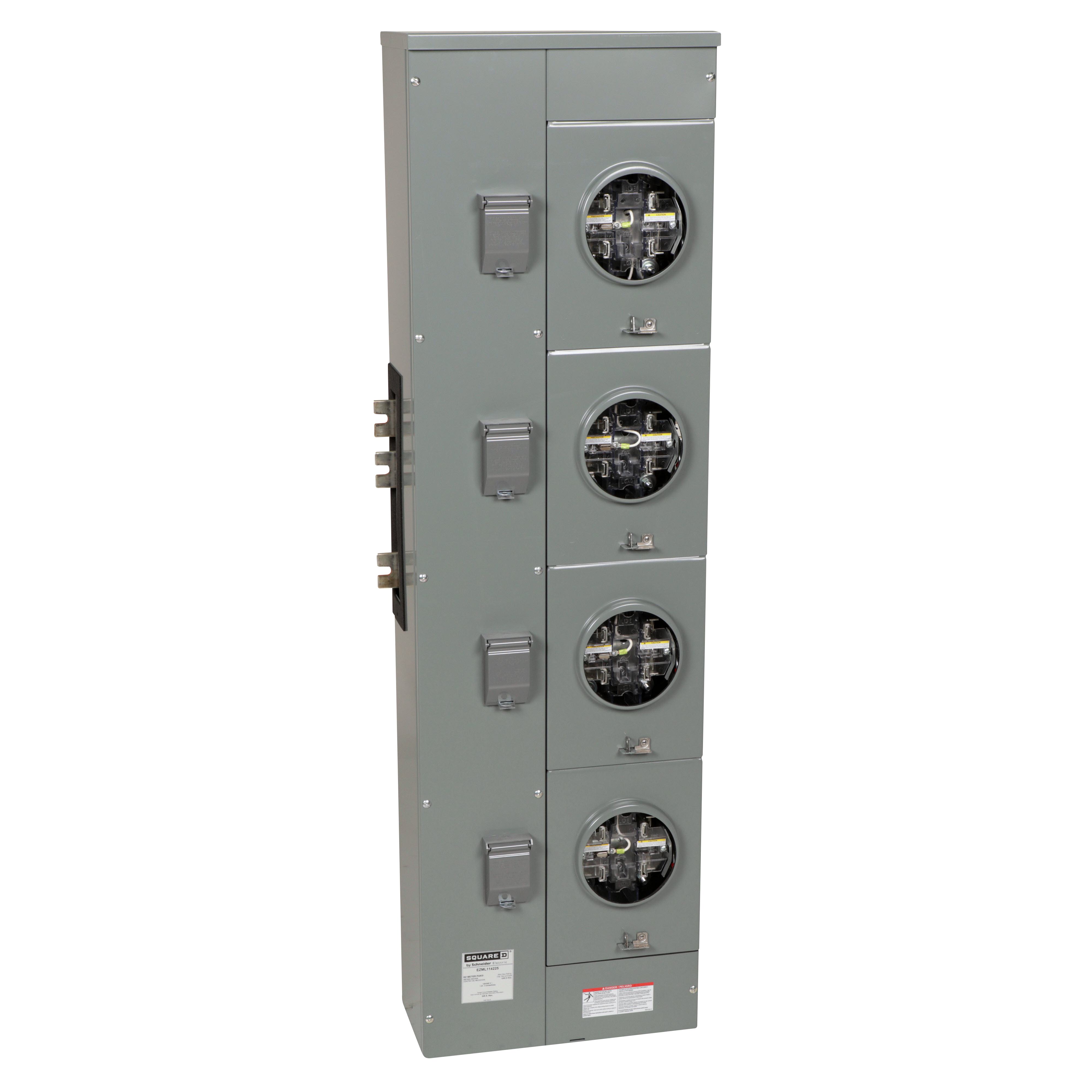

Square D™ Meter-Pak™ Meter Center Branch Unit, 4-Position 3-Wire, Series: EZM, 120/240 VAC, 225/1200 A, 1 ph, Overhead/Underground Feed, 5 Jaws, Ringless Cover, Surface Mounting, NEMA 3R Enclosure, 67.06 in H x 19.44 in W x 9.44 in D Dimensions
