Square D™ EZML312225

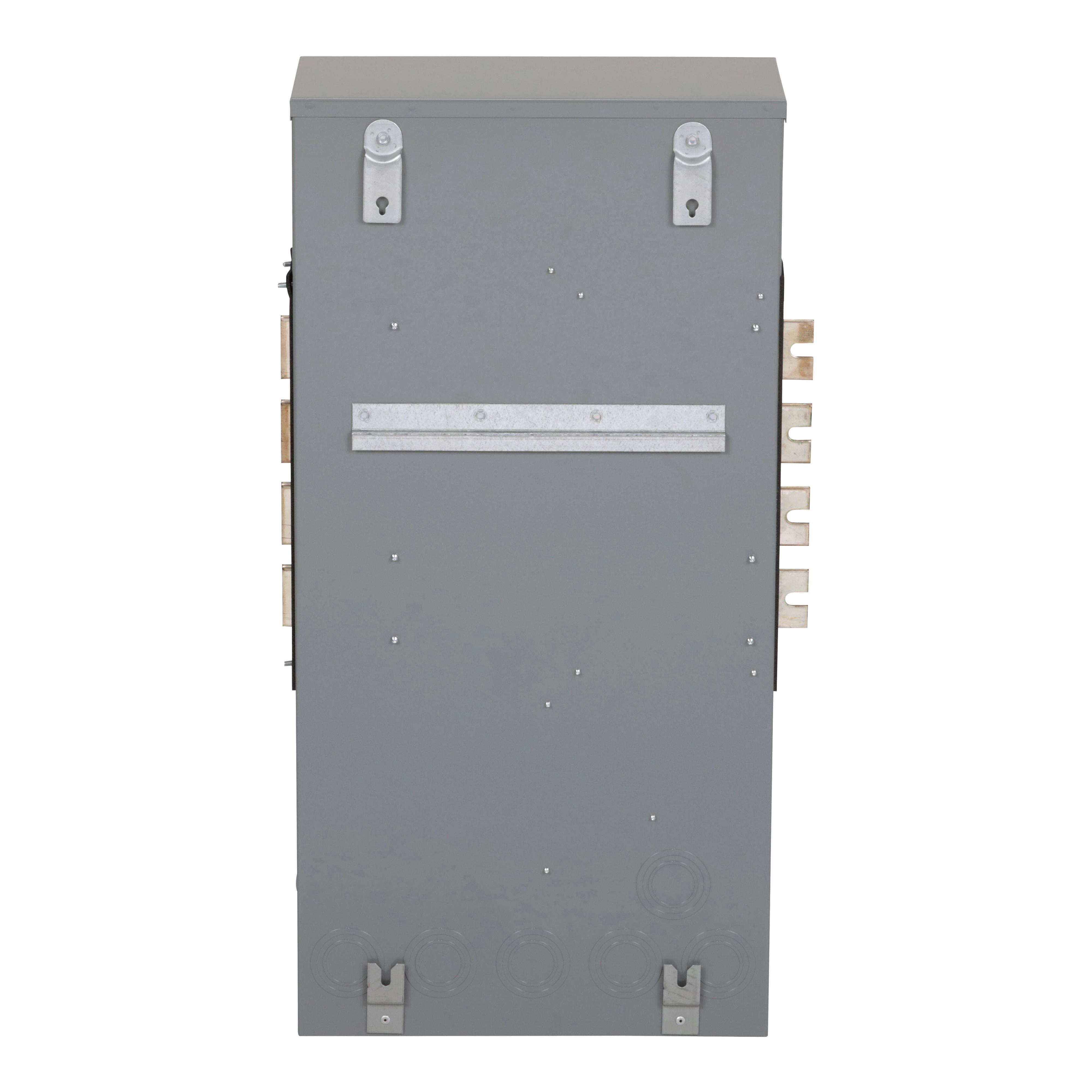

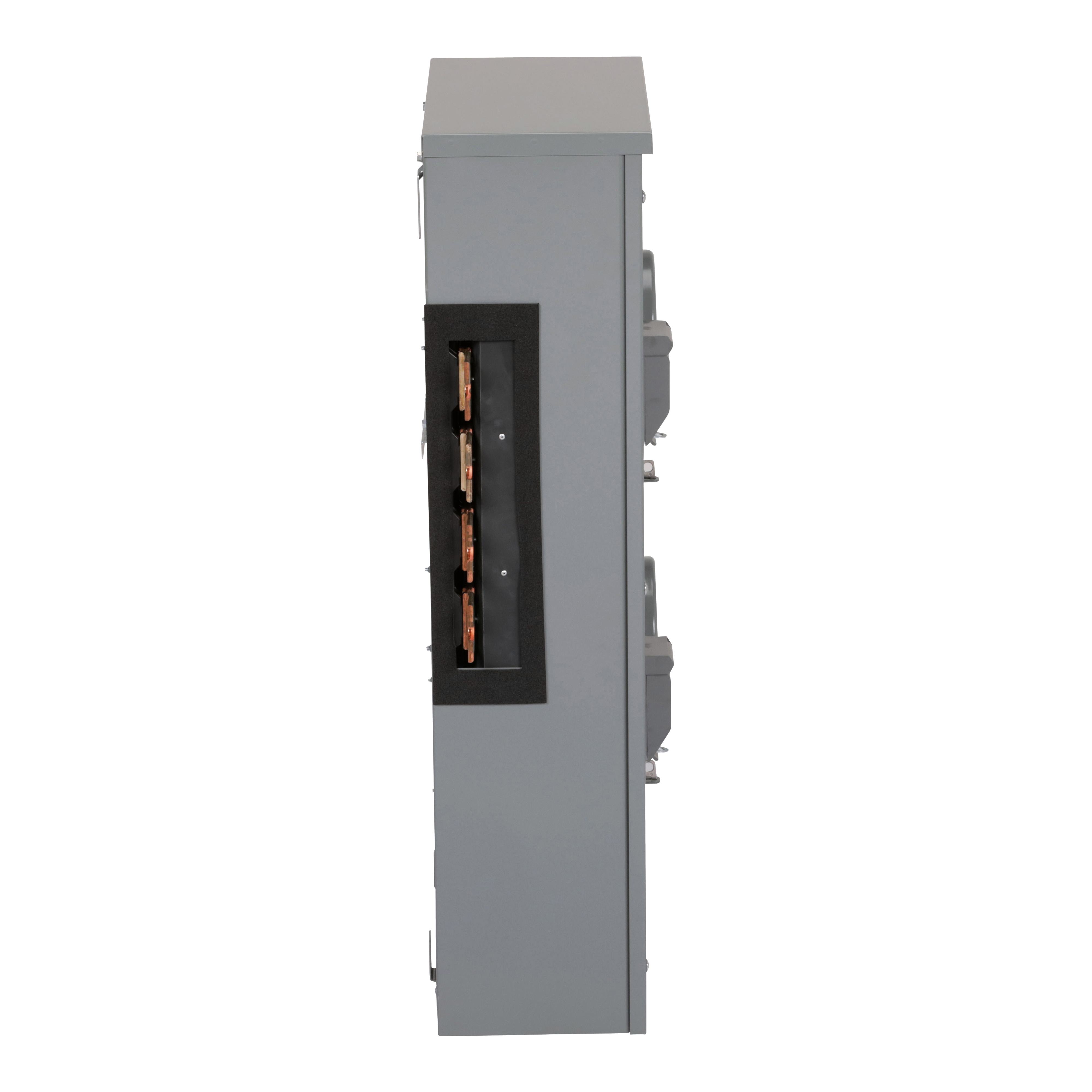

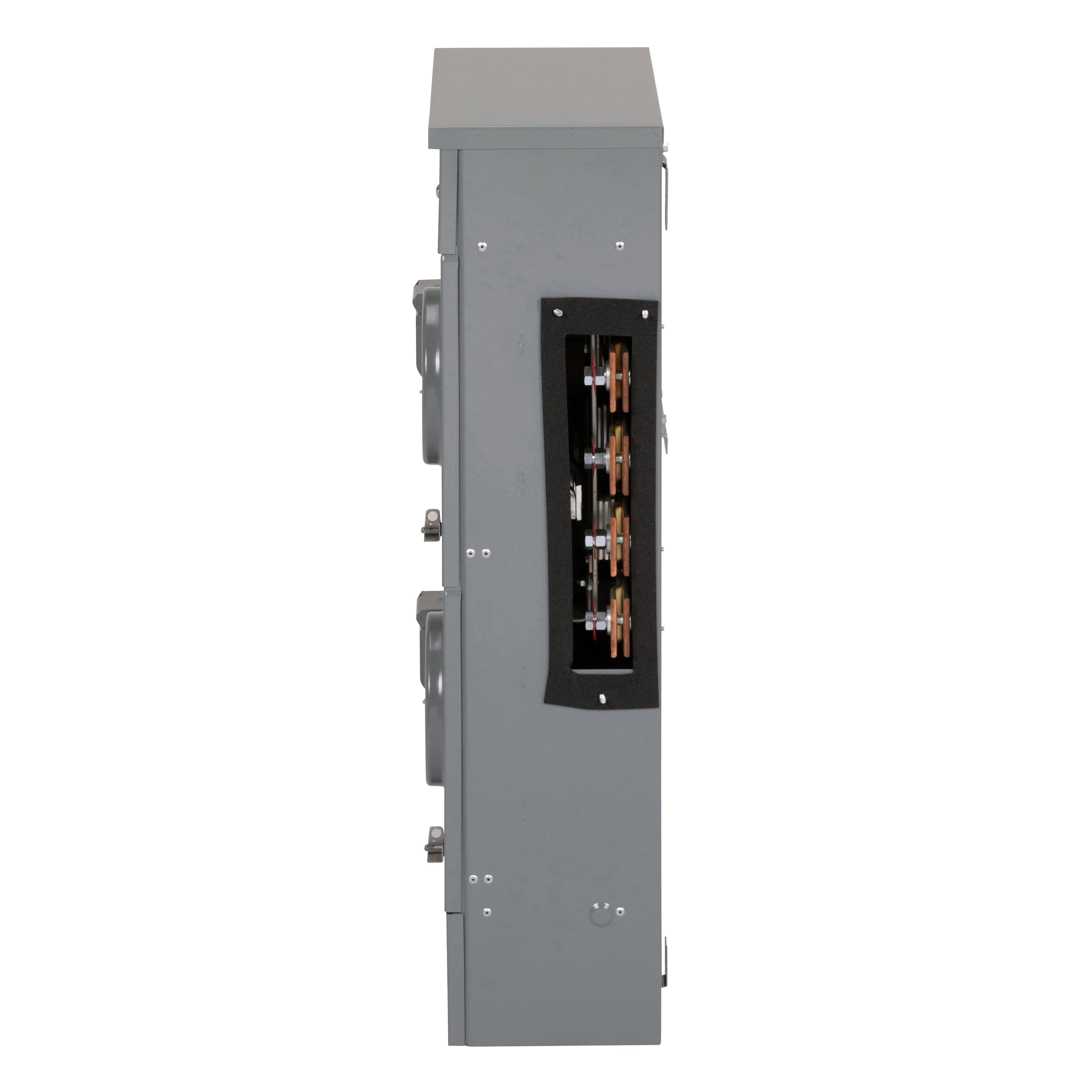

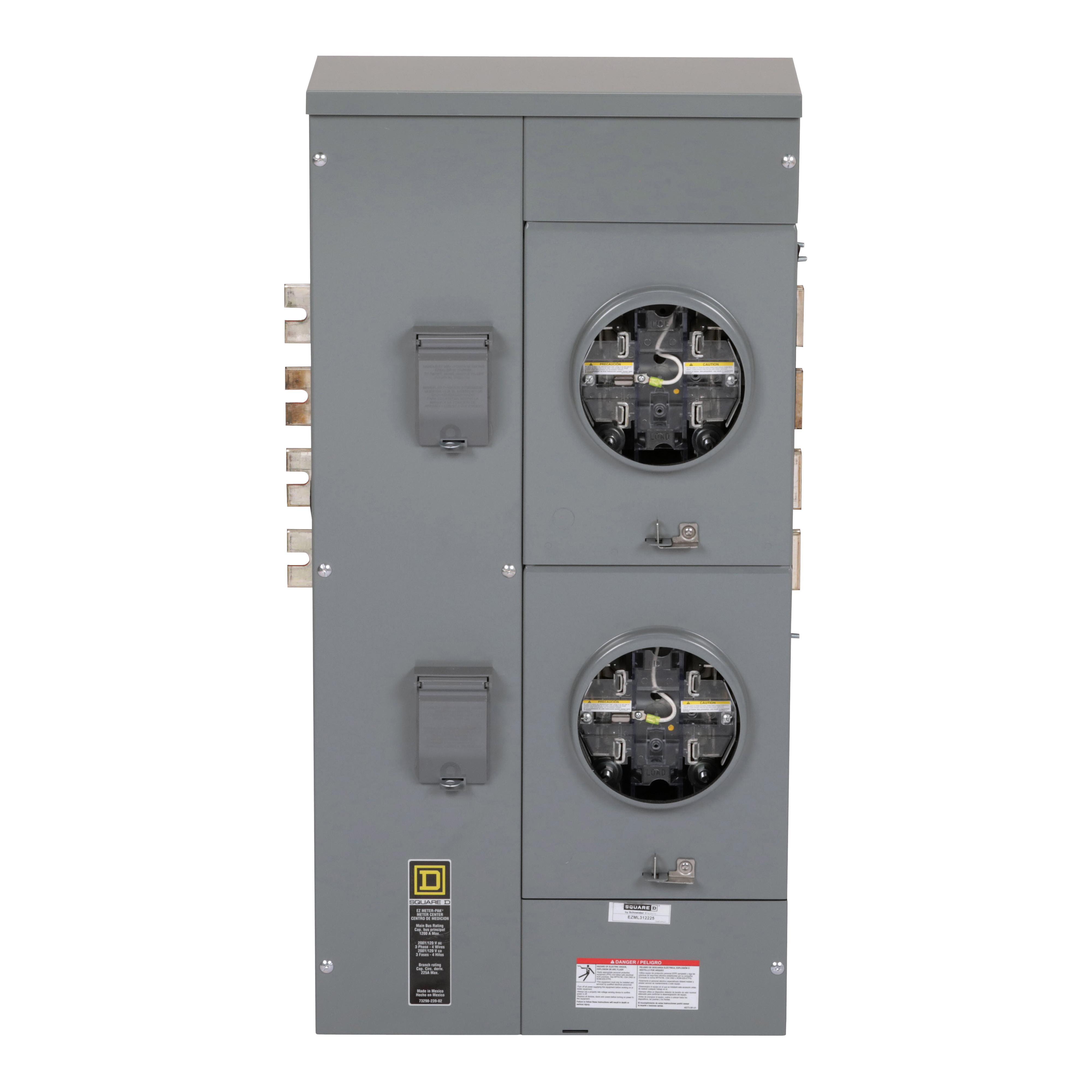

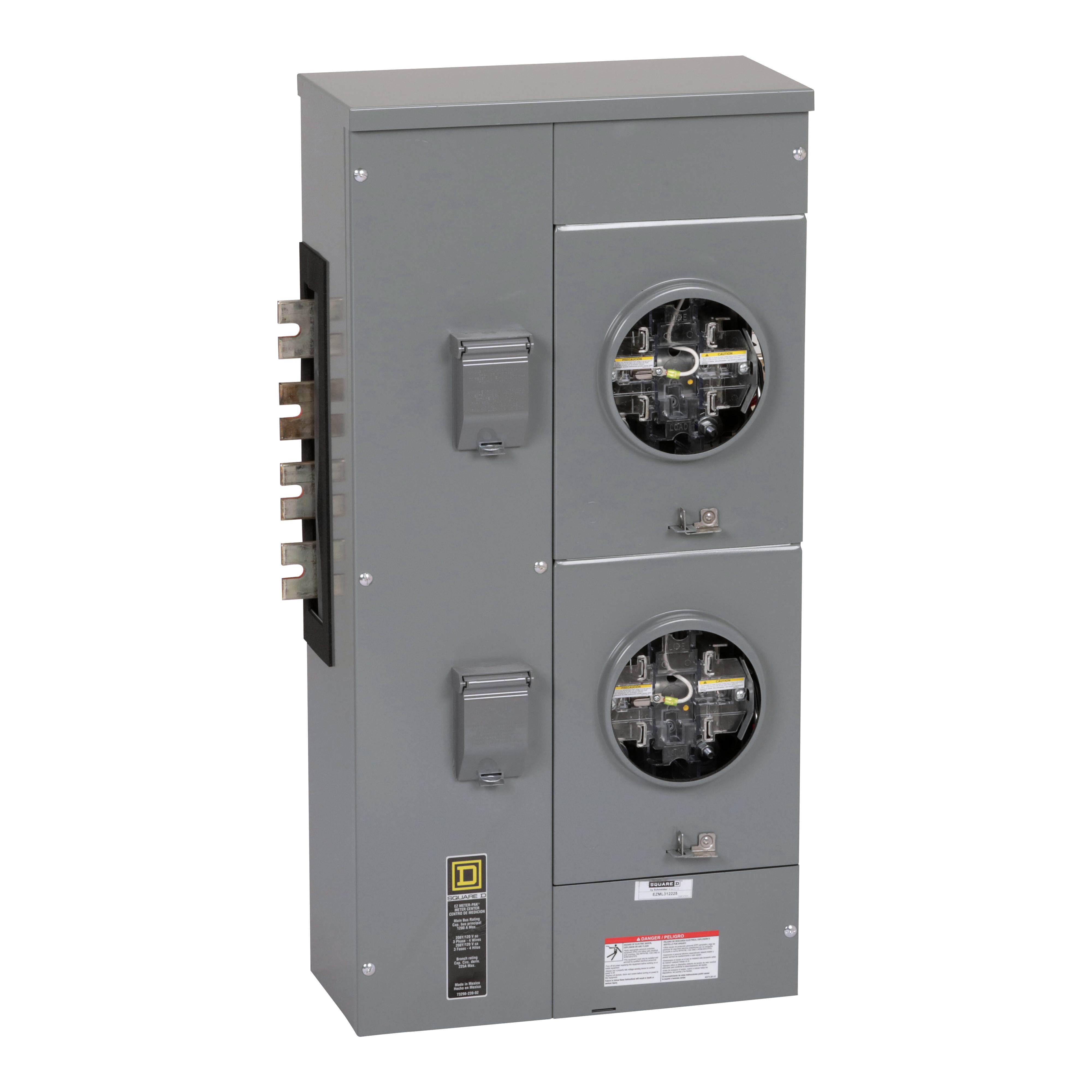

Square D™ Meter-Pak™ EZML312225 EZM 2-Position Meter Center Branch Unit With Lever Bypass, 208Y/120 VAC, 225 A, 1/3 ph Phase, NEMA 3R Enclosure

Brand: Square D™

Item ID: 356148

MPN: EZML312225

Add To Cart

Features

3 phase 4-wire service feed, 1 phase 3-wire load feed
Aluminum horizontal cross busbar

Description

Square D™ Meter-Pak™ Meter Center Branch Unit, 2-Position, Series: EZM, 208Y/120 VAC, 225 A, 1/3 ph Phase, 5/7 Jaws, Ringless Cover, Surface Mount, NEMA 3R, 39.06 in H x 19.44 in W x 9.44 in D

Specifications

Amperage Rating	225 A
Cover Type	Ringless
Dimensions	39.06 in H x 19.44 in W x 9.44 in D
Enclosure Type	NEMA 3R
Mounting Type	Surface
Number of Jaws	5/7
Phase	1/3 ph
Series	EZM
Type	2-Position
Voltage Rating	208Y/120 VAC
Standard Approval	UL File No. E10582/E131840\|NEC Certified\|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Application	For used as service equipment and use on the line side of service equipment

Documentation

Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_99e4eb8cd29520f5e2058bb6f5de532c98be6dce4bc4af8f6ffb9e8a1d28795d.pdf

Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7c2326c2bb0eef352f05440aac531ecb8fb5aaa275e05796bb7d7018a39619f6.pdf

Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0bfcfa0ef2e82bd5096f13451d32cc771fcf2c13a2abb322048d299b9118c74a.pdf

Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf

RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZML312225_RoHS.pdf

Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7e43f407f46d11bf12a0511ede663736726ed82072f4687be91d4760c0e109a2.pdf

Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZML312225_Specification_Sheet.pdf

Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_PA21000RC_Warranty.pdf
