Square D™ EZML314225

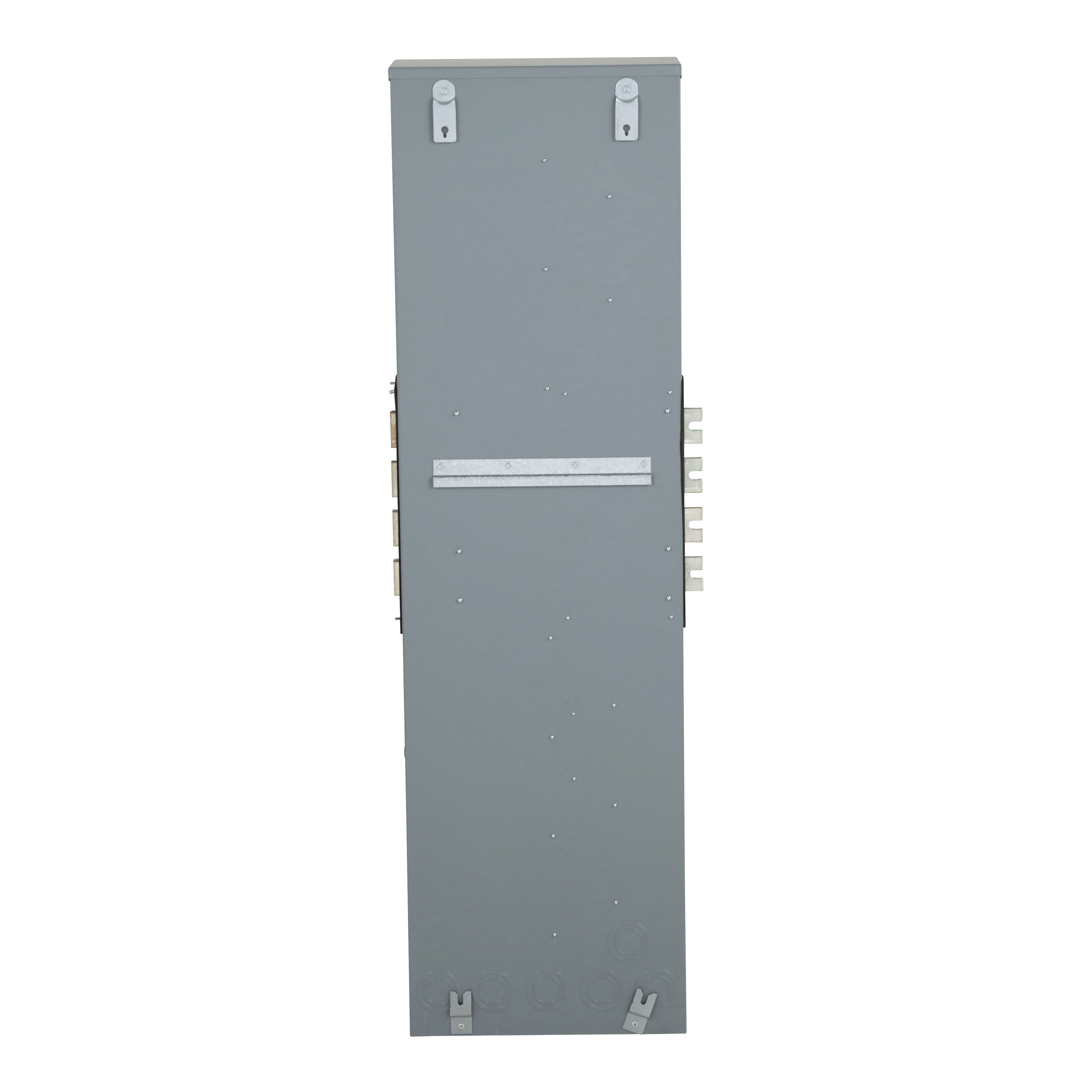

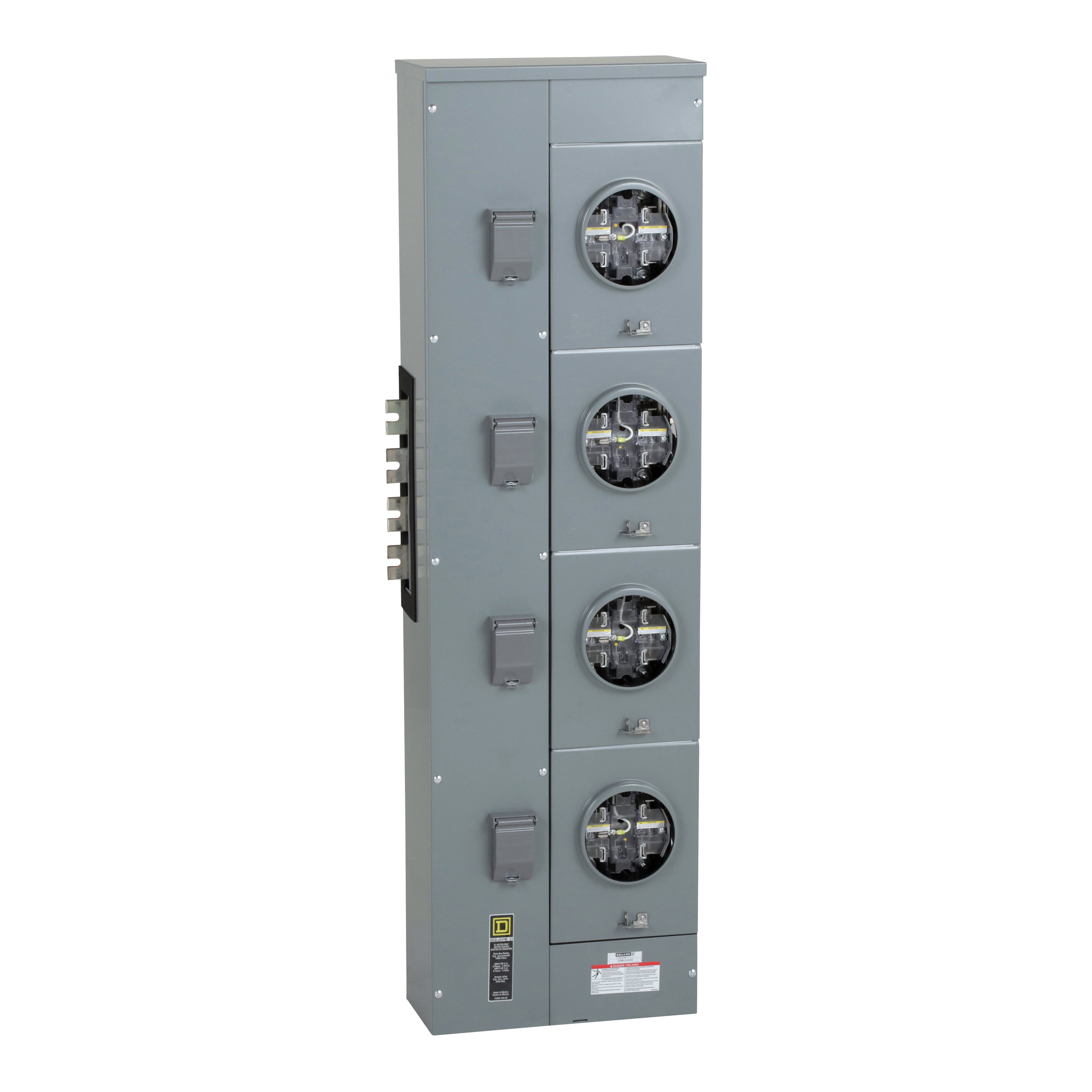

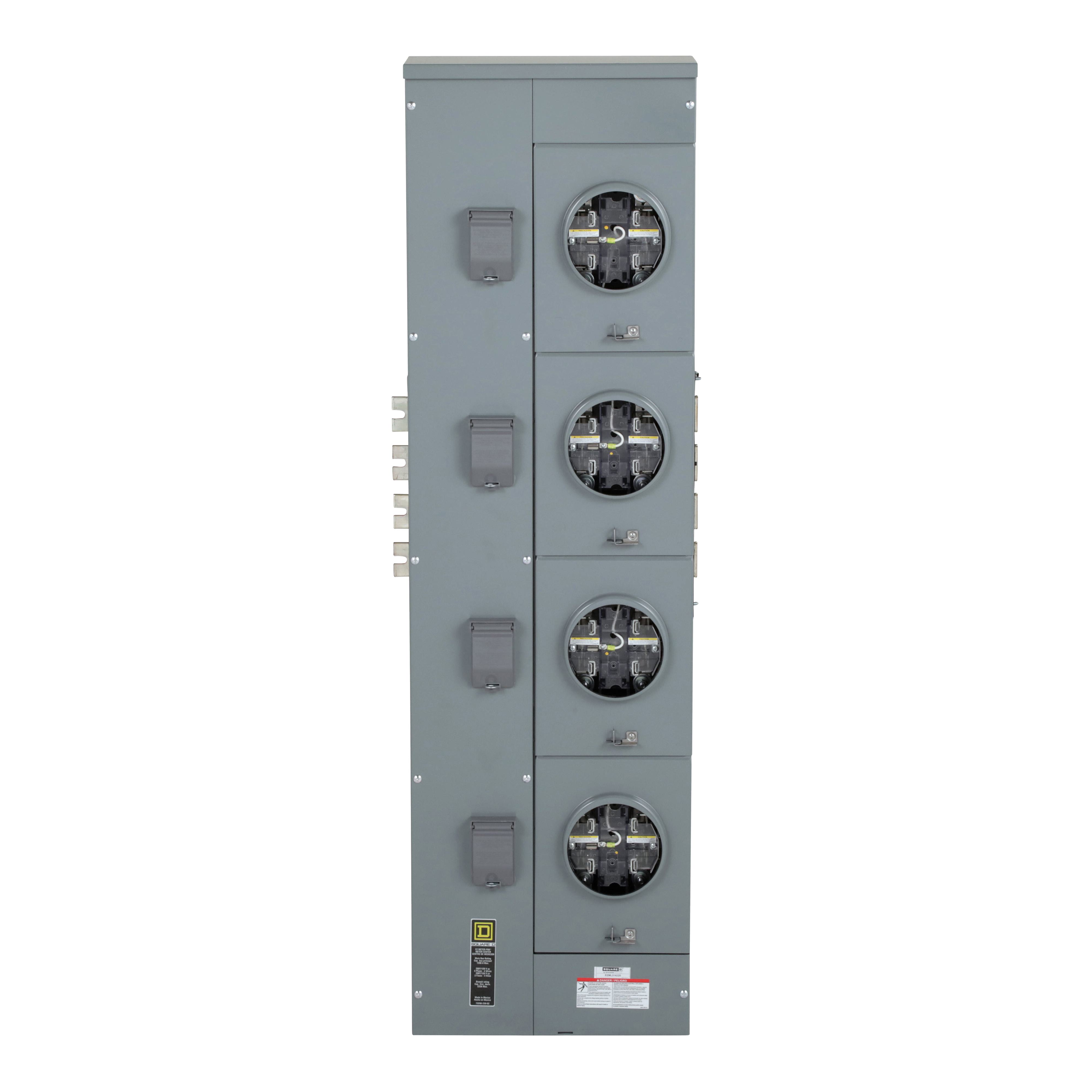

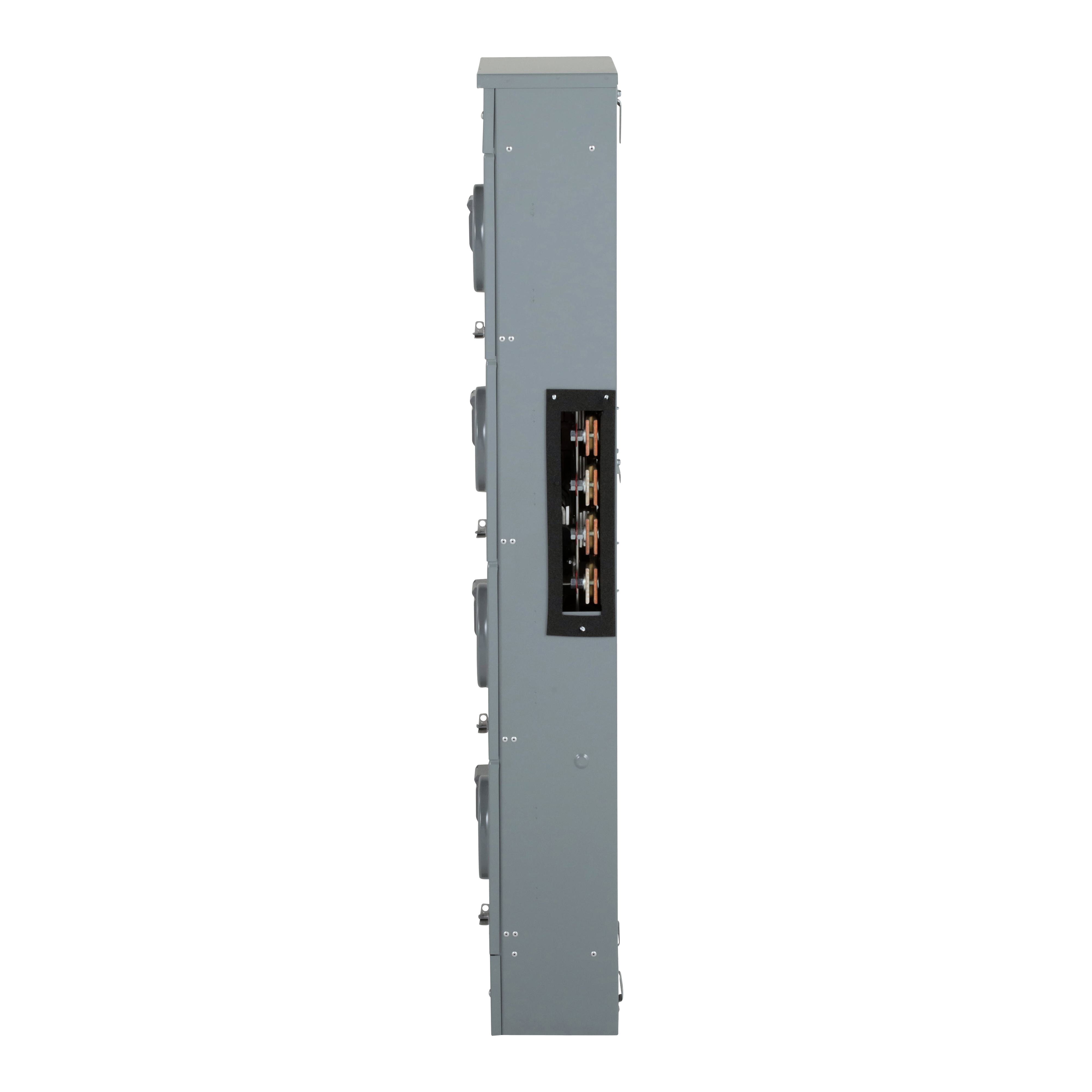

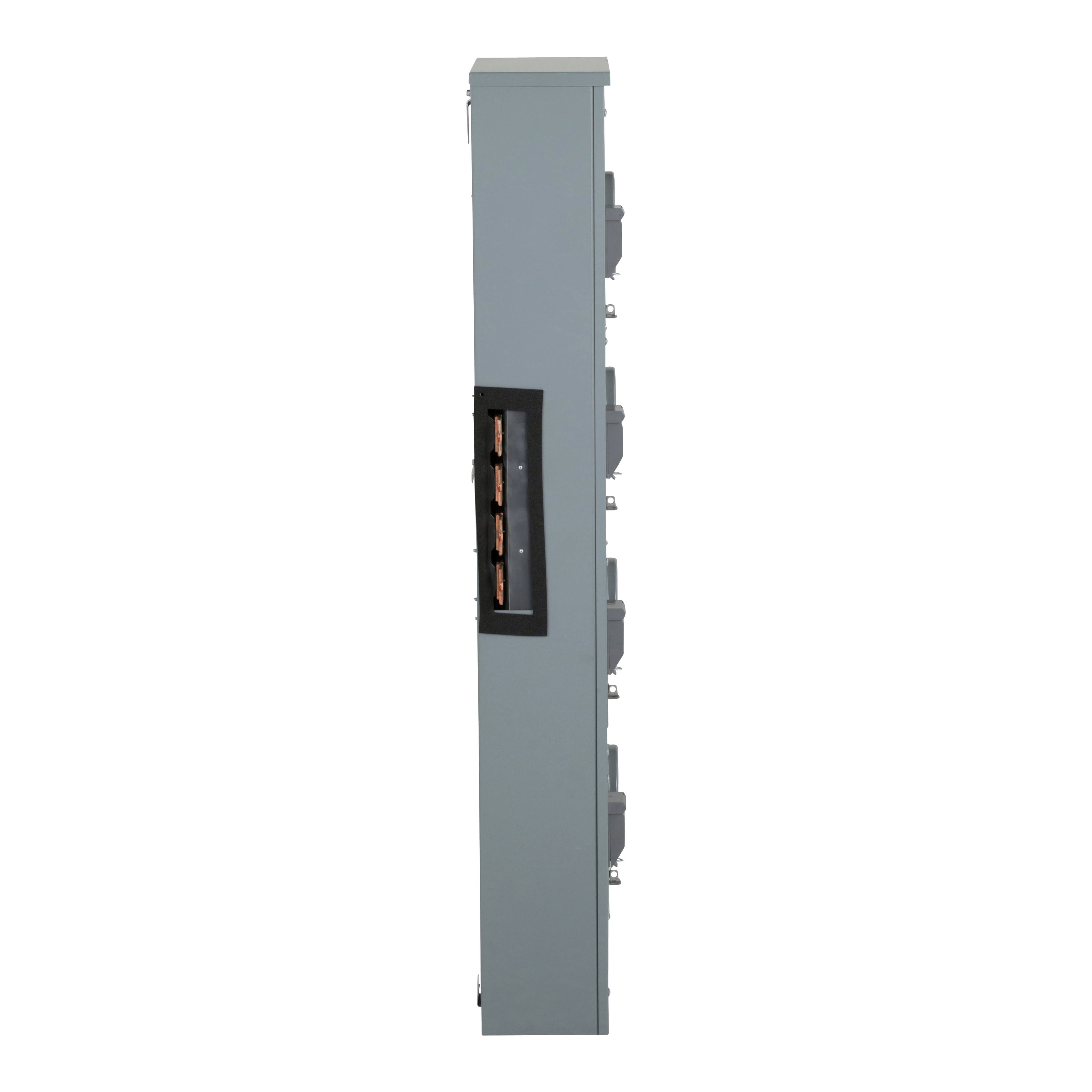

Square D™ Meter-Pak™ EZML314225 EZM 4-Position Meter Center Branch Unit With Lever Bypass, 208Y/120 VAC, 225 A, 1/3 ph Phase, NEMA 3R Enclosure
Brand: Square D™
Item ID: 365976
MPN: EZML314225
Login for Price
Features
- 3 phase 4-wire service feed, 1 phase 3-wire load feed
- Aluminum horizontal cross busbar
Description
Square D™ Meter-Pak™ Meter Center Branch Unit, 4-Position, Series: EZM, 208Y/120 VAC, 225 A, 1/3 ph Phase, 5/7 Jaws, Ringless Cover, Surface Mount, NEMA 3R, 67.06 in H x 19.44 in W x 9.44 in D
Specifications
Amperage Rating |
225 A |
Cover Type |
Ringless |
Dimensions |
67.06 in H x 19.44 in W x 9.44 in D |
Enclosure Type |
NEMA 3R |
Mounting Type |
Surface |
Number of Jaws |
5/7 |
Phase |
1/3 ph |
Series |
EZM |
Type |
4-Position |
Voltage Rating |
208Y/120 VAC |
Standard Approval |
UL File No. E10582/E131840|NEC Certified|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Application |
For used as service equipment and use on the line side of service equipment |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c8cd8e7a0750e06f9abd0df56a8530a66ef1b11d5c3b8d5edd1005a3d6fba0f9.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZM112225X_Installation_Instruction.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZML314225_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2dd81e4f7d08c0fe9f60c8cf173c947c03b4655fb2f5ae70682554e4553aed7e.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZML314225_Specification_Sheet.pdf
