Square D™ EZML314225CU

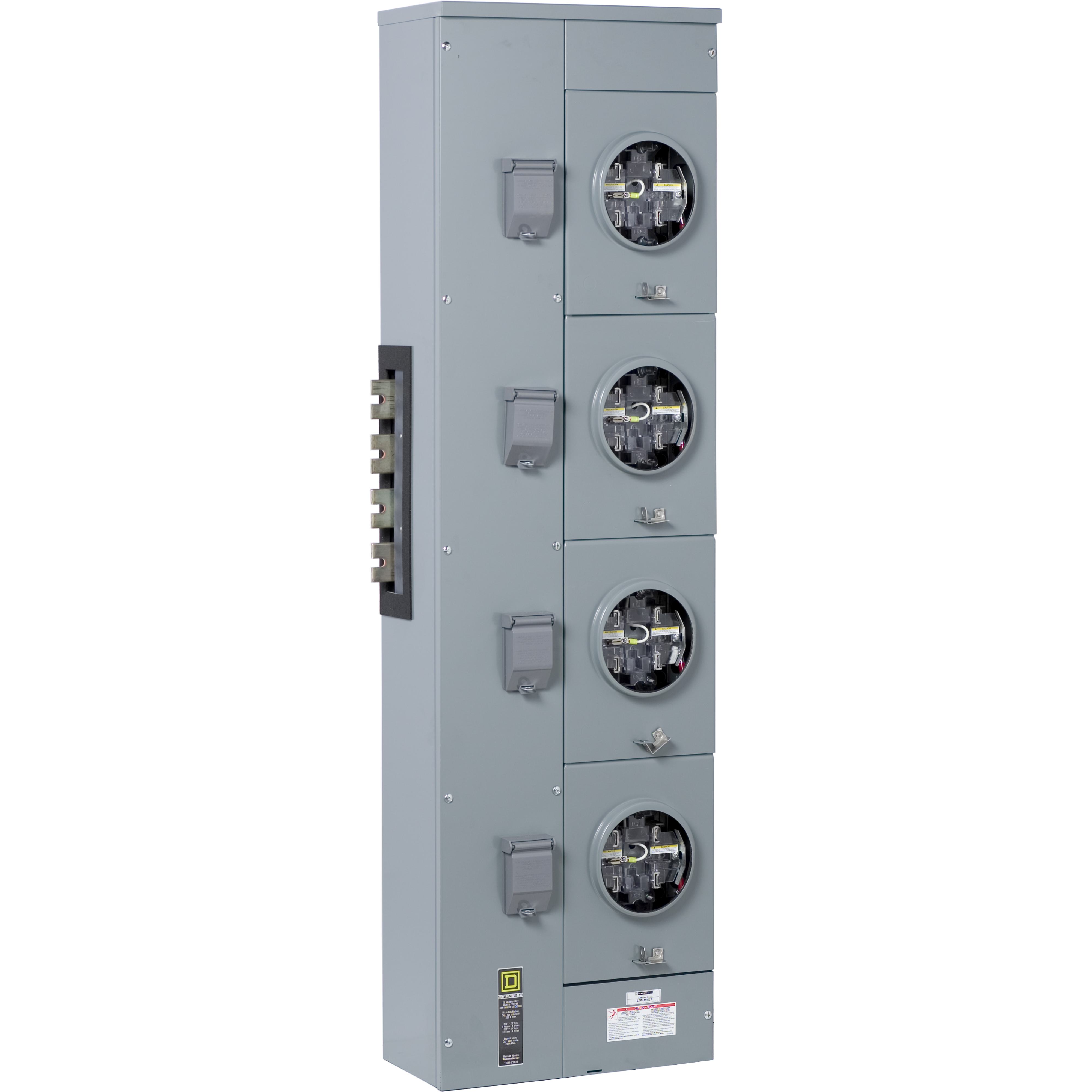

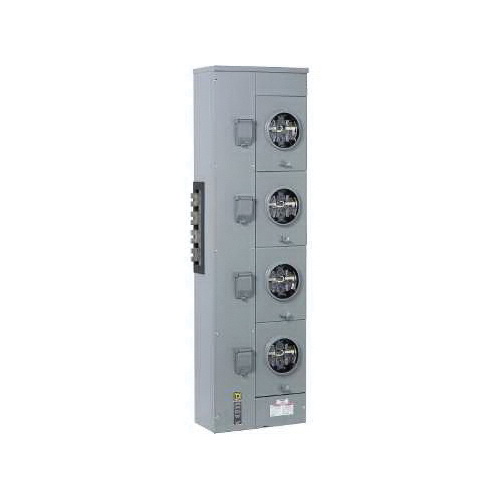

Square D™ Meter-Pak™ EZML314225CU 4-Position Meter Center Branch Unit With Lever Bypass, 208Y/120 VAC, 225 A, 1/3 ph Phase, NEMA 3R Enclosure
Brand: Square D™
Item ID: 537423
MPN: EZML314225CU
UPC: 785901446446
Login for Price
Features
- 3 phase 4-wire service feed, 1 phase 3-wire load feed
- Copper horizontal cross busbar
Description
Square D™ Meter-Pak™ Meter Center Branch Unit, 4-Position, Series: EZM, 208Y/120 VAC, 225 A, 1/3 ph, 5/7 Jaws, Ringless Cover, Surface Mount, NEMA 3R, 67.06 in H x 19.44 in W x 9.44 in D
Specifications
Amperage Rating |
225 A |
Cover Type |
Ringless |
Dimensions |
67.06 in H x 19.44 in W x 9.44 in D |
Enclosure Type |
NEMA 3R |
Mounting Type |
Surface |
Number of Jaws |
5/7 |
Phase |
1/3 ph |
Series |
EZM |
Type |
4-Position |
Voltage Rating |
208Y/120 VAC |
Standard Approval |
UL File No. E10582/E131840|NEC Certified|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Application |
For used as service equipment and use on the line side of service equipment |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b2691c7338b24a2c72e4540cca7b06b4d4a0e3f235f3ac1cb4546d544de885bb.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_fbf32d66ea6278a0975328538c384f7753513bb96bc0e7f9d2ee6c6eca4c0578.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZML314225CU_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HGF36030UK_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_30a8570ca84e2c646d27c4b3f4cb7f20a4eb7ca6b4966bb553789c4493daf4a8.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZML314225CU_Specification_Sheet.pdf
