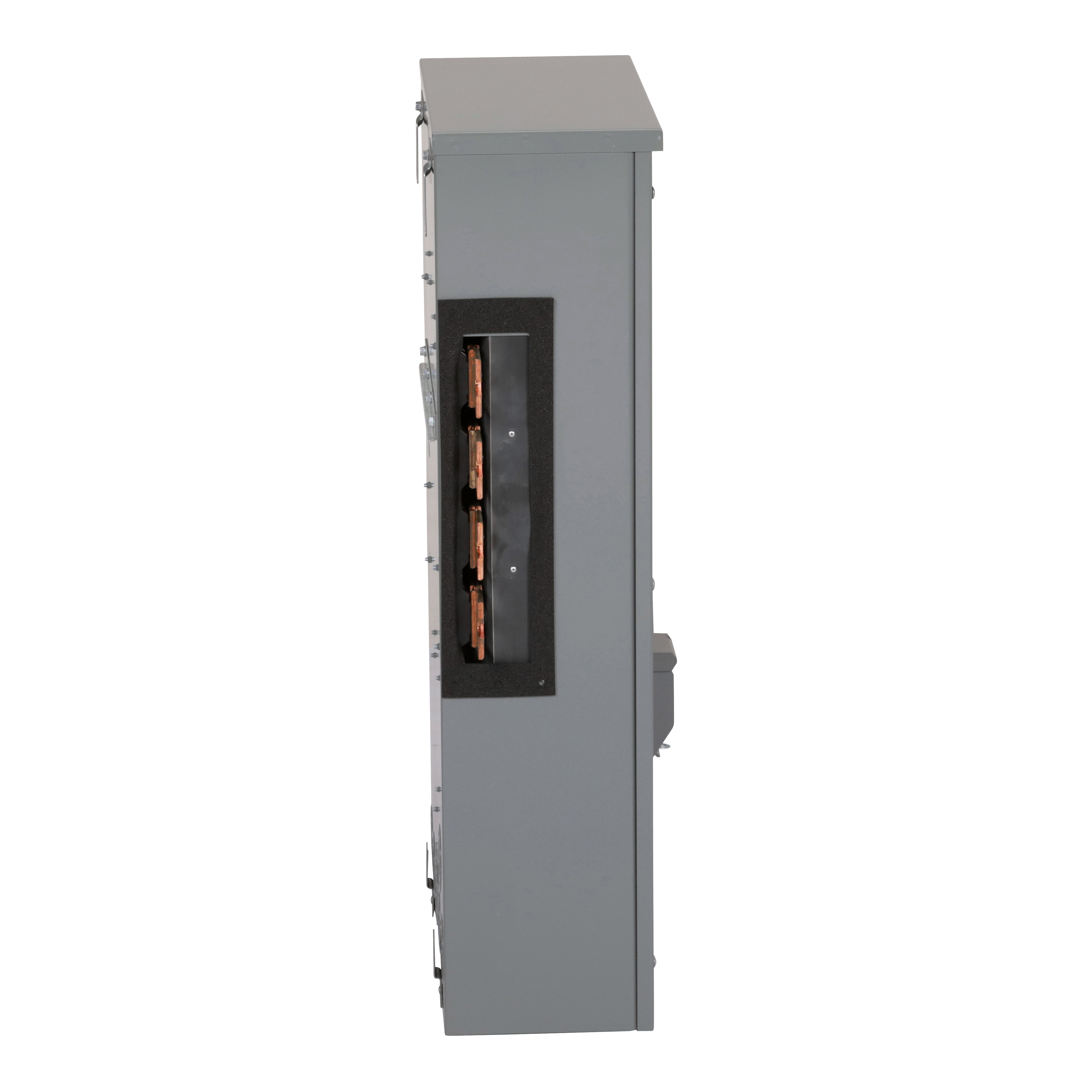

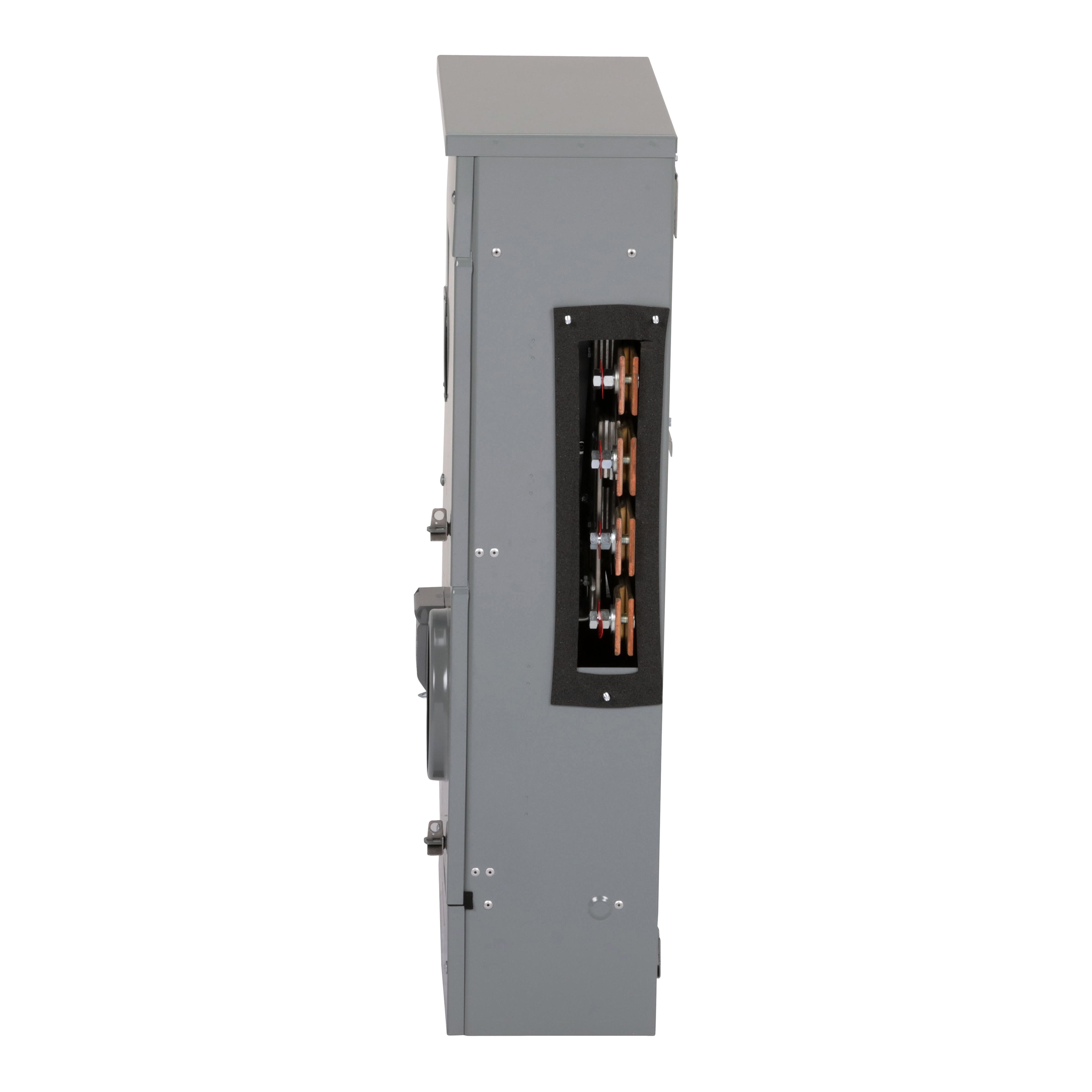

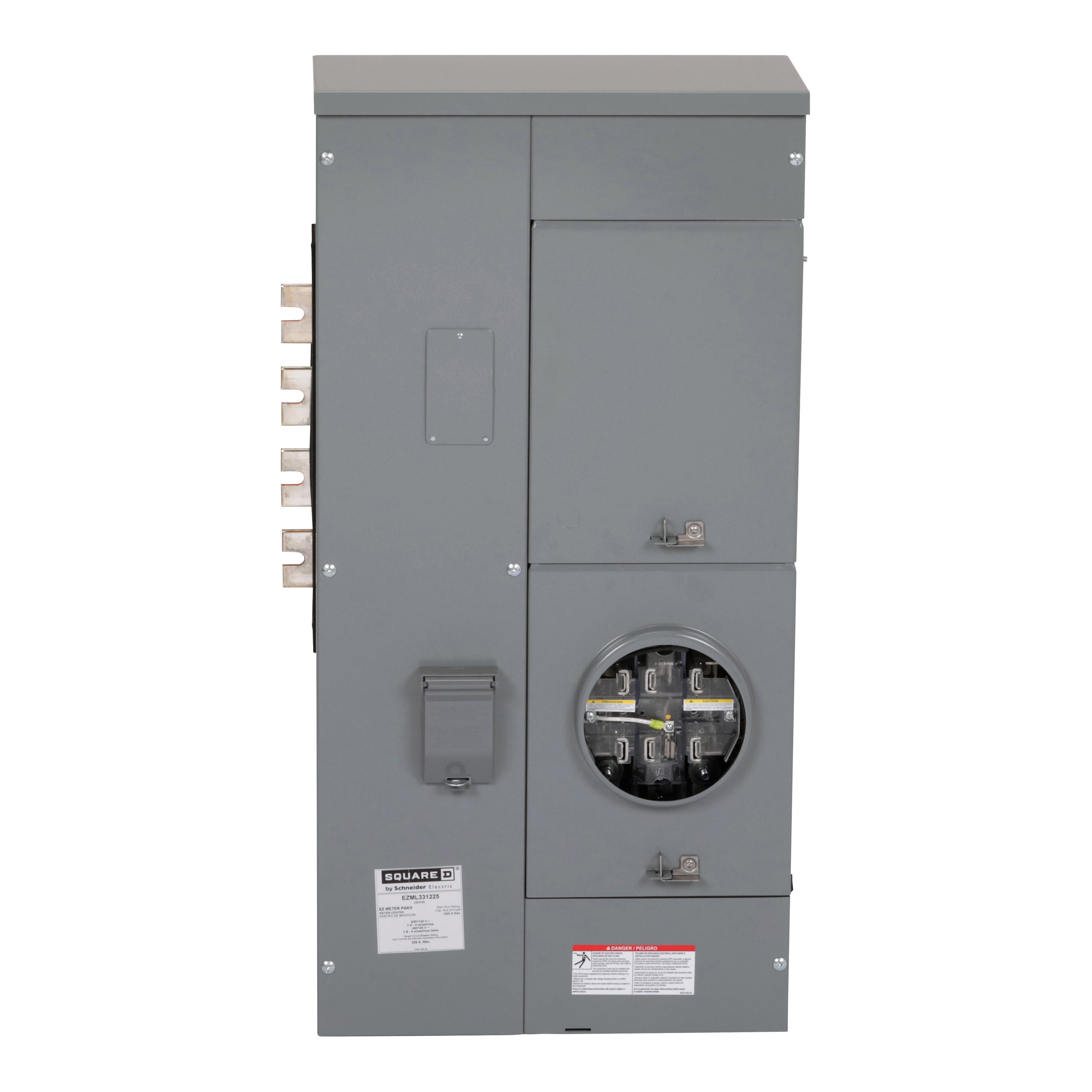

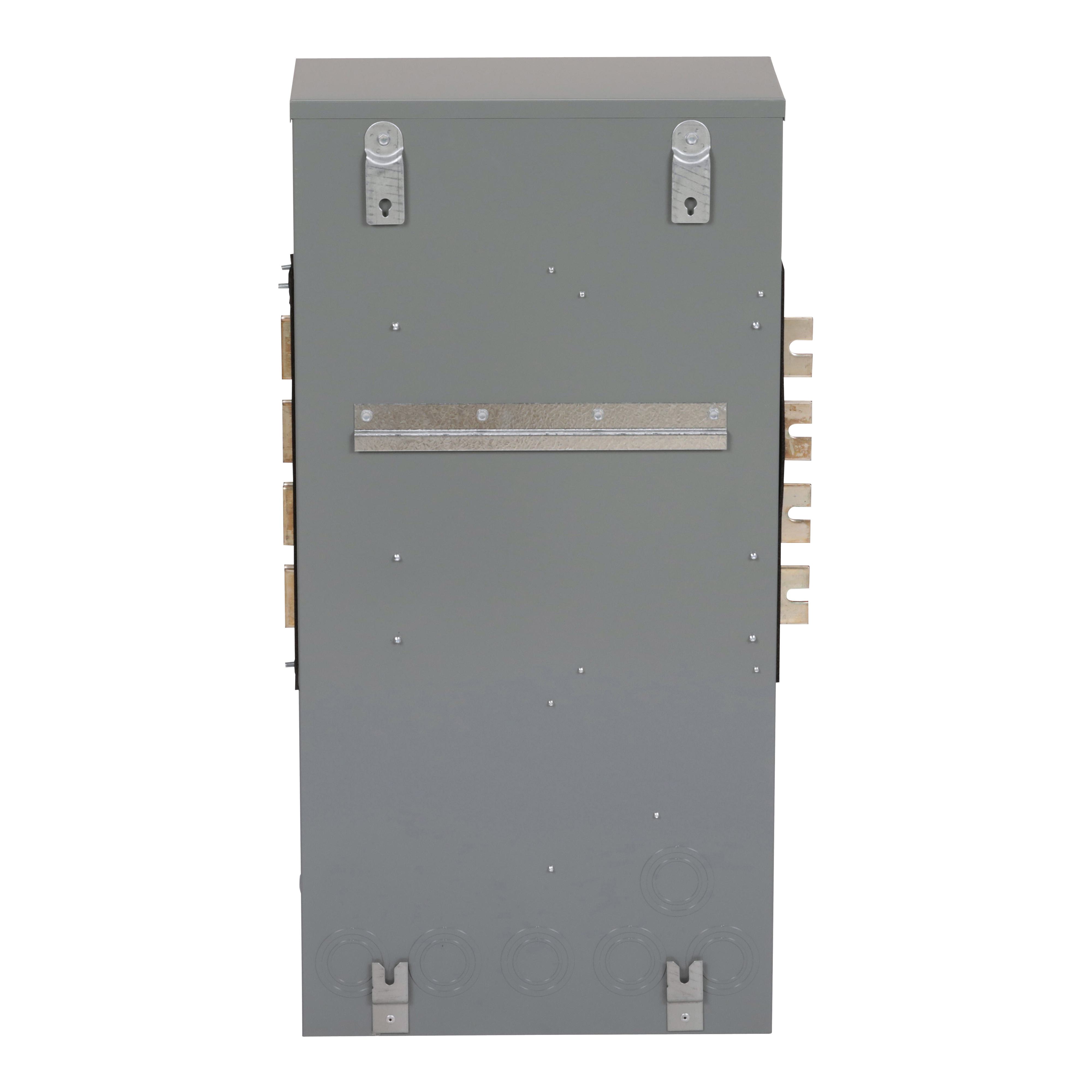

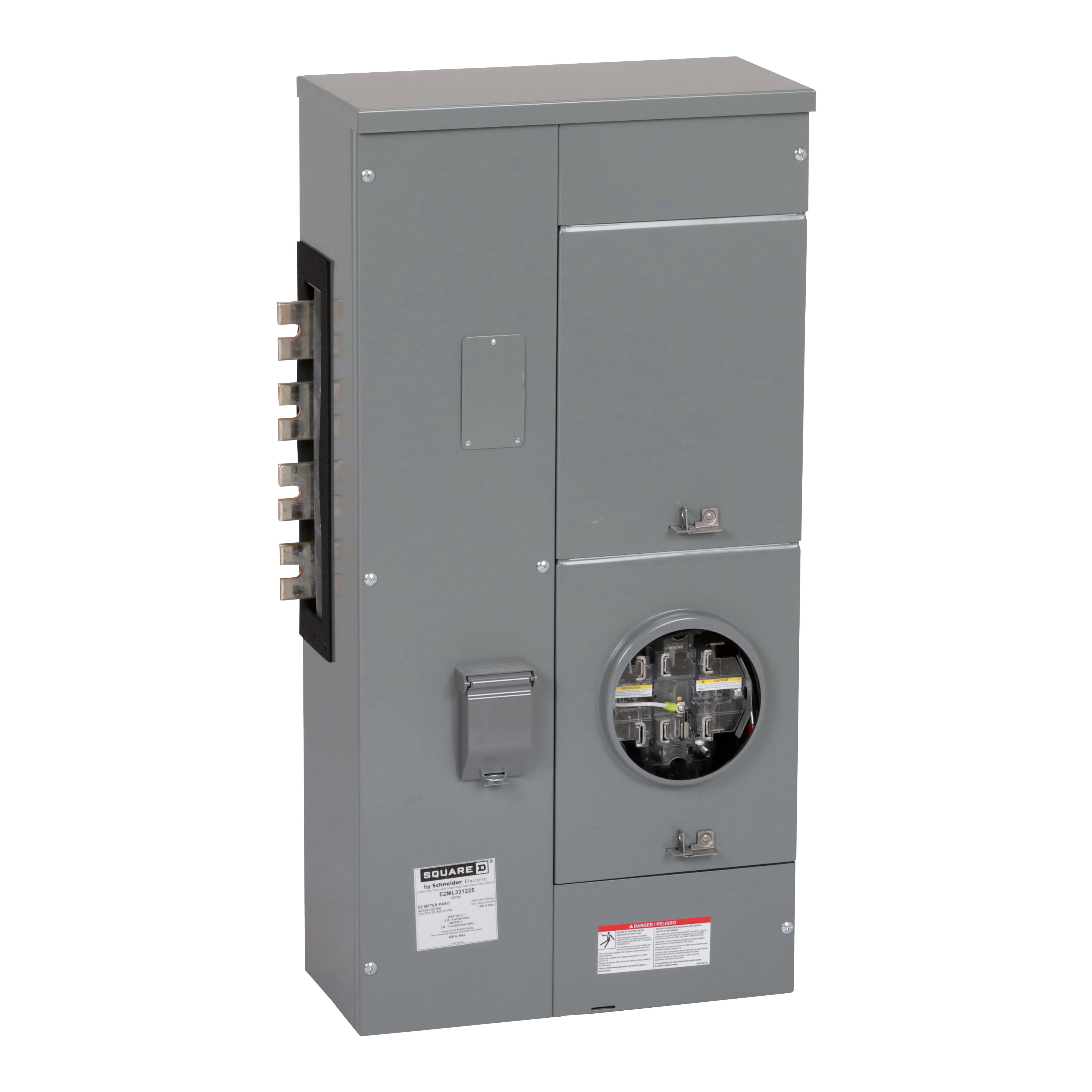

Square D™ EZML331225

• Top and bottom wiring gutters with knockouts allow branch circuits to exit from either the top, bottom or back of the unit
• Meter-breaker units can be supplied with either one phase 3-wire or three-phase four wire service
• The main bus on residential units with 40 to 200 a circuit breaker provisions is 800 or 1200 a in units using commercial 200 and 400 a branch circuit breakers
• To suit individual applications, residential and commercial devices may be interconnected
• Basic devices for connection to three-phase four wire 120/208 vac service are factory phase balanced to save installation time
• The phase balancing may be modified in the field to meet most system variations
• Aluminum horizontal cross busbar
• One phase 3-wire service/load feed

Square D™ EZ Meter-Pak™ centers are available from 1 to 6 h meter-breaker units. Greater selectivity means faster, easier installations. Plug-on QO™ 2-pole circuit breakers are used in 125 a units, while 200 a residential units use factory installed Q2 2-pole circuit breakers.

Square D™ Meter-Pak™ Meter Center Branch Unit, 4-Wire, Series: EZM, 120/208Y VAC, 240/120 Delta VAC, 225/1200 A, 3 ph, Overhead/Underground Feed, 7 Jaws, 6 AWG to 300 kcmil, 14 to 2/0 AWG, 12 to 2/0 AWG Wire, Ringless Cover, Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 19.44 in W x 9.44 in D x 39.06 in H Dimensions
