Square D™ EZML333225

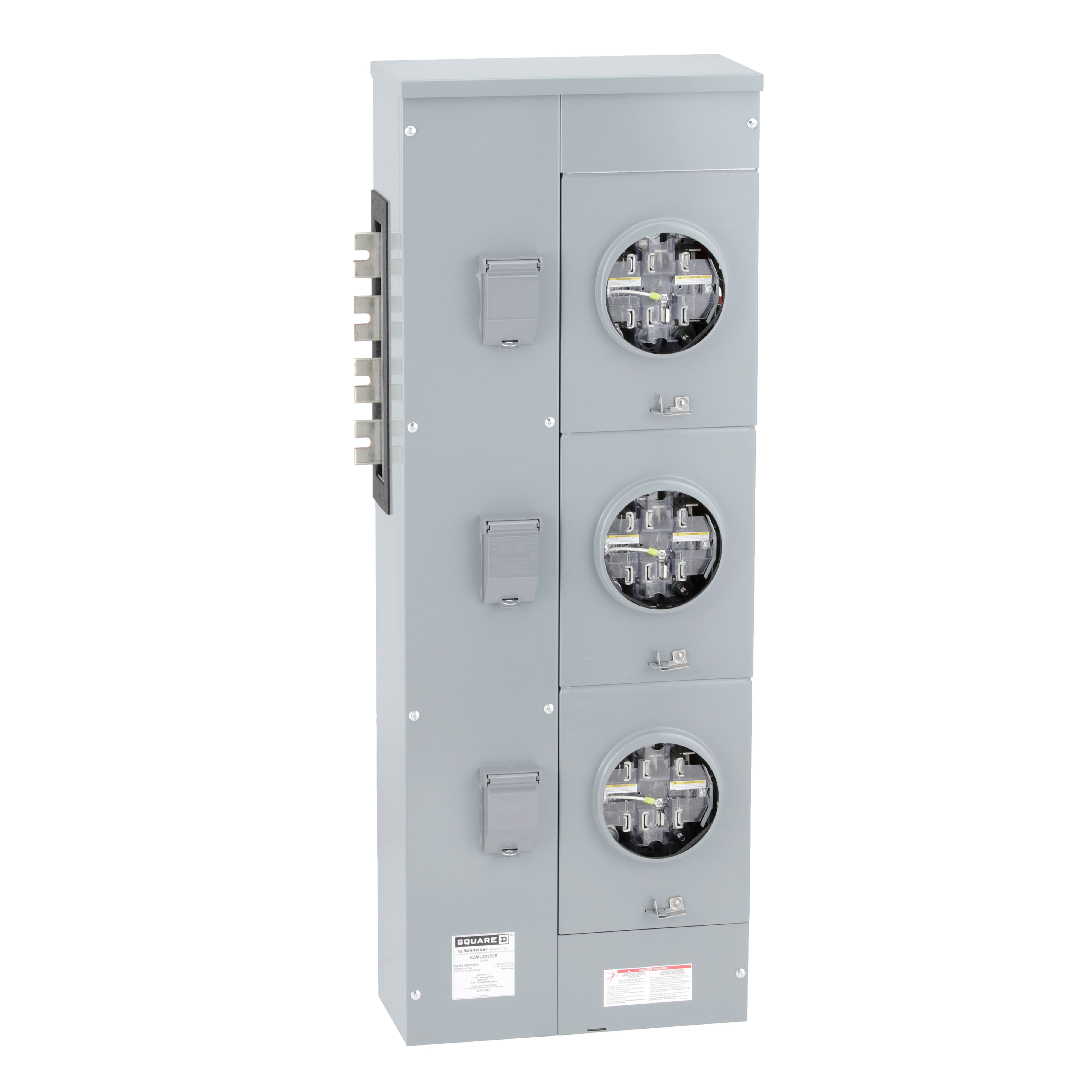

Square D™ Meter-Pak™ EZML333225 3-Position 4-Wire Meter Center Branch Unit With Lever Bypass, 208Y/120 VAC/120/240 Delta VAC, 225 A, 3 Phase, NEMA 3R Enclosure
Brand: Square D™
Item ID: 356551
MPN: EZML333225
Login for Price
Features
- Top and bottom wiring gutters with knockouts allow branch circuits to exit from either the top, bottom or back of the unit
- Meter-breaker units can be supplied with either 1 ph 3-wire or 3 ph four wire service
- The main bus on residential units with 40 to 200 A circuit breaker provisions is 800 or 1200 A in units using commercial 200 and 400 A branch circuit breakers
- To suit individual applications, residential and commercial devices may be interconnected
- Basic devices for connection to 3-phase 4-wire 120/208 VAC service are factory phase balanced to save installation time
- The phase balancing may be modified in the field to meet most system variations
- Aluminum horizontal cross busbar
- Three-phase four wire service/load feed
Description
Square D™ EZ Meter-Pak™ centers are available from 1 to 6 h meter-breaker units. Greater selectivity means faster, easier installations. Plug-on QO® 2-pole circuit breakers are used in 125 a units, while 200 a residential units use factory installed Q2 2-pole circuit breakers.
Square D™ Meter-Pak™ Meter Center Branch Unit, 3-Position 4-Wire, Series: EZM, 208Y/120 VAC/120/240 Delta VAC, 225 A, 3 ph, Overhead/Underground Feed, 7 Jaws, Ringless Cover, Bus Bar Terminal, Surface Mounting, NEMA 3R Enclosure, 19.44 in W x 9.44 in D x 53.06 in H Dimensions
Specifications
Amperage Rating |
225 A |
Cover Type |
Ringless |
Dimensions |
19.44 in W x 9.44 in D x 53.06 in H |
Enclosure Type |
NEMA 3R |
Feed Type |
Overhead/Underground |
Mounting Type |
Surface |
Number of Jaws |
7 |
Phase |
3 |
Series |
EZM |
Terminal Type |
Bus Bar |
Type |
3-Position 4-Wire |
Voltage Rating |
208Y/120 VAC/120/240 Delta VAC |
Standard Approval |
UL File No. E10582/E131840|NEC Certified|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov |
Application |
For service equipment applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b2691c7338b24a2c72e4540cca7b06b4d4a0e3f235f3ac1cb4546d544de885bb.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_22c00dee0e5f64ce0f754293fddaebb8ba4063e67372d43e4bf4522cc6b507a5.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_CMELK4_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZML333225_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_75a8d573fc2974227a0d84177849f6e834ee4dab16a5b9cde36a49c85cc4c936.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_EZML333225_Specification_Sheet.pdf
