Square D™ EZML334225

• Top and bottom wiring gutters with knockouts allow branch circuits to exit from either the top, bottom or back of the unit
• Meter breaker units can be supplied with either 1-phase 3-wire or 3-phase 4-wire service
• The main bus on residential units with 40 to 200 A circuit breaker provisions is 800 or 1200 A in units using commercial 200 and 400 A branch circuit breakers
• To suit individual applications, residential and commercial devices may be interconnected
• Basic devices for connection to 3-phase 4-wire 120/208 VAC service are factory phase balanced to save installation time
• The phase balancing may be modified in the field to meet most system variations
• Aluminum horizontal cross busbar
• 3-phase 4-wire service/load feed

Square D™ EZ Meter-Pak™ centers are available from 1 to 6 H meter-breaker units. Greater selectivity means faster, easier installations. Plug-on QO® 2-pole circuit breakers are used in 125 A units, while 200 A residential units use factory installed Q2 2-pole circuit breakers.

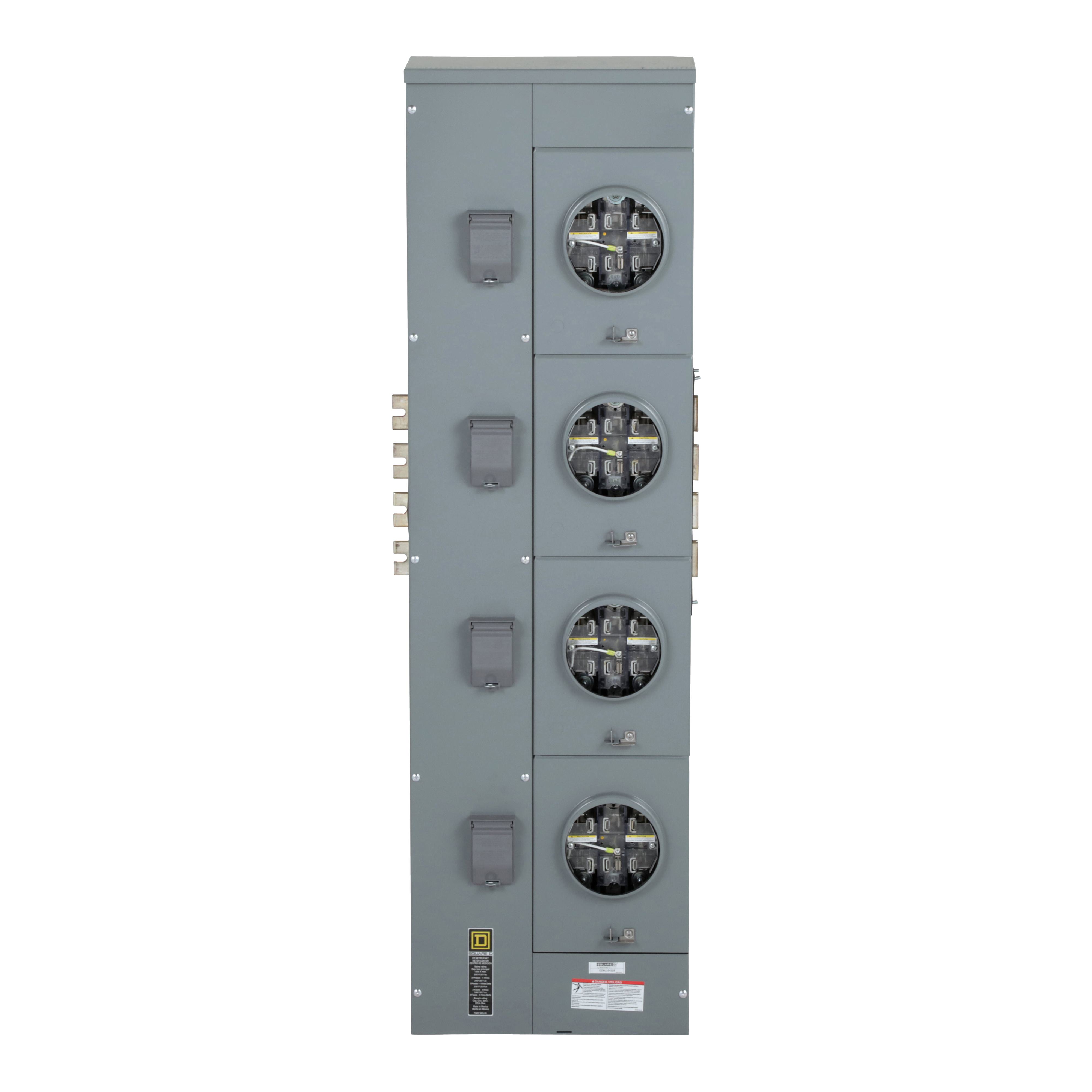

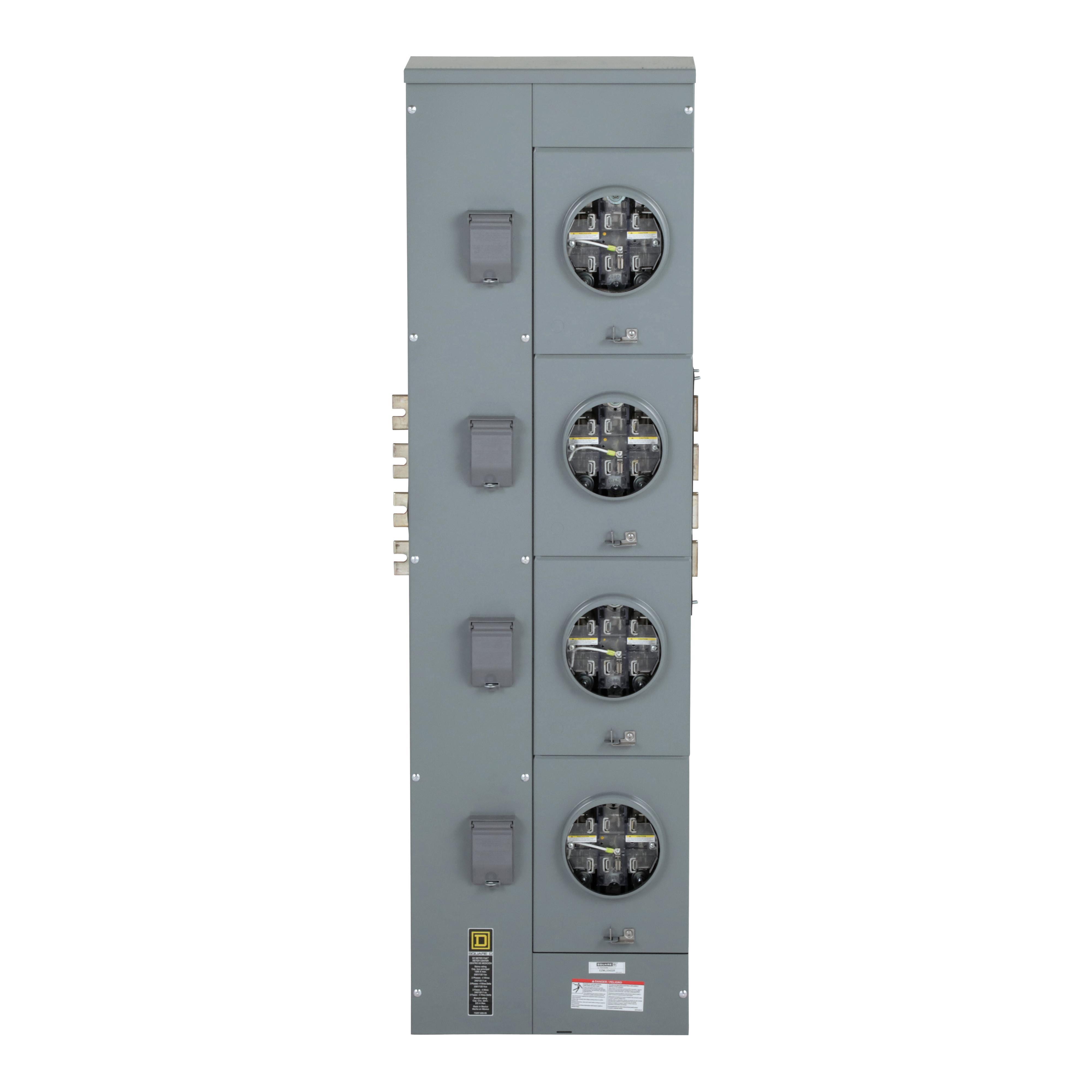

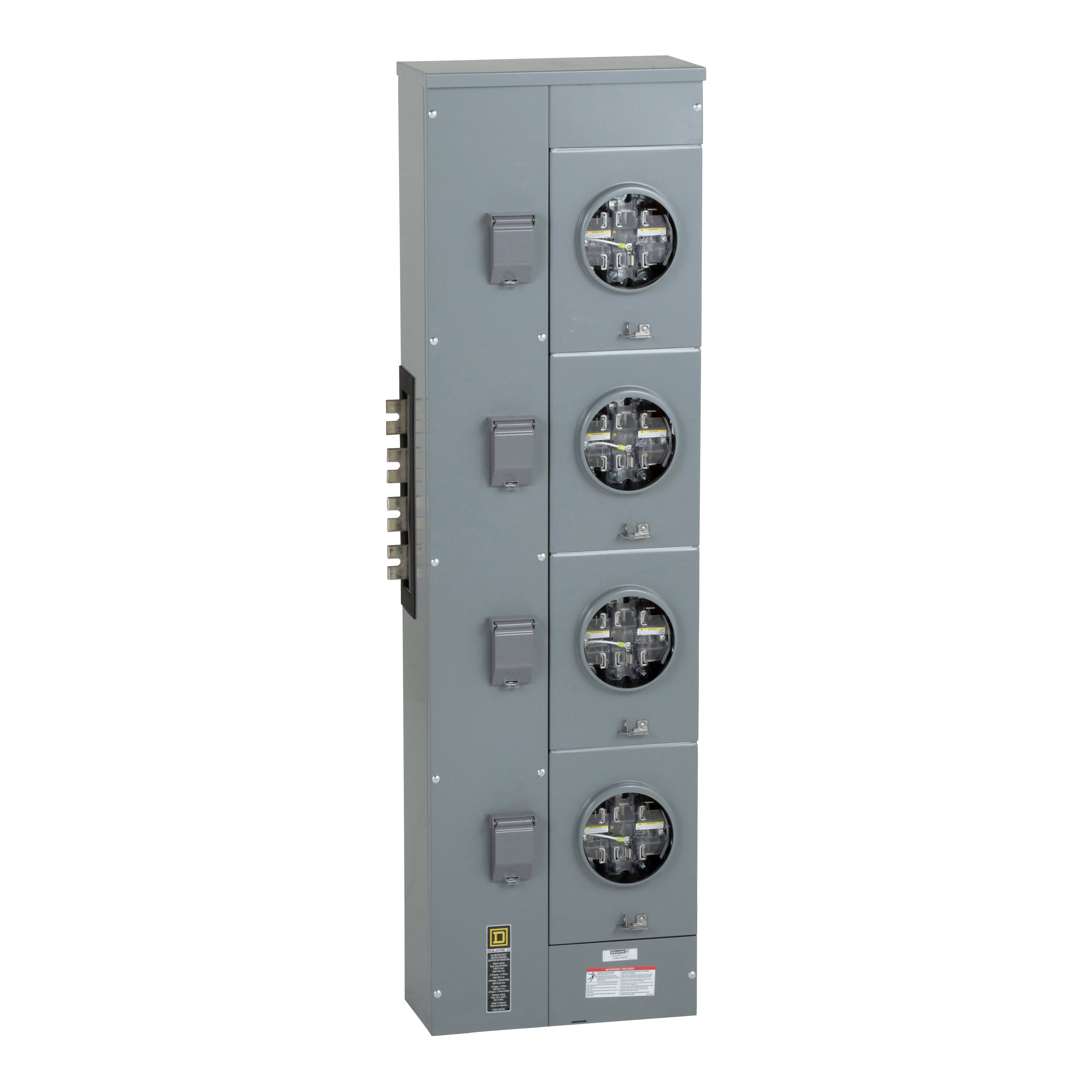

Square D™ Meter-Pak™ Meter Center Branch Unit, 4-Position 4-Wire, Series: EZM, 208Y/120 VAC, 120/240 Delta VAC, 225 A, 3 ph Phase, Overhead/Underground Feed, 7 Jaws, Ringless Cover, Surface Mount, NEMA 3R, 67.06 in H x 19.44 in W x 9.44 in D
