Square D™ GD4060LK

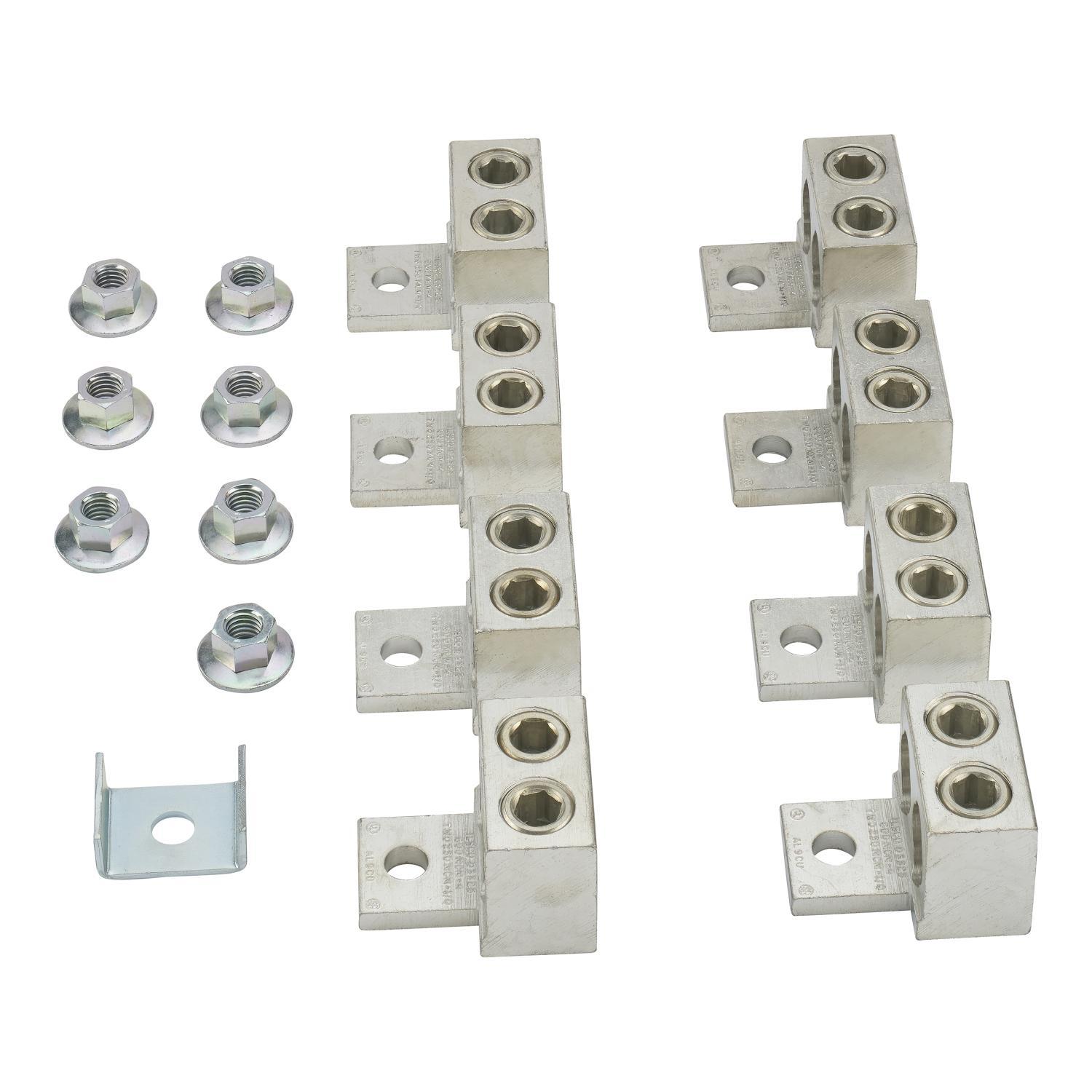

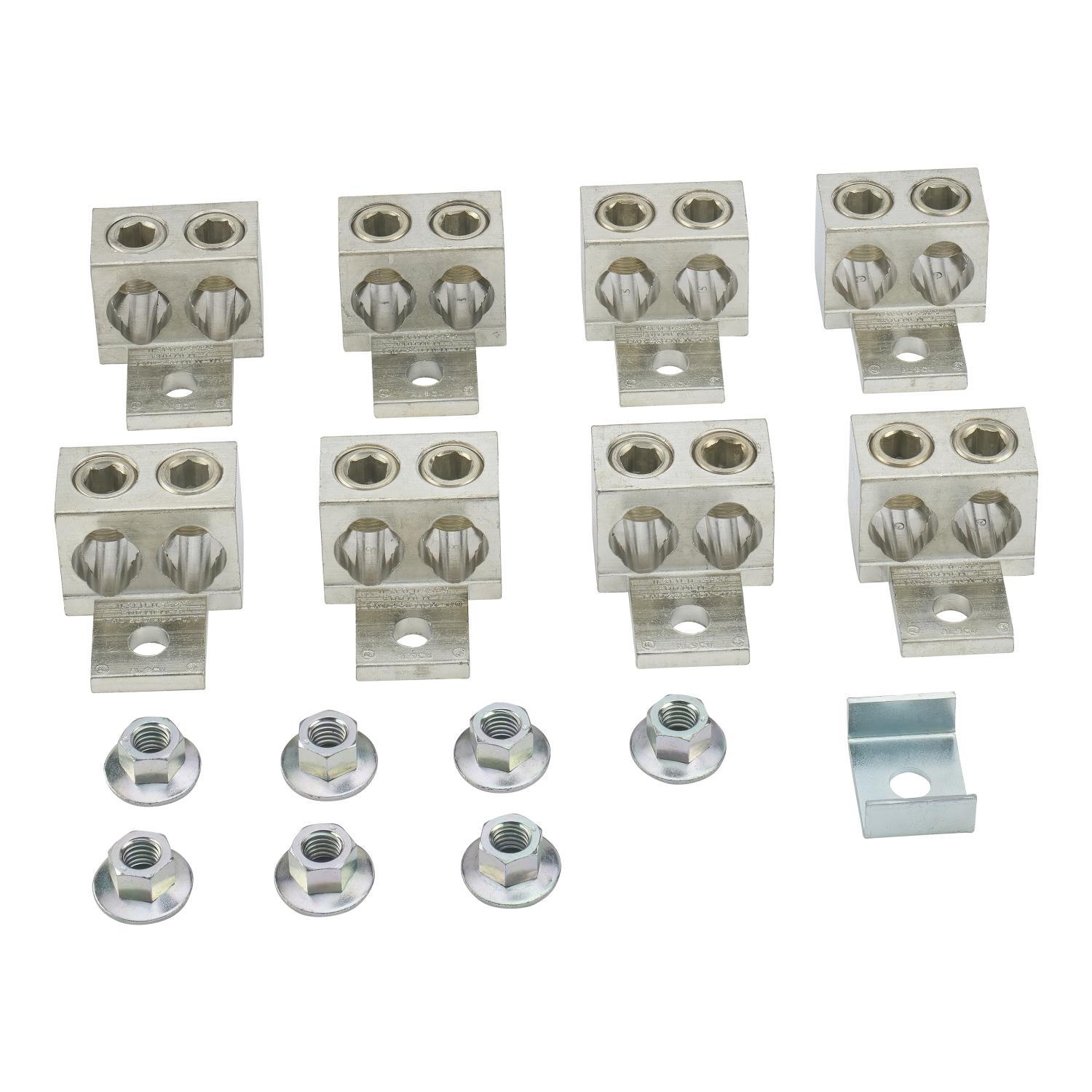

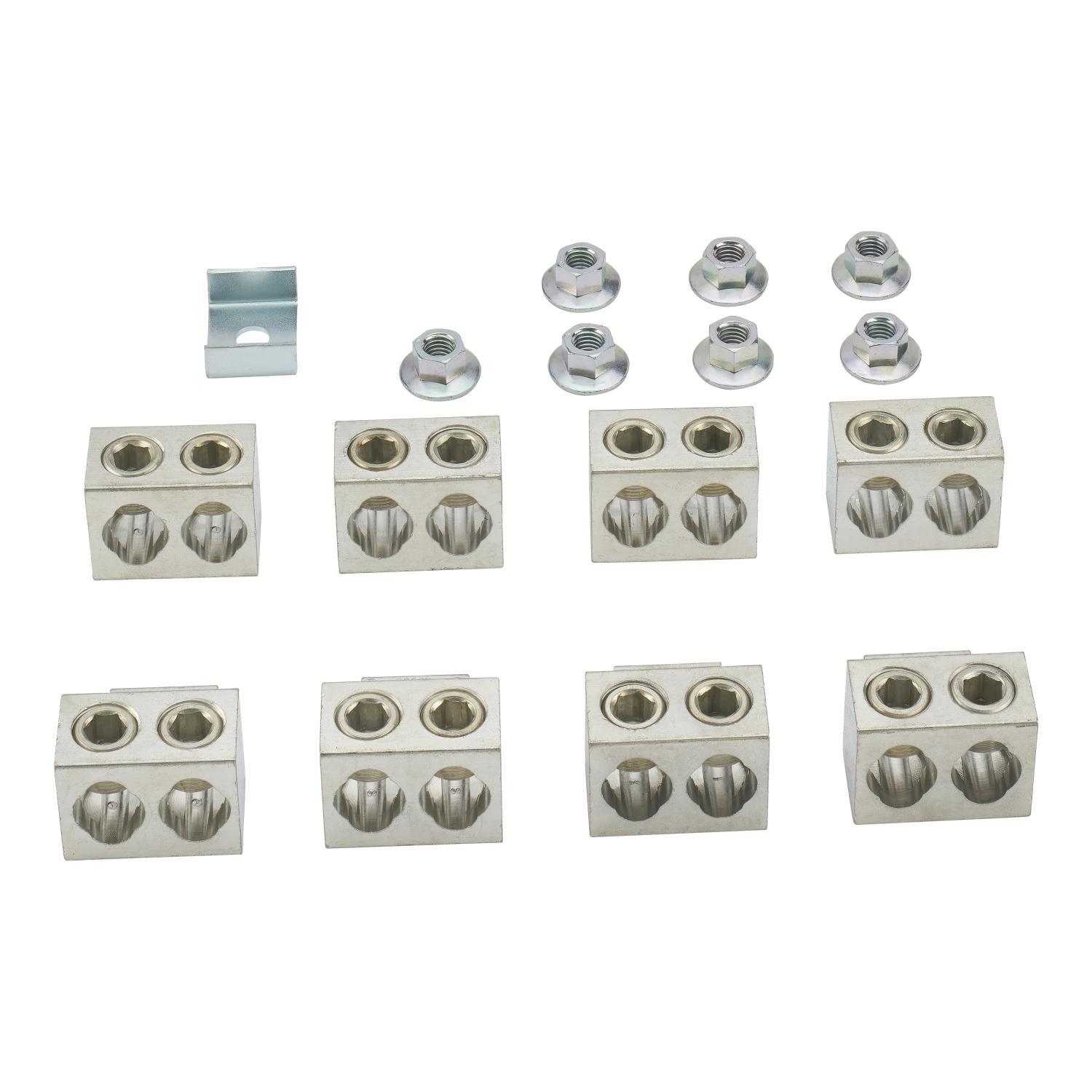

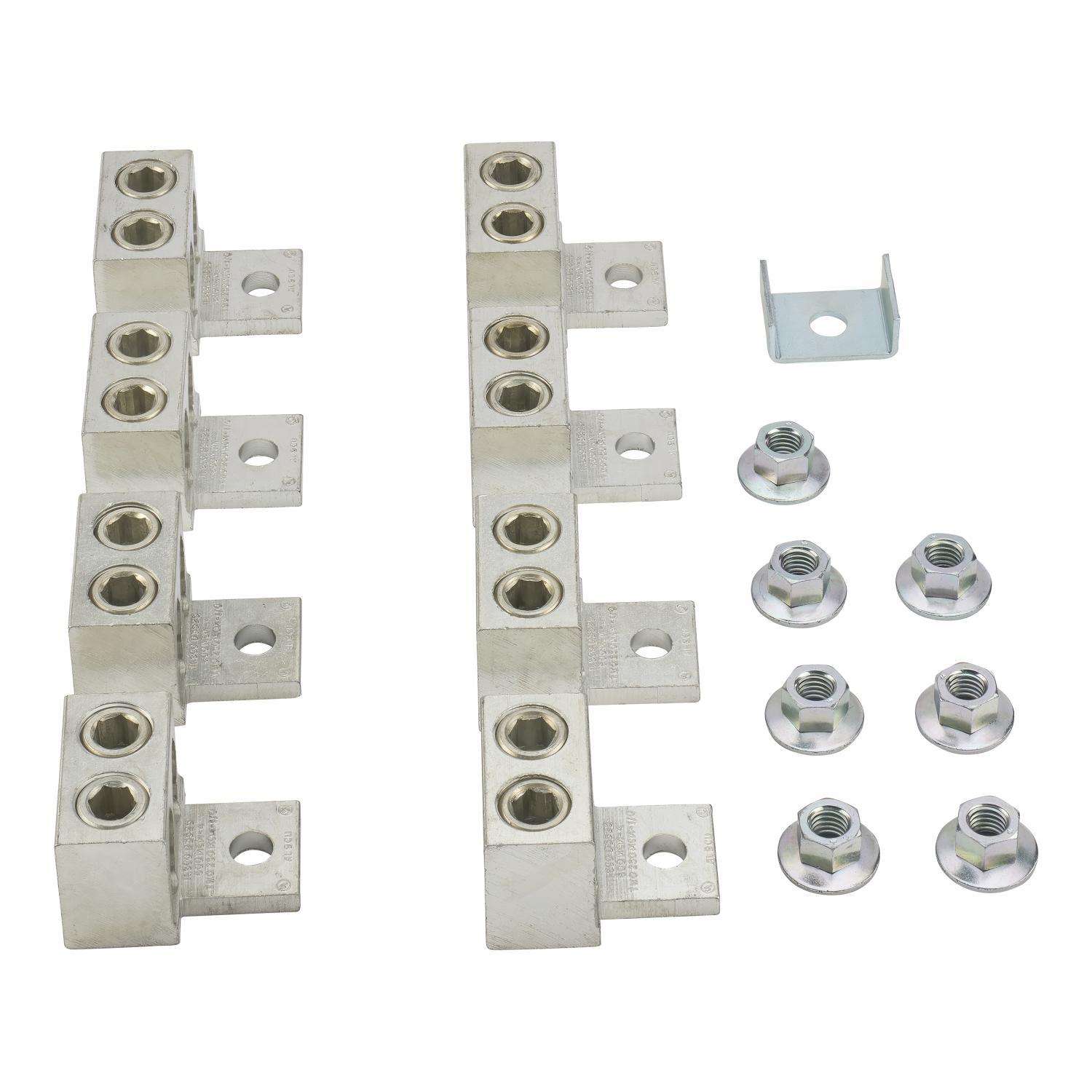

Square D™ GD4060LK Field Installed Lug Kit, 400 to 600 A, 1/0 AWG to 600 kcmil, 1/0 AWG to 250 kcmil Wire, Aluminum/Copper Wire
Brand: Square D™
Item ID: 536899
MPN: GD4060LK
UPC: 785901570004
Login for Price
Description
KIT,LUGS FOR 400+600A GD SW SERIES E3
Square D™ Lug Kit, Field Installed, 400 to 600 A Switch, 1/0 AWG to 600 kcmil, 1/0 AWG to 250 kcmil Wire, Aluminum/Copper Wire, For Use With: E3 Series General Duty Safety Switch
Specifications
Suitable For Use With |
E3 Series General Duty Safety Switch |
Switch Amperage Rating |
400 to 600 A |
Type |
Field Installed |
Wire Material |
Aluminum/Copper |
Wire Size |
1/0 AWG to 600 kcmil, 1/0 AWG to 250 kcmil |
Standard Approval |
RoHS Compliant|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ccd41679cb0af59a8c882dbd370d72c8e0302487b3746c2ff38b47fb31b89de8.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0fddf7aa2136aeb479709f6fcdd8e06532aa771118319ee078a1677574be576a.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_FXLED500SF_480_D10_Installation_Sheet.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_FXLED500SFYB33D10_Line_Drawing.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_GD4060LK_RoHS.pdf
Specification Sheet 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_714d82a6aec58446380dafcb4ae92a344e7eab7f376d85ca530d1fb61cd4adaf.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_eb8cab13742b569f182e837320fb3947fb118496a7771b9b5a75187869f4ab51.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_GD4060LK_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9917ac4648c86be7cd659fc5a55b070a4c84ff7521892cfcfcca7d69b9904554.pdf
