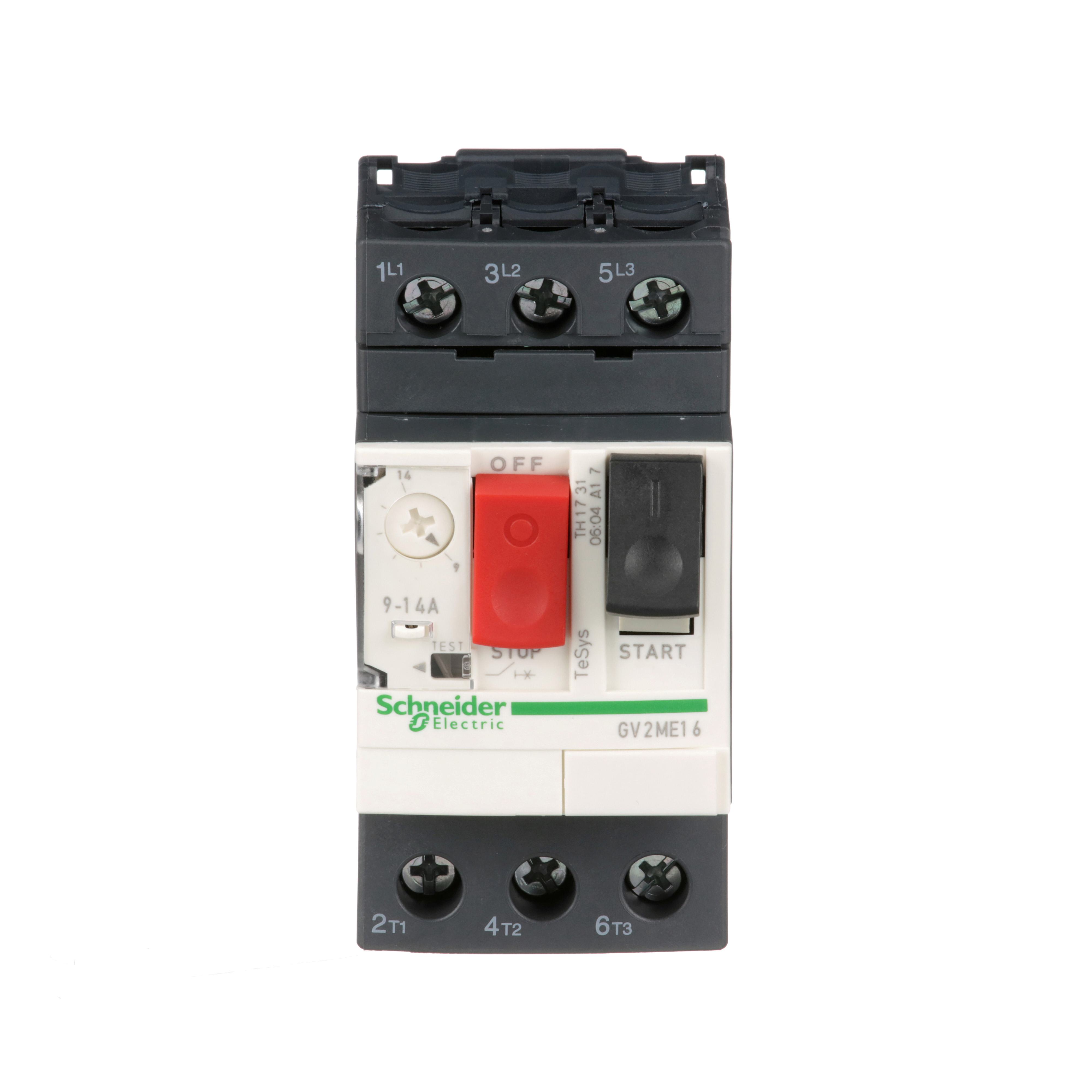

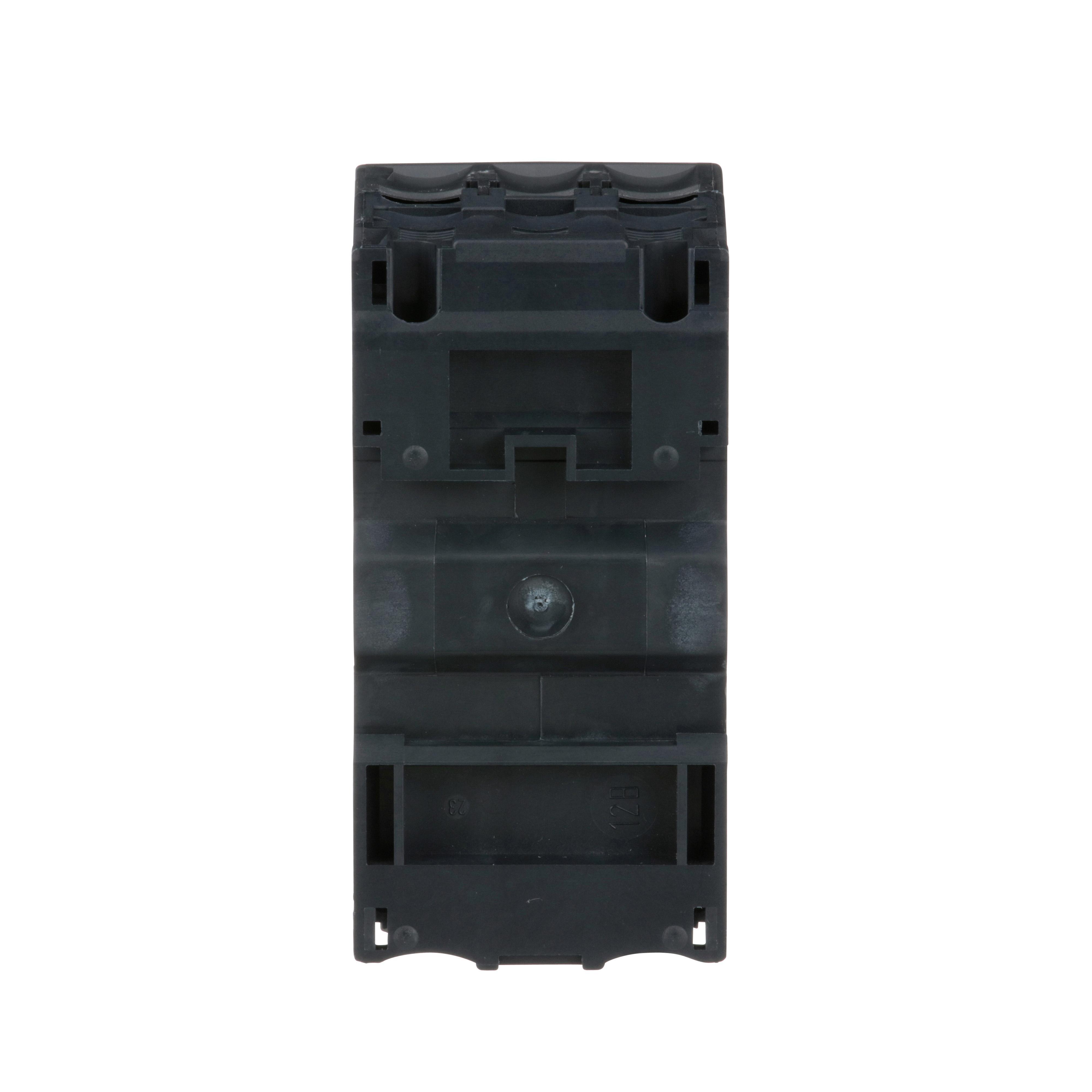

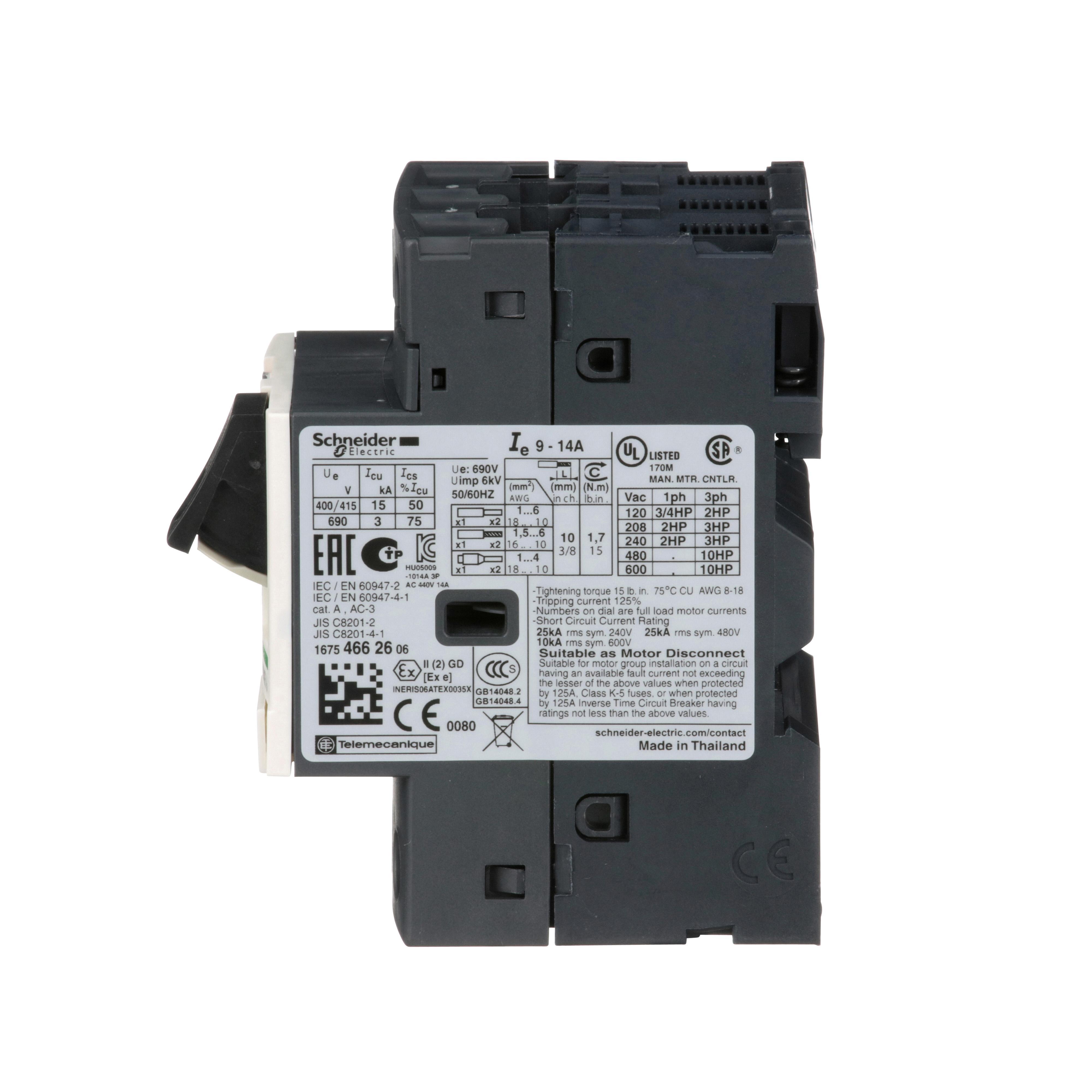

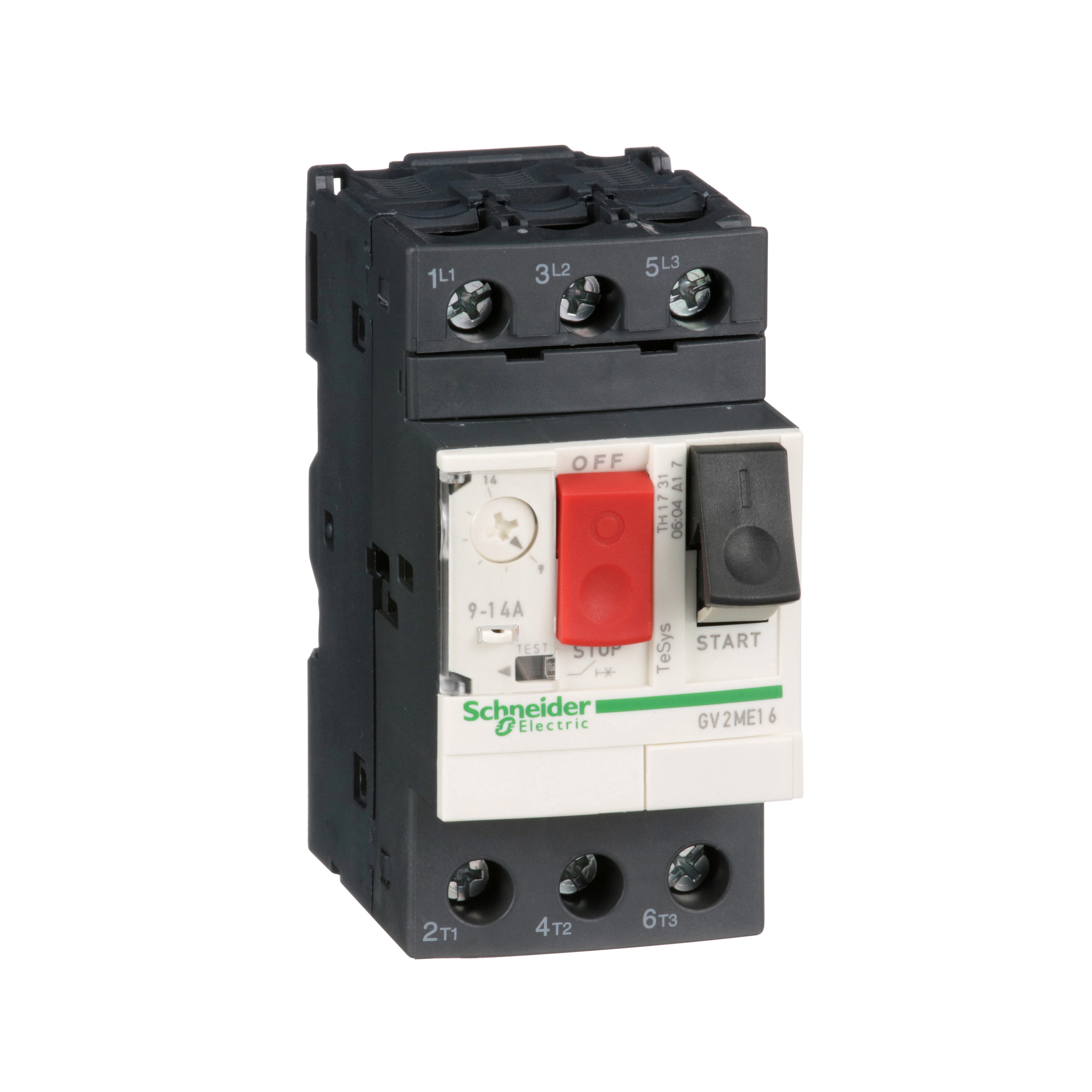

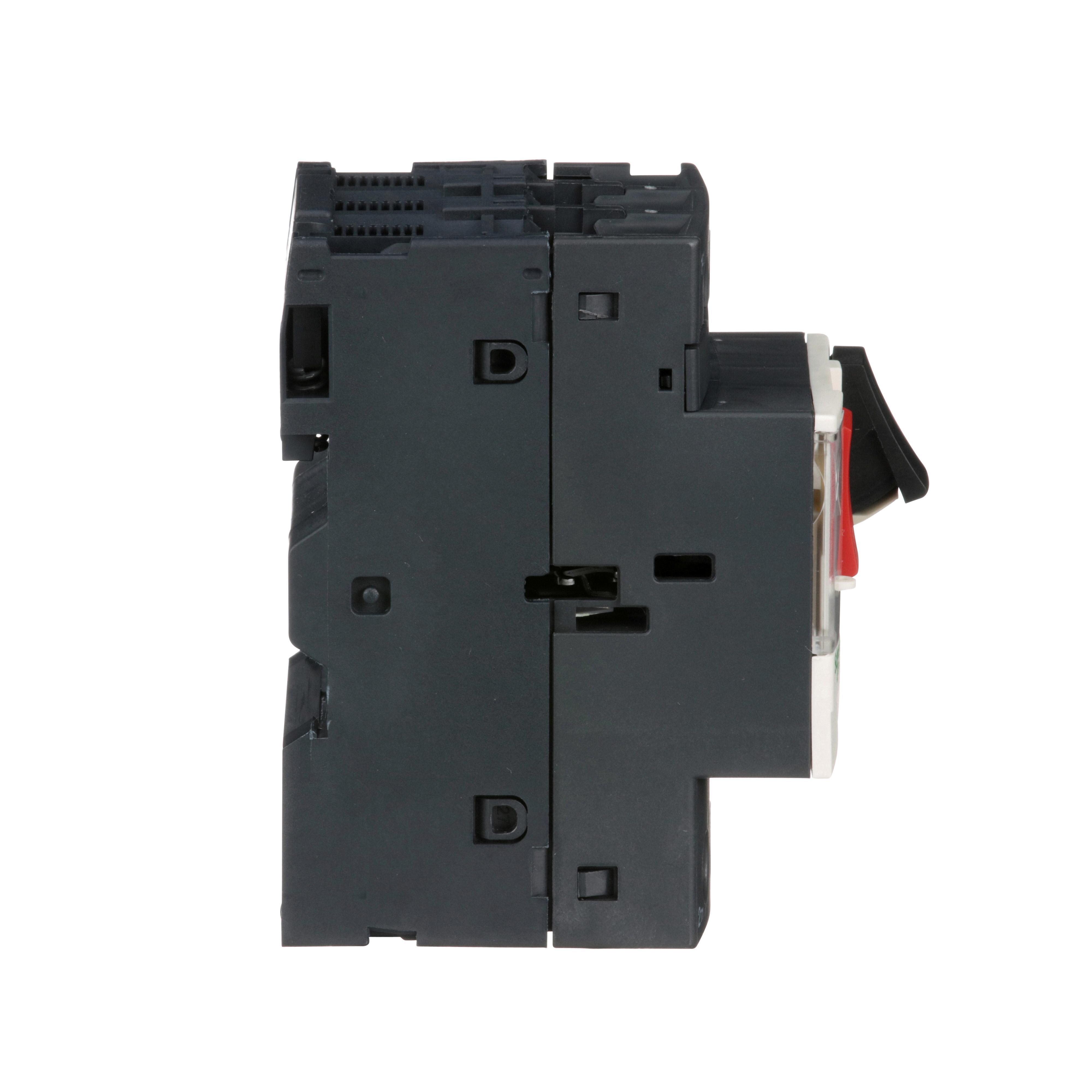

Schneider Electric GV2ME16
Schneider Electric GV2ME16 GV2 Non-Reversing Metallic 3-Pole Circuit Breaker, 690 VAC, 9 to 14 A, 3 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Brand: Schneider Electric
Item ID: 435007
MPN: GV2ME16
UPC: 785901211983
Login for Price
Features
- GV2ME16 is a TeSys GV motor circuit breaker from Schneider Electric
- It ensures thermal-magnetic protection for motors 5 5kW at 400V and breaking capacity Icu 15kA
- Start-stop control by push-button guaranteed for 100 000 cycles AC-3 415V
Description

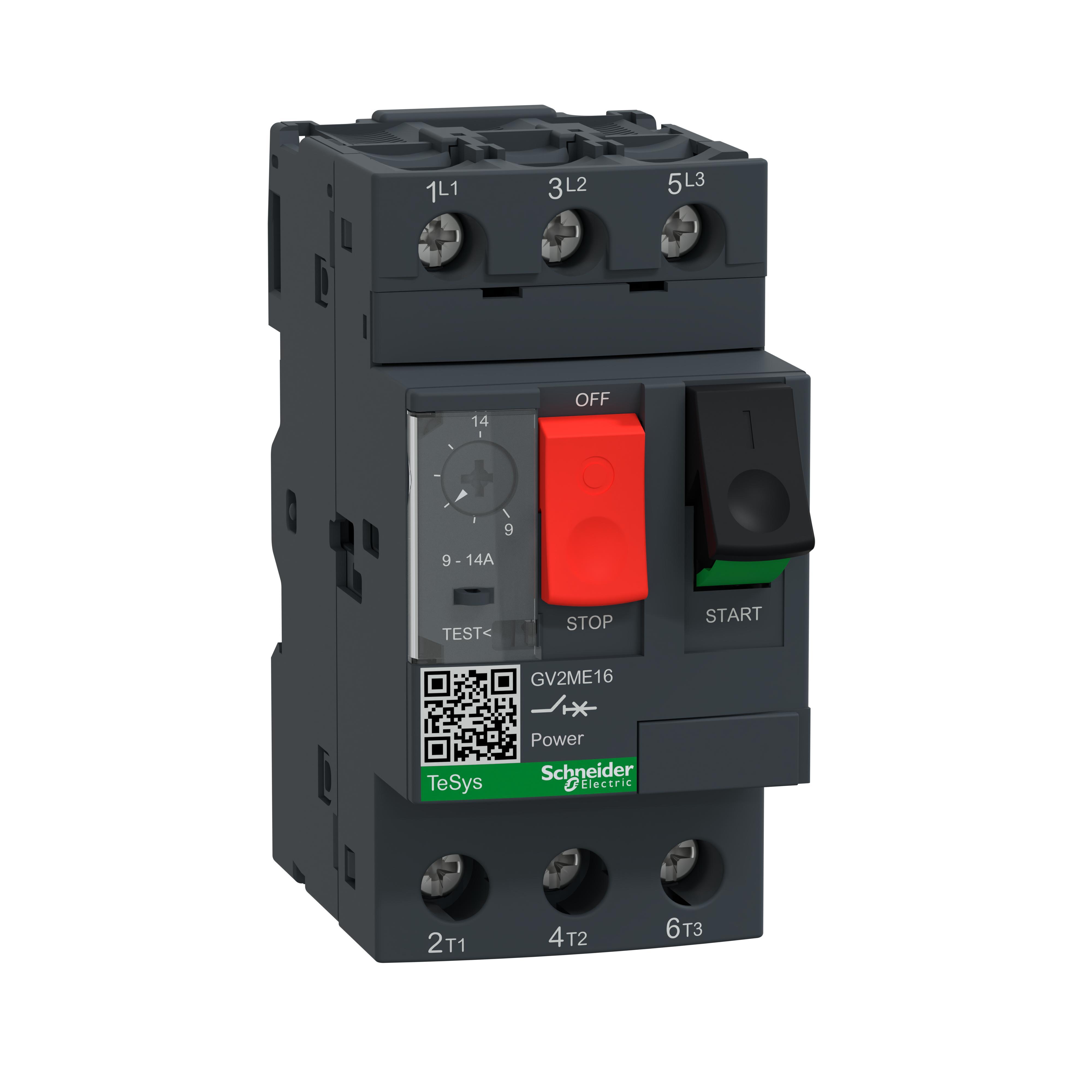

GV2ME16 is a TeSys™ GV motor circuit breaker from Schneider Electric designed for motor applications 5.5 kW at 400 V. It fulfils a thermal to magnetic protection with a thermal setting range 9 to 14 A, magnetic tripping at 12xIn and breaking capacity Icu 15 kA at 400 V. Start to stop control by push to button guaranteed for 100 000 cycles AC to 3 415 V.
Schneider Electric, GV2ME16, 3-Pole Circuit Breaker, Non-Reversing Metallic, Series: GV2, 690 VAC, 9 to 14 A, 11 kW Power, 50/60 Hz Frequency, 3 kA Interrupt, Thermal Magnetic Trip, 51 A Trip, 3 Pole, 3 ph, Pushbutton Actuator, Screw Clamp Connection, IP20/IK04 Enclosure, Threaded Mounting, -20 to 60 deg C, 45 mm W x 78.5 mm D x 89 mm H Dimensions
Specifications
Actuator Type |
Pushbutton |
Amperage Rating |
9 to 14 A |
Connection Type |
Screw Clamp |
Dimensions |
45 mm W x 78.5 mm D x 89 mm H |
Enclosure Type |
IP20/IK04 |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
3 kA |
Mounting Type |
Threaded |
Number of Poles |
3 |
Phase |
3 ph |
Power Rating |
11 kW |
Series |
GV2 |
Temperature Rating |
-20 to 60 deg C |
Trip Range |
51 A |
Trip Type |
Thermal Magnetic |
Type |
Non-Reversing Metallic |
Voltage Rating |
690 VAC |
Standard Approval |
ATEX|BV Approved|CCC Certified|CE Certified|CSA C22.2|CSA C22.2 File No. LR81630 Class 3211-05C|CSA Certified|DNV Certified|EAC Certified|EN/IEC 60947-2|EN/IEC 60947-4-1|GL Approved|IEC 60529|IEC 60695-2-1|IEC 60947-4-1|IECEE CB SCHEME|LROS|NF C 63-650|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65warnings.ca.gov|RINA|RoHS Compliant|UL 508 File No. E164864 NLRV|UL 60947-4-1|UL Listed |
Application |
Motor Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_20386f0f5fe6a5e1afc9a1bf935770283ba673a9f4cf49199afa5b499d3851db.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_GV2ME16_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6bb3741b044daa49ac3ef824b3664aee597e0e3710929f77ef6eb4bd17c6c63a.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_GV2ME16_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_13a8a092cb1b04461739c6b05438776c4e1618232fc008cd8c69528e6a101288.pdf
