Schneider Electric GV2ME20

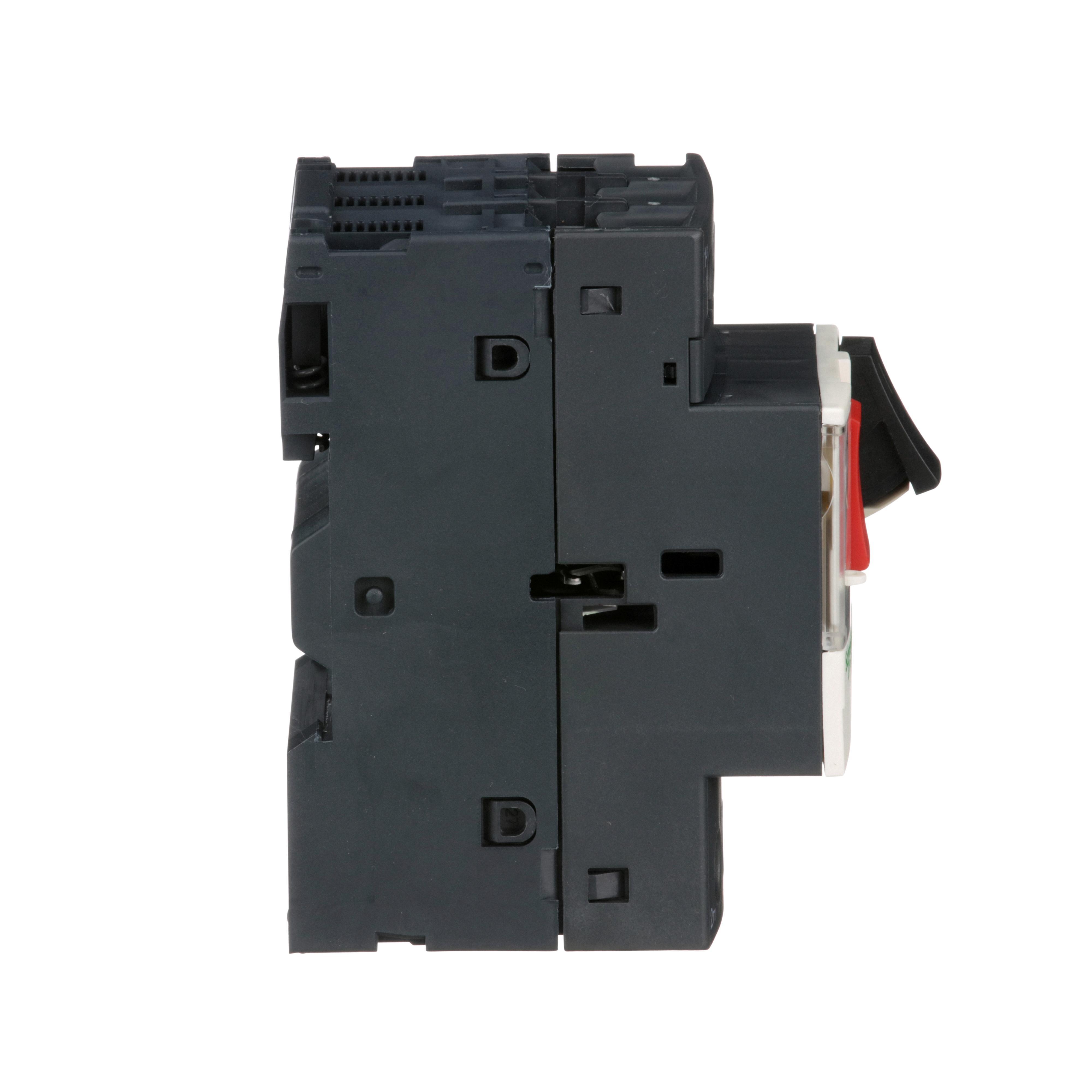

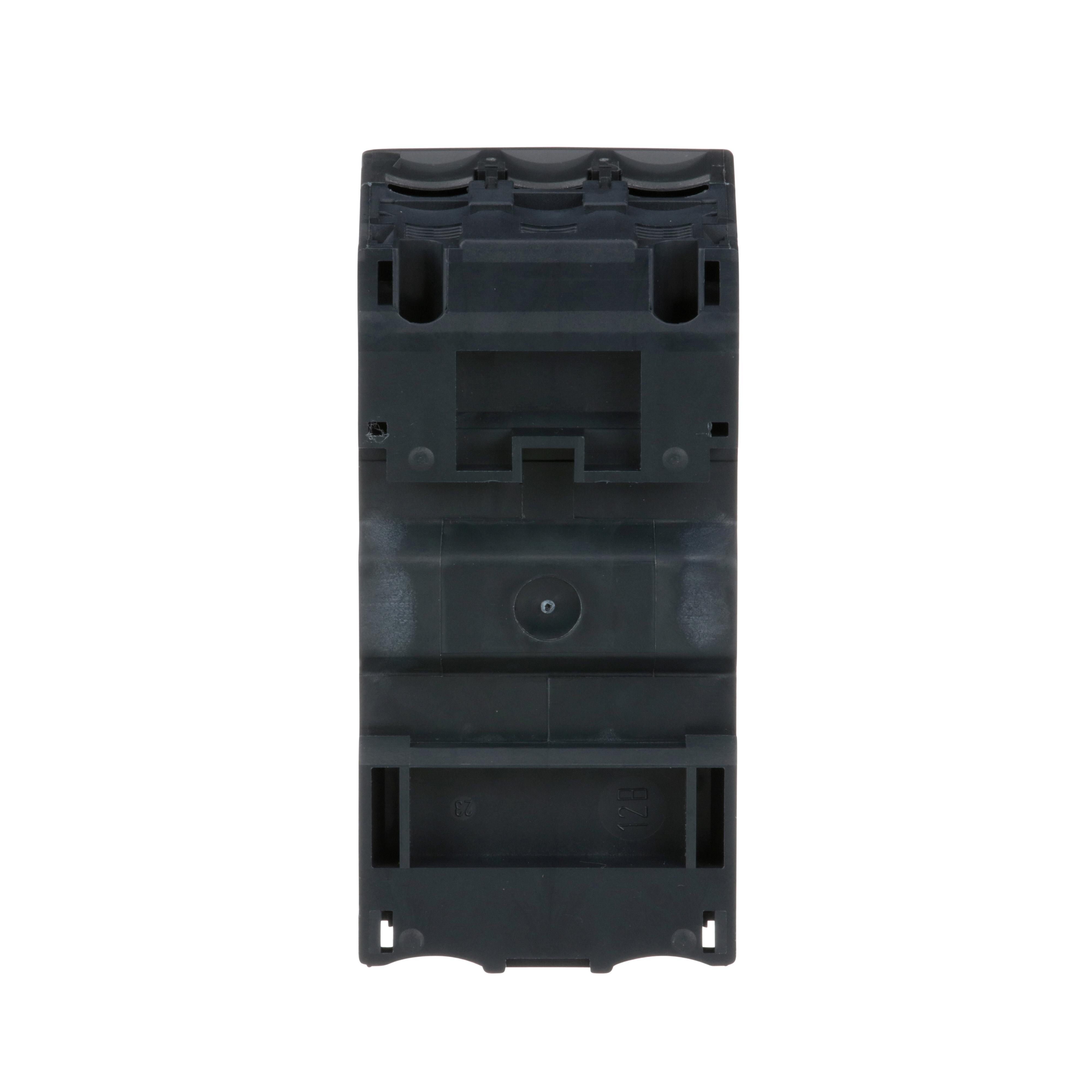

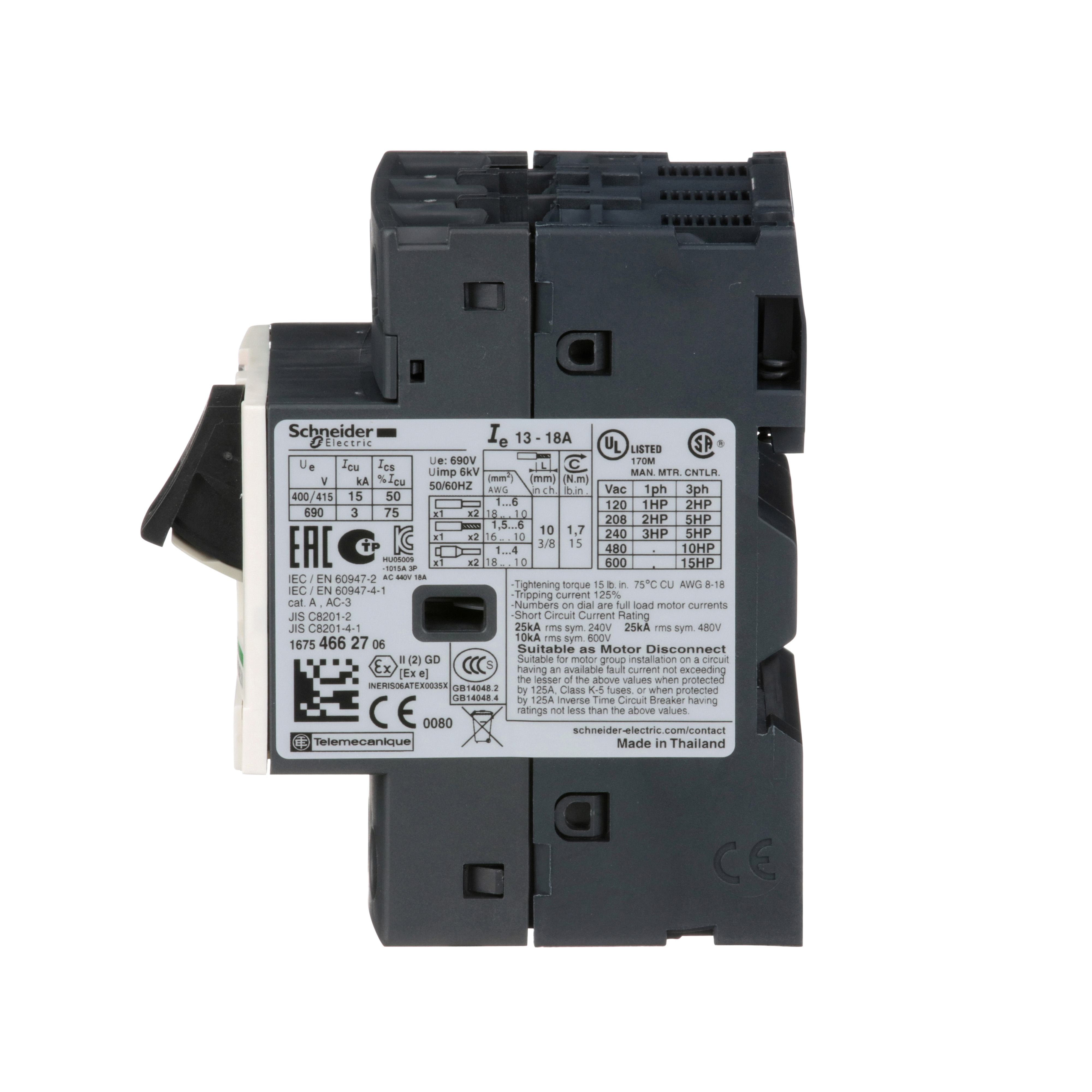

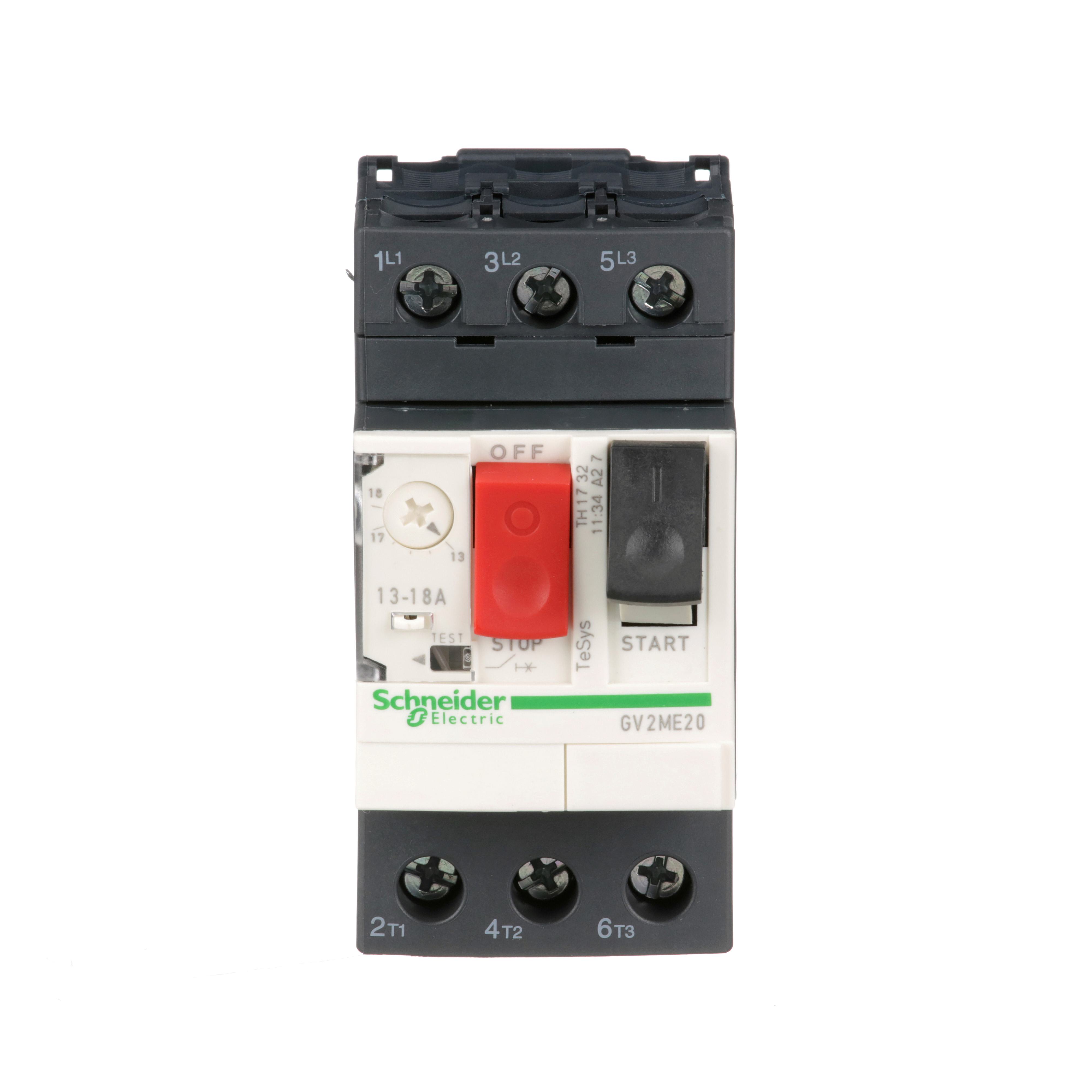

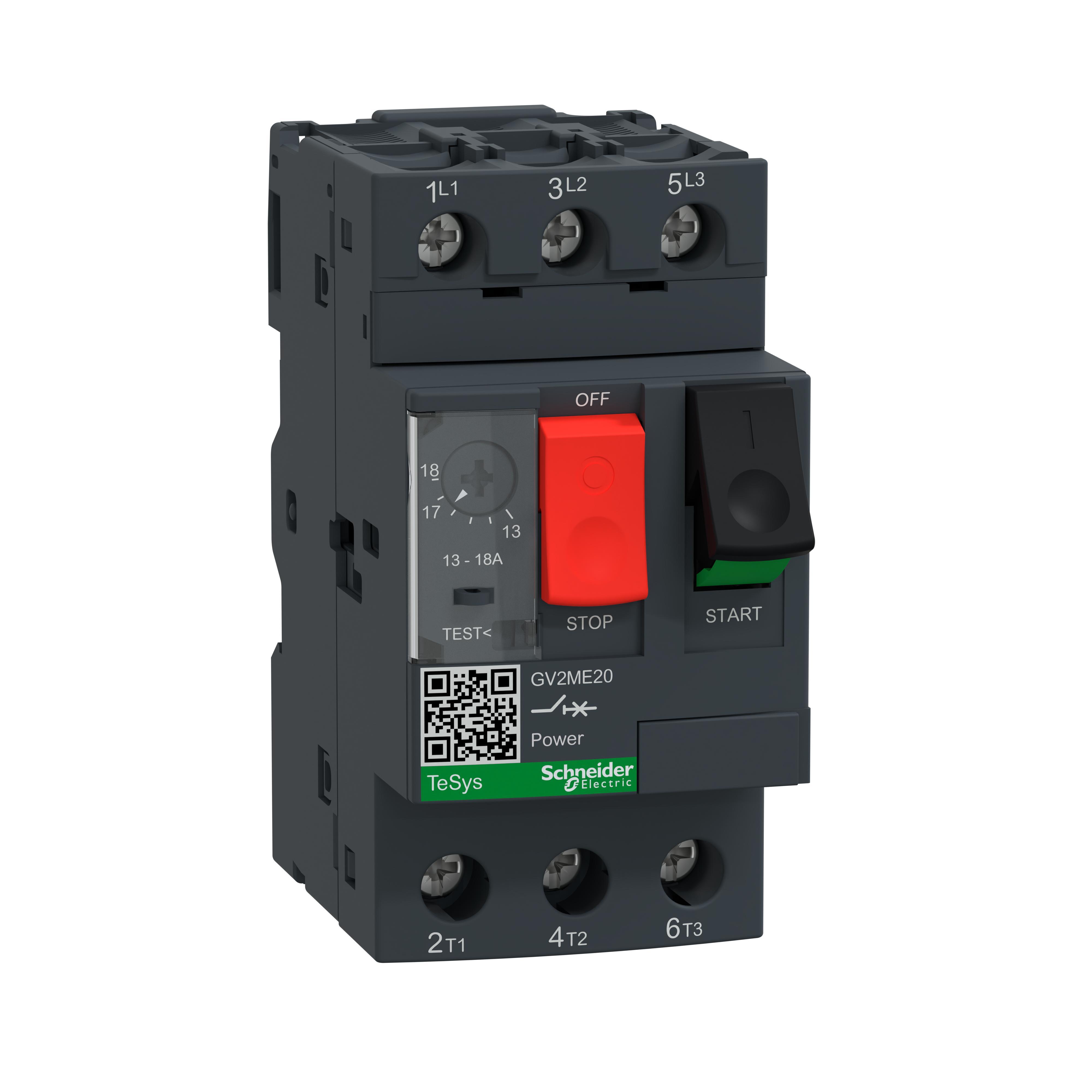

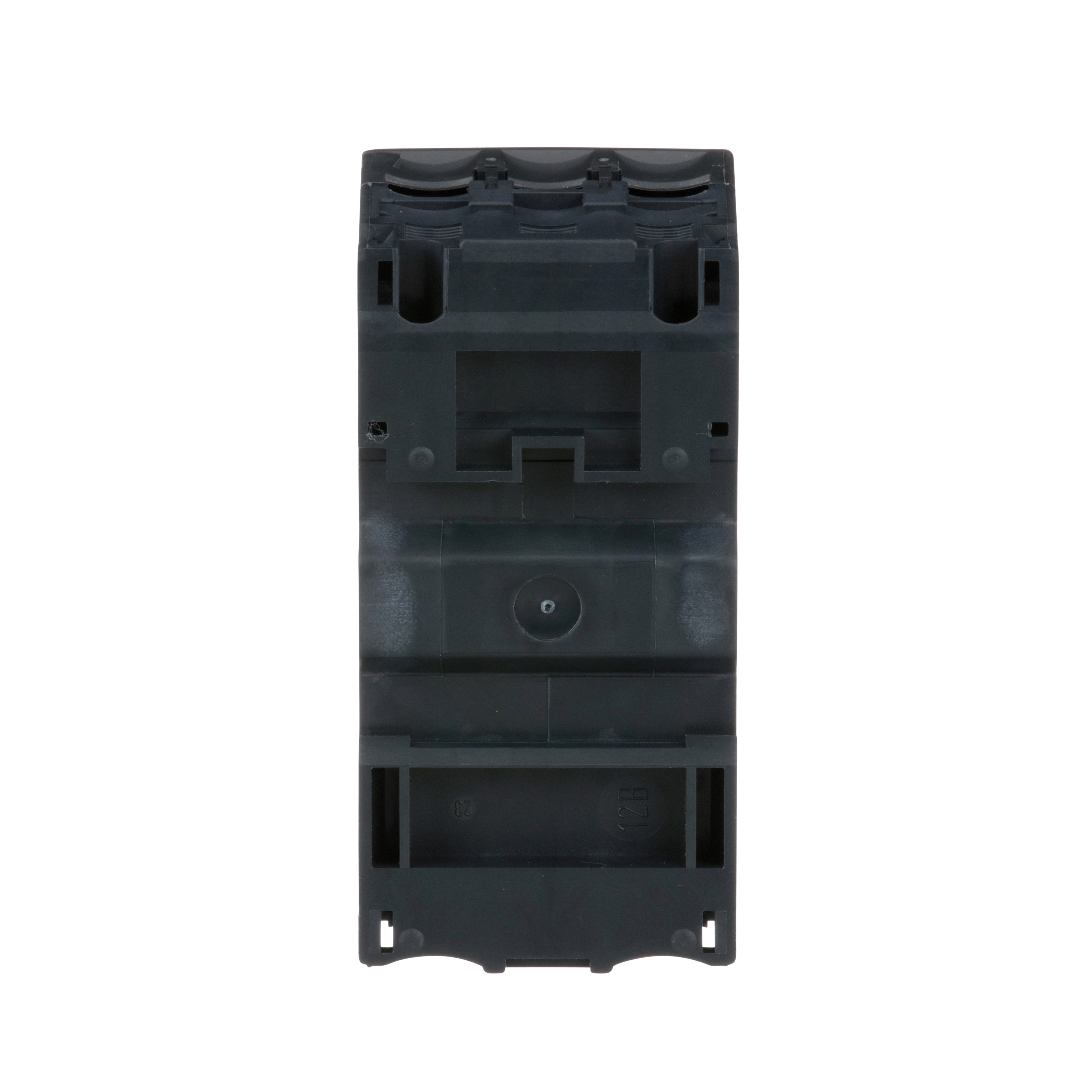

Schneider Electric GV2ME20 GV2 Non-Reversing Metallic 3-Pole Circuit Breaker, 600 VAC, 18 A, 3 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
Brand: Schneider Electric
Item ID: 395526
MPN: GV2ME20
UPC: 785901211990
Login for Price
Features
- GV2ME20 is a TeSys GV motor circuit breaker from Schneider Electric
- It ensures thermal-magnetic protection for motors 7 5kW at 400V and breaking capacity Icu 15kA
- Start-stop control by push-button guaranteed for 100 000 cycles AC-3 415V
Description
GV2ME20 is a TeSys™ GV motor circuit breaker from Schneider Electric designed for motor applications 7.5 kW at 400 V. It fulfils a thermal to magnetic protection with a thermal setting range 13 to 18 A, magnetic tripping at 12xIn and breaking capacity Icu 15 kA at 400 V. Start to stop control by push to button guaranteed for 100 000 cycles AC to 3 415 V.
Schneider Electric, GV2ME20, 3-Pole Circuit Breaker, Non-Reversing Metallic, Series: GV2, 600 VAC, 18 A, 15 kW Power, 50/60 Hz Frequency, 3 kA Interrupt, Thermal/Magnetic Trip, 223 A Trip, 3 Pole, 3 ph, Pushbutton Actuator, Screw Clamp Connection, IP20/IK04 Enclosure, Threaded Mounting, -4 to 140 deg F, 1.77 in W x 3.08 in D x 3.5 in H Dimensions
Specifications
Actuator Type |
Pushbutton |
Amperage Rating |
18 A |
Connection Type |
Screw Clamp |
Dimensions |
1.77 in W x 3.08 in D x 3.5 in H |
Enclosure Type |
IP20/IK04 |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
3 kA |
Mounting Type |
Threaded |
Number of Poles |
3 |
Phase |
3 ph |
Power Rating |
15 kW |
Series |
GV2 |
Temperature Rating |
-4 to 140 deg F |
Trip Range |
223 A |
Trip Type |
Thermal/Magnetic |
Type |
Non-Reversing Metallic |
Voltage Rating |
600 VAC |
Standard Approval |
ATEX|BV Approved|CCC Certified|CE Certified|CSA C22.2|CSA C22.2 File No. LR81630 Class 3211-05|CSA Certified|DNV Certified|EAC Certified|EN 60204|EN/IEC 60947-2|EN/IEC 60947-4-1|GL Approved|IEC 60529|IEC 60695-2-1|IEC 60947-2/60947-4-1/60947-1|IEC 60947-4-1|IECEE CB SCHEME|LROS|NF C 63-120/79-130/63-650|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65warnings.ca.gov|RINA|RoHS Compliant|UL 508 File No. E164864 NLR/VDE 0660|UL 60947-4-1|UL Listed |
Application |
Motor Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2f1bcac14d81deed449cb5cf66a21466d7edfba9794776d66a3cda6717147770.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_151801faa6a31024317b3bfac82180b4d80c6e7748c96507a9dffa44a62f2d28.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ATV61HC40Y_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_GV2ME20_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e9682a46705f350d8cf567fddd316d2ff068e555ea2a0735d1d9758453b8afd2.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_GV2ME20_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LC1D099F7_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LC1D099F7_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9422TF2_Technical_Bulletin.pdf
