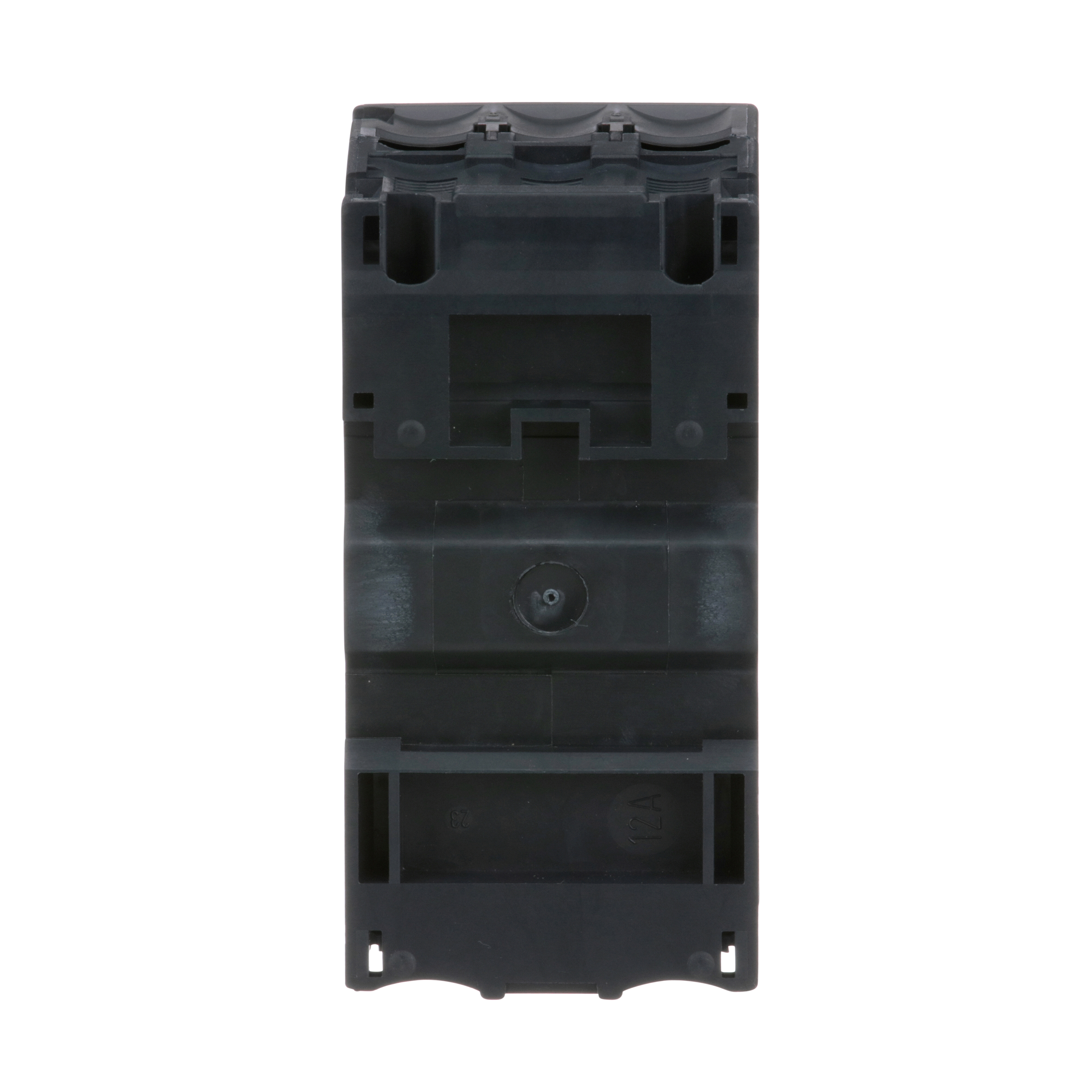

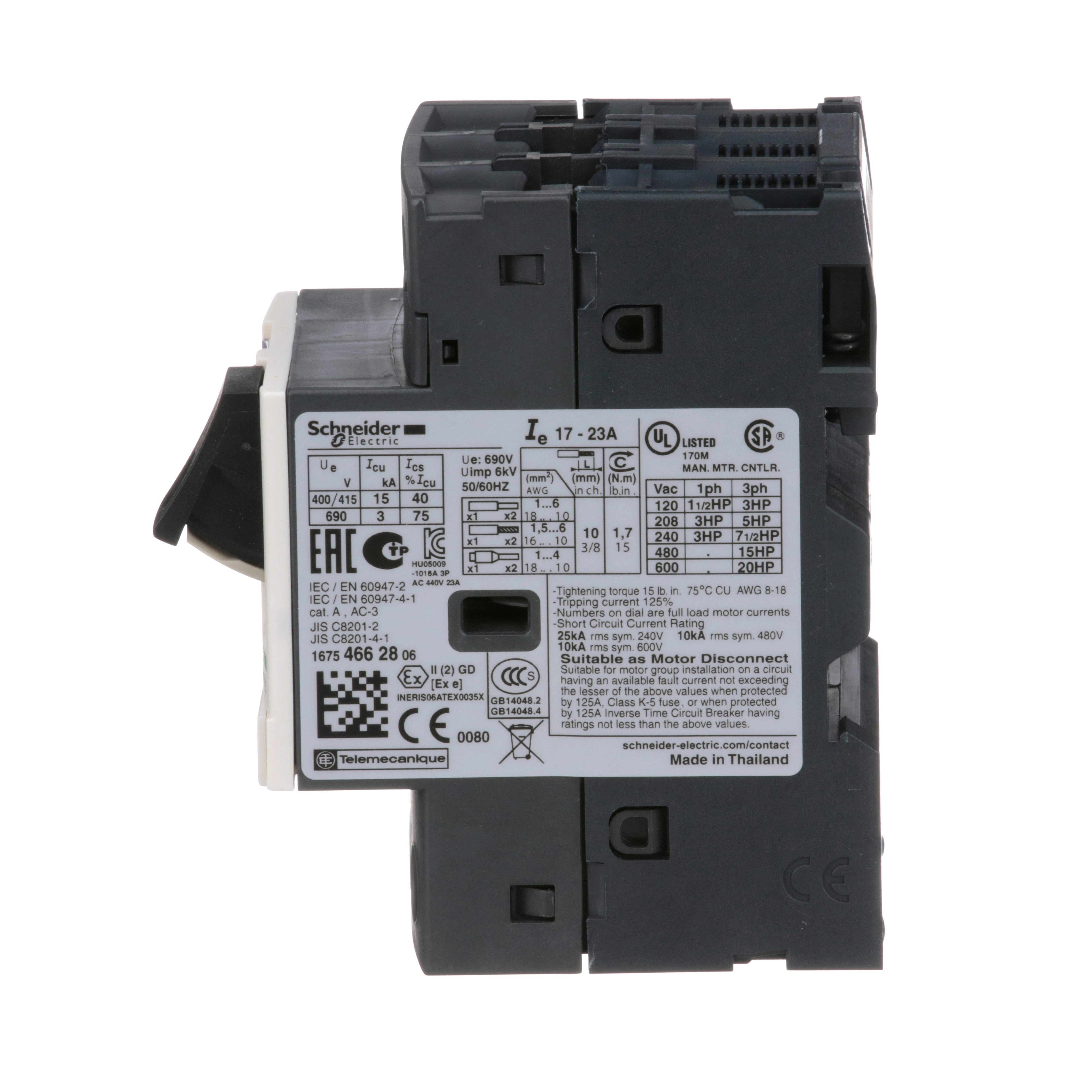

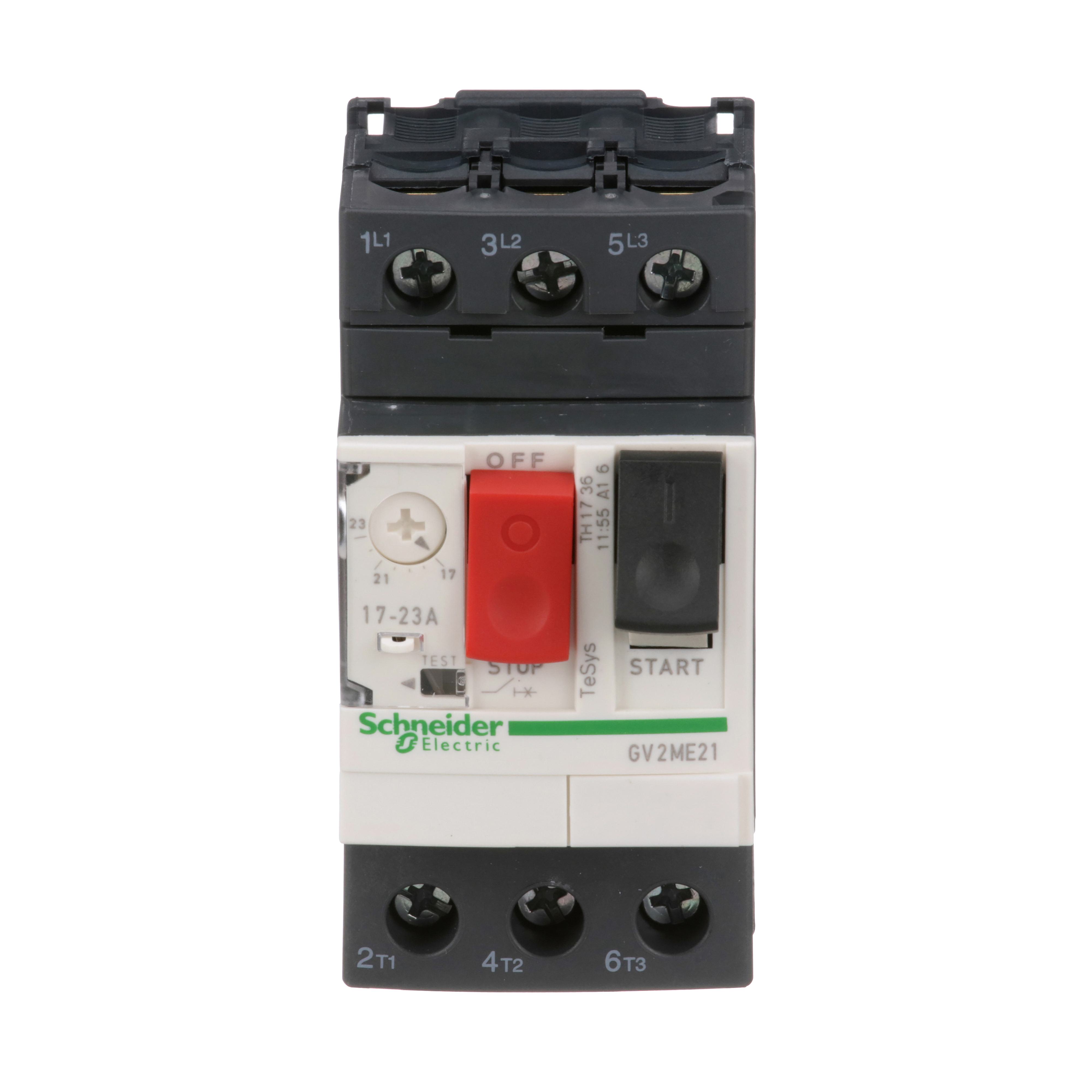

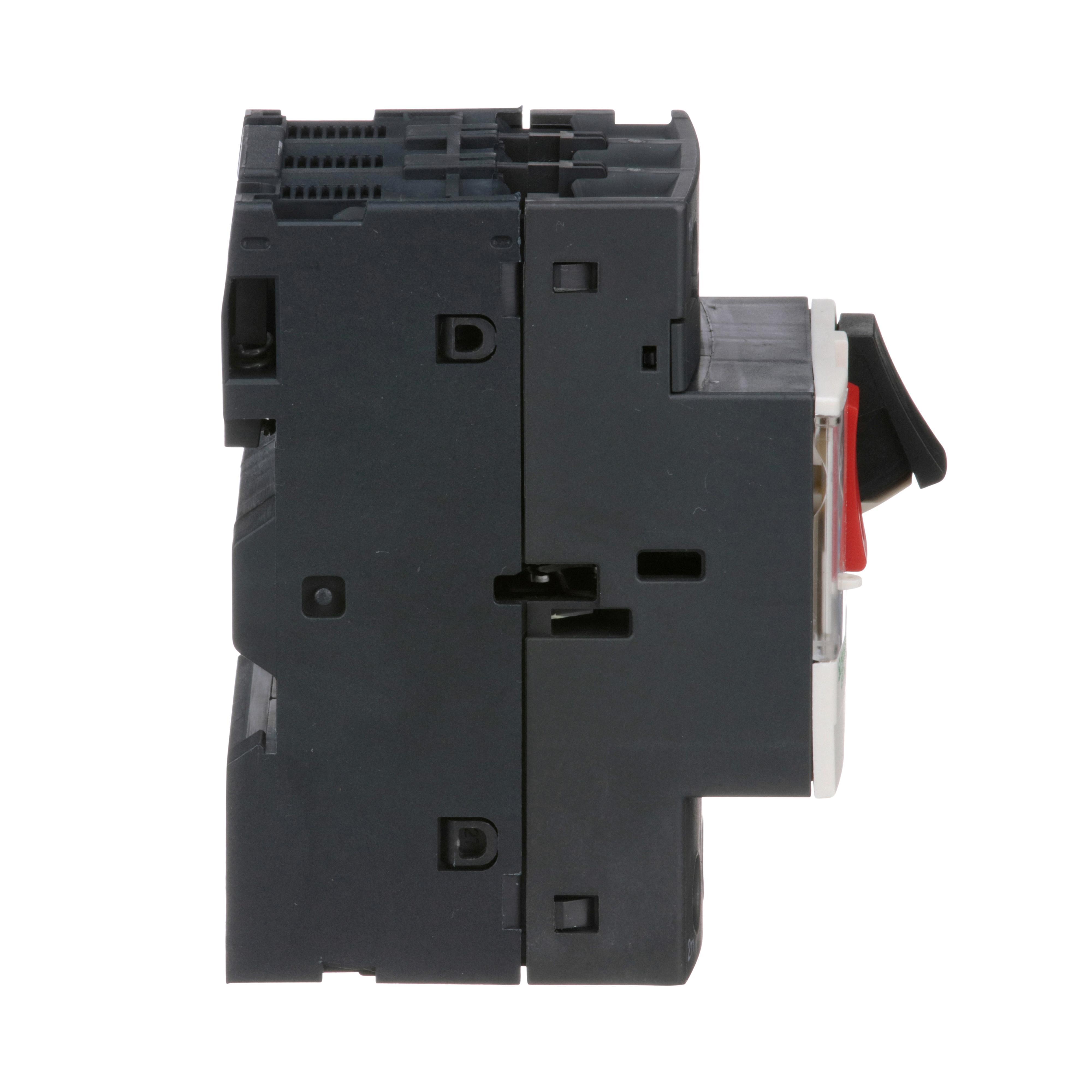

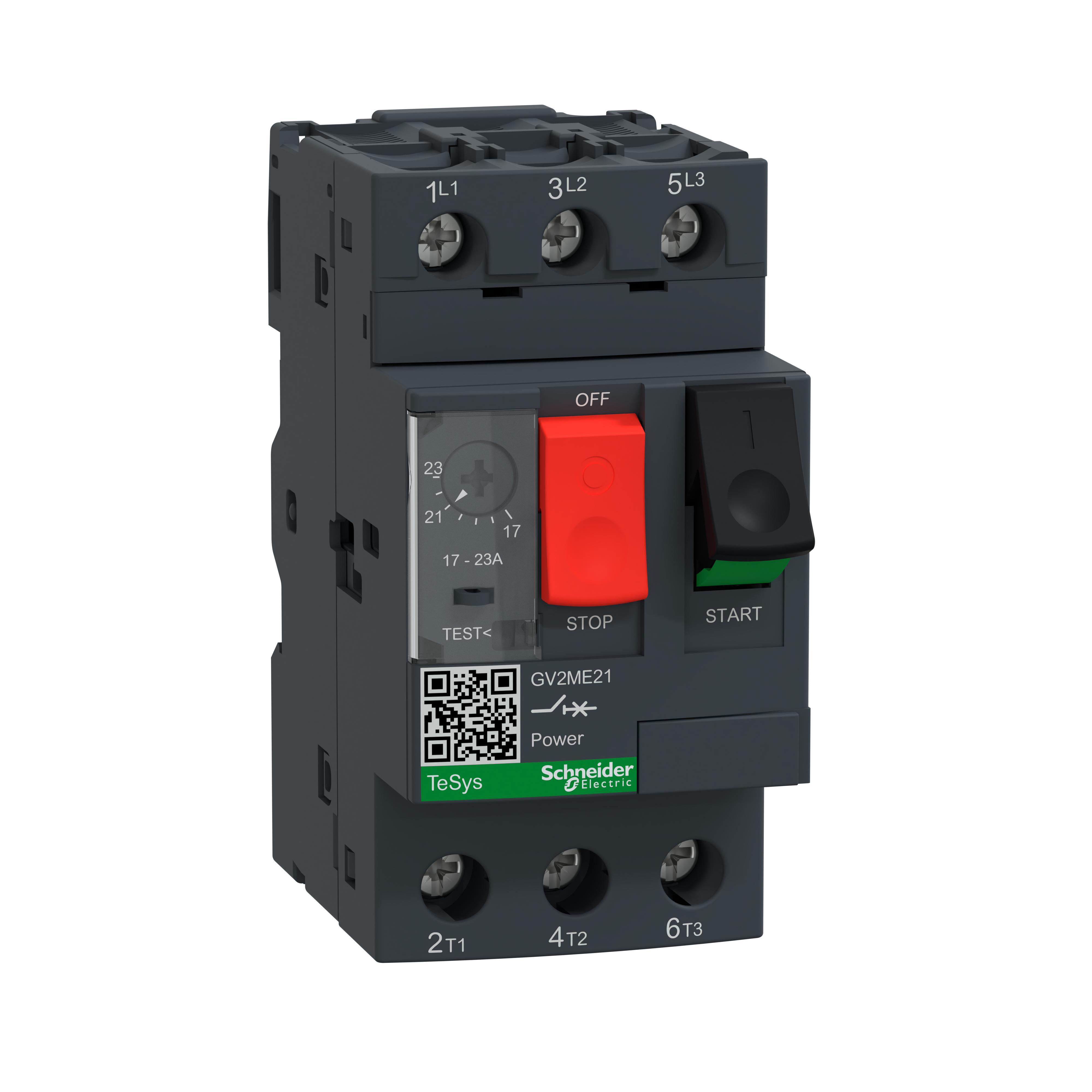

Schneider Electric GV2ME21
Schneider Electric GV2ME21 GV2 Type GV2ME Non-Reversing Manual Motor Starter, 3 Poles, IP20/IK04 Enclosure
Brand: Schneider Electric
Item ID: 513086
MPN: GV2ME21
UPC: 785901212010
Login for Price
Features
- GV2ME21 is a TeSys GV motor circuit breaker from Schneider Electric
- It ensures thermal-magnetic protection for motors 9kW at 400V and breaking capacity Icu 15kA
- Start-stop control by push-button guaranteed for 100 000 cycles AC-3 415V
- Magnetic, instantaneous short circuit protection
- Test trip mechanism
- Provision for padlocking in the OFF position standard
- Fingersafe terminals meet IP20 standards and IEC 60529
- Class 10, ambient compensated, bimetallic overload relay
- Panel mounting
Description
GV2ME21 is a TeSys GV motor circuit breaker from Schneider Electric designed for motor applications 9 kW at 400 V. It fulfils a thermal-magnetic protection with a thermal setting range 17 to 23 A, magnetic tripping at 12xIn and breaking capacity Icu 15 kA at 400 V. Start-stop control by push-button guaranteed for 100 000 cycles AC-3 415 V. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHS/Reach).
Schneider Electric, GV2ME21, Manual Motor Starter, Type GV2ME Non-Reversing, Series: GV2, 600 VAC, 17 to 23 A, 50/60 Hz Frequency, 1-1/2 hp, 3 hp, 5 hp, 7-1/2 hp, 15 hp, 20 hp Motor, 3 Pole, 3 ph, Screw Clamp Connection, Ambient Compensated Bimetal Overload Relay, 17 to 23 A Full Load, Pushbutton Control, IP20/IK04 Enclosure, 100000 cycles Operating Cycles, -20 to 60 deg C Operating, 45 mm W x 78.5 mm D x 89 mm H Dimensions
Specifications
Amperage Rating |
17 to 23 A |
Connection Type |
Screw Clamp |
Control Type |
Pushbutton |
Dimensions |
45 mm W x 78.5 mm D x 89 mm H |
Enclosure Type |
IP20/IK04 |
Frequency Rating |
50/60 Hz |
Full Load Current |
17 to 23 A |
Motor Power |
1-1/2 hp, 3 hp, 5 hp, 7-1/2 hp, 15 hp, 20 hp |
Number of Poles |
3 |
Operating Cycles |
100000 cycles |
Operating Temperature |
-20 to 60 deg C |
Overload Relay |
Ambient Compensated Bimetal |
Phase |
3 ph |
Series |
GV2 |
Type |
Type GV2ME Non-Reversing |
Voltage Rating |
600 VAC |
Standard Approval |
BV Certified|CCC Certified|CSA Certified|DNV Certified|ECCN: EAR99|EN 60204|GL Certified|Green Premium|IEC 60947-1|IEC 60947-2|Lloyds Register Certified|NFC 63-120|NFC 63-650|NFC 79-130|PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov|REACH Compliant|RINA Certified|RoHS Compliant|VDE 0113|VDE 0660|WEEE Compliant |
Application |
Motor Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ba1aaefe5e61663478b08ce9ee495230bec3f6cad6a344d593892b76f1e184a8.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_993b288eb81253c596c2fe104f4b2a21519b7b506ab25cd379d4463fb102a609.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_GV2ME21_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_GV3APN04_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1b5a9ef3f820b52779f9b43ceaad8006e5bf9791c264610276b29a0c446cff04.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_GV2ME21_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LC1D099F7_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LC1D099F7_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9422TF2_Technical_Bulletin.pdf
