Schneider Electric GVAE11

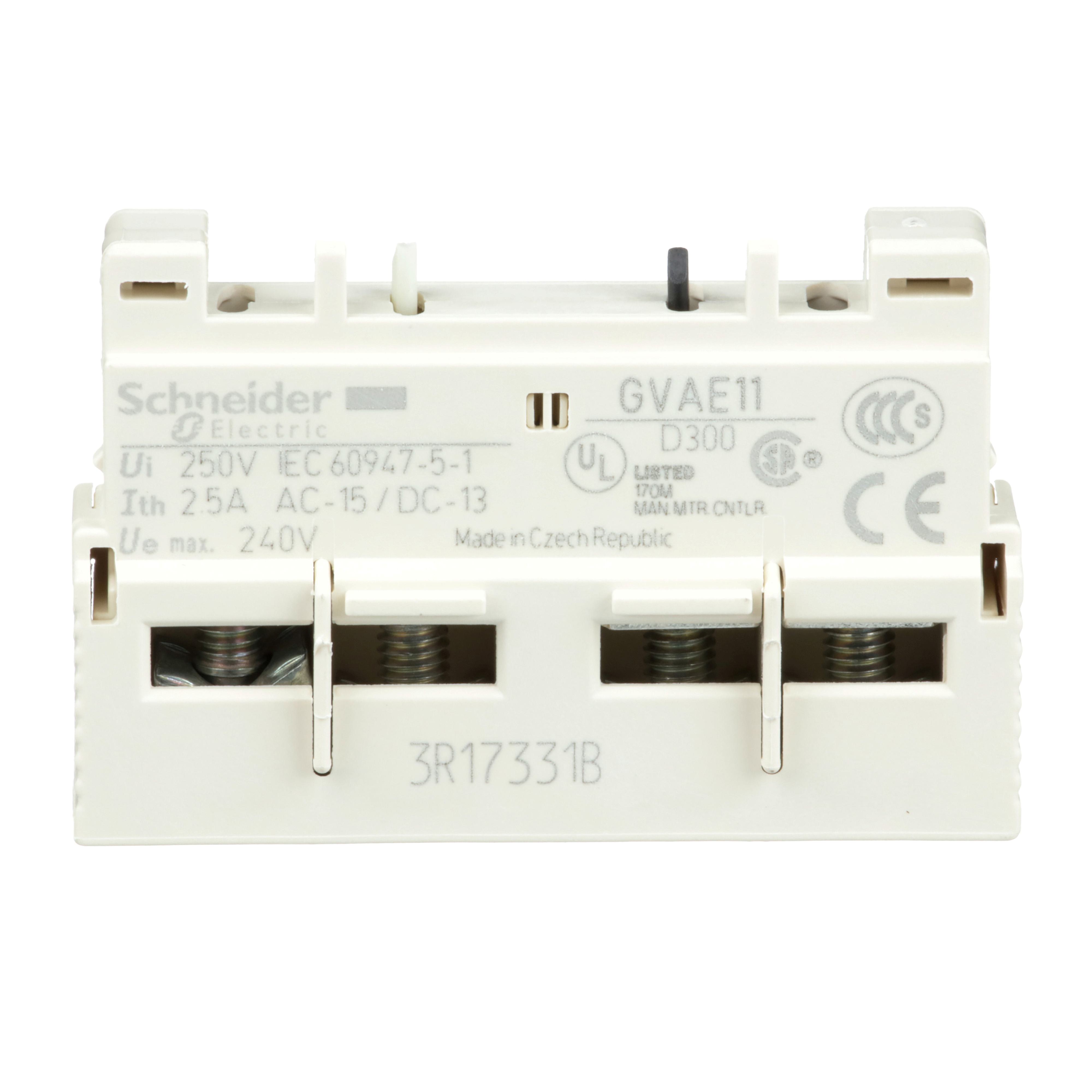

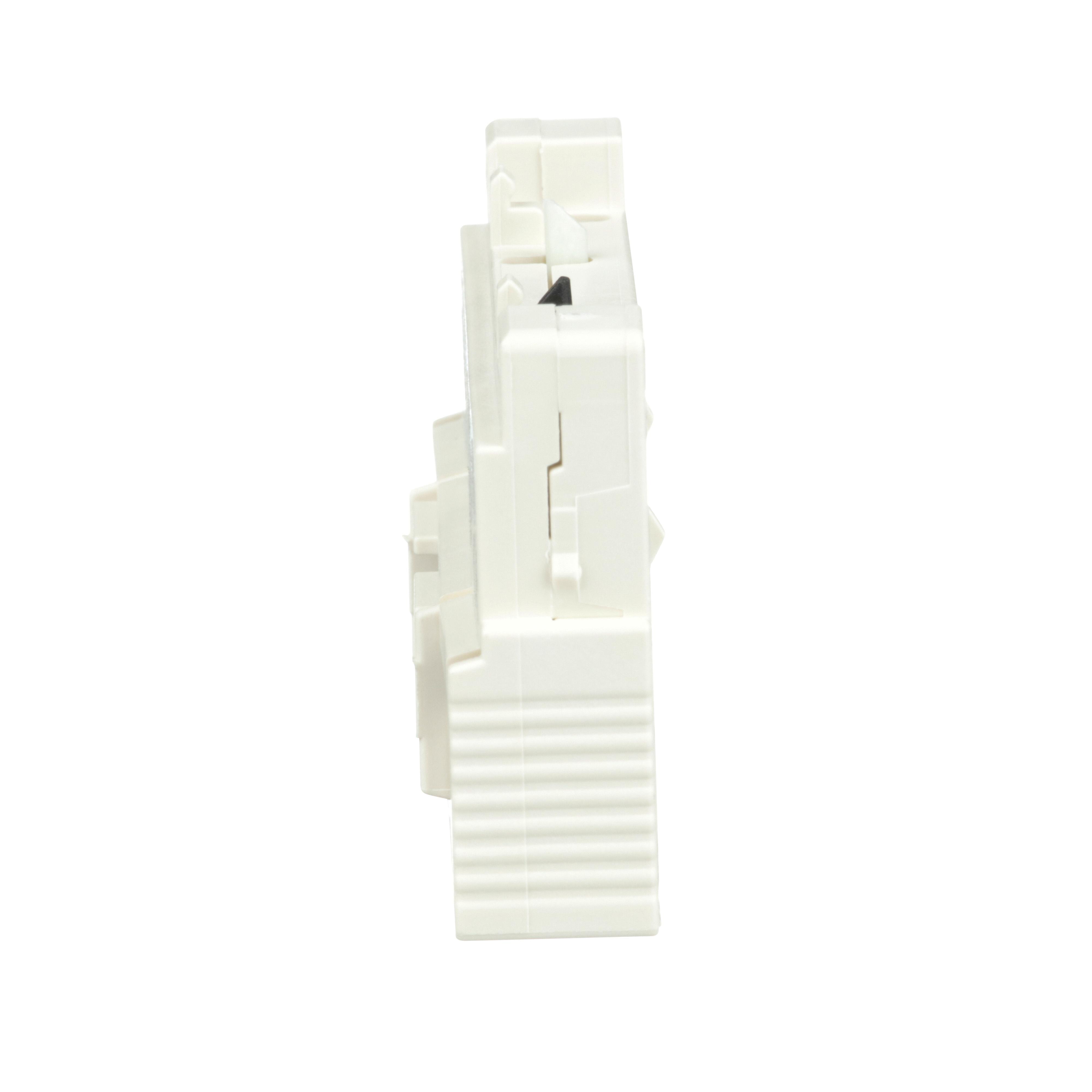

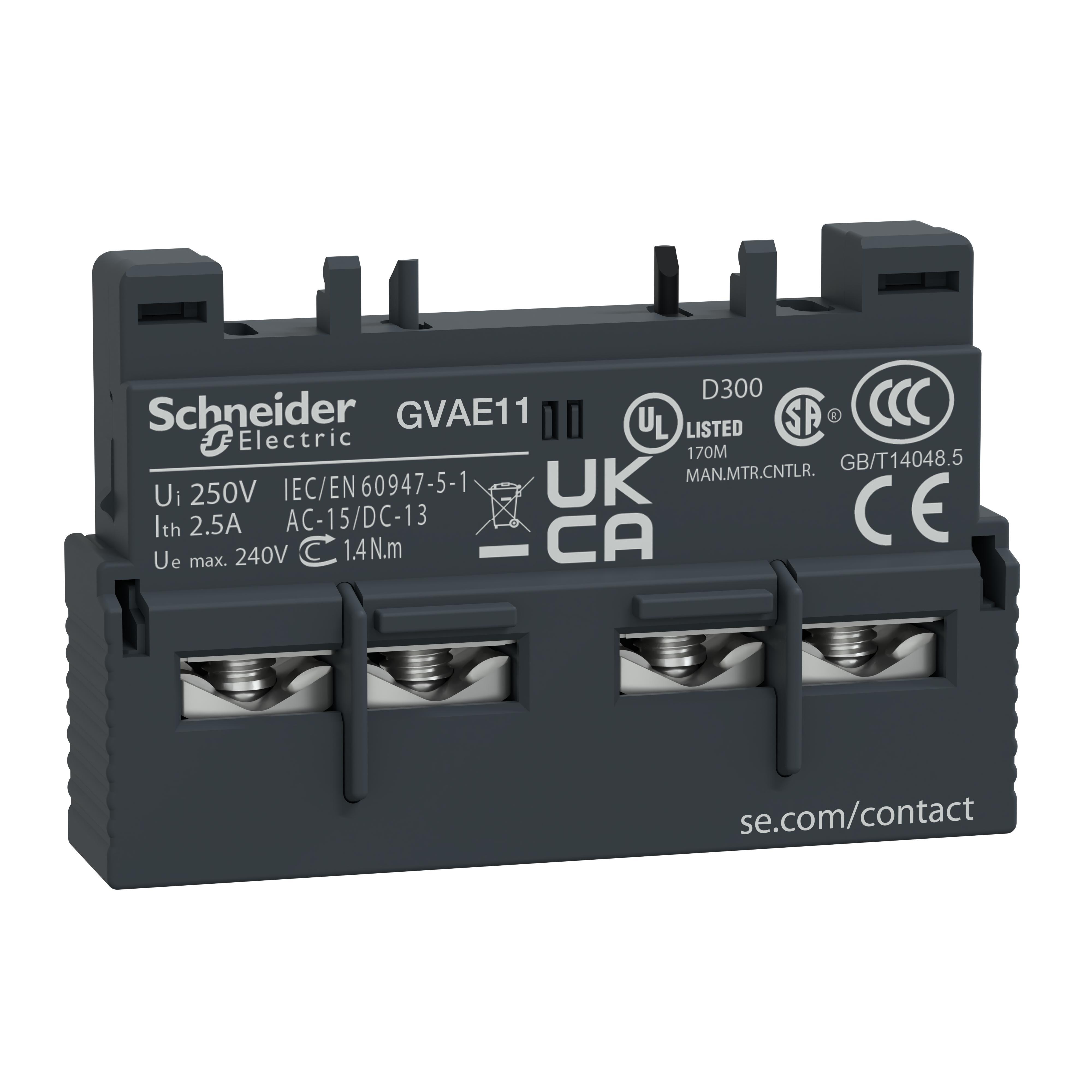

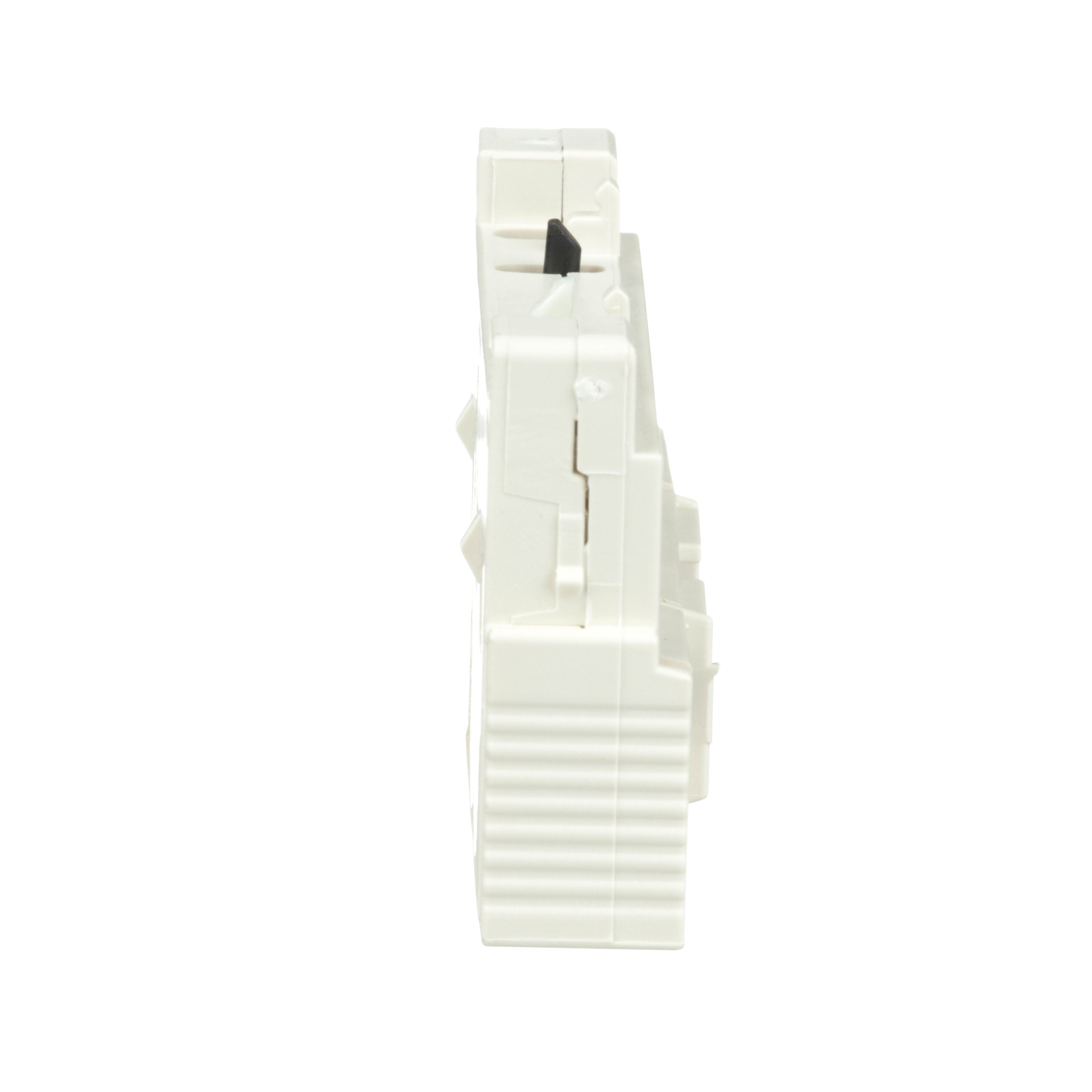

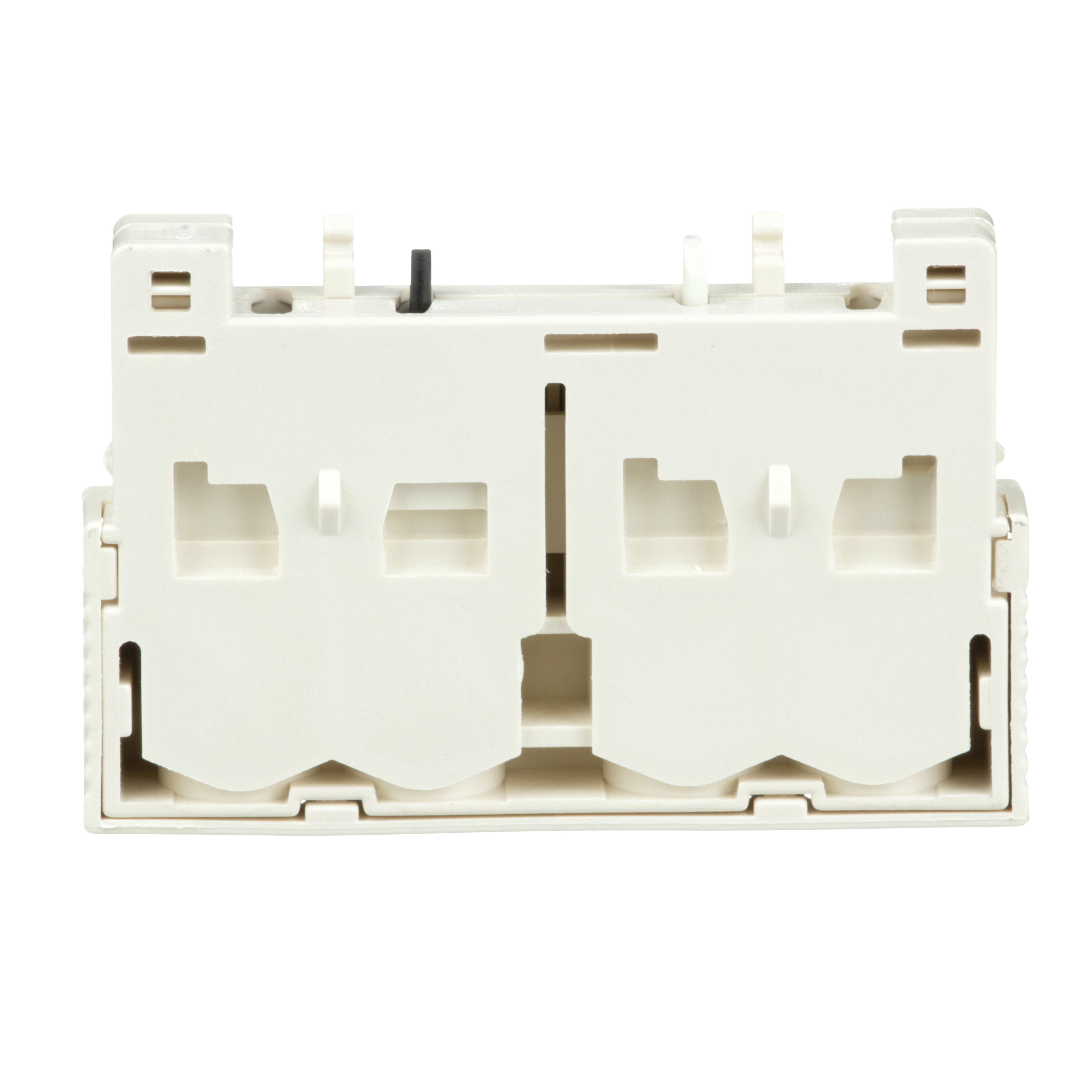

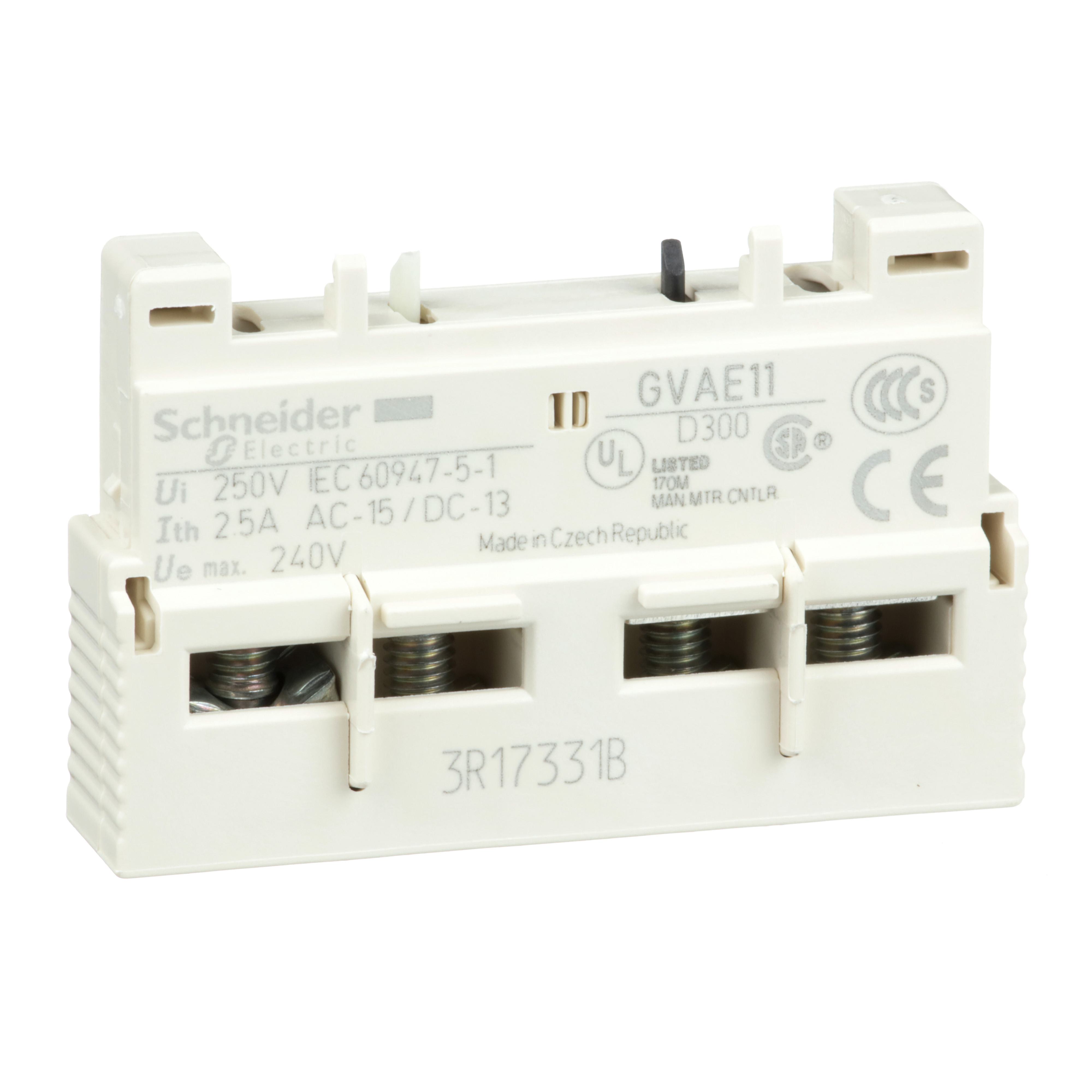

Schneider Electric Square D™ TeSys™ GVAE GVAE11 Auxiliary Contact Block, 2 Poles, For Use With GV2L and GV2LE Manual Switch, GV2ME, GV2P, GV2RT, GV3L and GV3P Manual Starter
Brand: Schneider Electric
Item ID: 475208
MPN: GVAE11
UPC: 785901343431
Login for Price
Features
- Front side surface mount
- Instantaneous auxiliary contact
Description
TeSys GV2 and GV3 Manual Starter and Protector, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp
Schneider Electric Square D™ TeSys™ GVAE Auxiliary Contact Block, Series: GVAE, 2 Pole, For Use With: GV2L and GV2LE Manual Switch, GV2ME, GV2P, GV2RT, GV3L and GV3P Manual Starter, Specifications: 24 to 240 VAC/24 to 60 VDC, 2.5 A, 24 W, 100000 Cycles, 1NO-1NC Contact Configuration, Screw Clamp Connection, Front Side Mount, 100000 Cycles, 45 mm W x 29 mm D x 11 mm H Dimensions
Specifications
Dimensions |
45 mm W x 29 mm D x 11 mm H |
Number of Poles |
2 |
Series |
GVAE |
Specifications |
24 to 240 VAC/24 to 60 VDC, 2.5 A, 24 W, 100000 Cycles, 1NO-1NC Contact Configuration, Screw Clamp Connection, Front Side Mount, 100000 Cycles |
Suitable For Use With |
GV2L and GV2LE Manual Switch, GV2ME, GV2P, GV2RT, GV3L and GV3P Manual Starter |
Standard Approval |
CSA Certified|ECCN: EAR99|IEC Certified|PROP65: This product can expose you to chemicals including: Lead and Lead compounds which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|RoHS Compliant|UL Listed |
Application |
Instantaneous Auxiliary Contacts Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_17de53c401792e8df09c0a8f37b34a081d9fa0a137ac0af26be00c3a2a5e77b1.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_GV2APN02_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_GV2APN04_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_GV2APN04_Owners_User_Manual.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_GVAE11_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_RSL1PVEU_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0eade0513e85286cb56ea54f88f47ac27696664c44a80c4766b9b22f123e2596.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_GVAE11_Specification_Sheet.pdf
