Square D™ H12LKE2

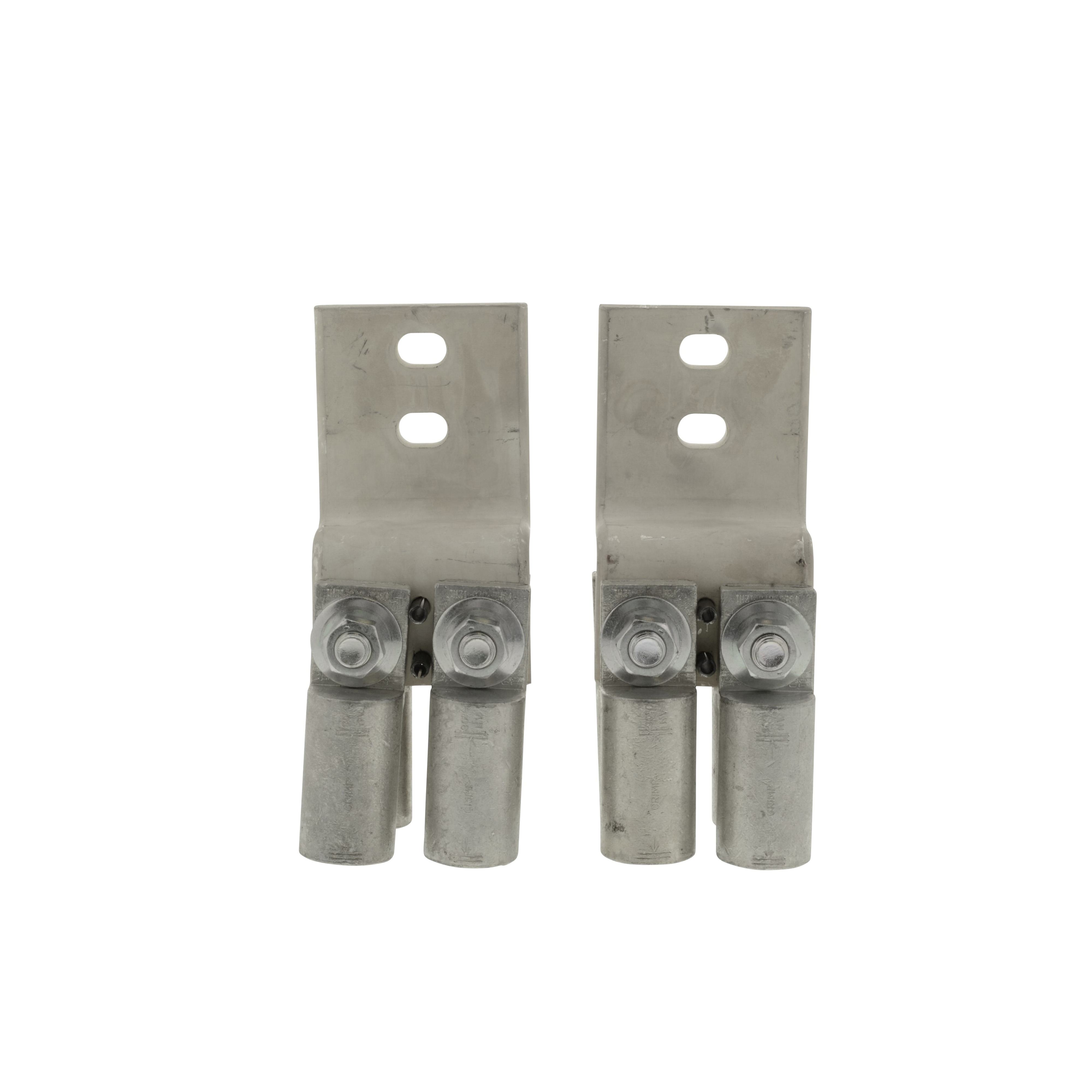

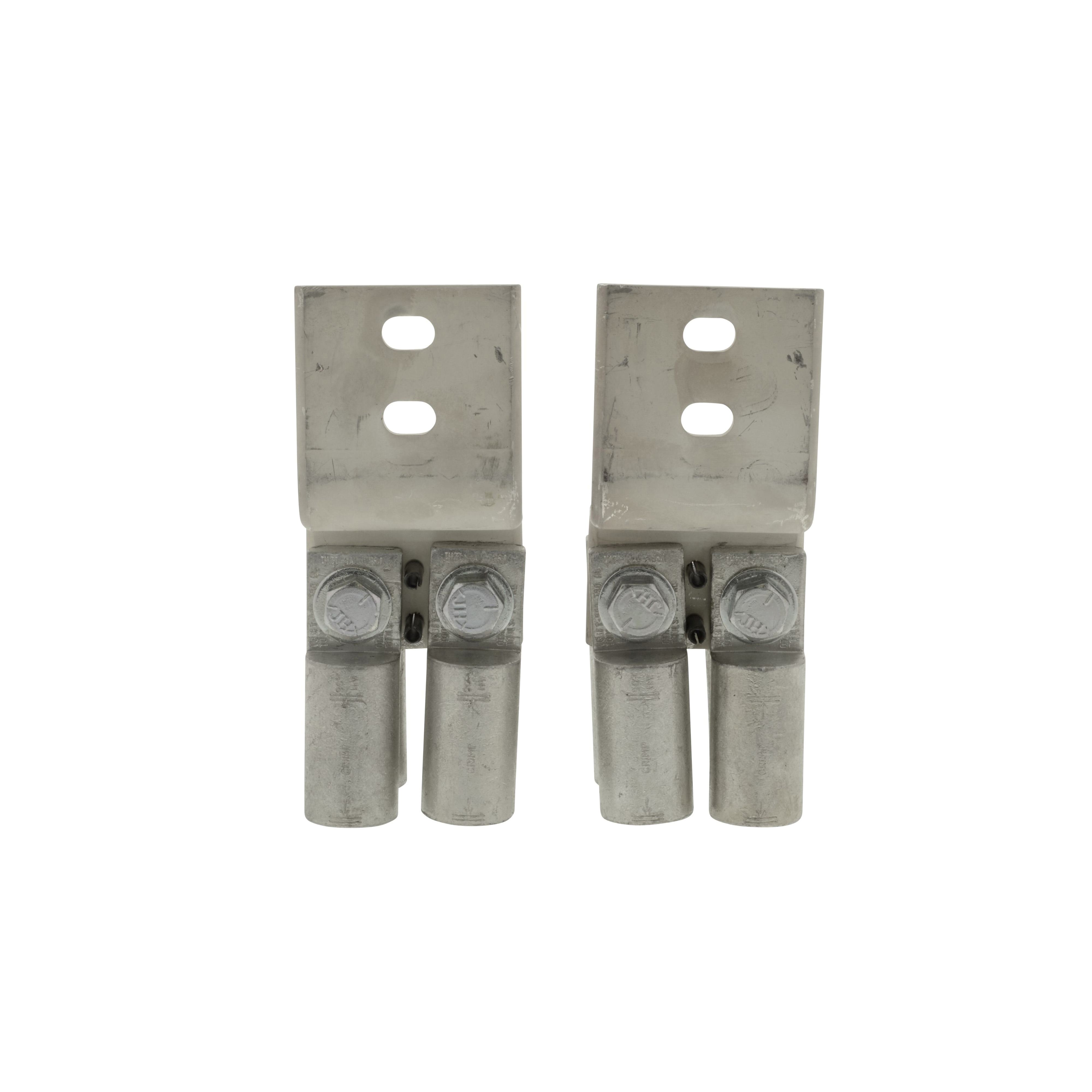

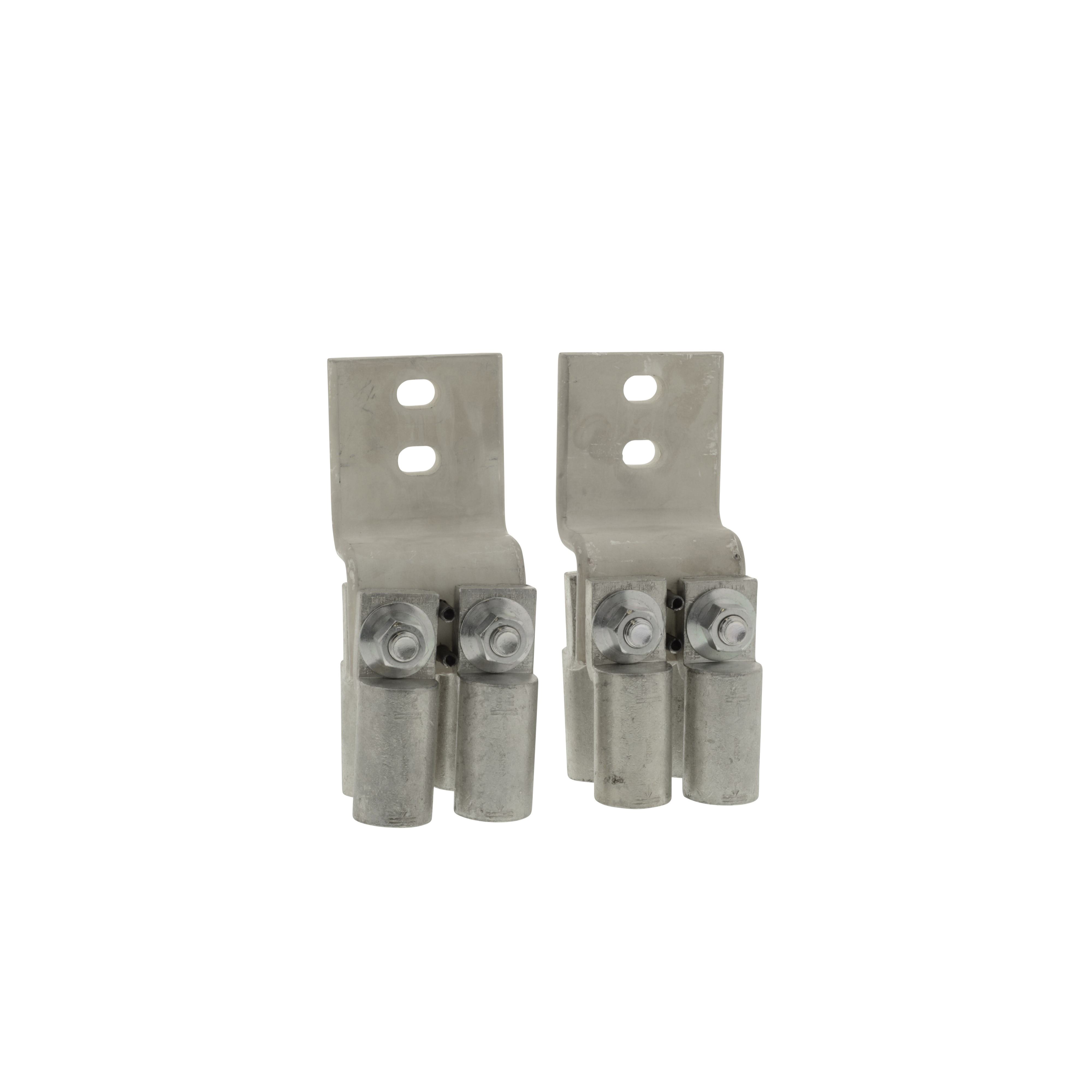

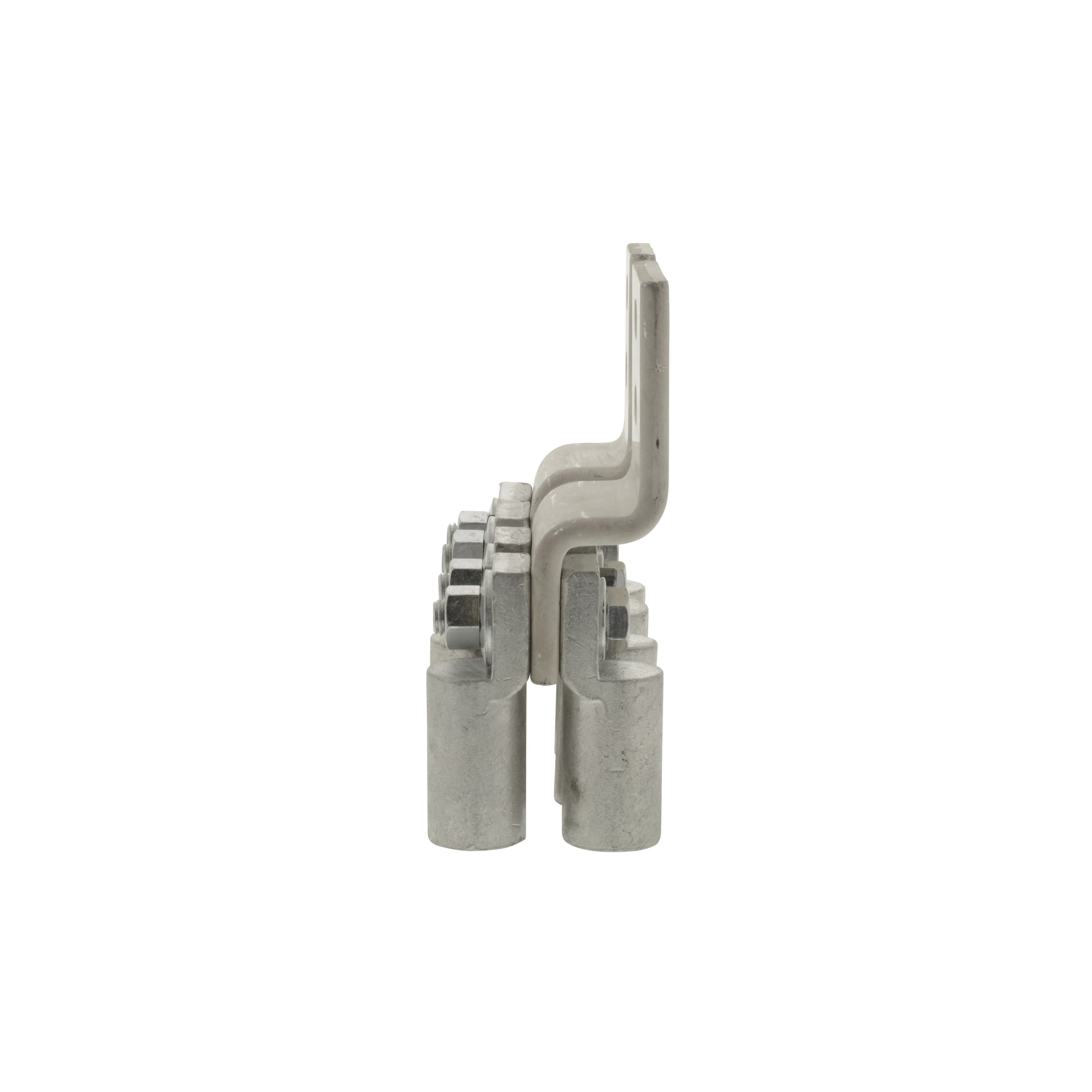

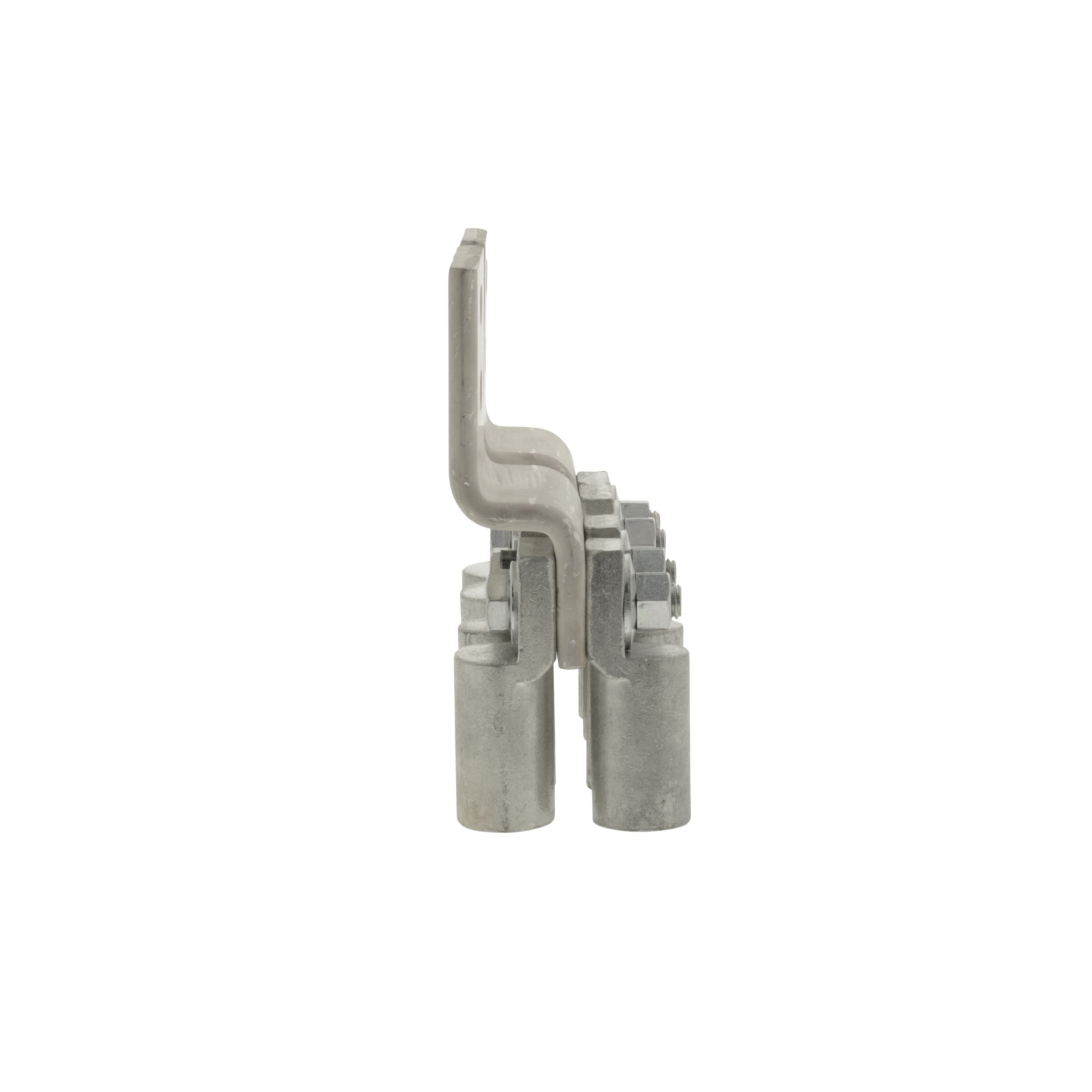

Square D™ H12LKE2 Compression Lug Kit, 1200 A, 500 to 750 kcmil (Al)/500 kcmil (Cu) Wire, Aluminum/Copper Wire
Brand: Square D™
Item ID: 471581
MPN: H12LKE2
UPC: 785901822011
Login for Price
Features
- For field and factory installation
Description
Square D™ Compression Lug Kit, 1200 A Switch, 500 to 750 kcmil (Al)/500 kcmil (Cu) Wire, Aluminum/Copper Wire, For Use with: Class 3100 Heavy Duty Safety Switch
Specifications
Suitable For Use With |
Class 3100 Heavy Duty Safety Switch |
Switch Amperage Rating |
1200 A |
Wire Material |
Aluminum/Copper |
Wire Size |
500 to 750 kcmil (Al)/500 kcmil (Cu) |
Standard Approval |
UL Listed|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. for more information go to www.P65Warnings.ca.gov |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HU362AWAVW_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e404a84d4db8f7b33364610956dac84ab1bc21037b91e0f5ae89d4a3267cb1bf.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d86e16f3060450e864885c57cd5768e7d62e4aaa02cf6468e9cbfec153762171.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LXM32AD30M2_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_H12LKE2_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_cbfa3f803d4282aebc50ec4b243021b1dc083c871c53060f4c272a88b176af54.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_H12LKE2_Specification_Sheet.pdf
VIDEO LINK
https://www.youtube.com/embed/3j1msgeG034
Square D™ H12LKE2
