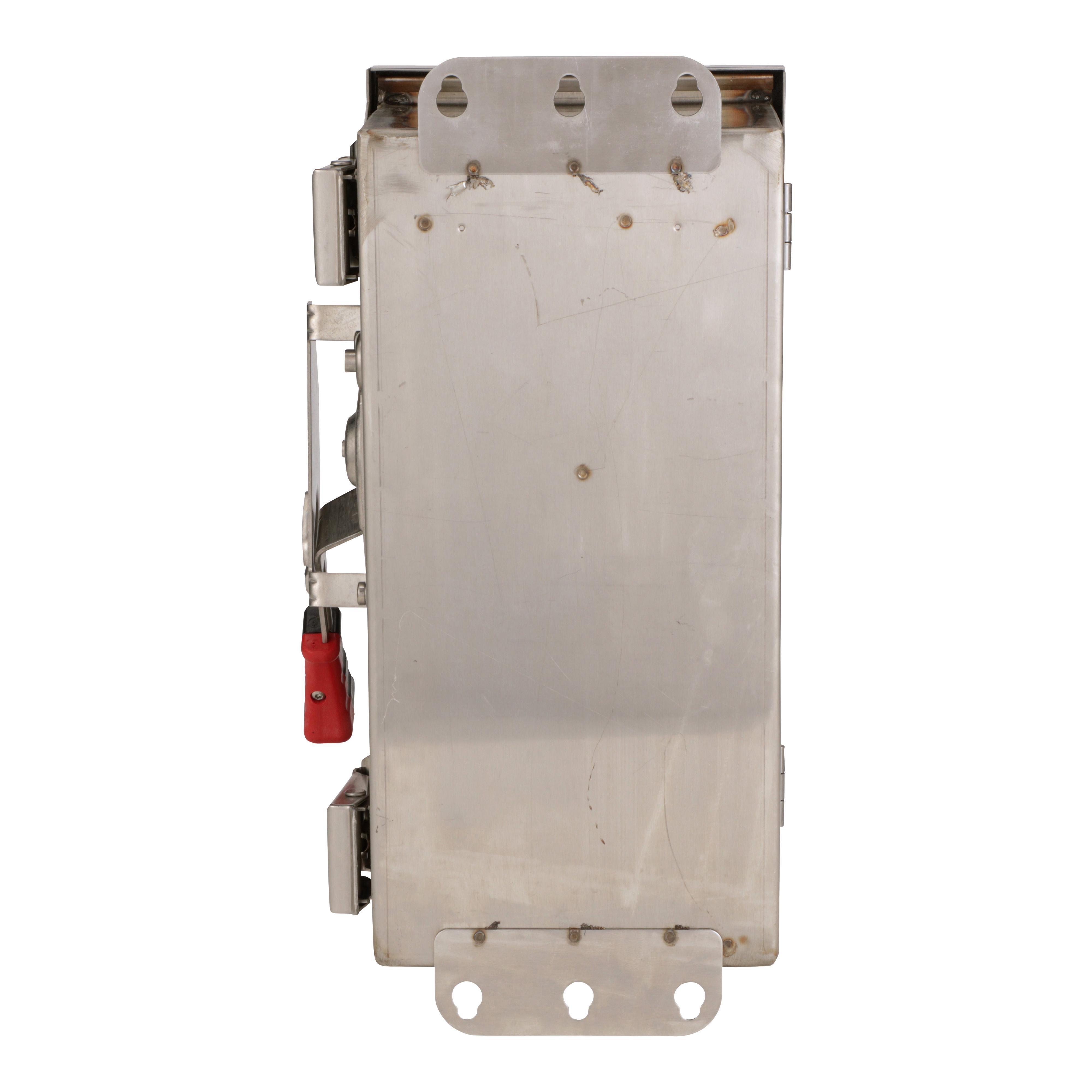

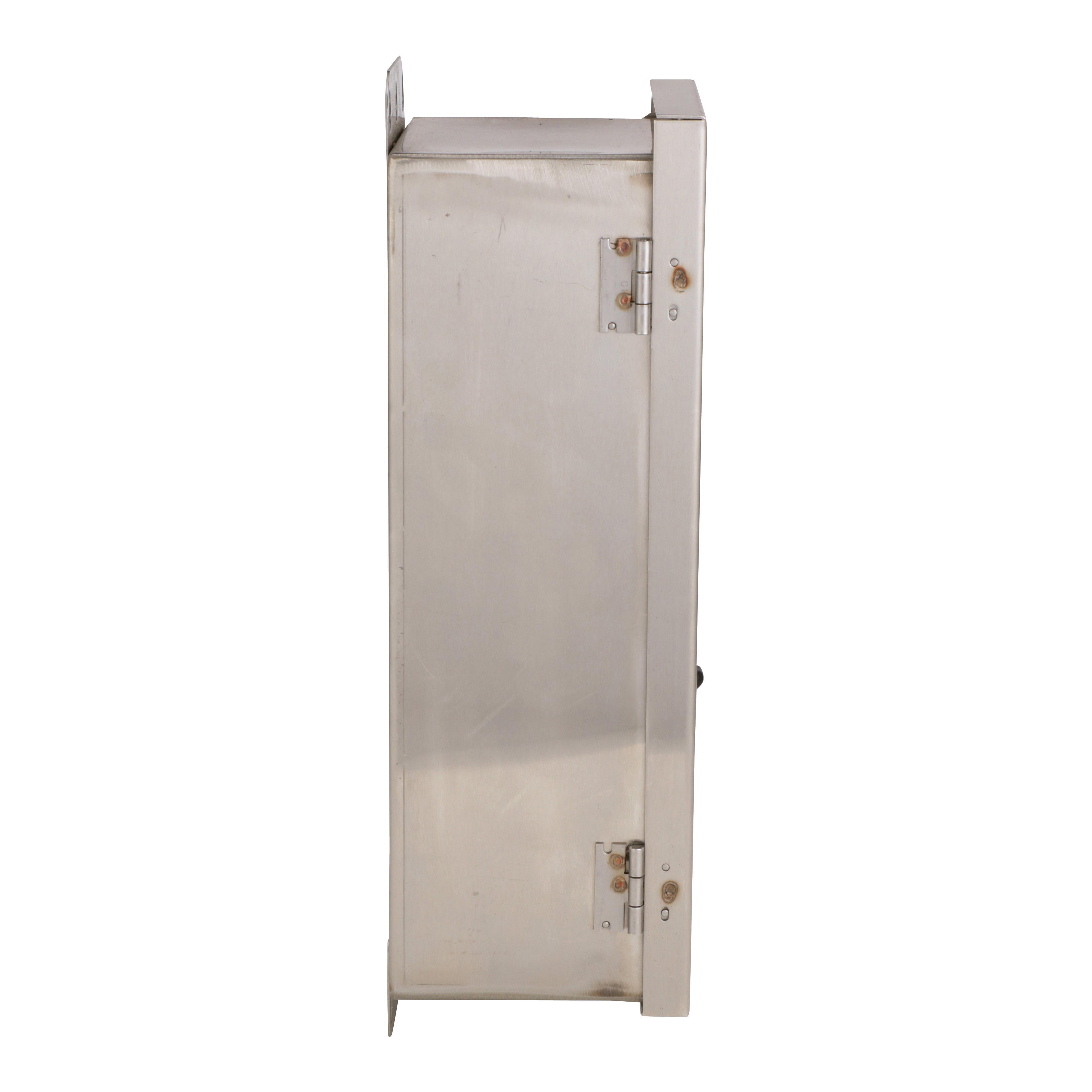

Square D™ H221DS F6 Corrosion-Resistant Dust-Tight Fusible Rainproof Watertight Heavy Duty Safety Switch, 240/250 VAC/VDC, 30 A, 1-1/2 hp, 3 hp, 5 hp, 7-1/2 hp, DPST Contact, 2 Poles
Brand: Square D™
Item ID: 536969
MPN: H221DS
UPC: 785901023579
Login for Price
Features
- Visible blades for positive indication that switch is "OFF"
- Quick make, quick break operating mechanism
- Optional viewing window allows visual verification of blade position without opening door
- Red and black handle indicates the ON (red)/OFF (black) condition of the switch
- Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open
- Handle lock-off provision for multiple padlocks "Off" position
- Cover can be padlock closed
- Tangential knockouts, where provided, lessen the need for conduit offset bends
Description
The Square D™ by Schneider Electric brand heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions, from commercial and institutional to industrial and manufacturing facilities.
Square D™ Heavy Duty Safety Switch, Corrosion-Resistant Dust-Tight Fusible Rainproof Watertight, Series: F6, 240/250 VAC/VDC, 30 A, 1-1/2 hp, 3 hp, 5 hp, 7-1/2 hp, 1/2/3 ph, 2 Pole, 2 Wires, 200 kA Short Circuit, DPST Contact Form, Handle Actuator, NEMA 4/4X/5 Enclosure, Surface Mounting, Lug Terminal, -22 to 104 deg F, 8.67 in W x 5.11 in D x 14.93 in H Dimensions, 304 Stainless Steel
Specifications
Actuator Type |
Handle |
Amperage Rating |
30 A |
Contact Form |
DPST |
Dimensions |
8.67 in W x 5.11 in D x 14.93 in H |
Enclosure Type |
NEMA 4/4X/5 |
Horsepower |
1-1/2 hp, 3 hp, 5 hp, 7-1/2 hp |
Material |
304 Stainless Steel |
Mounting Type |
Surface |
Number of Poles |
2 |
Number of Wires |
2 |
Phase |
1/2/3 |
Series |
F6 |
Short Circuit Current Rating |
200 kA |
Temperature Rating |
-22 to 104 deg F |
Terminal Type |
Lug |
Type |
Corrosion-Resistant Dust-Tight Fusible Rainproof Watertight |
Voltage Rating |
240/250 VAC/VDC |
Standard Approval |
RoHS Compliant|Federal Specification WS-865C|UL 98 File No. E2875|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
Commercial, Industrial and Indoor/Outdoor Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e2ed73c3c03b96c4e67b501fad8921f7ba650e527067a7ed4ca12e1206b9181b.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_H3612RBGL_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HU362AWC_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HU362AWC_Instruction_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_H221DS_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4f8d01573ce044f6ec1a0efe9218f79343a6b6e77e9f672f7e89b17679de7c2f.pdf
