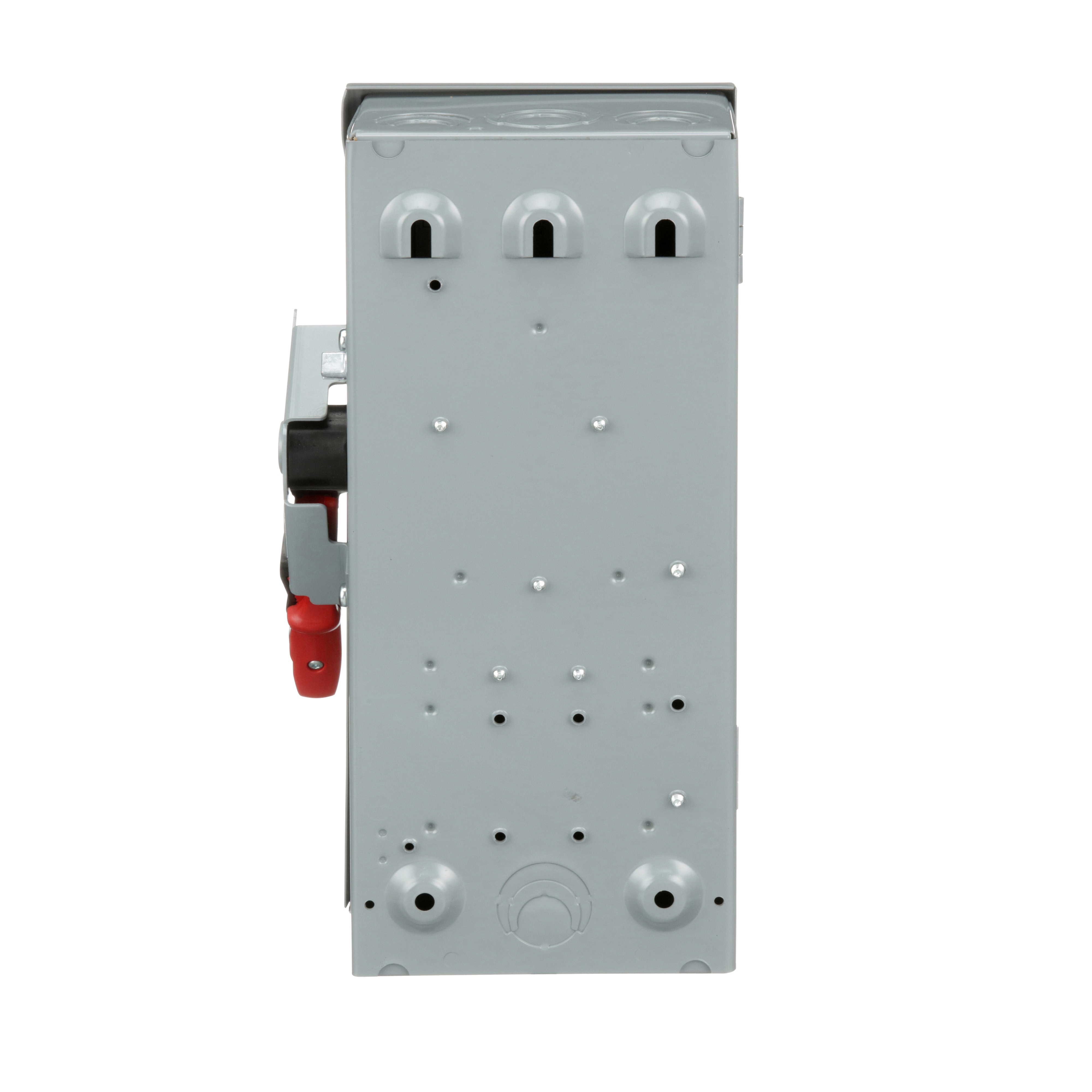

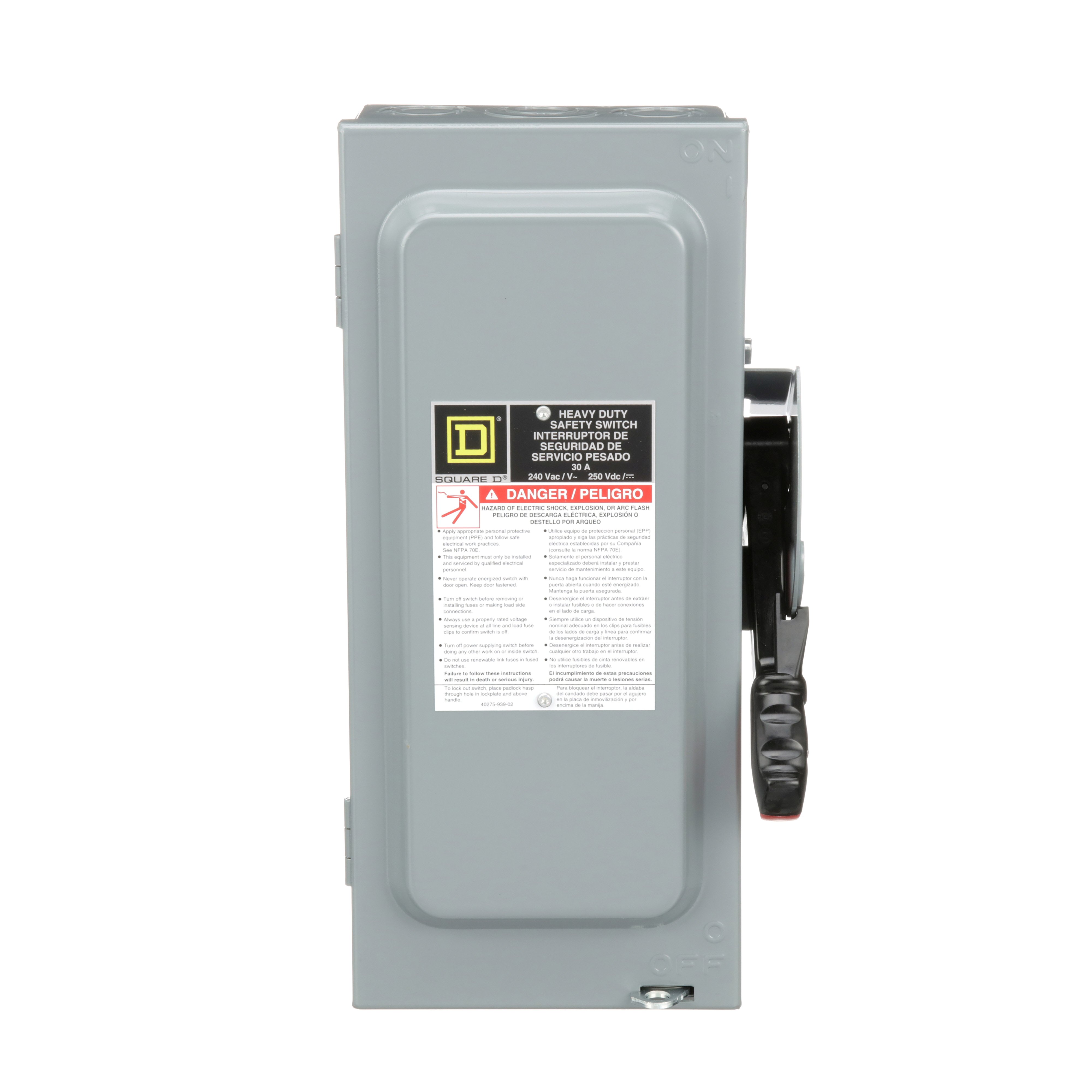

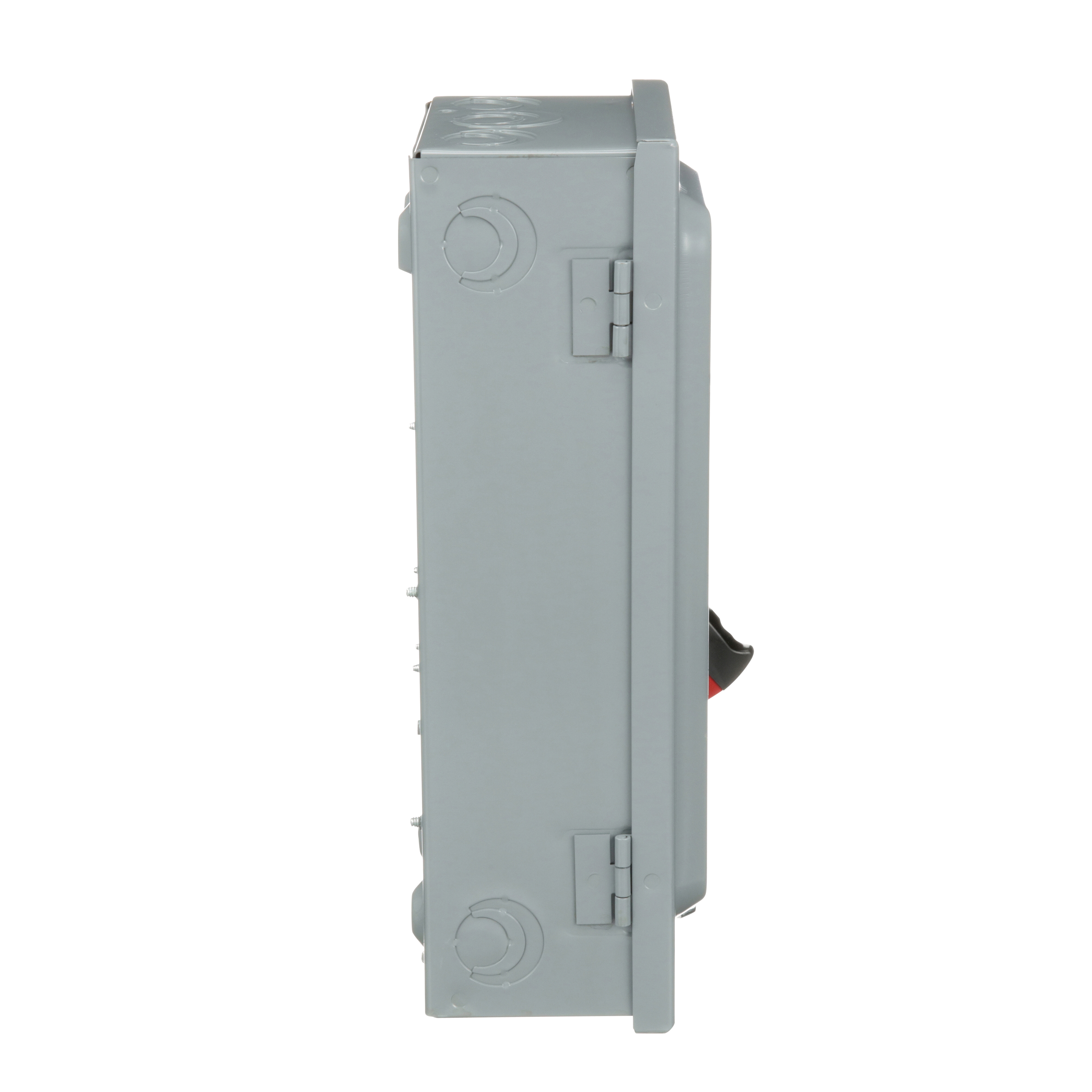

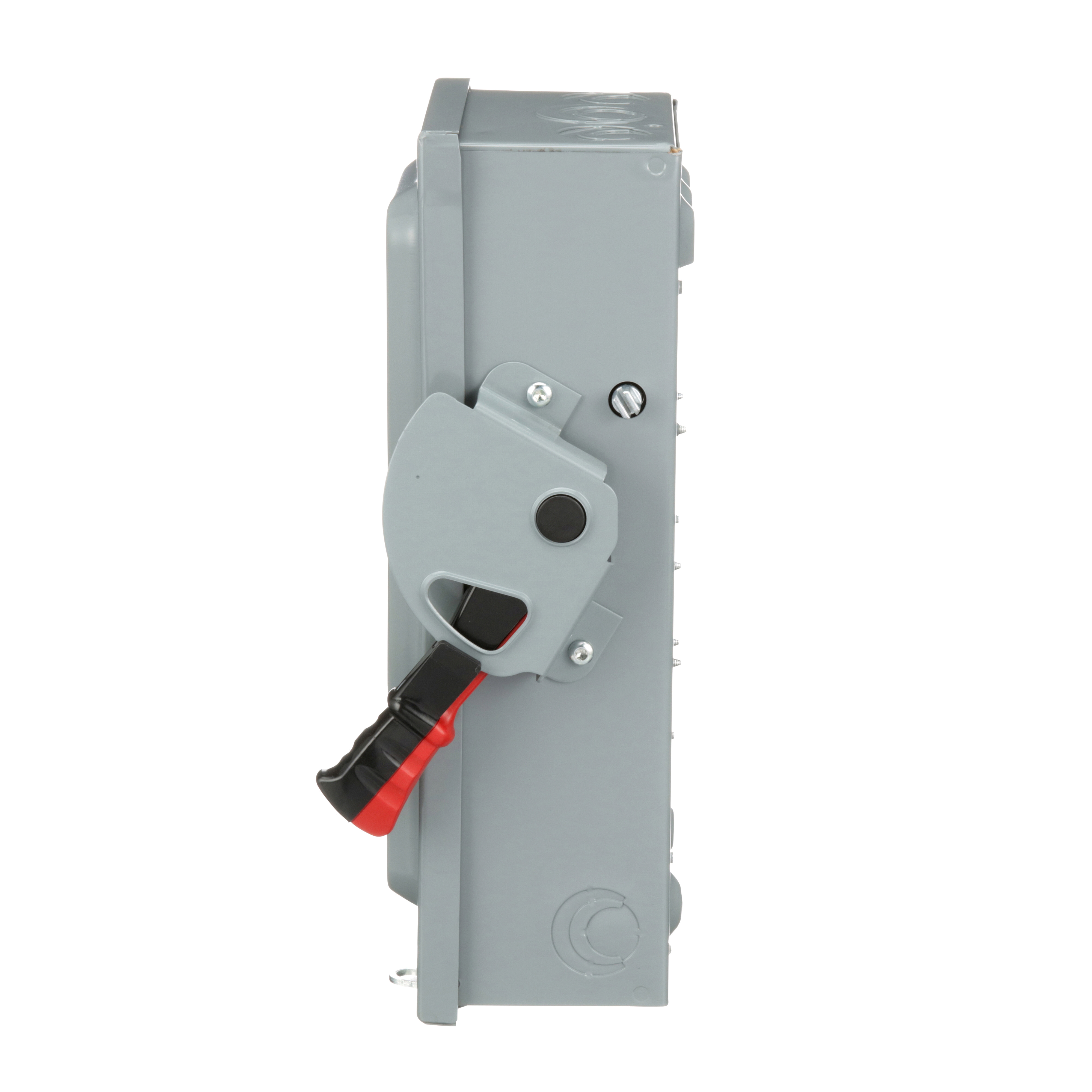

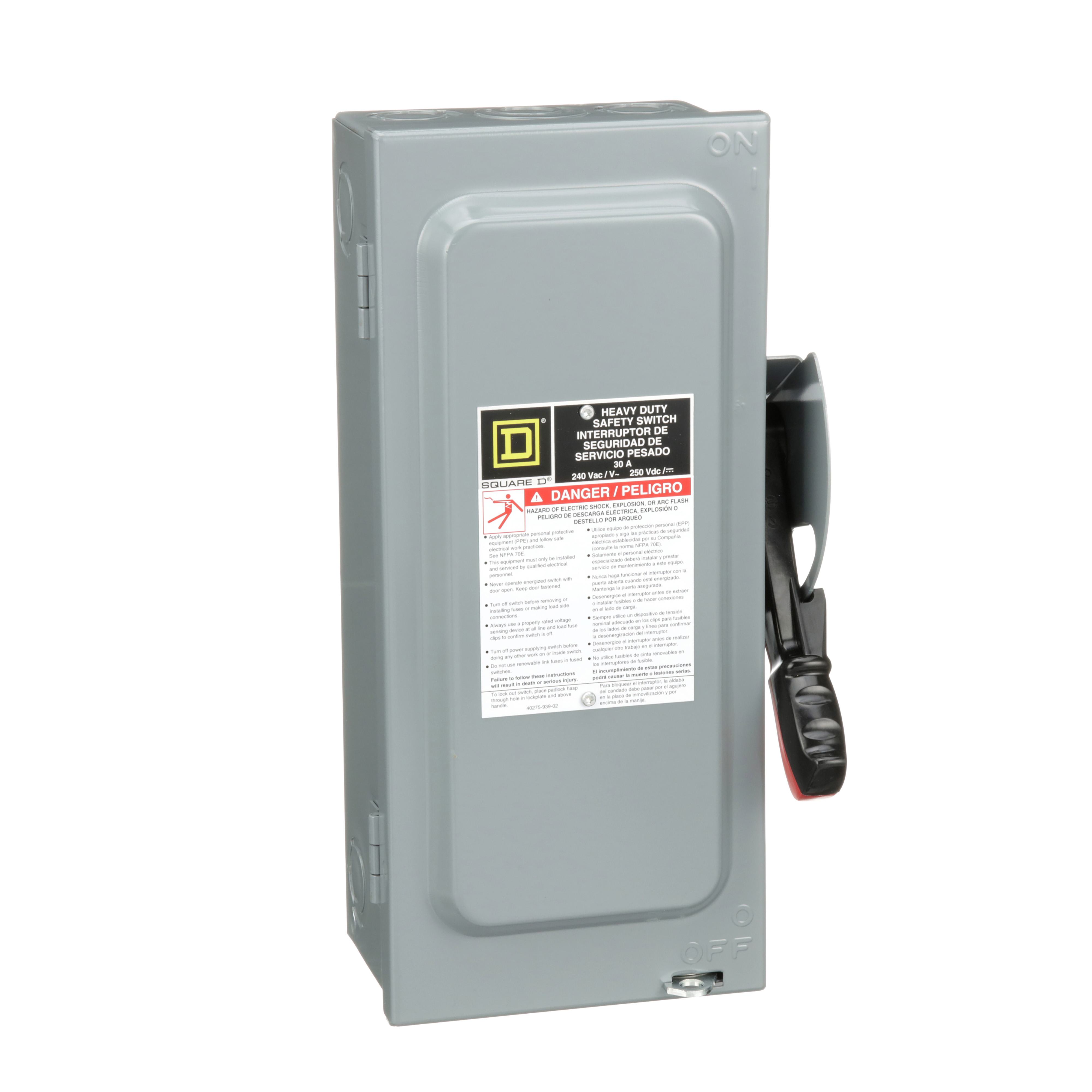

Square D™ H221N
Square D™ H221N Heavy Duty Fusible Safety Switch, 240/250 VAC/VDC, 30 A, 1-1/2 to 5 hp, DPST Contact, 2 Poles
Brand: Square D™
Item ID: 51783
MPN: H221N
Login for Price
Features
- Visible blades for positive indication that switch is OFF
- Side opening, left hinged covers
- Front removable mechanical lugs
- Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open
- An interlock bypass is provided for access by authorized personnel
- Fusible and Non-Fusible options
Description
The Square D™ by Schneider Electric brand heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most gruelling conditions from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. The design life of a F Series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D™ by Schneider Electric heavy duty safety switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color coded indicator handle.
Square D™ Safety Switch, Heavy Duty Fusible, 240/250 VAC/VDC, 30 A, 1-1/2 to 5 hp, 1 ph, 2 Pole, 3 Wires, 10/200 kA Short Circuit Current, DPST, Handle Actuator, NEMA 1, Surface Mount, Lug Terminal, 7.55 in W x 4.88 in D x 14.6 in H, Steel
Specifications
Actuator Type |
Handle |
Amperage Rating |
30 A |
Contact Form |
DPST |
Dimensions |
7.55 in W x 4.88 in D x 14.6 in H |
Enclosure Type |
NEMA 1 |
Horsepower |
1-1/2 to 5 hp |
Material |
Steel |
Mounting Type |
Surface |
Number of Poles |
2 |
Number of Wires |
3 |
Phase |
1 ph |
Short Circuit Current Rating |
10/200 kA |
Terminal Type |
Lug |
Type |
Heavy Duty Fusible |
Voltage Rating |
240/250 VAC/VDC |
Standard Approval |
RoHS Compliant|Federal Specifications WS865C|UL 98 File No. E2875|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
Commercial, Industrial, Indoor and General Purpose Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d5e86692853407af06e1db2392a27924bce74a09487bdf003ba66dbf7eacf061.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_71121d0460932757820bf2c30d742adb4f927410610c813cfbb2c3ca732625db.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_H3612RBGL_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HU362AWC_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HU362AWC_Instruction_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001K2L1LH13_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_H221N_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b8260c883ef22b04bf9356a112501215a33f12fe4452c13c082d44de2d451e6a.pdf
