Square D™ H222DS

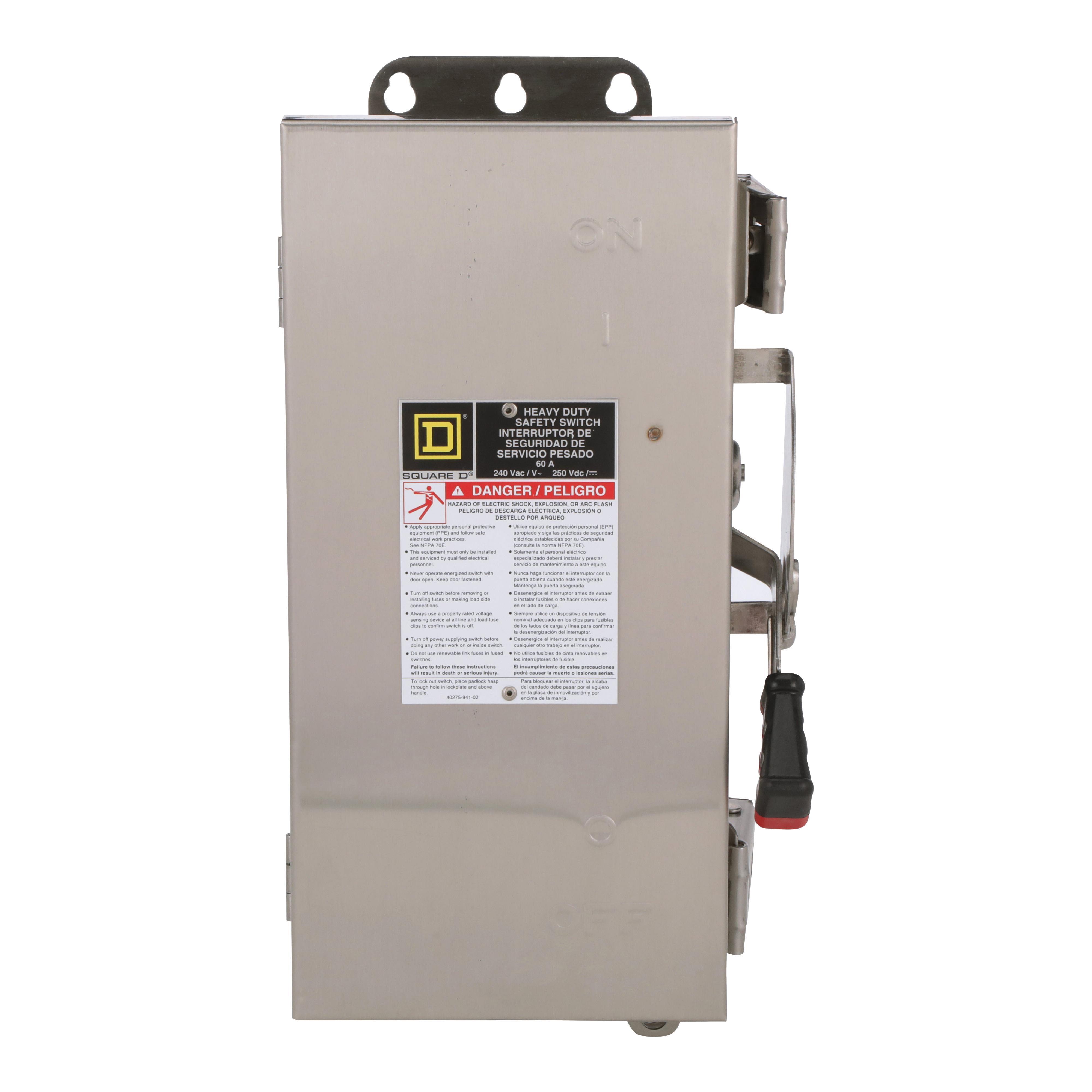

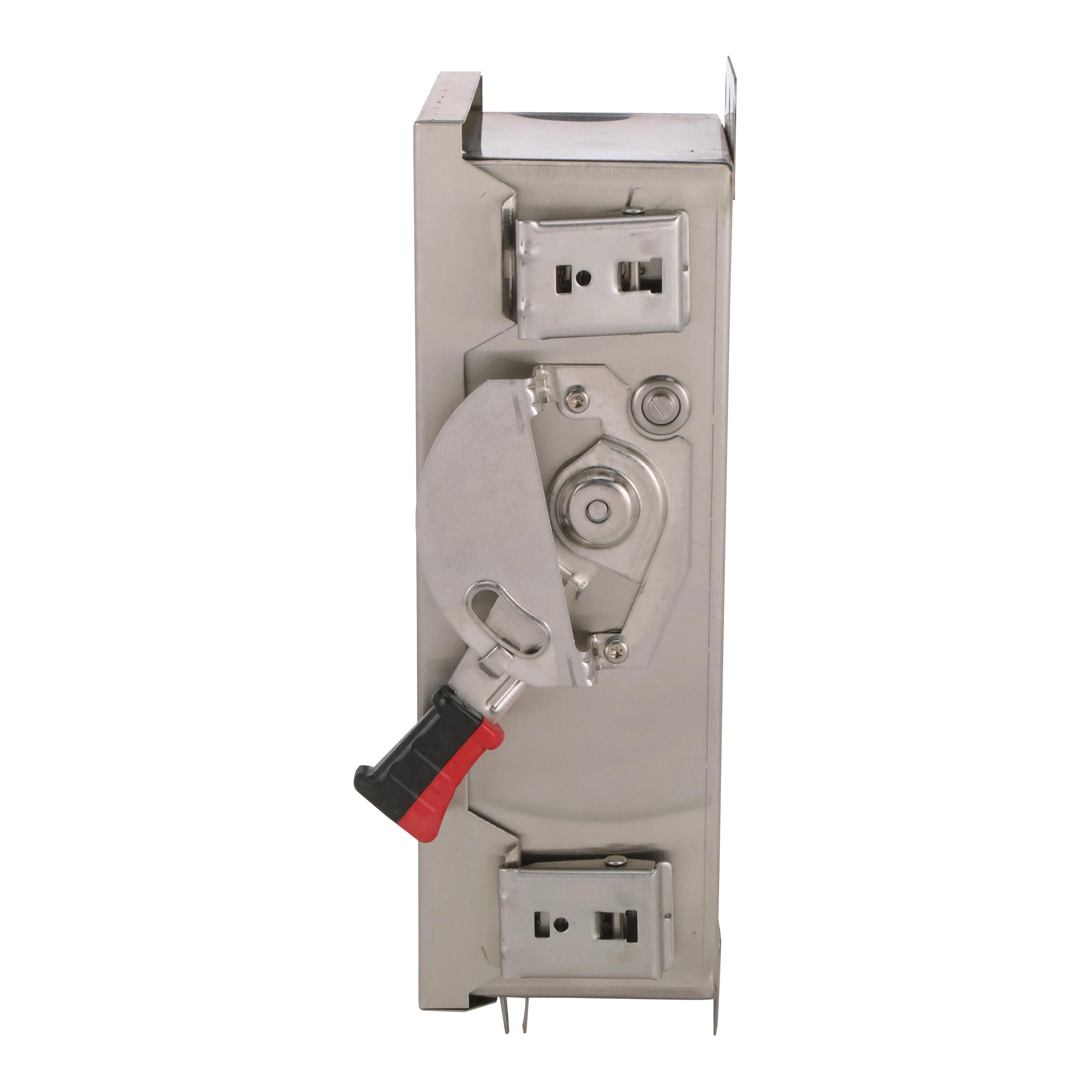

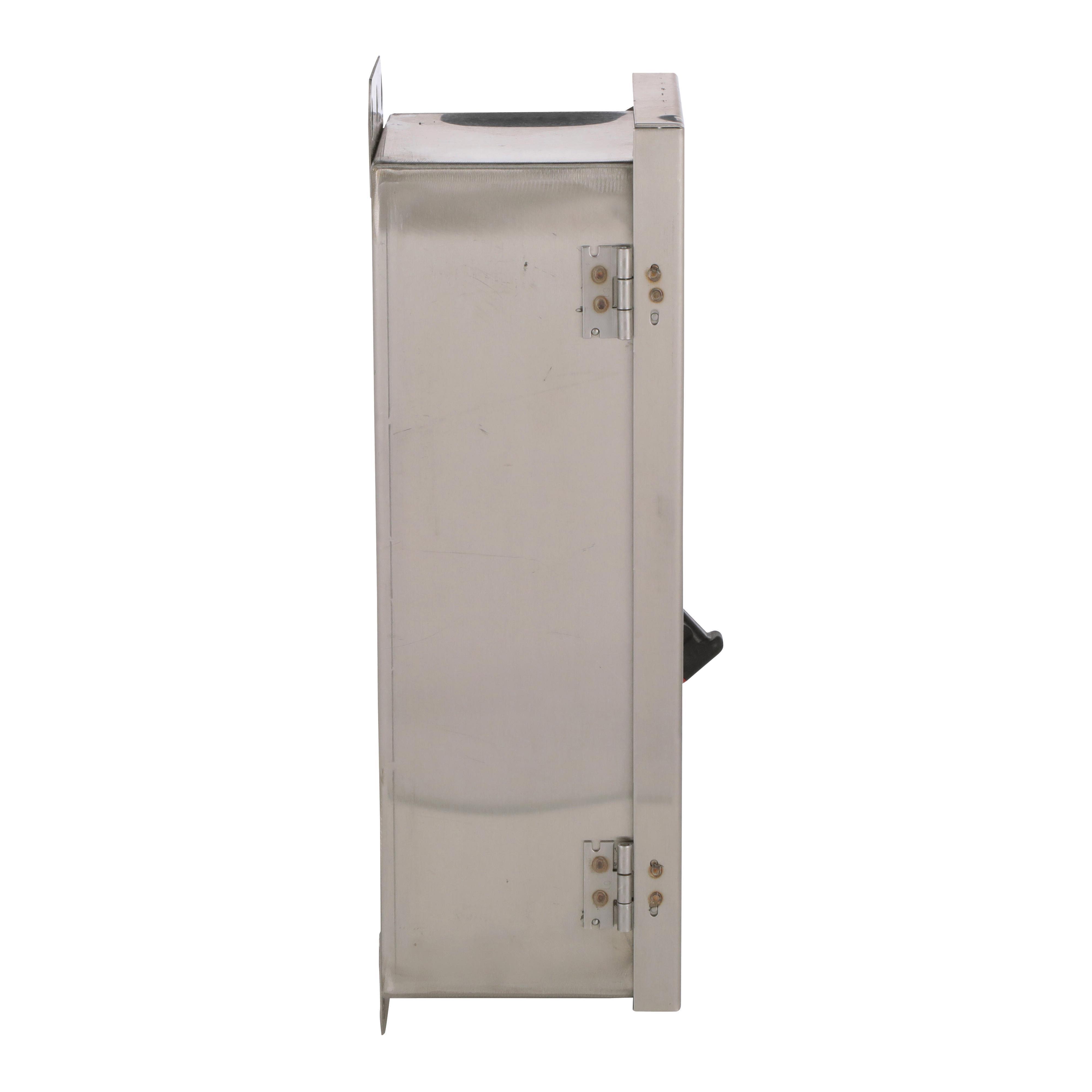

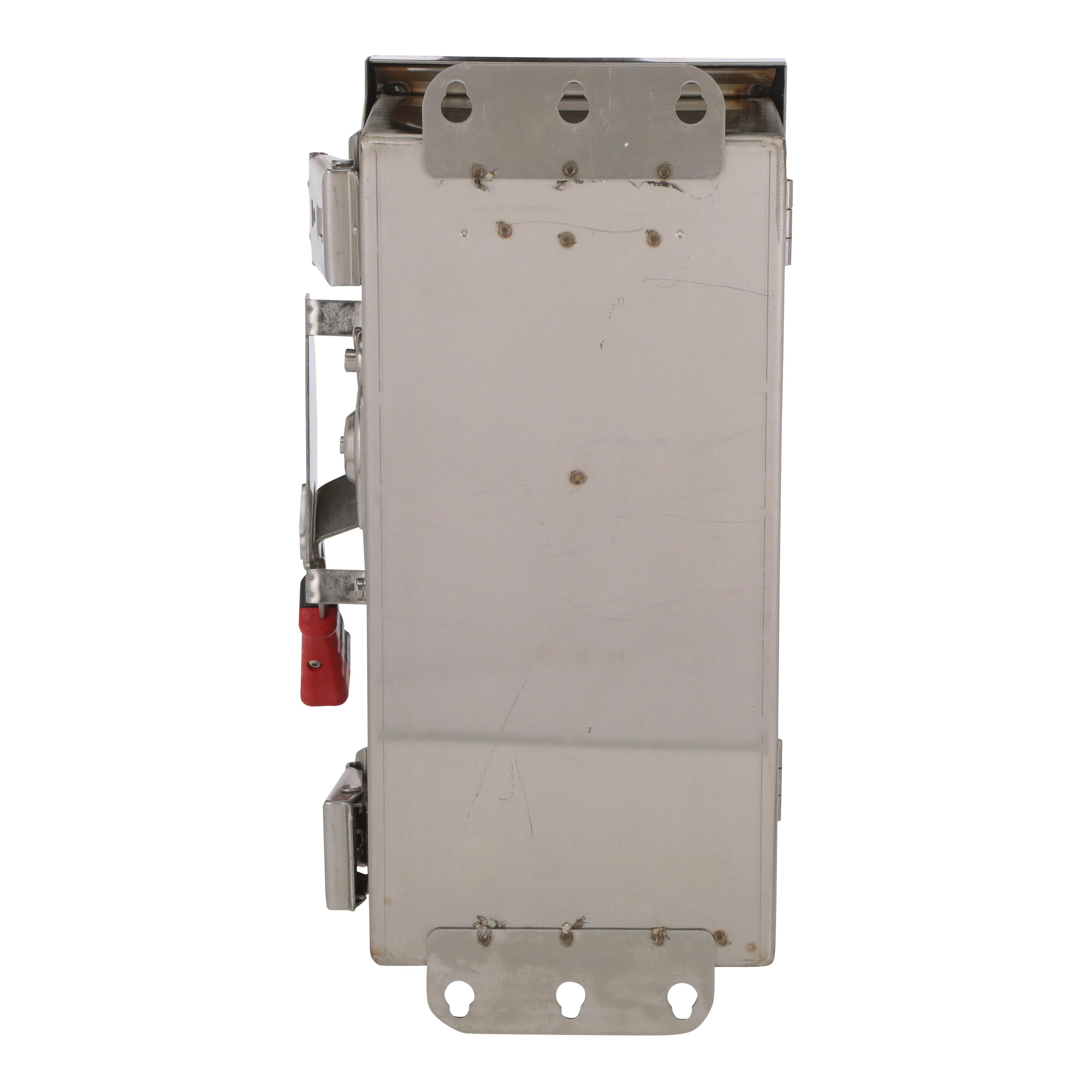

Square D™ H222DS F6 Corrosion-Resistant Dust/Watertight Fusible Rainproof Single Throw Heavy Duty Safety Switch, 240 VAC, 250 VDC, 60 A, 3 hp, 7-1/2 hp, 10 hp, 15 hp, DPST Contact, 2 Poles
Brand: Square D™
Item ID: 532329
MPN: H222DS
UPC: 785901023647
Login for Price
Features
- Visible blades for positive indication that switch is "OFF"
- Quick make, quick break operating mechanism
- Optional viewing window allows visual verification of blade position without opening door
- Red and black handle indicates the ON (red)/OFF (black) condition of the switch
- Dual cover interlock prevents the cover from being opened when the switch is on and prevents the switch from being turned on when the cover is open
- Handle lock-off provision for multiple padlocks "Off" position
- Cover can be padlock closed
- Tangential knockouts, where provided, lessen the need for conduit offset bends
Description
The square D™ by schneider electric brand heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions, from commercial and institutional to industrial and manufacturing facilities.
Square D™ Heavy Duty Safety Switch, Corrosion-Resistant Dust/Watertight Fusible Rainproof Single Throw, Series: F6, 240 VAC, 250 VDC, 60 A, 3 hp, 7-1/2 hp, 10 hp, 15 hp, 1/2/3 ph, 2 Pole, 2 Wires, 200 kA Short Circuit, DPST Contact Form, NEMA 4/4X/5 Enclosure, Surface Mounting, Lug Terminal, -22 to 104 deg F, 7.22 in W x 5.11 in D x 14.93 in H Dimensions, 304 Stainless Steel
Specifications
Amperage Rating |
60 A |
Contact Form |
DPST |
Dimensions |
7.22 in W x 5.11 in D x 14.93 in H |
Enclosure Type |
NEMA 4/4X/5 |
Horsepower |
3 hp, 7-1/2 hp, 10 hp, 15 hp |
Material |
304 Stainless Steel |
Mounting Type |
Surface |
Number of Poles |
2 |
Number of Wires |
2 |
Phase |
1/2/3 |
Series |
F6 |
Short Circuit Current Rating |
200 kA |
Temperature Rating |
-22 to 104 deg F |
Terminal Type |
Lug |
Type |
Corrosion-Resistant Dust/Watertight Fusible Rainproof Single Throw |
Voltage Rating |
240 VAC, 250 VDC |
Standard Approval |
RoHS Compliant|Federal Specification WS-865c|UL 98 File No. E2875|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
Mining, Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Waste Water Treatment Plants, Healthcare Facilities, Educational Campuses and Indoor/Outdoor Applications |
