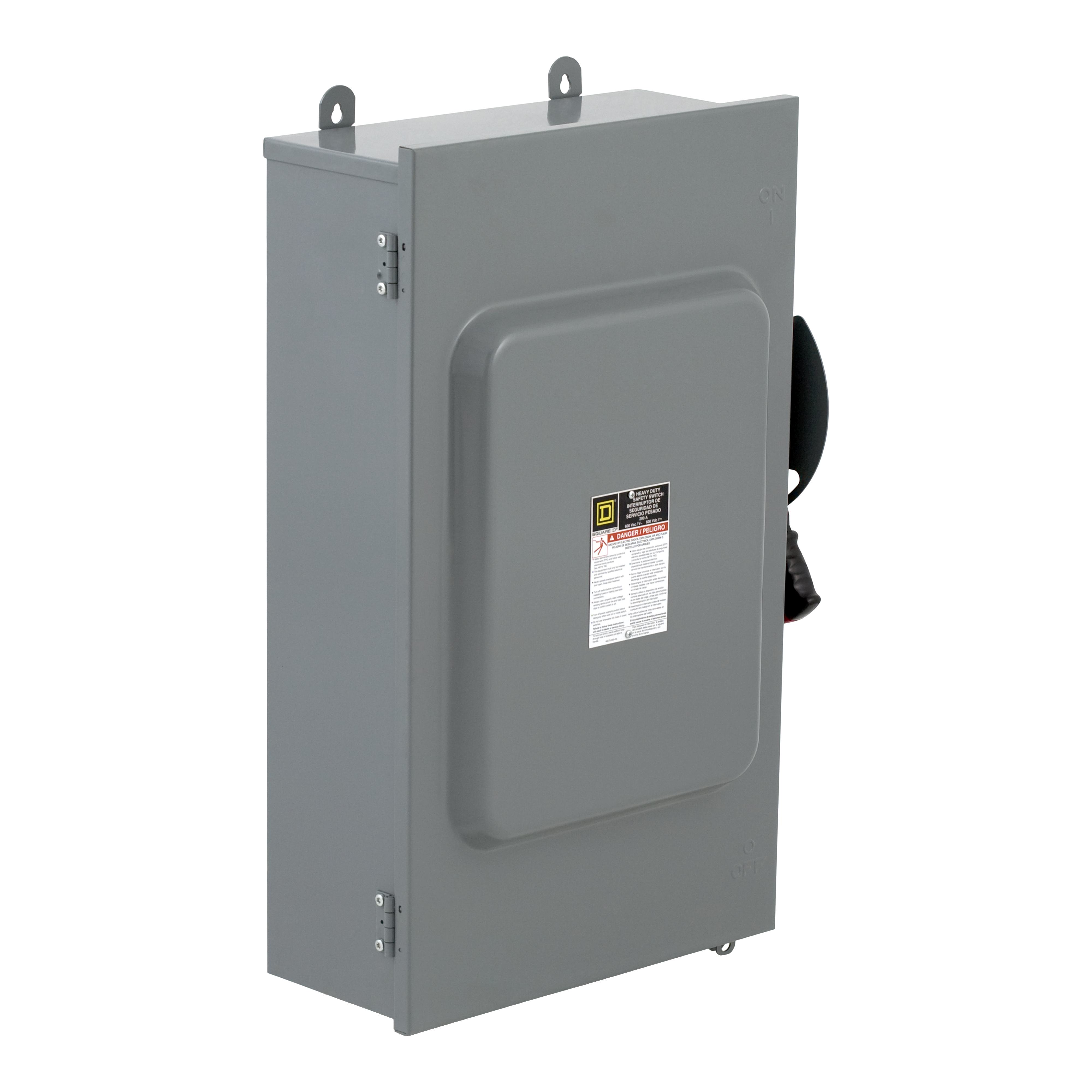

Square D™ H224AWK

• Visible blades for positive indication that switch is Off
• Quick-make, quick-break operating mechanism
• Optional viewing window allows visual verification of blade position without opening door
• Red and black handle indicates the On (red) or Off (black) switch position
• Dual cover interlock prevents the cover from being opened when the switch is On and prevents the switch from being turned On when the cover is open
• Handle lock off provision for multiple padlocks Off position
• Cover can be padlock closed
• Tangential knockouts, where provided, lessen the need for conduit offset bends
• Spring reinforced plated copper fuse clips
• Without knockouts

The Square D™ by Schneider Electric brand heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions, from commercial and institutional to industrial and manufacturing facilities. F series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL 98 standards require. The design life of a F Series switch is a minimum of 3X the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D™ by Schneider Electric heavy duty safety switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. All heavy duty safety switches feature a quick make, quick break operating mechanism, a dual cover interlock and a color coded indicator handle.

Square D™ Safety Switch, Dusttight Driptight Heavy Duty Fusible Rainproof, Series: F6, 240 VAC, 250 VDC, 200 A, 60 hp at 240 VAC, 40 hp at 250 VDC, 3 ph, 2 Pole, 2 Wires, 10 to 200 kA Short Circuit, 2NO Contact Form, Handle/Single Throw Actuator, NEMA 3R/12 Enclosure, Surface Mounting, Lug Terminal, -22 to 104 deg F, 29 in H x 17-1/4 in W x 8-3/4 in D Dimensions, Steel, Gray, Galvannealed/Painted
