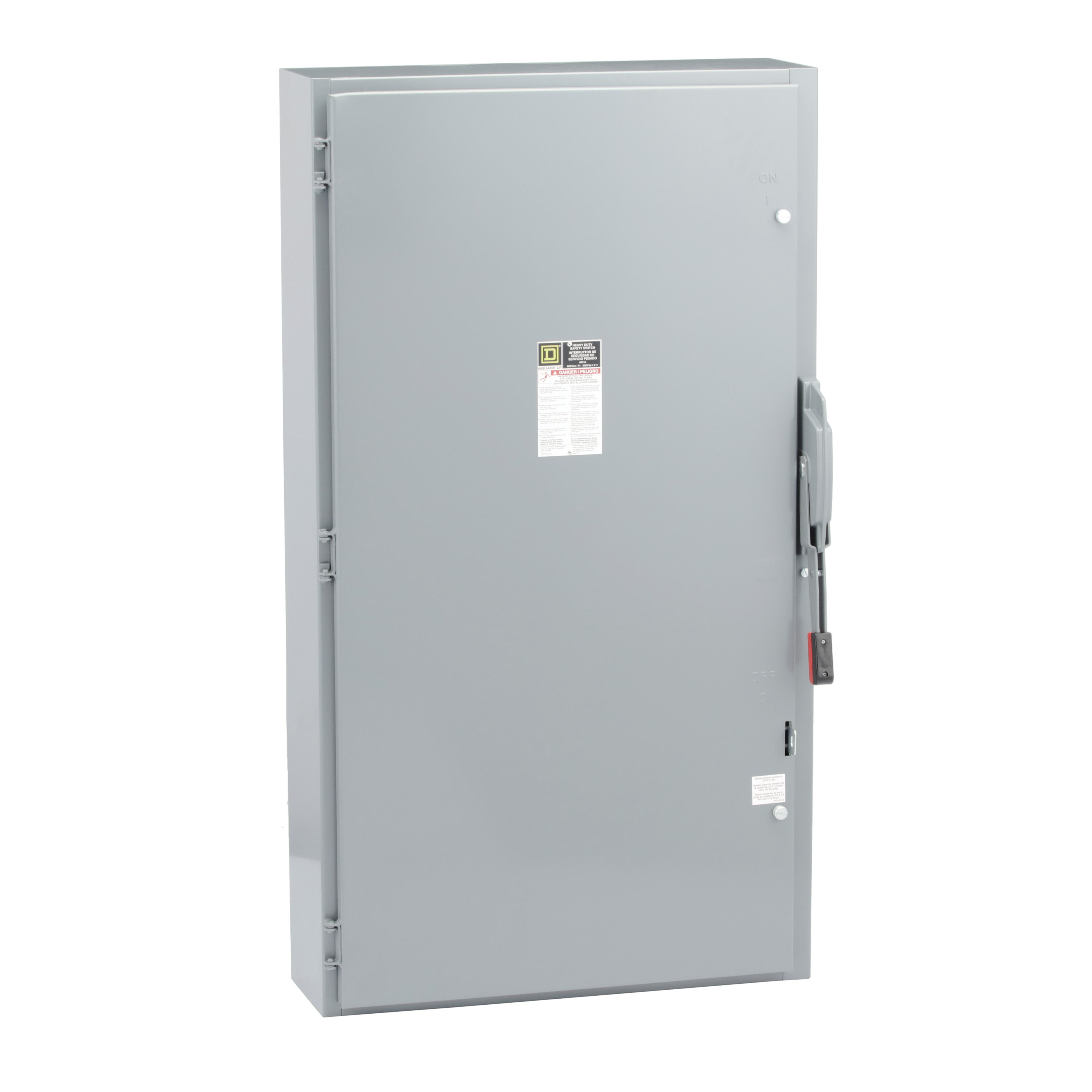

Square D™ H226N

• Visible blades for positive indication that switch is "OFF"
• Quick make/quick break operating mechanism
• Optional viewing window allows visual verification of blade position without opening door
• Red and black handle indicates the ON (red)/OFF (black) condition of the switch
• Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open
• Handle lock-off provision for multiple padlocks "OFF" position
• Cover can be padlock closed
• Tangential knockouts, where provided, lessen the need for conduit offset bends
• Spring reinforced plated copper fuse clips
• Factory-installed neutral

The Square D™ by Schneider Electric brand heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions, from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. The design life of a F Series switch is a minimum of 3X the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D™ by Schneider Electric heavy duty safety switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. All heavy duty safety switches feature a quick make, quick break operating mechanism, a dual cover interlock and a color coded indicator handle.

Square D™ Heavy Duty Safety Switch, Fusible General Purpose, Series, 240/250, Amperage Rating VAC/VDC, A 600, 200 hp at 240 VAC, 50 hp at 250 VDC, Phase, Number of Poles, 3 Wires, Short Circuit Current Rating, kA 10 to 200, Single Throw, Actuator Type, Enclosure Type, Surface Mount, Terminal Type, -22 to 104, Dimensions deg F, Cold Rolled Steel, Color, Painted
