Square D™ H361N

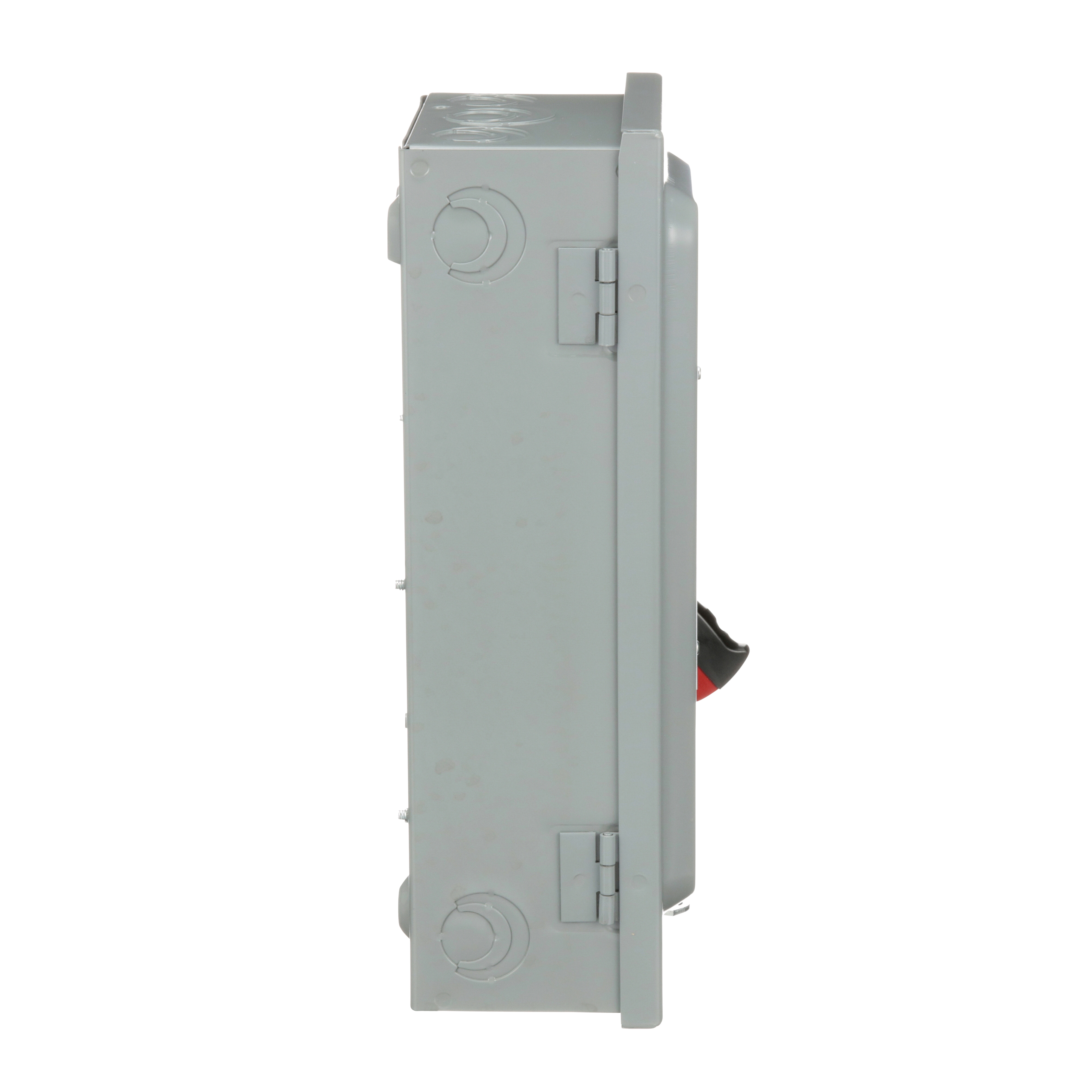

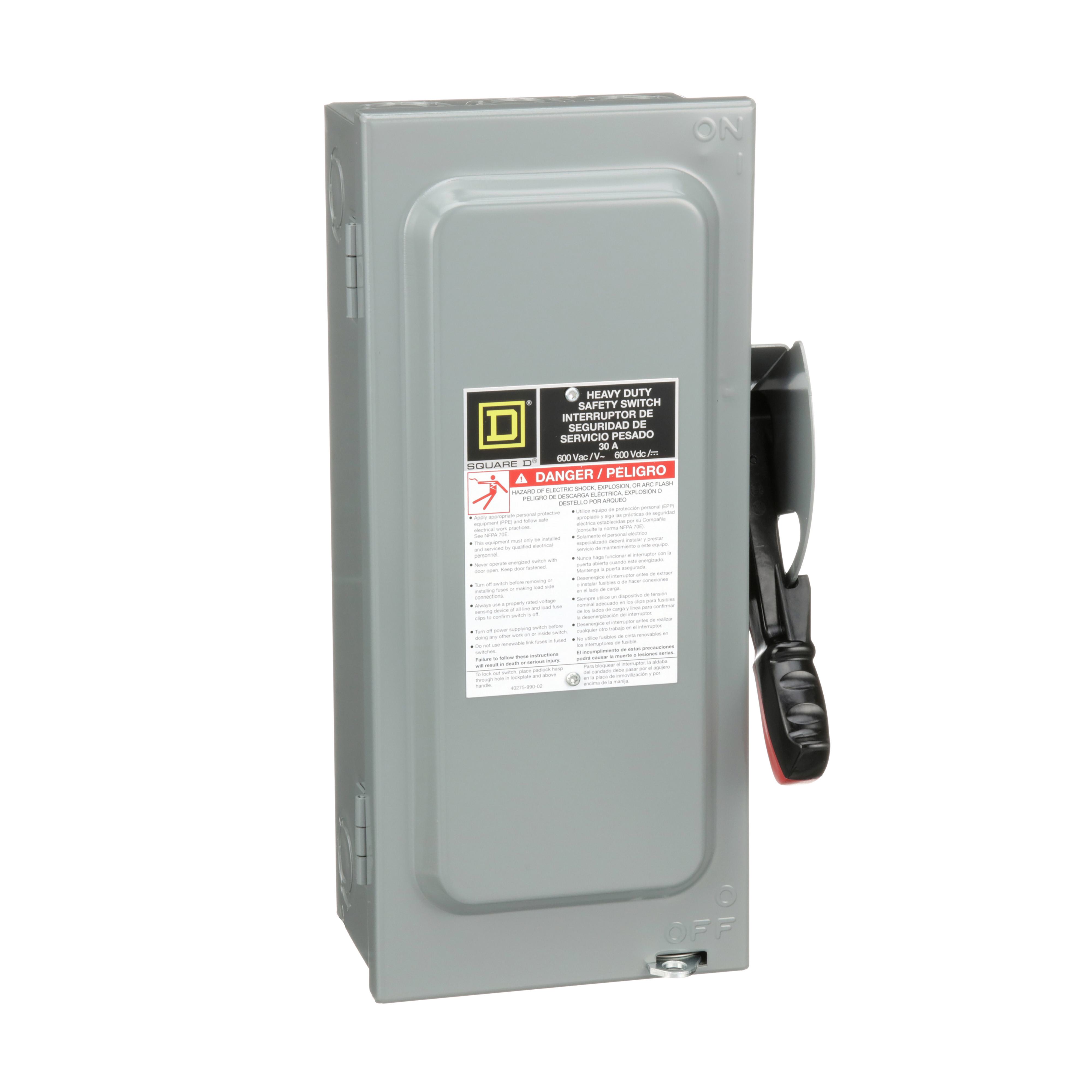

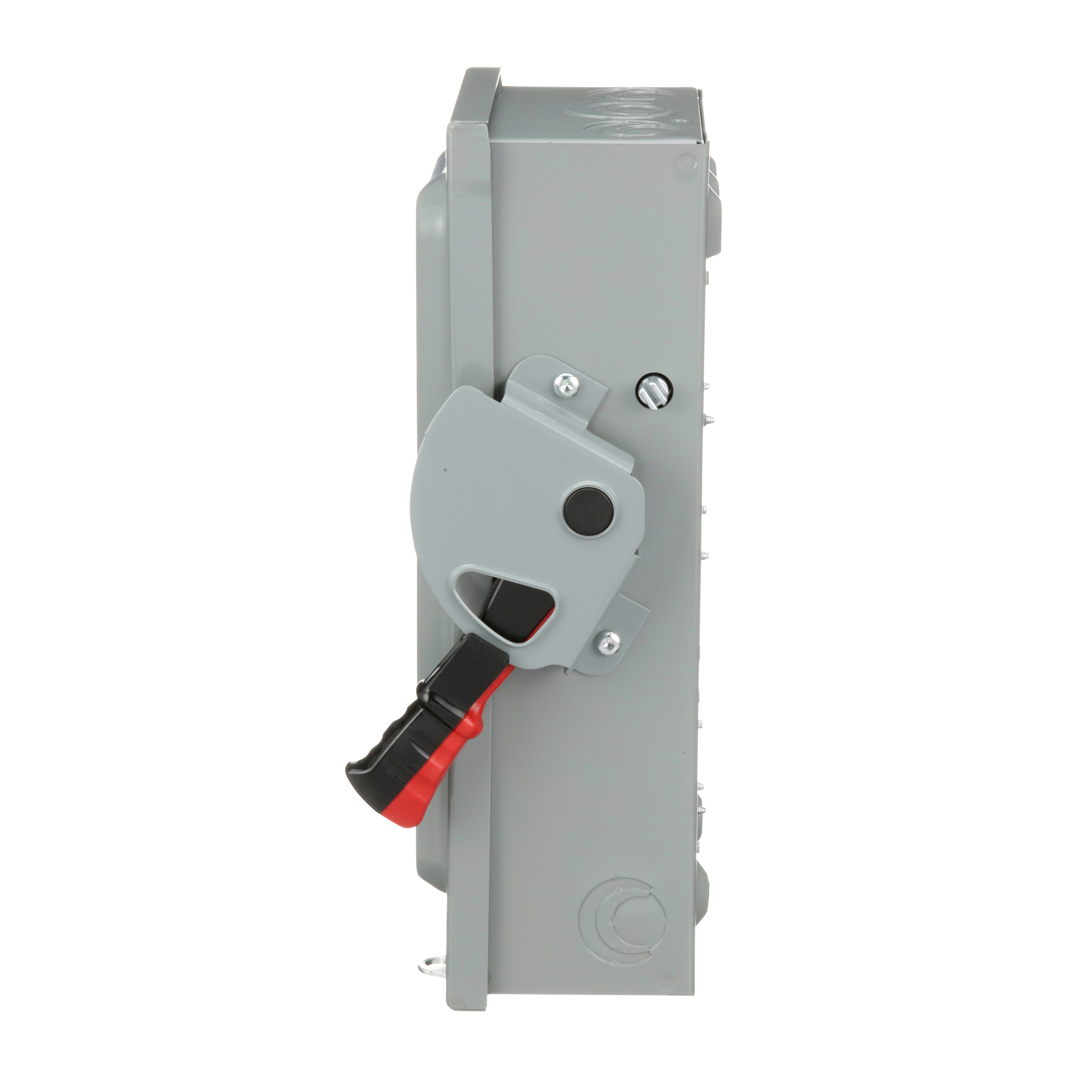

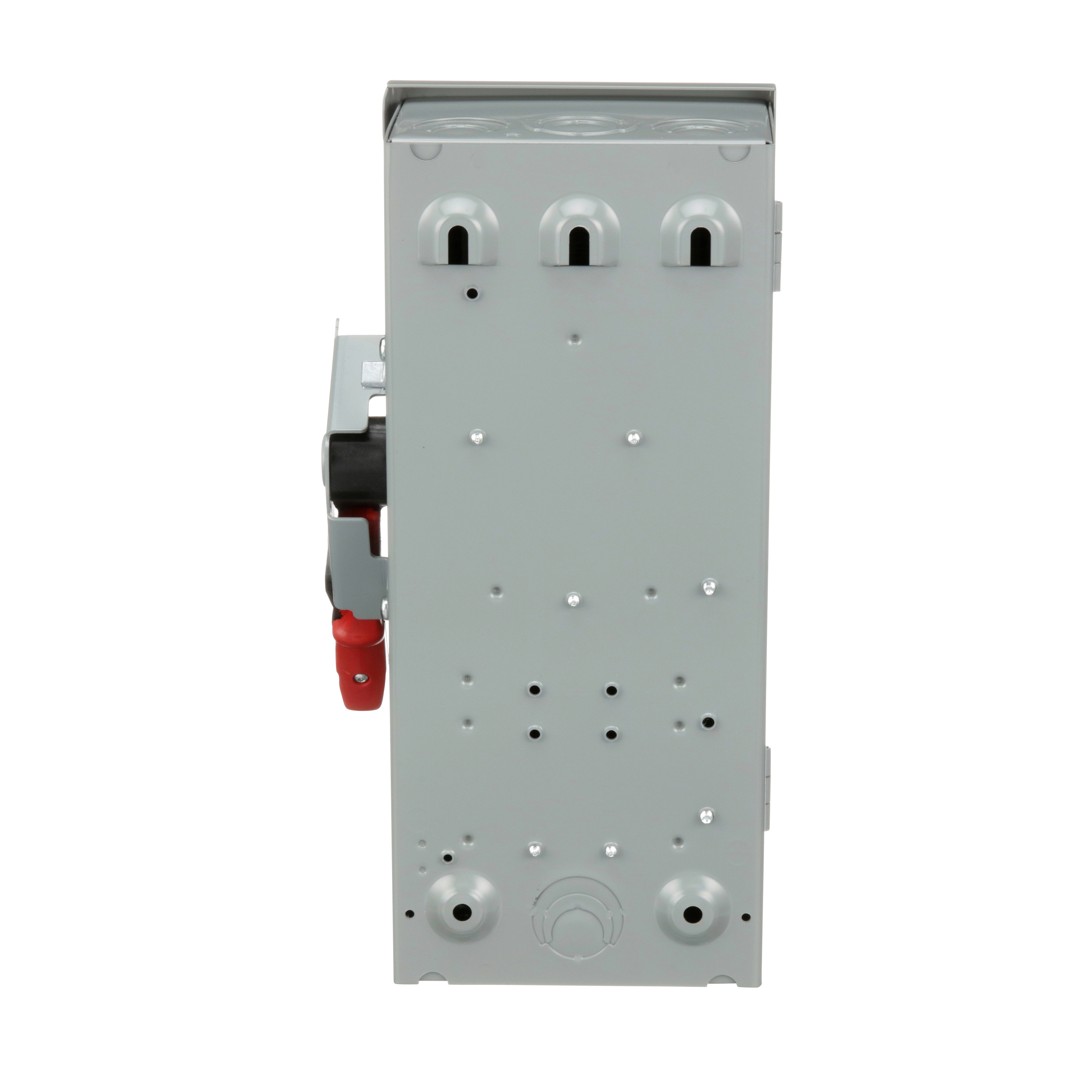

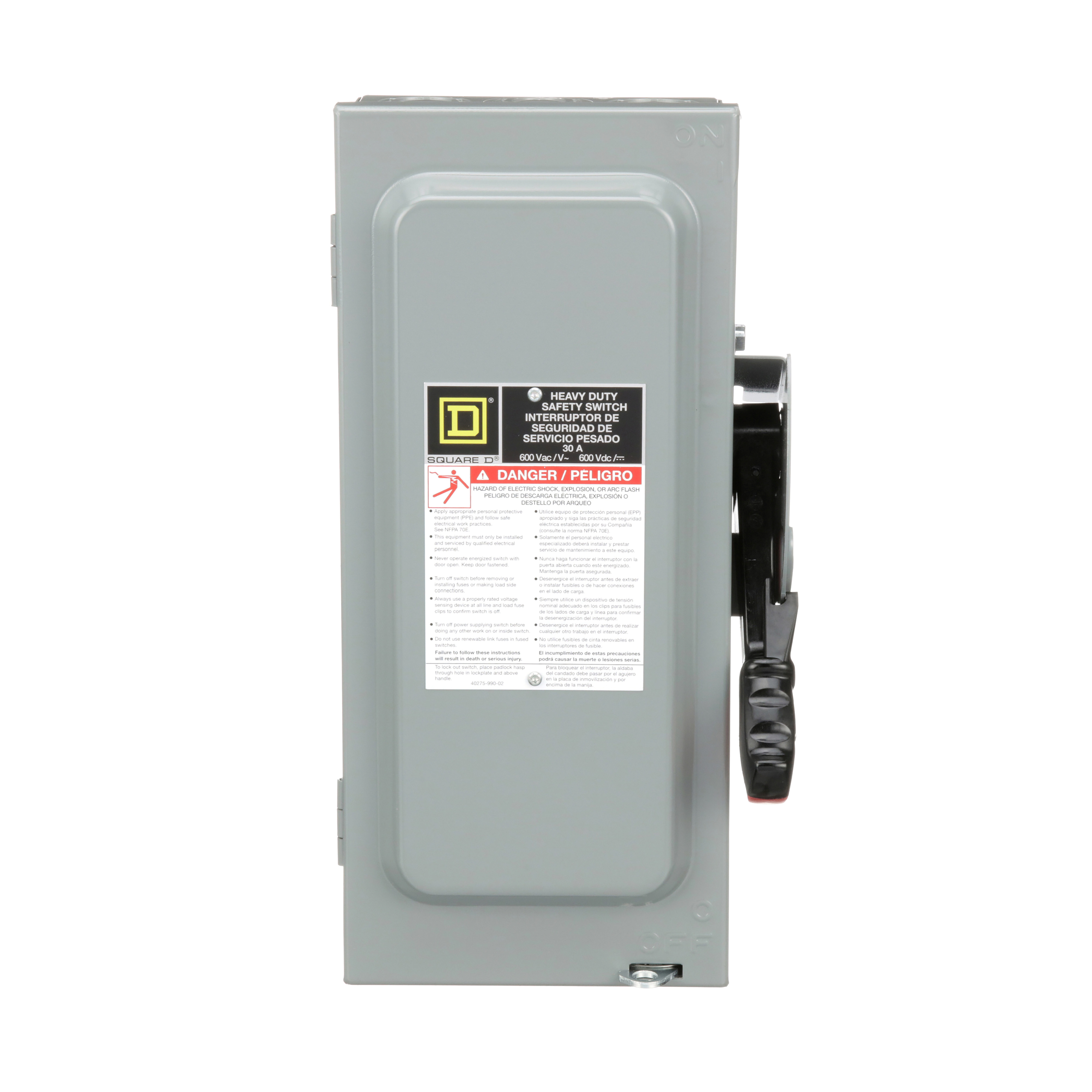

Square D™ H361N Heavy Duty Fusible Safety Switch, 600 VAC/VDC, 30 A, 7-1/2 hp, 15 hp, Single Throw Contact, 3 Poles
Brand: Square D™
Item ID: 51908
MPN: H361N
Login for Price
Features
- Visible blades for positive indication that switch is off
- Quick-make, quick break operating mechanism
- Multiple padlock provisions in the OFF position
- Tangential knockouts alleviate the need for offset bends
Description
Visible blade heavy duty safety switches are designed for application where maximum performance and continuity of service are required. All heavy duty safety switches feature quick-make, quick-break operating mechanism, a dual cover interlock and a color coded indicator handle. They are suitable for use as service equipment when equipped with a field- or factory installed neutral assembly or equipment grounding kit, unless a 600Y/347 VAC or 480 Y/277 VAV, 1000 A or greater, solidly grounded WYE system is used.
Square D™, H361N, Safety Switch, Heavy Duty Fusible, 600 VAC/VDC, 30 A, 7-1/2 hp, 15 hp, 3 ph, 50/60 Hz Frequency, 3 Pole, 4 Wires, 10/200 kA Short Circuit, Single Throw Contact Form, Handle Actuator, NEMA 1 Enclosure, Surface Mounting, Lug Terminal, 7.55 in W x 4.87 in D x 14.6 in H Dimensions, Steel, Painted
Specifications
Actuator Type |
Handle |
Amperage Rating |
30 A |
Contact Form |
Single Throw |
Dimensions |
7.55 in W x 4.87 in D x 14.6 in H |
Enclosure Type |
NEMA 1 |
Finish |
Painted |
Frequency Rating |
50/60 Hz |
Horsepower |
7-1/2 hp, 15 hp |
Material |
Steel |
Mounting Type |
Surface |
Number of Poles |
3 |
Number of Wires |
4 |
Phase |
3 |
Short Circuit Current Rating |
10/200 kA |
Terminal Type |
Lug |
Type |
Heavy Duty Fusible |
Voltage Rating |
600 VAC/VDC |
Standard Approval |
RoHS Compliant|UL File No. E2875|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
General Purpose and Indoor Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_38883d9af2fb32181f8bca874df3f5842627c8bedd5020f055c26b745d7f3963.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_H3612RBGL_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HU362AWC_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HU362AWC_Instruction_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8501NR45B_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_H361N_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d7f739a812fd939466304e73d208ccfa345c67403c918a915018ec871381c697.pdf
